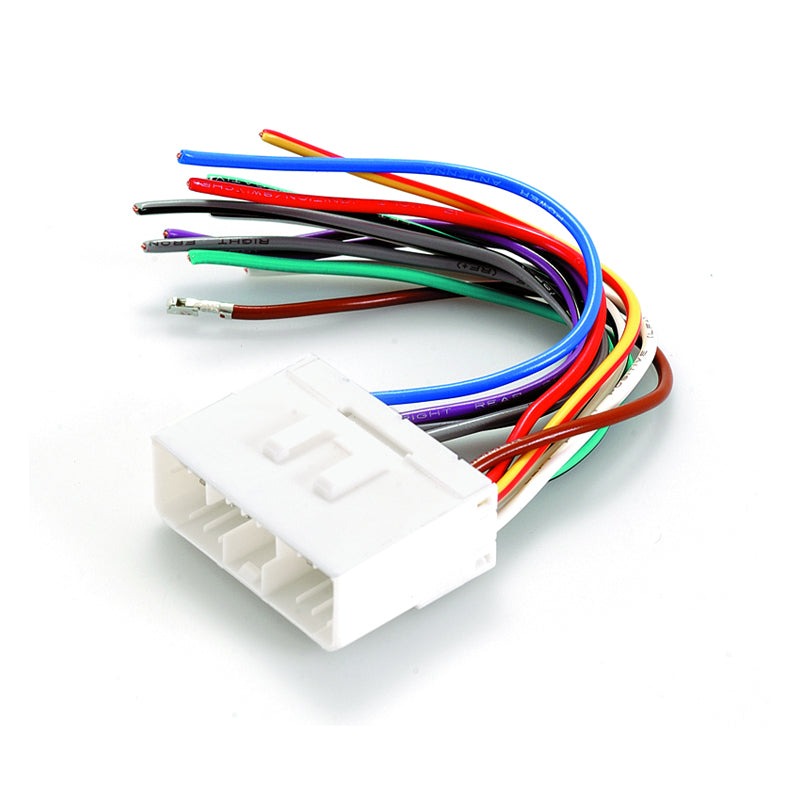

Aerpro AP1784H Primary Harness to Suit Holden Vehicles

"Get Connected" with Our Range of Cables, Antennas and Adaptors

Allowing for the installation of an aftermarket headunit without the need to remove the factory plug from the vehicle, AP1784H provides colour-coded bare end wires to match standard aftermarket radio wiring looms. Simply match the wire colours between the AP1784H and your aftermarket headunit wiring loom (supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (sold separately) and ensure they are insulated correctly once connected.

Note: Alternatively, Aerpro APP062 can be used which converts the vehicle plug to ISO connector system

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type: 1 X 14 Pin
• Installation Type: Bare Wire, Requires Soldering

Vehicles Known to Work with this Product:

Holden Commodore 1997-1999 VT Series I , II

Holden Commodore 2000-2002 VX Series I, II, VU

Holden Monaro 2001-2002 V2

Holden Statesman 1999-2003 WH Series I , II

Holden Calais 1997-1999 VT
