Aerpro AP1771 wiring harness

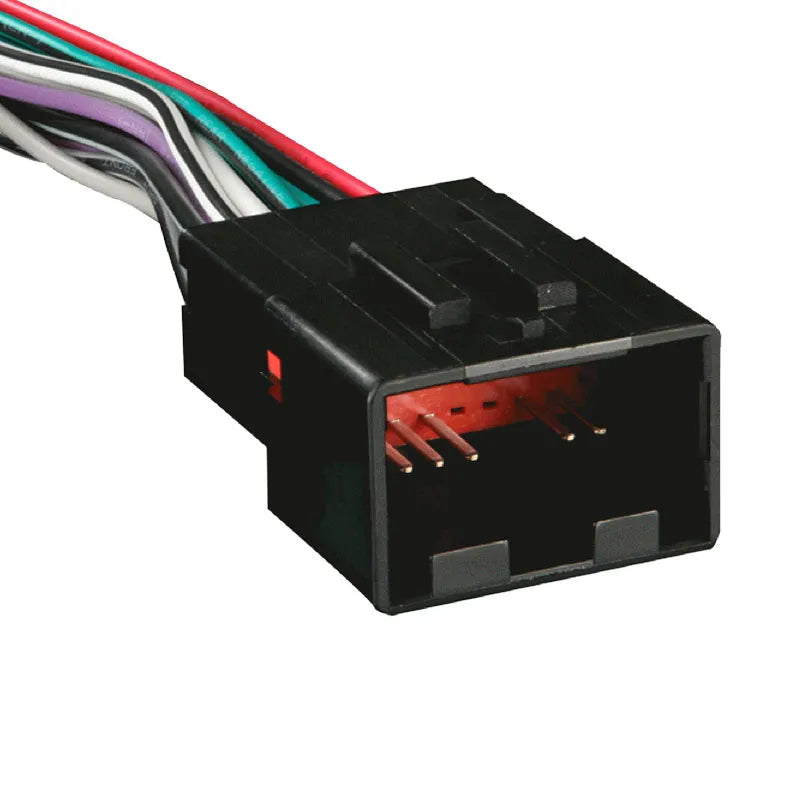

Aerpro AP1771 Vehicle-Specific Plug to Bare Wire Harness Suit Ford Various Models

$19.99

Product features

Simple Identification & Easy Installation!

Vehicle-Specific Plug to Bare Wire Harness
This Aerpro Harness plugs into your Ford F150, F250, F350, and F650 factory headunit wiring system. Allowing for the installation of an aftermarket headunit without the need to remove the factory plug from the vehicle, AP1771 provides colour-coded bare-end wires to match standard aftermarket radio wiring looms. Simply match the wire colours between the AP1771 and your aftermarket headunit wiring loom (Supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (Sold Separately) and ensure they are insulated correctly once connected.

Please Note: Harnesses vary between vehicles, please use the Aerpro Vehicle Selector to identify the correct harness for your application.

Features:

  • Connects to vehicle's factory wiring, providing bare-end wires
  • No need to remove the factory stereo plug from the vehicle
  • Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
  • Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (Solder) them together
  • Solder (or crimps) and heat shrink (Or insulation tape) required for installation, not included

Specifications:

  • Plug Type: 1 x 16 Pin
  • Installation Type: Bare Wire, Requires Soldering
  • Packaging Type: Polybag
  • Weight: 0.02kg

Vehicle Compatibility:

  • Ford F150 (1999 to 2002)
  • Ford F150, 4 Door Pick Up (2001 to 2002)
  • Ford F250 (1999 to 2002)
  • Ford F350 (1999 to 2002)

FAQ

What does the Aerpro AP1771 do?

It plugs into the factory radio plug (16 pin) and gives you colour coded bare wires to join to your new head unit loom, so you do not have to cut the factory plug.

Do I need to solder it?

Yes. Match the wire colours and solder or crimp each join, then insulate it with heat shrink or tape. Solder and heat shrink are not included.

What vehicles is it listed for?

Ford F150, F250 and F350 (1999 to 2002) and the F150 4 door pick up (2001 to 2002).

Will it fit my car?

Send the F.A.E. team your make, model and year and we will confirm it suits before you order.
