Aerpro AP1720 Primary Harness to Suit Honda Vehicles

"Get Connected" with Our Range of Cables, Antennas and Adaptors

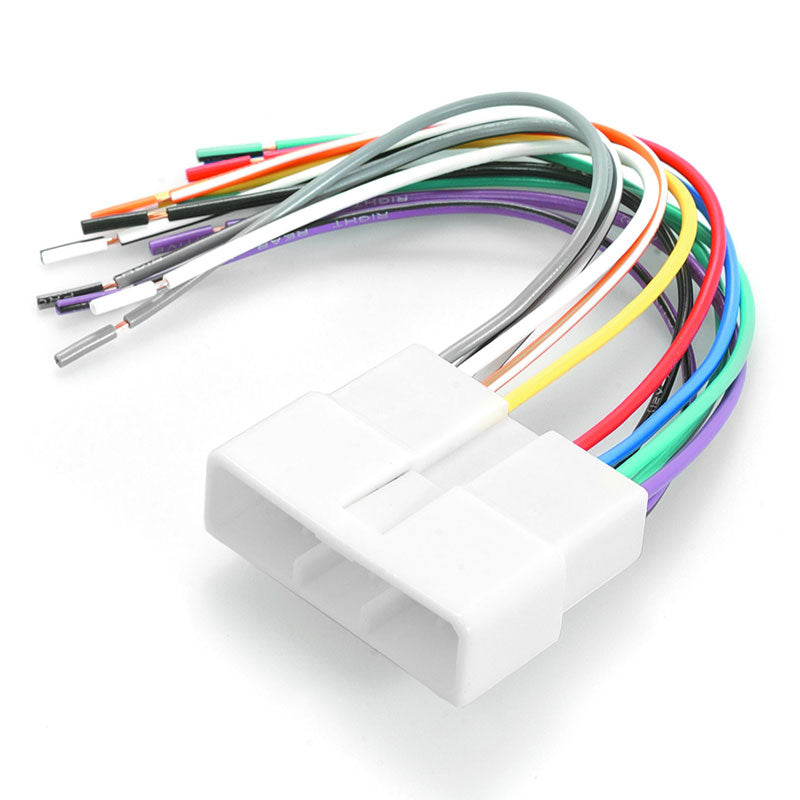

This Aerpro Harness plugs into your Honda Civic, Integra, Legend, Prelude, Accord, CRV and Odyssey factory headunit wiring system. Allowing for the installation of an aftermarket headunit without the need to remove the factory plug from the vehicle, AP1720 provides colour-coded bare end wires to match standard aftermarket radio wiring looms.

Simply match the wire colours between the AP1720 and your aftermarket headunit wiring loom (supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (sold separately) and ensure they are insulated correctly once connected.

Note: Alternatively, Aerpro APP070 can be used which converts the vehicle plug to ISO connector system.

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type:Installation
  • 1 X 12 Pin
• Type: Bare Wire, Requires Soldering

Vehicles Known to Work with this Product:

Honda Civic 1973 to 1985

Honda Civic 1992 to 2000

Honda Integra 1989 to 1992

Honda Integra 1993 to 2001

Honda Legend 1989 to 1991

Honda Legend 1991 to 1995

Honda Prelude 1988 to 1992

Honda Prelude 1992 to 1996

Honda Accord 1993 to 1998

Honda CRV 1997 to 2001

Honda Odyssey 1995 to 2000

Honda Prelude 1983 to 1987

FAQ

What does the Aerpro AP1720 do?

It plugs into the factory radio plug (12 pin) and gives you colour coded bare wires to join to your new head unit loom, so you do not have to cut the factory plug.

Do I need to solder it?

Yes. Match the wire colours and solder or crimp each join, then insulate it with heat shrink or tape. Solder and heat shrink are not included. If you would rather plug in, the Aerpro APP070 converts the factory plug to ISO.

What vehicles is it listed for?

Honda Civic, Integra, Legend, Prelude, Accord, CRV and Odyssey across various years. Ask us to confirm your year.

Will it fit my car?

Send the F.A.E. team your make, model and year and we will confirm it suits before you order.
