Aerpro AOFC24 2-Channel 4AWG OFC Amp Install Kit 1500W Maxcor

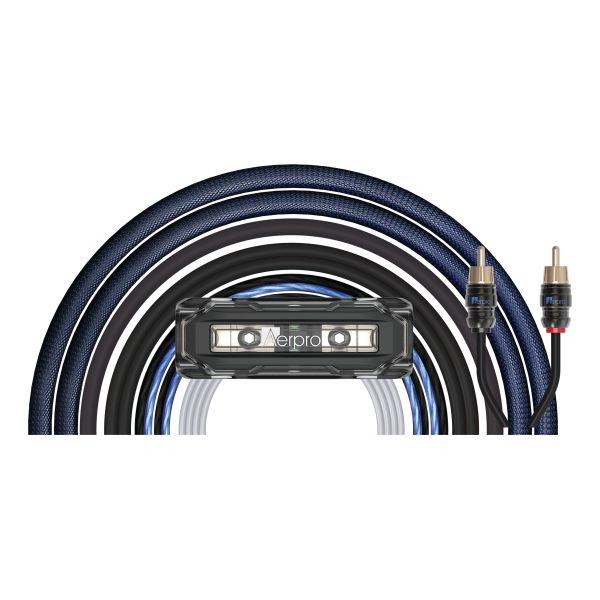

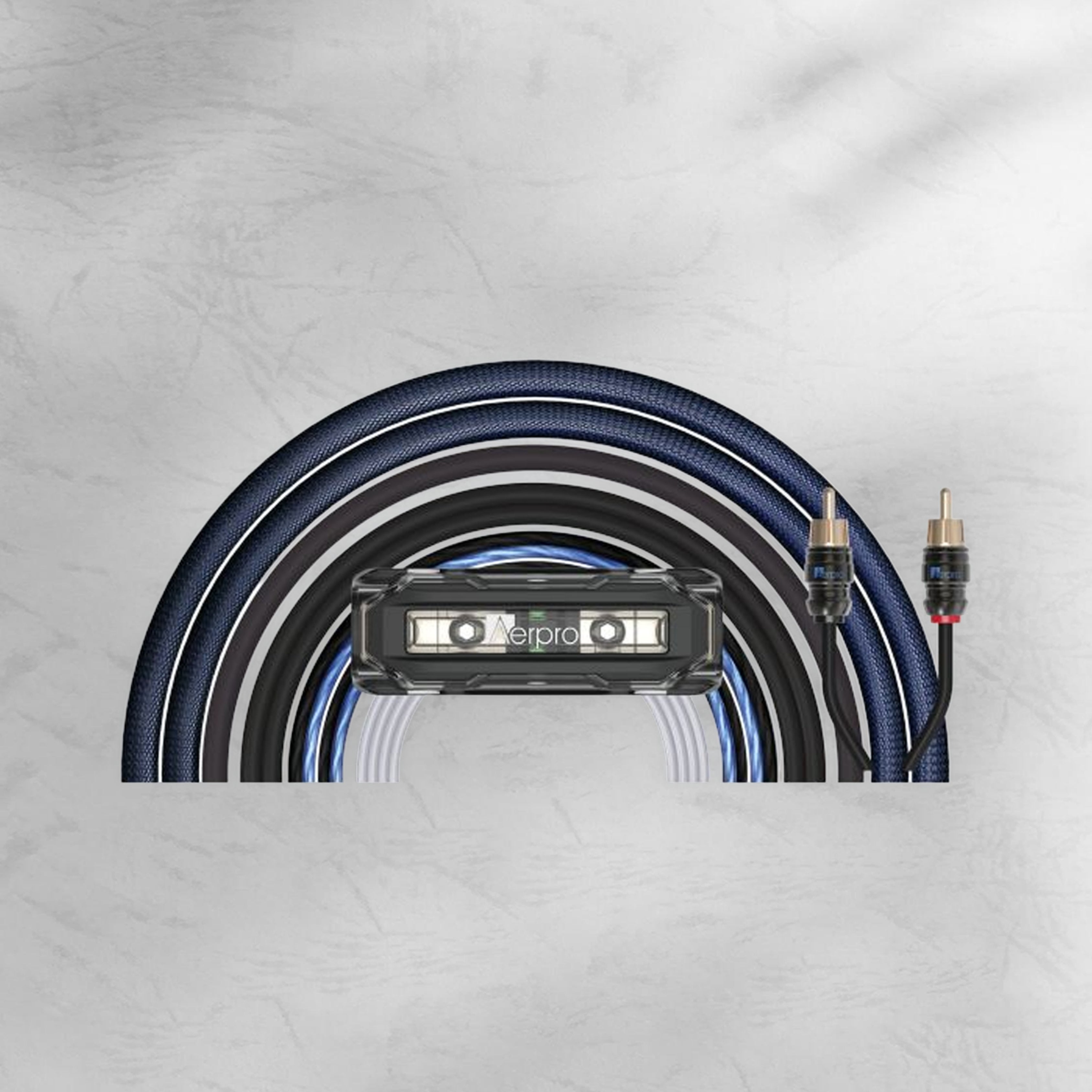

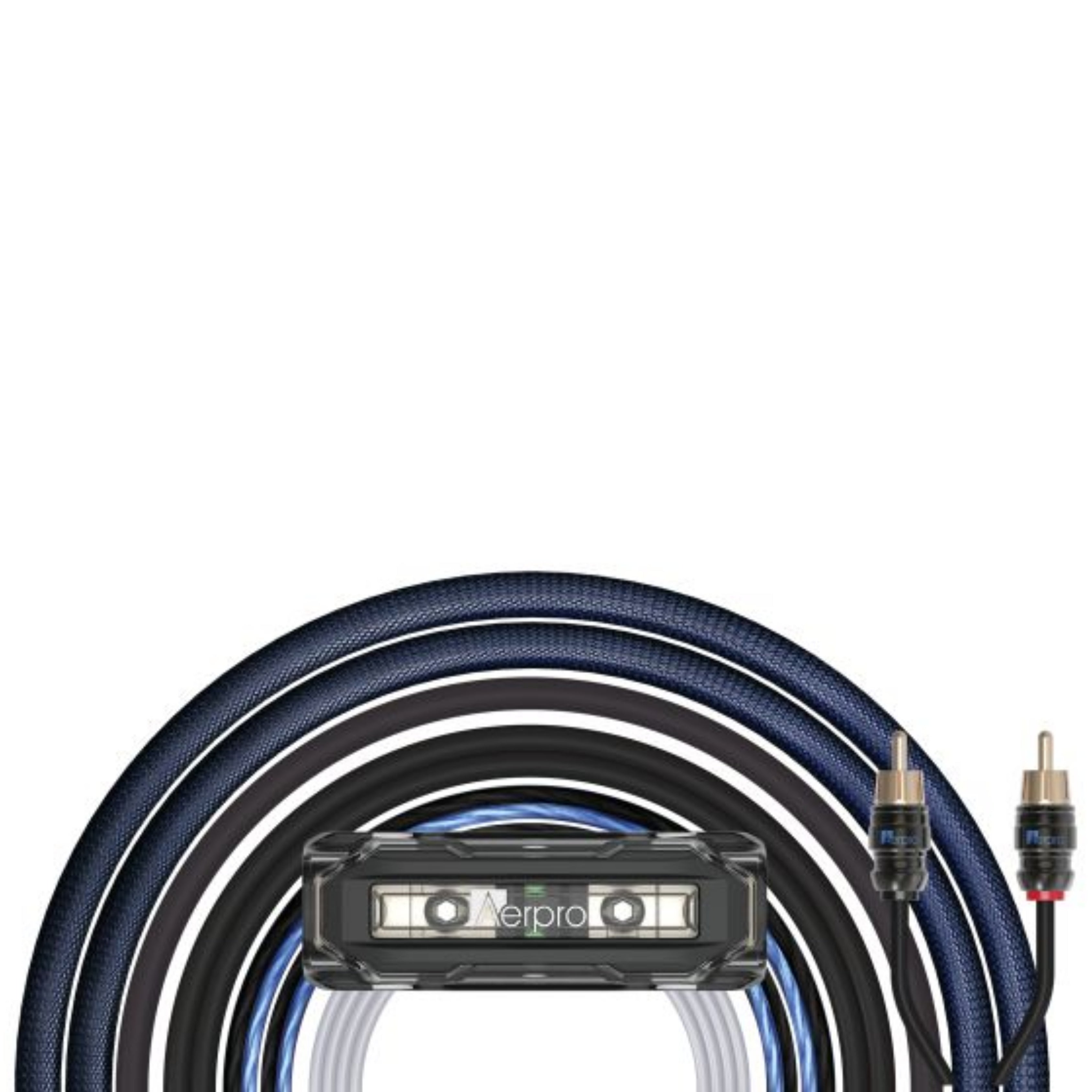

A 2-channel 4AWG tinned Oxygen-Free Copper amplifier install kit rated at 1500W RMS, the Aerpro AOFC24 Maxcor includes a 5.1-metre braided blue tinned OFC power cable, 0.9-metre grey earth cable with pre-attached O-ring terminals, 5-metre 2-channel braided shield RCA with gold-plated connectors, 3-metre 12AWG speaker wire, 5-metre 18AWG remote wire, Mini ANL fuse holder with 100A fuse, plastic grommets, assorted ring terminals, and cable ties.

Product Overview

The Aerpro AOFC24 is a 2-channel 4AWG amplifier installation kit from the Maxcor range, designed for extreme high-output amplifier installations rated up to 1500W RMS. The power and earth cables use tinned Oxygen-Free Copper (OFC) conductors, providing the highest level of conductivity and corrosion resistance for maximum efficiency and long-term durability. Braided blue PVC insulation on the power cable and grey PVC insulation on the earth cable provide both durability and a professional appearance. O-ring terminals are pre-attached to one end of both power and earth cables for a time-efficient professional installation.

Signal integrity is maintained via a 5-metre 2-channel RCA cable with braided shielding and gold-plated connectors, minimising electromagnetic interference and ensuring clean audio signal transfer between the head unit and amplifier. A 3-metre 12AWG speaker wire is included for amplifier-to-speaker connections. A Mini ANL fuse holder with a pre-installed 100A Mini ANL fuse provides circuit protection. The kit also includes a 5-metre 18AWG remote wire with clear PVC coating, 4AWG plastic grommets for firewall cable routing, assorted ring terminals, and cable ties.

Features & Benefits

Tinned Oxygen-Free Copper (OFC) Power and Earth Cables: The AOFC24 uses tinned OFC conductors throughout the power and earth cables. Tinning the OFC conductors adds a layer of corrosion resistance over the already superior conductivity of OFC, providing long-term reliability in the harsh underbonnet and in-vehicle environment alongside maximum power transfer efficiency.

1500W RMS Maximum Power Rating: The 4AWG tinned OFC power cable is rated at 1500W RMS maximum power, supporting the most demanding high-output 2-channel amplifier and subwoofer amplifier installations within this power range.

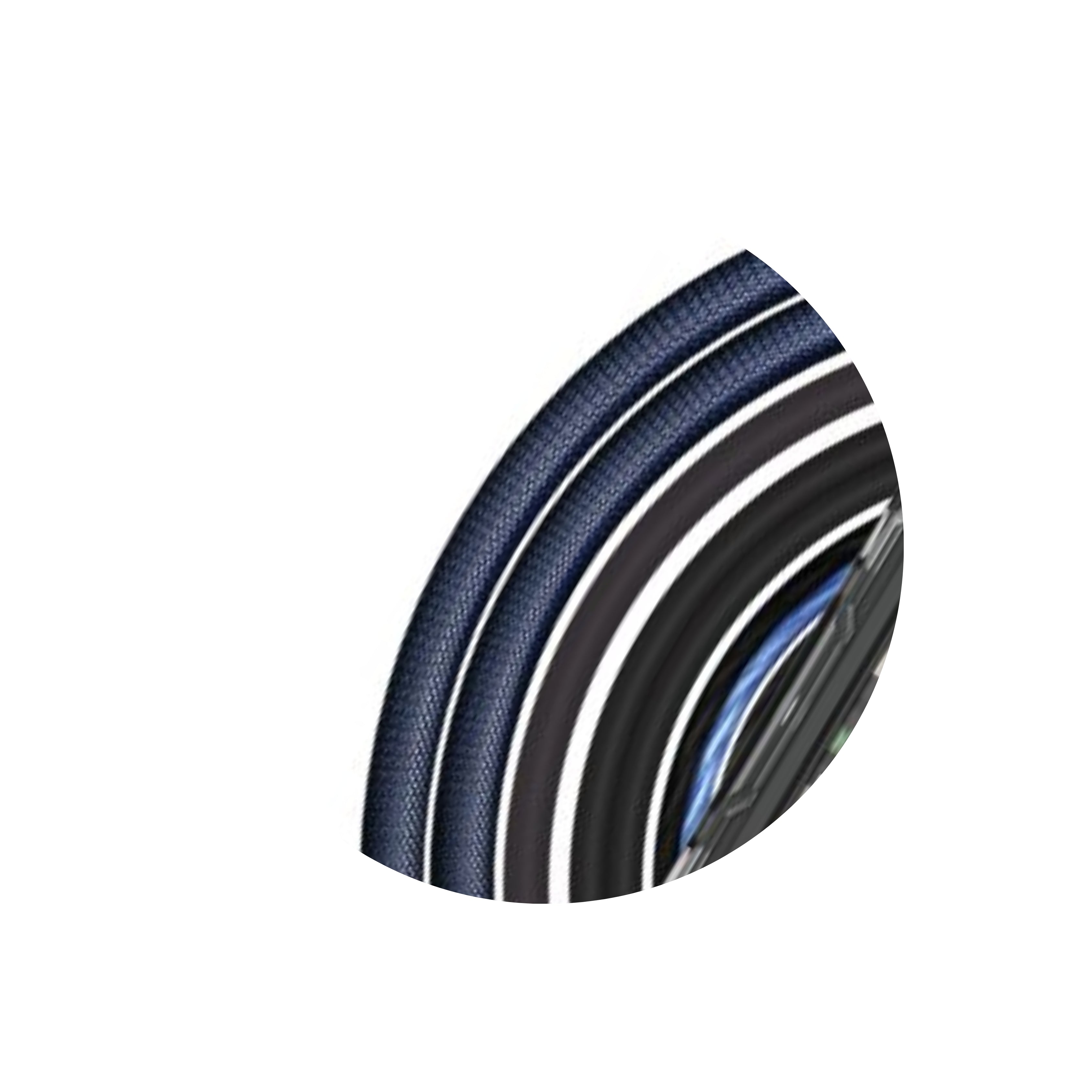

5.1-Metre Braided Blue PVC Power Cable: The 5.1-metre power cable length accommodates installation in most passenger vehicles from the battery to the amplifier location, with braided blue PVC insulation providing durability and a distinctive professional appearance.

Pre-Attached O-Ring Terminals: O-ring terminals are pre-attached to one end of both the power and earth cables, eliminating the need for additional crimping tools or terminal hardware at the battery and chassis connection points.

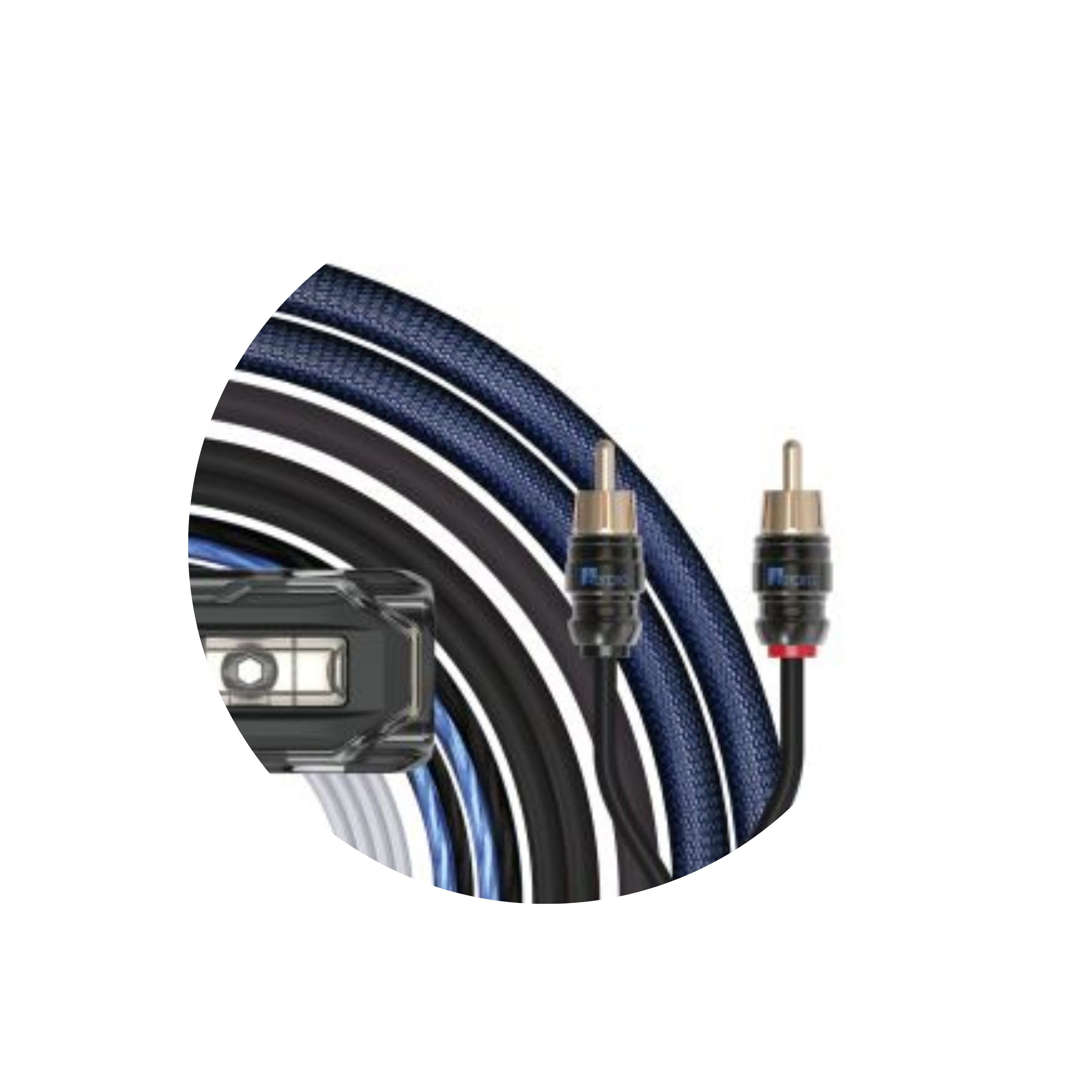

5-Metre 2-Channel Braided Shield RCA with Gold-Plated Connectors: The included 5-metre 2-channel RCA cable uses a braided shield to minimise electromagnetic and radio frequency interference, with gold-plated connectors providing low-resistance, corrosion-resistant connections at both the head unit and amplifier ends.

3-Metre 12AWG Speaker Wire: A 3-metre 12AWG speaker wire is included for routing speaker signal from the amplifier outputs to the speaker load, providing adequate gauge for the power levels supported by the AOFC24.

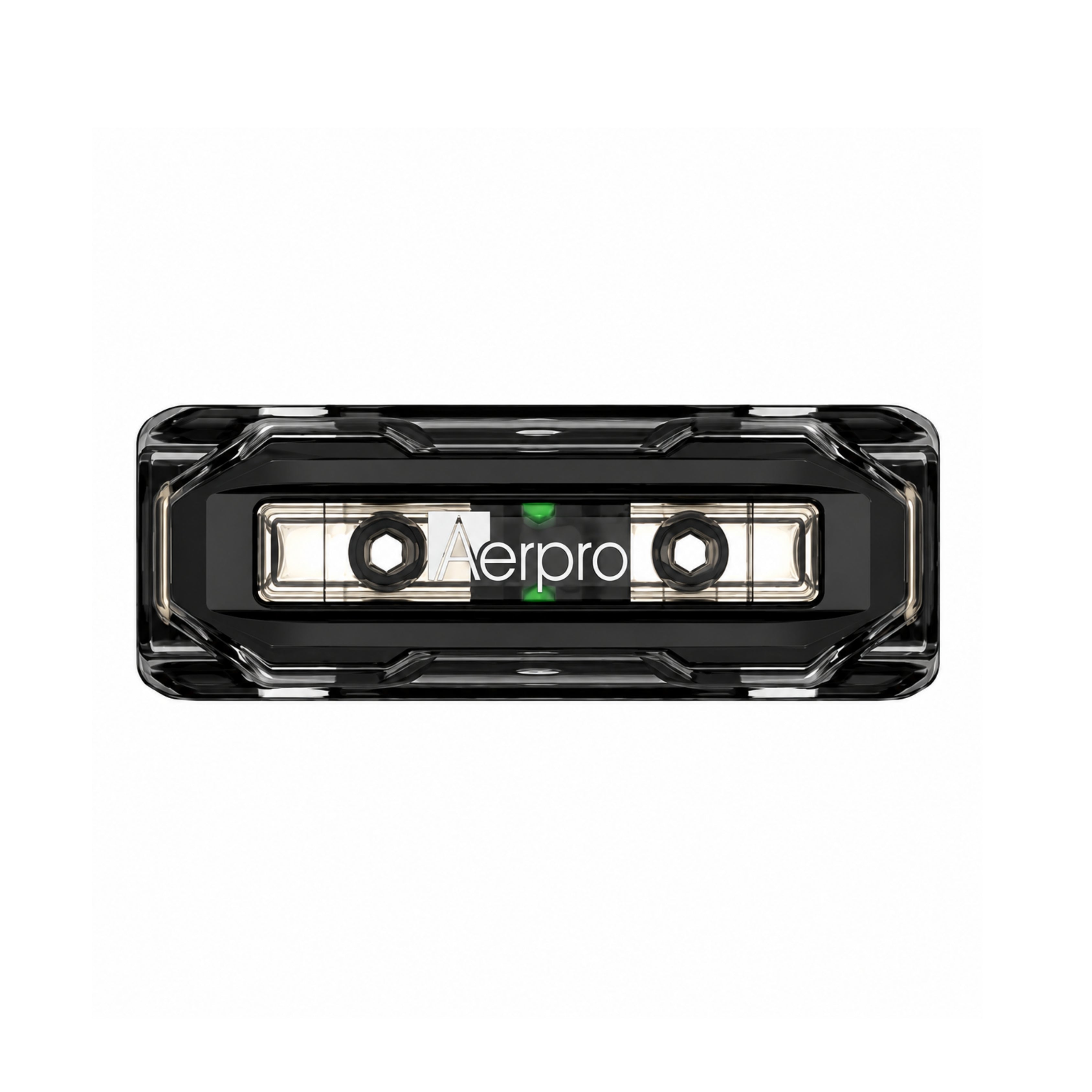

Mini ANL Fuse Holder with 100A Fuse Pre-Installed: A Mini ANL fuse holder with a 100A Mini ANL fuse pre-installed provides robust circuit protection for the 4AWG power cable, protecting the vehicle wiring and amplifier from overcurrent faults at the elevated current levels of high-output amplifier installations.

5-Metre 18AWG Remote Wire with Clear PVC Coating: A 5-metre 18AWG remote turn-on wire with clear PVC coating is included for connecting the head unit remote output to the amplifier remote input, enabling automatic amplifier power-on and power-off with the head unit.

4AWG Plastic Grommets: 4AWG plastic grommets are included for protecting the power cable at the firewall penetration point, preventing insulation damage from sharp metal edges during and after installation.

Assorted Ring Terminals and Cable Ties: Assorted ring terminals and cable ties are included to support a complete and tidy professional installation without requiring additional hardware.

Technical Specs

What's in the Box

• 4AWG Tinned OFC Power Cable (5.1m, Braided Blue PVC, O-Ring Terminal Pre-Attached)
• 4AWG Tinned OFC Earth Cable (0.9m, Grey PVC, O-Ring Terminal Pre-Attached)
• Mini ANL Fuse Holder with 100A Mini ANL Fuse
• 5m 2-Channel RCA Cable (Braided Shield, Gold-Plated Connectors)
• 3m 12AWG Speaker Wire
• 5m 18AWG Remote Wire (Clear PVC Coating)
• Assorted Ring Terminals
• 4AWG Plastic Grommets
• Cable Ties

Compatible With

The AOFC24 is suited to 2-channel car amplifier and subwoofer amplifier installations rated up to 1500W RMS requiring 4AWG power wiring. The 5.1-metre power cable length accommodates most passenger vehicle battery-to-amplifier routing distances. Confirm the power and earth cable lengths suit the specific installation layout of your vehicle before purchase.

Frequently Asked Questions

What is the advantage of tinned OFC over standard OFC?

Tinned OFC adds a thin layer of tin over the oxygen-free copper conductors. This provides additional corrosion resistance beyond standard OFC, particularly in environments with exposure to moisture, salt air, or engine heat. For long-term high-power installations, tinned OFC maintains conductivity and connection integrity over a longer service life compared to bare OFC.

What fuse rating is included with the AOFC24 and can it be changed?

A 100A Mini ANL fuse is pre-installed in the included Mini ANL fuse holder. The fuse rating should match the amplifier's maximum current draw and the wire gauge used. Confirm that the 100A rating is appropriate for your specific amplifier before installation; replacement Mini ANL fuses are available in various ratings if a different value is required.

What is the difference between the AOFC24 and the AOFC28?

Both are 2-channel Maxcor OFC amp install kits with braided RCA cables, gold-plated connectors, Mini ANL fuse holders, and pre-attached O-ring terminals. The AOFC24 uses 4AWG tinned OFC rated at 1500W RMS with a 100A fuse and includes 12AWG speaker wire and blue PVC insulation. The AOFC28 uses 8AWG OFC rated at 700W RMS with an 80A fuse and red PVC insulation. Choose the AOFC24 for higher-power amplifier installations requiring 4AWG wiring.

Is the 12AWG speaker wire sufficient for high-power installations?

The included 3-metre 12AWG speaker wire is appropriate for short amplifier-to-speaker runs at the power levels supported by a 4AWG amplifier installation. For longer speaker cable runs or where lower resistance is preferred, a heavier gauge speaker cable may be sourced separately.

Do I need any additional hardware to complete the installation with the AOFC24?

The AOFC24 includes the power cable, earth cable, RCA cable, speaker wire, remote wire, fuse holder and fuse, grommets, ring terminals, and cable ties required for a standard 2-channel amplifier installation. Additional hardware such as split loom conduit, additional earth cables for multi-point earthing, or a distribution block may be required depending on the specific installation.
