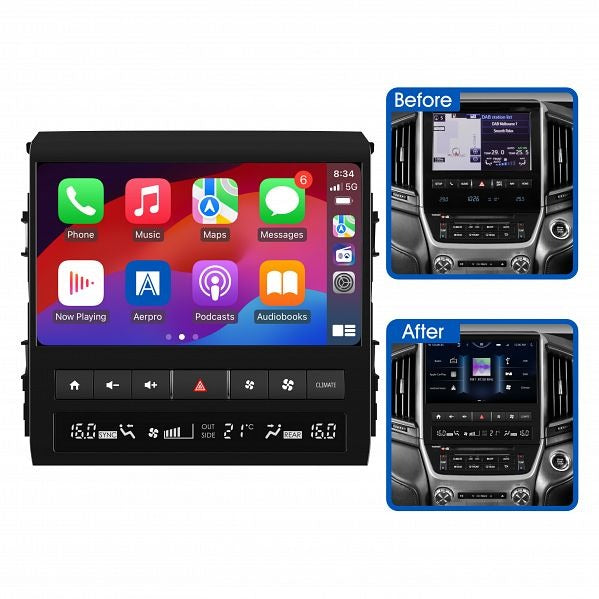

Aerpro AMUTO53 10" Headunit Advanced Infotainment System Suit Landcruiser 200 Series VX & Sahara 2016 - 2021

Enhance Your Driving Experience While Retaining the Essential Functions of Your Landcruiser!

10" Advanced Infotainment System
Introducing the Aerpro AMUTO53, a revolutionary 10" Advanced Infotainment system specifically designed for the Toyota Landcruiser 200 Series VX & Sahara (2016 - 2021). This all-in-one solution addresses the limitations of the factory-installed infotainment system, bringing a modern, high-tech upgrade to your vehicle. With the AMUTO53, you can enjoy a seamless integration of advanced features that enhance your driving experience while retaining the essential functions of your Landcruiser.

The AMUTO53 upgrade kit is meticulously designed to maintain the crucial factory features that Landcruiser owners value. The retention of the 360 Camera System in the Sahara, Front and Rear Parking Sensors, and Climate Control ensures that your vehicle's safety and comfort are not compromised. The kit also preserves the built-in TPMS via MFD, USB ports, trip computer, and vehicle settings, providing a seamless transition from your old system to the new. Even the factory amplifier, steering wheel controls, microphone, and antennas for FM/AM, DAB, and GPS are retained, ensuring you don't lose any functionality in the upgrade process.

At the heart of the AMUTO53 is a stunning 10" HD digital capacitive IPS touchscreen with a resolution of 1280 x 720. This large, vibrant display offers crystal-clear visuals and responsive touch controls, making it easier than ever to navigate your music, apps, and settings. The system is compatible with both Apple CarPlay and Android Auto, supporting wireless and wired connections, so you can effortlessly integrate your smartphone with your vehicle's infotainment system. With DAB+ digital radio, built-in Bluetooth, and support for multiple media formats, the AMUTO53 offers a comprehensive audio and media experience.

The Aerpro AMUTO53 doesn't just upgrade your media experience, it can also enhance your audio quality. The 16-band graphic EQ with Q factor adjustment and 10 EQ presets allows you to fine-tune your audio to your personal preference, while the time alignment capabilities and subwoofer level control provide an even more customised listening experience. The optional camera input supports 720P resolution, making it easy to add a trailer or additional front or rear cameras for improved visibility and safety.

The Aerpro AMUTO53 kit brings your vehicle's infotainment system into the modern era, combining state-of-the-art technology with the convenience and familiarity of your existing controls. Designed and engineered in Australia, the AMUTO53 ensures a perfect fit and professional finish, making it the ultimate enhancement for your Landcruiser. Experience the future of in-car entertainment and connectivity with the Aerpro AMUTO53.

Important Information:

• Vehicles without factory 360 cameras will not be able to retain their factory reverse camera system. Instead, we have included a 720p AHD Surface Mount camera to utilise as a replacement. This camera needs a cable to be run through the vehicle as it cannot integrate with factory harnessing.
• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

Features:

• 10.1" HD Capacitive IPS Touchscreen: Enjoy a large, high-resolution display with clear, vibrant visuals and responsive touch controls.
• Apple CarPlay & Android Auto Compatibility: Seamlessly integrate your smartphone with wireless and wired connections for easy access to apps, navigation, and music.
• Retains Factory Features: Maintains essential functions such as 360 Camera System if equipped, Parking Sensors, Climate Control, and more for a seamless transition.
• Built-In Bluetooth: Enables hands-free calling and audio streaming for a safer, more convenient driving experience.
• 16-Band Graphic EQ: Offers fine-tuning of audio with Q factor adjustment and 10 EQ presets to match your listening preferences.
• Dual Camera Inputs: Supports 720P resolution cameras for enhanced visibility and safety.
• DAB+ Digital Radio: Provides access to a wide range of digital radio stations with 18 presets for easy tuning.
• Multiple Media Format Support: Compatible with MP3, AAC, FLAC, Xvid, and MP4 formats for versatile media playback.
• Time Alignment Capabilities: Ensures optimal audio performance by synchronising sound from all speakers for the best listening experience.
• USB Port Retention: Keeps existing USB ports functional for continued convenience and connectivity.
• Australian Designed & Engineered: Ensures a perfect fit and professional finish, reflecting quality and reliability tailored to your Landcruiser.

Radio Specifications:

• Display LCD:
  Size: 10.1"
  Resolution: 1280*720
• Touch Screen:
  Capacitive: G+G
• System Specification:
  OS System: Linux 5.10
  CPU: 8368-P(Quad Cores With A55)
  DDR: 1GB
  FLASH: 512MB
• Power Output:
  Power Stage Type: Class D
  4Ohm @ 14.4 V, 1 kHz, THD 10 Percent: 4Ch x 20W
  4Ohm Max: 4Ch x 45W
  Maximum Power: 4Ch x 50W
• RCA Preamp Outputs:
  2-Pair RCA Preamp Output: Yes
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage: 4V
• Audio Control:
  Equaliser Bands: 16 Bands (50/80/125/200/320/500/800/1k/1.2k/2k/3k/5k/7k/9k/12k/15k)
  Loudness: Yes
  Time Alignment: Yes
  Low Pass Filter: Yes
  High Pass Filter: Yes
  10 EQ Presets: Default, Classic, Rock, Jazz, Electric, Pop, Soft, Custom 1, Custom 2, Custom 3
• Media Playback:
  Audio Formats: MP3, AAC, FLAC
  Video Formats: MP4, XVID
• Device Ports:
  USB1 Playback Formats: CPAA & Media
  USB2 Playback Formats: Media
  USB Power: 5V/1.5A
  USB Max Capability: 64GB
• Aux Inputs / Outputs:
  Composite Video Output: Yes
  Back-Up Camera Input: Yes (Support AHD 720P)
• GNSS:
  GPS Built-In: Yes
  Frequency: 1.515G
  Gyro Sensor: Yes
• WiFi:
  WiFi Built-In: Yes (For CP/AA Only)
  Frequency: 5Ghz
• Bluetooth:
  Bluetooth Built-In (HPF, A2DP, AVRCP): Yes
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile: HFP 1.6
  Bluetooth Version: V5.0
• FM/AM Tuners:
  AM/FM (Number of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5 - 108.0MHz (Step Frequency 100KHz)
  AM Frequency Span (KHz): 529 - 1629KHz (Step Frequency 9KHz)
  RDS: Yes
  FM Antenna Connector Impedance: 75ohm
  FM Tuner Connector: Standard DIN, With Cable Adaptor to Factory Harness
• DAB Tuners:
  DAB Tuner Band: Band III (174 - 240MHz)
  DAB Tuner Text: Service Label (SL), Dynamic Label (DL), Dynamic Label Plus (DL+)
  DAB Tuner Slideshow: MOT Slideshow
  DAB Tuner Memory + Station List: Yes
  DAB Tuner Phantom Power: 12V Max 200mA
  DAB Tuner Connector: SMB, With Cable Adaptor to Factory Harness
• Colour Customisation:
  LED Buttons/Keys: White
  Selectable Backgrounds: 6

Aerpro AMUTO53 Vehicle Integration:

• Application: Suits Toyota Landcruiser 200 Series Sahara
• Vehicle Feature Retention:
  Factory 360 Camera If Equipped
  Front & Rear Parking Sensors
  Steering Wheel Controls
  Factory Amplifier & Setting controls
  Factory Microphone
  Antenna Retentions (AM/FM, DAB+, GPS)
  USB Port
  Trip Computer & Vehicle Settings
  Vehicle-To-Radio Connectivity (Vehicle Speed, Illumination, Reverse, Parking Brake Signals & Turn Signals)
• Vehicle Feature Additions:
  Climate Control Status Display
  Inclinometer (Tilt & Roll)
• View & Adjust Vehicle Information Through Customised Screens:
  Sound Settings
  Door Lock Settings
  Climate Settings
  Lights Settings
  Park Assist Settings
  Other Vehicle Information

Aerpro AMUTO53 Kit Inclusions:

• Vehicle Specific Facia Kit Suit Toyota Landcruiser 200 Series Sahara 2016 - 2021
• 10" Headunit
• Complete Plug & Play Installation Harness
• 720p AHD Surface Mount Camera
• LVDS Cable
• 360 Camera Retention Adaptor Harness
• MOST Retention Harness
• GPS Retention Harness
• DAB Retention Harness
• USB Retention Harness

Important Information - The following factory features will be lost upon installation:

• VFD Clock - Clock relocated to aftermarket head unit home screen
• Climate Shortcut Button - The factory button was unable to be retained so a climate button on the aftermarket head unit was added.
• DVD Player & Associated Buttons/Dials - Has no function and will not be able to play DVDs or adjust volume with the dials.
• Audio Control from Head Unit to Rear Entertainment Screens - Rear entertainment system can still be used standalone using the rear HDMI/AV ports (Refer to Manual FAQ for more information)
• Auxiliary Jack Next to USB Port - Unable to be retained
• Audio Source Control From MFD - Cannot change audio source of headunit using the MFD
• Vehicle Maintenance Setting (Previously Accessed from Factory Screen)

720p AHD Camera Specifications:

• Mount Type: Surface Mount
• Camera Type: Front, Rear or Reverse (Loops Design)
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle 150 Degree

Camera Inclusions:

• 720P AHD Surface Mount Camera (Wired)
• 6M of Video Cable (RCA) With In-Line Reverse Trigger

Aerpro AMUTO53 Vehicle Compatibility:

• Toyota Landcruiser 200 Series VX & Sahara 2016 - 2021 (Headunit Dependant)
