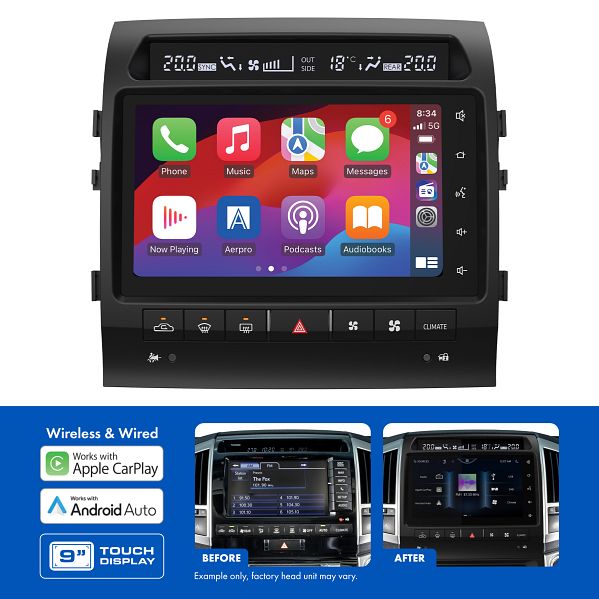

Aerpro AMUTO51B Toyota LandCruiser 200 Series Sahara 2010-2011 9 Inch Advanced Infotainment System

Aerpro AMUTO51B Toyota LandCruiser 200 Series Sahara 2010-2011 9 Inch Advanced Infotainment System

Australian-designed and engineered 9-inch advanced infotainment system purpose-built for the Toyota LandCruiser 200 Series Sahara (2010-2011), delivering wireless Apple CarPlay and Android Auto, professional-grade audio tools, and comprehensive factory feature retention in a complete vehicle-specific kit.

Product Overview

The Aerpro AMUTO51B is a complete head unit upgrade kit designed specifically for the Toyota LandCruiser 200 Series Sahara from 2010 to 2011. Everything required for a factory-style installation is included: a 9-inch HD capacitive IPS touchscreen head unit, vehicle-specific fascia kit, installation harnesses, LVDS cable, GPS and DAB hardware, microphone, storage pocket, and a dual USB panel mount.

The AMUTO51B brings wireless Apple CarPlay and Android Auto to the LandCruiser 200 Sahara, enabling seamless smartphone connectivity for navigation, music, and communications without a cable. DAB+ digital radio, AM/FM with RDS, and built-in Bluetooth with A2DP, AVRCP, HFP, and PBAP profiles provide comprehensive entertainment and hands-free functionality.

Engineered for deep vehicle integration, the AMUTO51B retains the Sahara's climate control display and controls, factory steering wheel controls, reverse camera system, front and rear parking sensors, factory amplifier, vehicle settings, GPS and DAB antennas, and USB ports. The built-in inclinometer with pitch and roll display adds a practical 4WD tool for off-road use.

For audio performance, the system features a high-power 4 x 50W peak built-in amplifier, 4V five-channel RCA preouts, a 16-band graphic EQ with Q-factor adjustment, time alignment, and subwoofer level control, providing both an immediate upgrade over the factory system and full flexibility for future amplifier expansion.

For a seamless finishing touch, the optional Aerpro FP9014LC Switch Panel Insert (sold separately) fits below the head unit, providing housing for up to five 21mm x 32mm auxiliary switches for driving lights, compressors, or other accessories.

The AMUTO51B is backed by a 3-year product warranty and is Australian designed and engineered.

Please note the following features are adapted or not retained with this system:

• Clock is relocated to the head unit home screen
• DVD player and associated buttons and dials become non-functional (replaced by included storage pocket)
• Independent video/audio inputs for factory rear entertainment screens are not retained (media can be played on rear screens via USB from the head unit)
• Rear headphone outputs and rear volume dials are not retained (on equipped vehicles)
• Factory AUX jack located next to the USB port is not retained (on equipped vehicles)

Features & Benefits

Wireless Apple CarPlay and Android Auto Connect your smartphone without a cable for full access to navigation, music, messaging, and calls through the 9-inch touchscreen. Wired connection is also supported for both platforms.

9-Inch HD Capacitive IPS Touchscreen A large, vibrant IPS display with responsive capacitive touch delivers crisp visuals and precise control in all lighting conditions.

DAB+ Digital Radio with 18 Presets Enjoy Australia's digital radio network with 18 DAB+ presets, alongside AM/FM with RDS and 18FM/12AM presets for full broadcast radio coverage.

Comprehensive Factory Feature Retention Retains the Sahara's climate control display and controls, factory steering wheel controls, reverse camera system, front and rear parking sensors, factory amplifier, vehicle settings, GPS antenna, DAB antenna, and USB ports for a seamless, integrated experience.

Professional-Grade Audio Tuning A 16-band graphic EQ with Q-factor adjustment, time alignment, and subwoofer level control provide precise audio shaping, while the 4V five-channel RCA preouts enable future amplifier expansion.

High-Power Built-In Amplifier 4 x 50W peak built-in amplifier delivers a significant audio upgrade over the factory system straight out of the box.

Built-In Inclinometer Pitch and roll display provides a practical and accurate inclinometer for off-road and 4WD use directly on the head unit screen.

Complete Vehicle-Specific Kit with Dual USB Panel Mount Includes all required installation components: fascia kit, harnesses, LVDS cable, GPS and DAB hardware, microphone, storage pocket, and dual USB panel mount for a complete, OEM-style installation.

Australian Designed and Engineered Developed in Australia specifically for Australian vehicles and conditions, with a 3-year product warranty.

Technical Specs

Compatible With / Goes Well With

The Aerpro AMUTO51B is compatible with the following vehicle:

Goes Well With:

• Aerpro FP9014LC Switch Panel Insert (sold separately, fits below head unit for auxiliary switch housing)
• Aftermarket monoblock or multichannel amplifier (via 5-channel RCA preouts)
• Aftermarket subwoofer system
• Aftermarket speakers

Frequently Asked Questions

Does the AMUTO51B retain the factory climate controls in the LandCruiser 200 Sahara?

Yes. The AMUTO51B retains full visualisation and operation of the Sahara's factory climate control system, displayed and controlled directly through the head unit's touchscreen interface. Climate control functionality is not lost during the upgrade.

What factory features are not retained with the AMUTO51B?

The following features are adapted or not retained: the factory DVD player and its associated buttons and dials become non-functional and are replaced by the included storage pocket; the clock is relocated to the head unit home screen; the factory AUX jack is not retained; independent video/audio inputs for factory rear entertainment screens are not retained; and rear headphone outputs and rear volume dials are not retained on equipped vehicles.

Can I still use my rear entertainment screens after installing the AMUTO51B?

Yes, with a limitation. The AMUTO51B does not retain the original independent video/audio input for the rear entertainment screens. To play media on the rear screens after installation, video files must be played from a USB stick connected directly to the new head unit. Refer to the included manual for details.

Does the AMUTO51B support future amplifier expansion?

Yes. The 4V five-channel RCA preouts (front, rear, and sub) allow connection to external aftermarket amplifiers for a full high-performance audio upgrade beyond the built-in 4 x 50W peak amplifier. The 16-band graphic EQ with Q-factor adjustment and time alignment tools provide professional-grade tuning for both built-in and expanded configurations.

Is this kit compatible with other LandCruiser 200 Series variants or years?

No. The AMUTO51B is engineered specifically for the Toyota LandCruiser 200 Series Sahara from 2010 to 2011. Other 200 Series variants or different model years require a separate kit. For 2007-2009 Sahara models see the Aerpro AMUTO51A, and for 2012-2015 Sahara models see the Aerpro AMUTO52.
