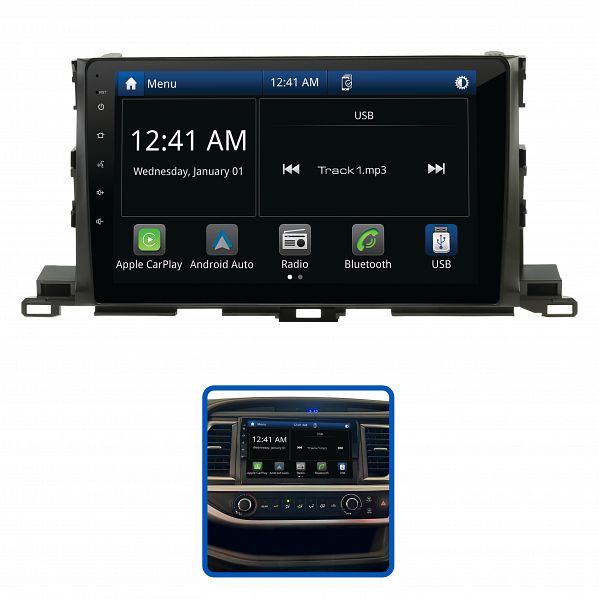

Aerpro AMTO37 10" Multimedia Receiver Suit Toyota Kluger 2014 - 2019

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

10" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMTO37 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Kluger (2014-2019) vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO37 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input and the factory reverse camera (if equipped).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• The facia kit included in this kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit.
• AUX Input Retention uses the RCA AUX input on the rear of the head unit.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: Yes (if equipped)
• USB Input: Yes (if equipped)
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Toyota Kluger (2014-2019)
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 10" capacitive touchscreen display
• Steering wheel control (including phone button), USB input, AUX input and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  • Size: 10"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

Vehicle Compatibility:

• Toyota Kluger (2014 - 2019)

Kit Inclusions:

• AM10X Multimedia Receiver
• Matte Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
