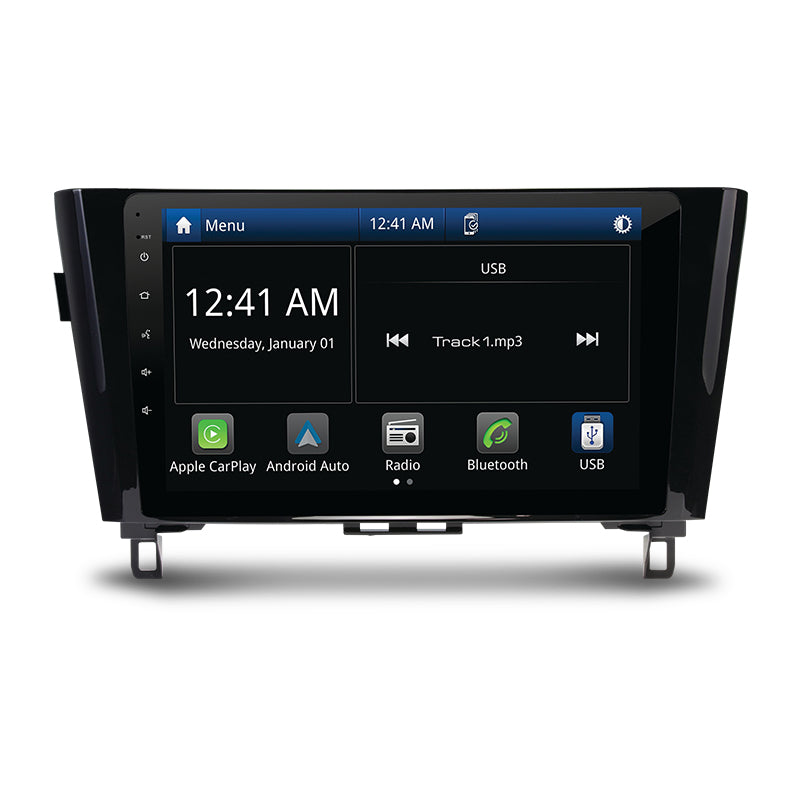

Aerpro AMNI5 10" Multimedia Receiver Suit Nissan Qashqai 2014 - 2019 & X-Trail 2014 - 2020 (Factory Navigation & 360 Camera Models, Non-Amplified)

10" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMNI5 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Nissan Qashqai (2014-2019) and X-Trail T32 (2014-2020) non-amplified vehicles with factory navigation and 360-degree camera system. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMNI5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input, and the factory 360-degree camera system.

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Factory Bose Amplified systems will require APP7220 Amp Retention Harness (Not Included).
• 360 Degree Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit.
• AUX Input Retention uses the RCA AUX input on the rear of the head unit.
• Includes switchable camera viewing modes with the handy factory-style button

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (Including Phone Button)
• Factory Reverse Camera: Yes 360 Degree System
• AUX Input: Yes
• USB Input: Yes
• Parking Tones: N/A
• Factory Amplifier: No (*To retain Factory Bose Amplified system Aerpro APP7220 Amp Retention Harness is required, sold separately)
• Vehicle Menu: Yes (Clock Settings)
• Other: N/A

Features:

• To suit Nissan Qashqai (2014-2019) and X-Trail T32 (2014-2020) non-amplified vehicles with factory navigation and 360-degree camera system
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (Wireless / Wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 required, sold separately)
• Large 10" capacitive touchscreen display
• Steering wheel control (Including Phone Button), USB input, AUX input, and factory 360-degree camera retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A Max Charging)
• Reverse camera input (AHD 720P Compatible) & rear A/V input
• 40Wx4 Max with 8 bands graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 10"
  Resolution: 1024 x 600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  Max Power (4 Ohm): 4CH x 40W
  Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A
  USB Max Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless / Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-In & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, With Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes With ISO/3.5mm Jack
  AV-In Cable (RCA With Audio L/R, Video In): Yes
  Reverse Camera Input (With 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included
• Facia Kit Colour: Gloss Black
• Weight: 4.00kg

Vehicle Compatibility:

• Nissan Qashqai J11 (2014 - 2021)
• Nissan X-Trail T32 (2014 - 2022)

Kit Inclusions:

• AM10X Multimedia Receiver
• Gloss Black Facia Kit
• Steering Wheel Control Interface Harness (With Camera, AUX & USB Retention)
• SWC Patch Lead
• Antenna Adaptor
