Aerpro AMMZ5 Multimedia Receiver With Wireless Apple CarPlay & Android Auto Suit Mazda 3 2009 - 2013
Click to open expanded view
AERPRO logo

Discontinued

Aerpro AMMZ5 Multimedia Receiver With Wireless Apple CarPlay & Android Auto Suit Mazda 3 2009 - 2013

SKU: AMMZ5

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

Multimedia Receiver Suit Mazda 3 (2009 - 2013) Amplified

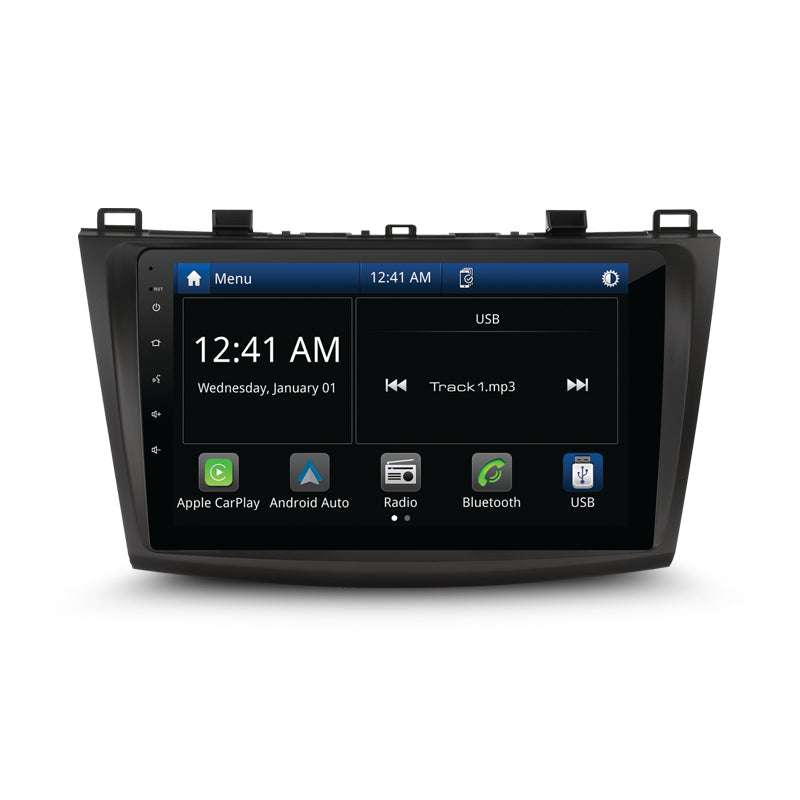

The Aerpro AMMZ5 9" Multimedia Receiver suits Mazda 3 BL (2009-2013) factory Bose amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Headunit Upgrade Kit, the Aerpro AMMZ5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory Bose amplified system.

Hema Maps Ready
Experience seamless on-road and off-road navigation through the Headunit display by adding the optional Aerpro AMHXD3 Hema Maps On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

  • Headunit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Suits factory Bose amplified vehicles.
  • Does not support phone button steering wheel controls.

*In-Store Purchase & Pickup Only!

Features:

  • To suit Mazda 3 BL (2009-2013) factory Bose amplified vehicles
  • Includes all the parts required to complete the installation and to retain important vehicle features
  • Apple CarPlay & Android Auto (wireless / wired)
  • Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 Required, Sold Separately)
  • Large 9" Capacitive Touchscreen Display
  • Steering wheel control and factory Bose amplified system retention
  • Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Rear USB input (1.5A max charging)
  • Reverse camera input (AHD 720P compatible) & rear A/V input
  • 40Wx4 Max with 8 bands graphic EQ and time alignment capabilities
  • 4V/5CH RCA Pre-out and subwoofer level control

Specifications:

  • LCD Display:
    Size: 9"
    Resolution: 1024 x 600
    Touch Screen: Capacitive (G+G)
  • System Specifications:
    OS System / CPU: Linux 3.4.5 / SPHE8368U
    RAM / Flash Memory: 128MB / 256MB
    DIN Size: 2 DIN Short Body
  • Power Output:
    Rated Power (4 Ohm @ 14.4V, 1 kHz, THD 10 %): 4CH x 25W
    MAX Power (4 Ohm): 4CH x 40W
    Media Playback: MP3 / AAC / FLAC / XVID / MPEG 1, 2, 4
  • Device Ports:
    USB (Rear) Playback Formats: CPAA & Media
    USB (Rear) Power - Voltage/Amps: 5V/1.5A
    USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    Rear A/V Input (RCA Type - 3pcs): Yes
    Composite Video Outputs: Yes
    Reverse Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
  • Bluetooth:
    Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    Bluetooth Version: V4.2+EDR
    Microphone: Built-In & External Microphone
    ID3 Tag/Information (Artist, Album, Song): Yes
    HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
  • Tuner:
    AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)
    AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)
    RDS: Yes
    FM Antenna Connector Impedance: 50 Ohm
    FM Tuner Connector: Motorola
  • RCA Preamp Outputs:
    RCA Preamp Output: 2-Pair (Front / Rear)
    Subwoofer RCA Output: Yes
    Subwoofer Level Control: Yes
    Preamp Voltage (1.2,2,4,5,6): 4V p-p
  • Tone Control:
    8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    Loudness: Yes
    LPF - Frequencies (Sub): Yes
    8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
  • Other Features:
    Steering Wheel Control: Yes, With Aerpro SWC Adaptor
    OSD Language: English
    LED Colour (Buttons / Keys): White
  • Accessories:
    Power Harness: Yes With ISO/3.5mm Jack
    AV-In Cable (RCA With Audio L/R, Video In): Yes
    Reverse Camera Input (With 12V Power Supply To The Camera): Yes
    4.1CH Audio Out Cable: Yes
    External Microphone: Included
  • Vehicle Compatibility: Mazda 3 (Axela) 2009-2013 BL
  • Weight: 2.50kg
