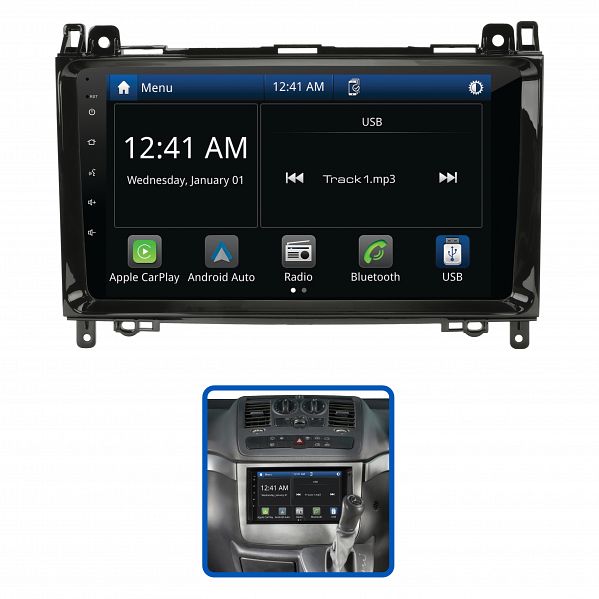

Aerpro AMMC2 9" Multimedia Receiver Suit Mercedes & Volkswagen Various Models

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver With Wireless Apple CarPlay & Android
The Aerpro AMMC2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mercedes A-Class W169 (2005-2011)*, B-Class W245 (2005-2011), Sprinter (2007-2018), Viano (2008-2011), Vito W639 (2006-2014) and Volkswagen Crafter (2007-2013) non-amplified vehicles.

Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMC2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and access to vehicle settings.

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• *Will not suit Mercedes A-Class with Single DIN unit
• Suits non-amplified vehicles only

Features:

• To suit Mercedes A-Class W169 (2005-2011)*, B-Class W245 (2005-2011), Sprinter (2007-2018), Viano (2008-2011), Vito W639 (2006-2014) and Volkswagen Crafter (2007-2013) non-amplified vehicles
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (Wireless / Wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Steering wheel control and access to vehicle menu retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A Max Charging)
• Reverse camera input (AHD 720P Compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: No
• AUX Input: No
• USB Input: No
• Factory Amplifier: No
• Vehicle Menu: Yes

Specifications:

• LCD Display:
  • Size: 9"
  • Resolution: 1024 x 600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • Max Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / XVID / MPEG 1, 2, 4
• Device Ports:
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB Max Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-In & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# Of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm Jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (With 12V Power Supply to the Camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included
• Weight: 2.50kg

Vehicle Compatibility:

• Mercedes A-Class (2005 - 2011 W169)
• Mercedes B-Class (2005 - 2011 W245)
• Mercedes Sprinter (2007 - 2018)
• Mercedes Viano (2008 - 2011)
• Mercedes Vito (2006 - 2014 W639)
• Volkswagen Crafter (2007 - 2013)
