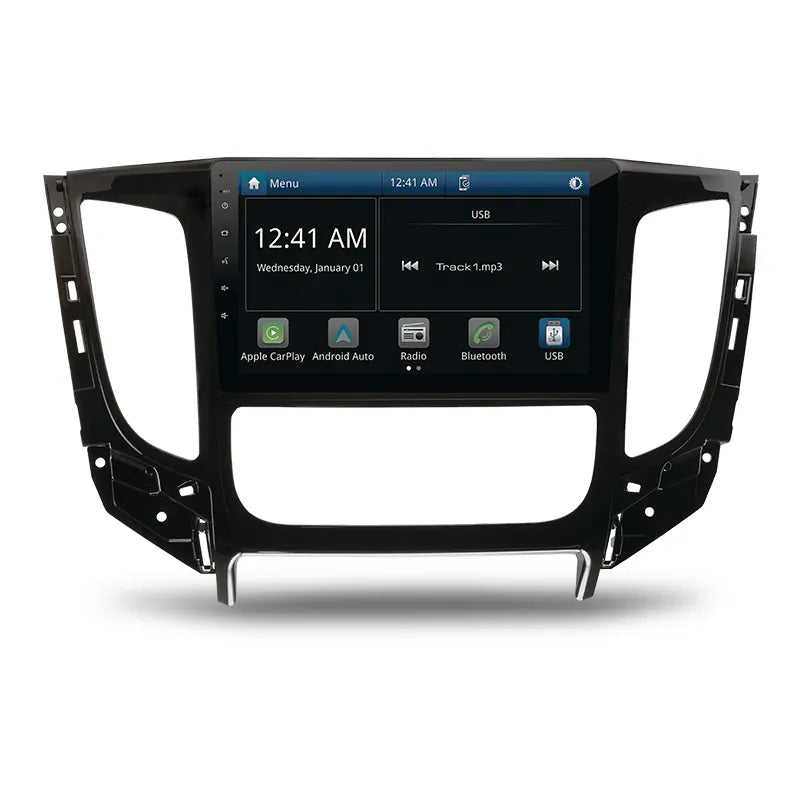

Aerpro AMMB8 9" Multimedia Receiver Suit Mitsubishi Triton 2016 - 2018 (Auto Climate/Non-Amplified)

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver Suit Mitsubishi Triton (2016-2018)
The Aerpro AMMB8 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mitsubishi Triton MQ (2016-2018) non-amplified vehicles with auto climate control. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMB8 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input and factory reverse camera (if equipped).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits non-amplified vehicles with auto climate control only.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Features:

• To suit Mitsubishi Triton MQ (2016-2018) non-amplified vehicles with auto climate control
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Steering wheel control (including phone button), USB input and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: N/A
• USB Input: Yes (if equipped)
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: N/A
• Other: N/A

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (With 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included
• Vehicle Compatibility: Mitsubishi Triton 2016-2018 MQ
• Weight: 3.30kg

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Camera Retention Adaptor
• USB Retention Adaptors
