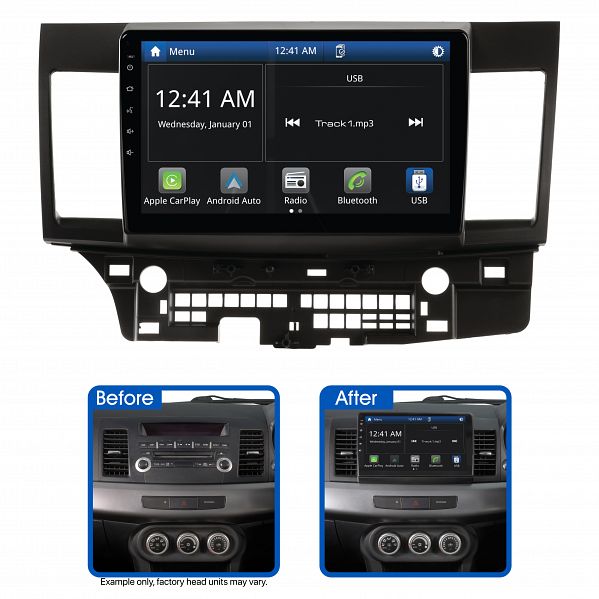

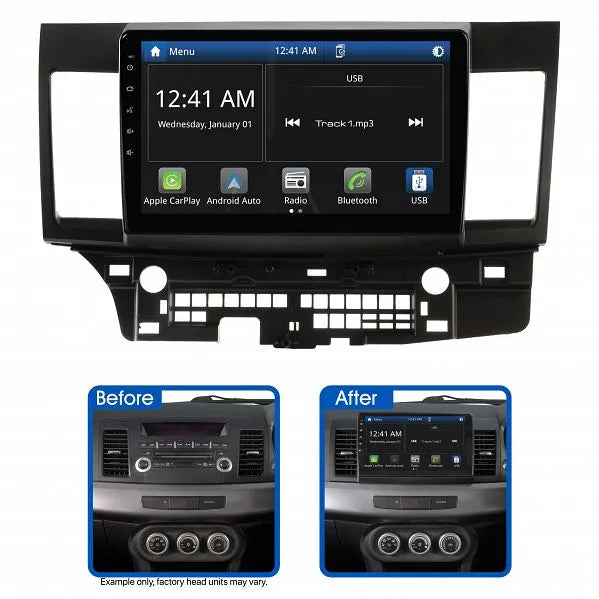

Aerpro AMMB5 10" Multimedia Receiver Suit Mitsubishi Lancer 2010 - 2017 (Non-Amplified)

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

10" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMMB5 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mitsubishi Lancer (2010-2017) non-amplified vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMB5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory AUX input (if equipped).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits Mitsubishi Lancer (2010-2017) non-amplified vehicles.
• AUX Input Retention uses the RCA AUX input on the rear of the head unit.
• Factory Reverse Camera can be retained (if equipped), optional Reverse Camera Retention Adaptor required APVMT01 (sold separately). Connects to the reverse camera input on the Multimedia Receiver.
• USB Port can be retained (if equipped), optional USB Retention Adaptor required APMTUSB1 (sold separately). Connects to the rear USB input on the Multimedia Receiver.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Optional (APVMT01 required, sold separately)
• AUX Input: Yes (if equipped)
• USB Input: Optional (APMTUSB1 required, sold separately)
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Mitsubishi Lancer (2010-2017) non-amplified vehicles
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 10" capacitive touchscreen display
• Steering wheel control (including phone button) and factory AUX input retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 10"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 40W
  Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Mitsubishi Lancer 2007 - 2013 CJ
• Mitsubishi Lancer 2013 - 2017

Kit Inclusions:

• AM10X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
