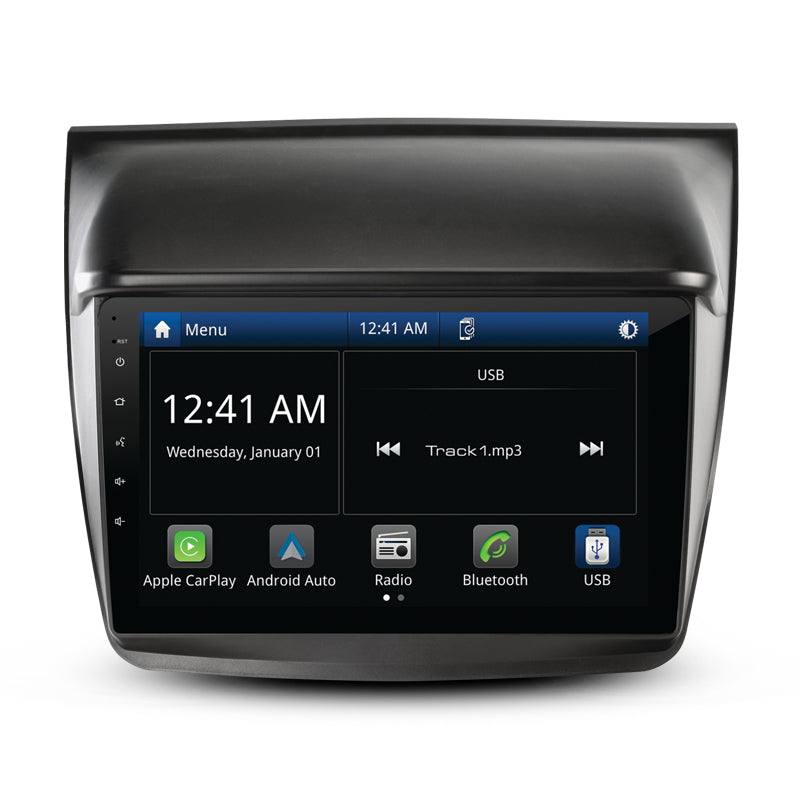

Aerpro AMMB23 9" Multimedia Receiver Suit Mitsubishi Triton GL/GLS/GLX/GLX-R/VR 2007 to 2009 & GL/GL-R/GLX 2009 to 2014 (NO SWC)

Multimedia Receiver with Wireless Apple CarPlay and Android Auto

The Aerpro AMMB23 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mitsubishi Triton ML GL, GLS, GLX, GLX-R, VR (2007 to 2009) and Triton MN GL, GL-R, GLX (2009 to 2014) vehicles without steering wheel controls. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMB23 includes all the parts required to complete the installation conveniently packaged into one kit.

Hema Maps Ready

Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits vehicles without steering wheel controls.
• Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
• Small Blue Screen on ML Triton will not be retained.
• Included Pocket is only required for selected models.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
• This head unit is sold as a kit which includes:
  • AM9X Multimedia Receiver
  • Black Facia Kit
  • 2x Harnesses
  • Head Unit Removal Keys

Features:

• To suit Mitsubishi Triton ML GL, GLS, GLX, GLX-R, VR (2007 to 2009) and Triton MN GL, GL-R, GLX (2009 to 2014) vehicles without steering wheel controls
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control
• 2 x Harnesses included to suit either Fujitsu 10 or Mitsubishi factory unit

Specifications:

AMMB23 Head Unit Upgrade Kit Specifications:

• Vehicle Feature Retention:
  • Steering Wheel Controls: N/A
  • Factory Reverse Camera: N/A
  • AUX Input: N/A
  • USB Input: N/A
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu: N/A
  • Other: N/A

AM9X Multimedia Receiver Specifications:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power, Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type, 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5 to 108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF, Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits vehicles without steering wheel controls.
• Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
• Small Blue Screen on ML Triton will not be retained.
• Included Pocket for later models only.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Vehicles Known to Work with This Product:

Mitsubishi Triton 2007 to 2009 ML

Mitsubishi Triton 2007 to 2009 ML

Mitsubishi Triton 2009 to 2014 MN

Mitsubishi Triton 2009 to 2014 MN

What's in the Box:

• AM9X Multimedia Receiver
• Black Facia Kit
• 2x Harnesses
• Head Unit Removal Keys

FAQ

What vehicles does the Aerpro AMMB23 suit?

The Aerpro AMMB23 suits Mitsubishi Triton ML GL, GLS, GLX, GLX-R, VR (2007 to 2009) and Triton MN GL, GL-R, GLX (2009 to 2014) vehicles without steering wheel controls.

Does it run wireless Apple CarPlay and Android Auto?

Yes. The 9 inch touchscreen runs Apple CarPlay and Android Auto wireless or wired, and has built-in Bluetooth for hands-free calls and music.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
