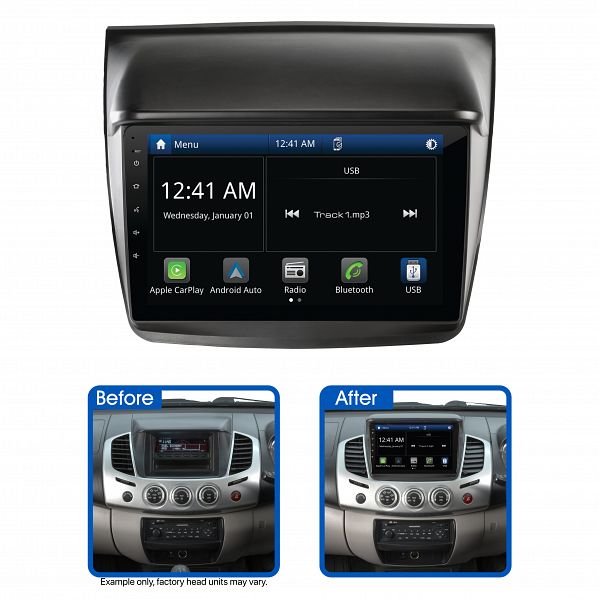

Aerpro AMMB2 9" Multimedia Receiver Suit Mitsubishi Triton GL-R/GLX/GLX-R & Challenger

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMMB2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles (non amplified models with the Mitsubishi Multi Communication System MMCS only).

Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMB2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, factory AUX input and factory reverse camera (if equipped).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles (non amplified models with the Mitsubishi Multi Communication System MMCS only).
• Reverse Camera Retention uses the reverse camera input of the head unit.
• AUX Input Retention uses the RCA AUX input on the rear of the head unit.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (Including Phone Button)
• Factory Reverse Camera: Yes (If Equipped)
• AUX Input: Yes (If Equipped)
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: N/A
• Other: PTT Function (Manually Program)

Features:

• To suit Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles (non amplified models with the Mitsubishi Multi Communication System MMCS only)
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Steering wheel control (including phone button), factory AUX input and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Reverse camera input (AHD 720P compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

Vehicle Compatibility:

• Mitsubishi Challenger 2009 - 2013 PB
• Mitsubishi Triton 2009 - 2014 MN
• Mitsubishi Triton 2009 - 2012 MN

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Camera Retention Adaptor
