Aerpro AMMB12 9" Multimedia Receiver Suit Mitsubishi Outlander & Peugeot 4007 (Rockford Fosgate Amplified)

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

Multimedia Receiver with Wireless Apple CarPlay & Android Auto

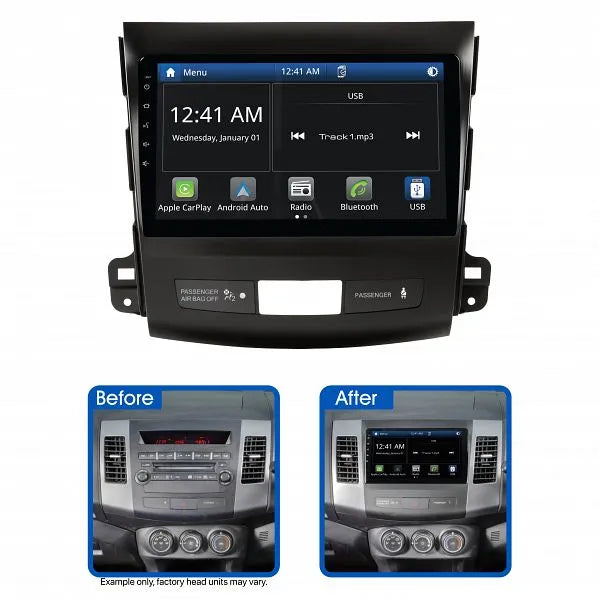

The Aerpro AMMB12 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mitsubishi Outlander ZG, ZH (2007-2012) and Peugeot 4007 (2009-2012) vehicles with factory Rockford Fosgate amplified systems*. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMB12 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, access to the vehicle menu, factory Rockford Fosgate amplified system and factory reverse camera (If Equipped, Model Dependent).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• *Not compatible with all levels of Rockford Fosgate amplification. AXTOMI2 and AXSWC may be required for these vehicles (Sold Separately). Professional installation required.
• Reverse Camera Retention uses the reverse camera input of the head unit. Camera Retention Adaptor only for vehicles with MMCS (Screen). Not applicable for standard Rockford with no screen.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (Including phone button)
• Factory Reverse Camera: Yes (If equipped, model dependent)
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: Yes (Excluding some models, see important notes below)
• Vehicle Menu: Yes
• Other: N/A

Features:

• To suit Mitsubishi Outlander ZG, ZH (2007-2012) and Peugeot 4007 (2009-2012) vehicles with factory Rockford Fosgate amplified systems*
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (Wireless / Wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 required, sold separately)
• Large 9" capacitive touchscreen display
• Steering wheel control (Including Phone Button), access to the vehicle menu, factory Rockford Fosgate amplified system and factory reverse camera retention (If equipped, model dependent)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A Max Charging)
• Reverse camera input (AHD 720P Compatible) & rear A/V input
• 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

Vehicle Compatibility:

• Mitsubishi Outlander (2007 - 2012 ZG, ZH)
• Peugeot 4007 (2009 - 2012)

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Camera Retention Adaptor
