Aerpro AMDVW6 10" Multimedia Receiver VW Transporter MIB-II 16

10" Wireless CarPlay for the VW Transporter T6 with MIB-II Infodaptor Retains Amp, SWC, Parking Tones and Vehicle Menu Connected Car Features Not Retained

Product Overview

The Aerpro AMDVW6 is a complete head unit upgrade kit exclusively for the Volkswagen Transporter (2016–2019) fitted with the MIB-II factory head unit. It should not be confused with the AMDVW4 or AMDVW5, which cover the Transporter (2016–2019) with the MIB-PQ factory unit a different integration architecture requiring different kits.

The AMDVW6 uses the same Infodaptor integration approach as the AMDVW5, retaining the factory amplified audio system, steering wheel controls (including the phone button), parking tones, and vehicle menu access via the Infodaptor Interface Harness. As with all Infodaptor-based kits, the interface connects to the rear camera input on the head unit, and the output is low resolution.

Connected Car features are not retained: Features including E-Call, We Connect, and the towing alarm are not actively retained by this kit. They may have limited background functionality but should not be relied upon after installation.

SOS/Service/Info buttons — dealership coding recommended: For Transporter T6 models with SOS, Service, or Info buttons, Aerpro recommends having these functions factory coded out by an approved dealership prior to installation. Failure to do so may cause diagnostic issues on the MFD after the head unit swap.

Factory reverse camera retention requires the separately sold APVVW03 adaptor. Stop-start models may require the separately sold APIGNSTB ignition stabiliser.

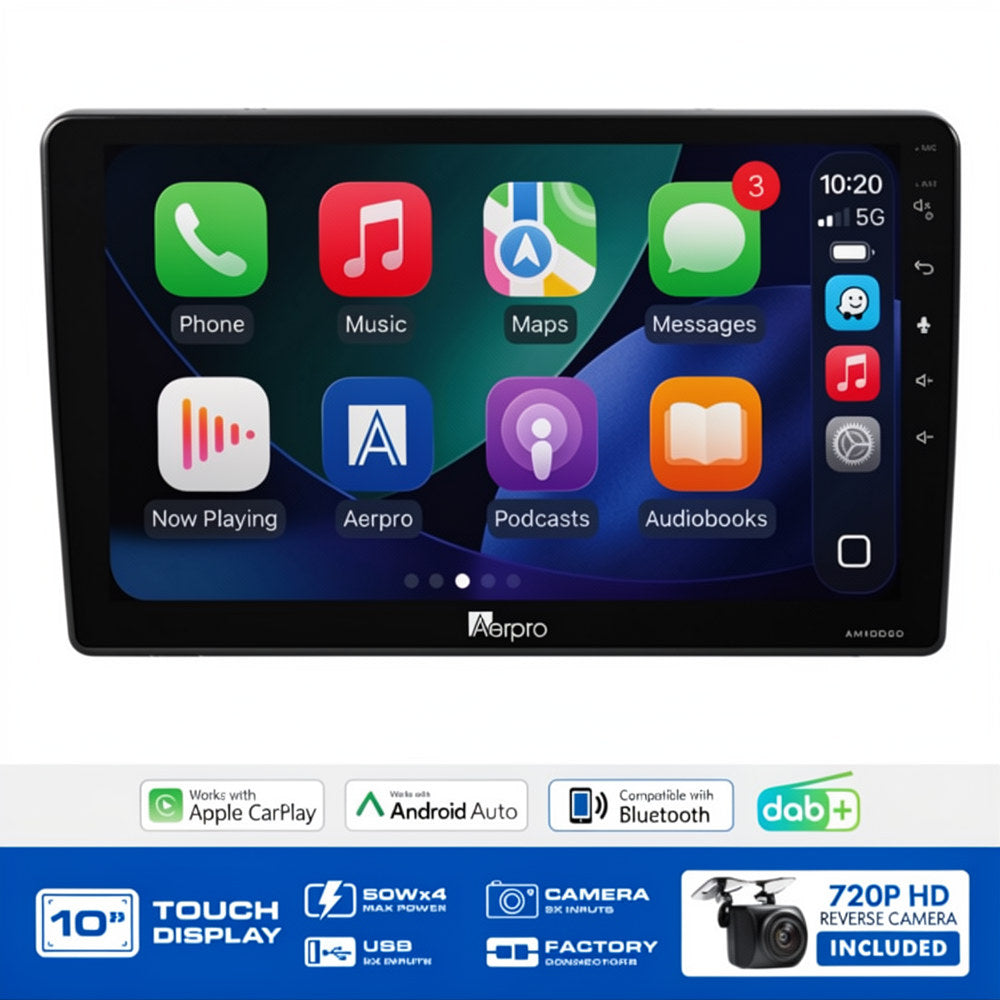

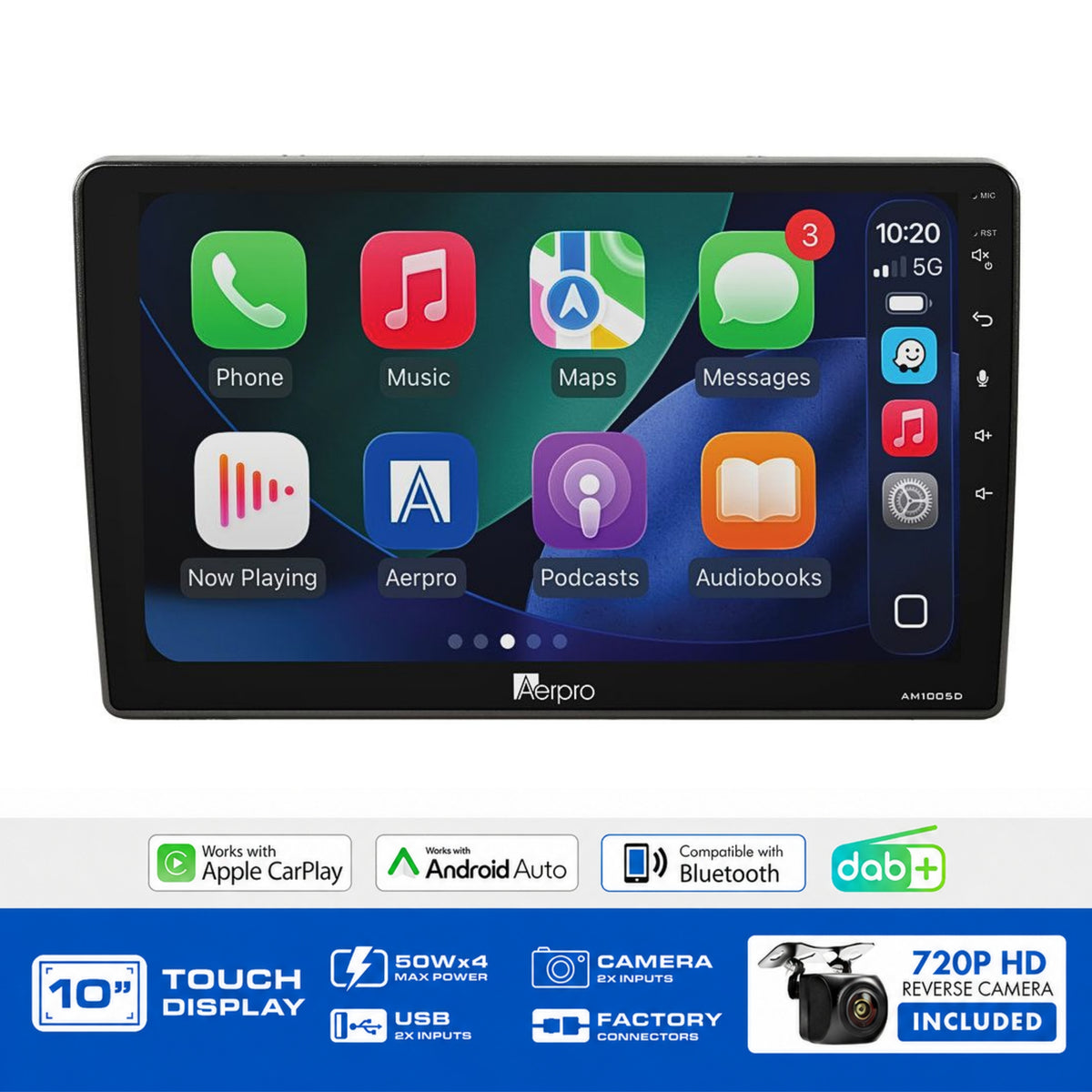

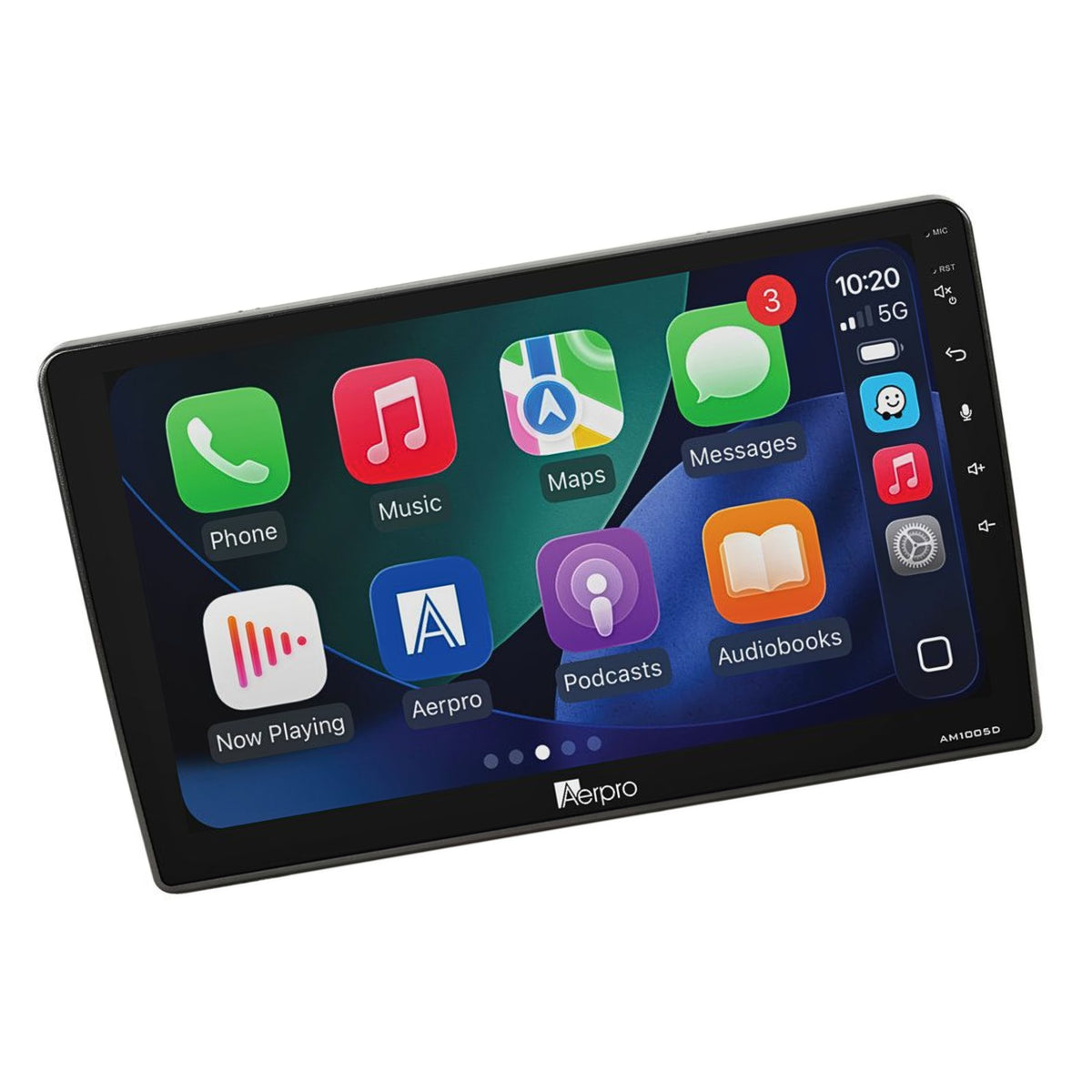

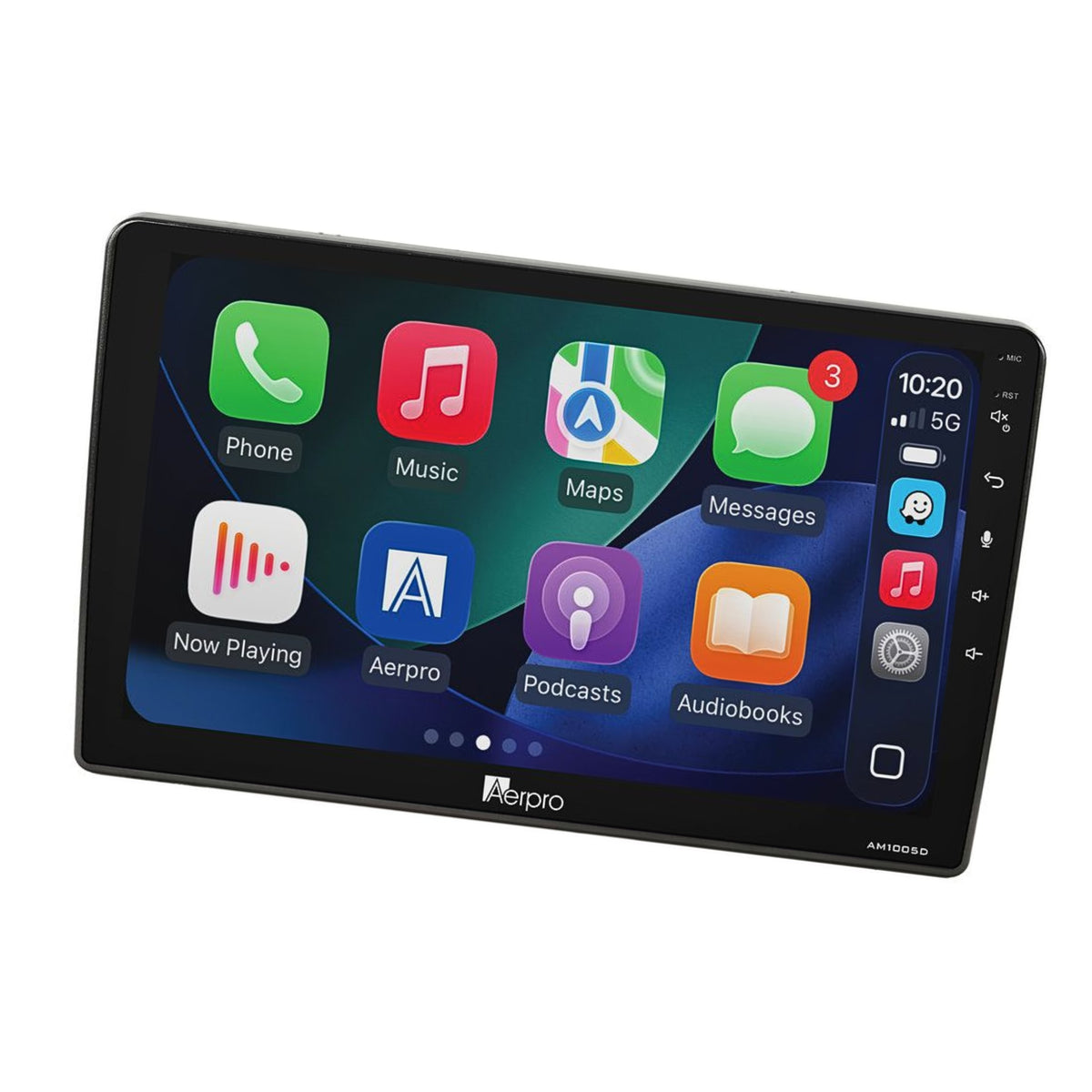

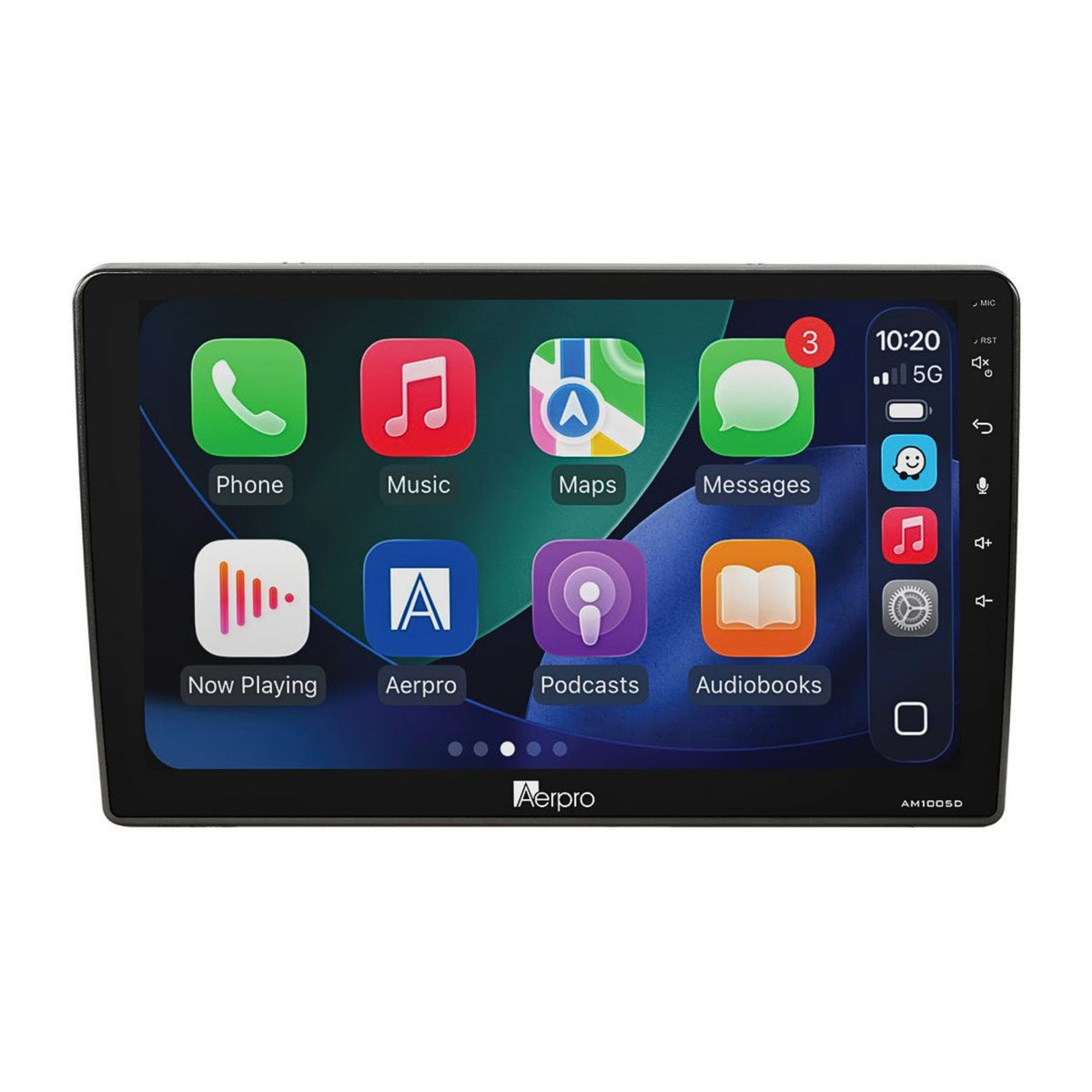

The kit includes the AM1005D multimedia receiver, matte black facia kit, Infodaptor Interface Harness, SWC patch lead, antenna adaptor, and a surface mount rear camera (110-degree, IP67, 6m RCA cable with in-line reverse trigger).

Features & Benefits

• MIB-II factory unit models only — the AMDVW6 is for the Transporter (2016–2019) with the MIB-II platform specifically; Transporter models with MIB-PQ use the AMDVW4 or AMDVW5 instead
• Infodaptor Interface Harness — connects to the rear camera input on the head unit to carry vehicle system data; enables retention of factory amplifier, SWC, parking tones, and vehicle menu — but outputs low resolution video
• Low resolution output — the Infodaptor's use of the camera input means all video output from this interface is low resolution; this applies to vehicle information display and any connected camera signal
• Factory amplifier retained — the factory amplified audio system is preserved after installation via the Infodaptor
• Parking tones retained — factory parking sensor tone function is preserved via the Infodaptor
• Vehicle menu retained — factory vehicle menu access is preserved via the Infodaptor
• SWC retained including phone button — factory steering wheel controls carry over via the Infodaptor and SWC patch lead
• Connected Car features (E-Call, We Connect, towing alarm) not retained — these MIB-II connected services are not actively retained by this kit and should not be relied upon after installation; they may have limited background functionality only
• SOS/Service/Info button coding required pre-installation — on Transporter T6 models with SOS, Service, or Info buttons, Aerpro recommends factory coding these functions out at an approved VW dealership before installing this kit, to prevent MFD diagnostic issues
• Factory reverse camera — APVVW03 required (sold separately) — the rear camera input is occupied by the Infodaptor; retaining the factory camera requires the APVVW03 adaptor sold separately
• Stop-start models — APIGNSTB may be required (sold separately) — vehicles with stop-start may require the APIGNSTB ignition stabiliser to prevent head unit power instability
• Matte black vehicle-specific facia kit — matched to the Transporter T6 interior; antenna adaptor included
• Surface mount camera included (110°, IP67) — not the standard 720P AHD camera; a 110-degree surface mount unit with 6m RCA cable and in-line reverse trigger, mountable as front, rear, or reverse camera
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included

Technical Specs

Compatible With / Goes Well With

• Volkswagen Transporter (2016–2019) — with MIB-II factory head unit only
• Not compatible with Transporter (2016–2019) fitted with MIB-PQ — use AMDVW4 or AMDVW5 for those
• APVVW03 camera retention adaptor (sold separately) — required to retain factory reverse camera
• APIGNSTB ignition stabiliser (sold separately) — may be required for stop-start models
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing

Weight

Not specified

Frequently Asked Questions

How do I know if my Transporter has MIB-II or MIB-PQ?

Both MIB-II and MIB-PQ are variants of VW's Modular Infotainment Platform, and both appeared in the Transporter T6 (2016–2019) depending on specification and market. MIB-II is generally found in higher-specification T6 variants with connected services (E-Call, We Connect) and SOS/Service/Info buttons; MIB-PQ is more common in base commercial configurations. The clearest indicator is whether your Transporter has connected car buttons or services — if it does, it likely has MIB-II. Confirm using the Aerpro What Fits Your Car Guide before purchasing.

What Connected Car features are not retained and does this matter?

E-Call (emergency call on crash detection), We Connect (VW's connected vehicle app platform), and the towing alarm are not actively retained after installation. These features are tied to the factory MIB-II head unit's connectivity architecture. They may have limited background functionality, but should not be relied upon post-installation. If any of these connected services are important to your vehicle's operation, consider whether an aftermarket head unit upgrade is suitable.

Why should I get SOS/Service/Info buttons coded out before installation?

On Transporter T6 models with SOS, Service call, or Info buttons, these functions are registered to the MIB-II system. After replacing the factory head unit, the MFD may generate diagnostic faults because the system expects these buttons to be active. Having them factory coded out by an approved VW dealership before the installation prevents these faults from appearing.

Can I retain the factory reverse camera?

Yes, but only with the separately sold APVVW03 camera retention adaptor. Because the rear camera input on the head unit is occupied by the Infodaptor Interface, the APVVW03 is required to route the factory camera through an alternative path.

What is the Infodaptor and why is the output low resolution?

The Infodaptor is a vehicle integration module that reads factory system data (amplifier, SWC, parking tones, vehicle menu) and transmits it as an analogue video signal through the head unit's rear camera input. Because it uses the camera input rather than a native digital interface, the output is low resolution. This is the same architecture used in the AMDVW3 and AMDVW5 for other VW models.
