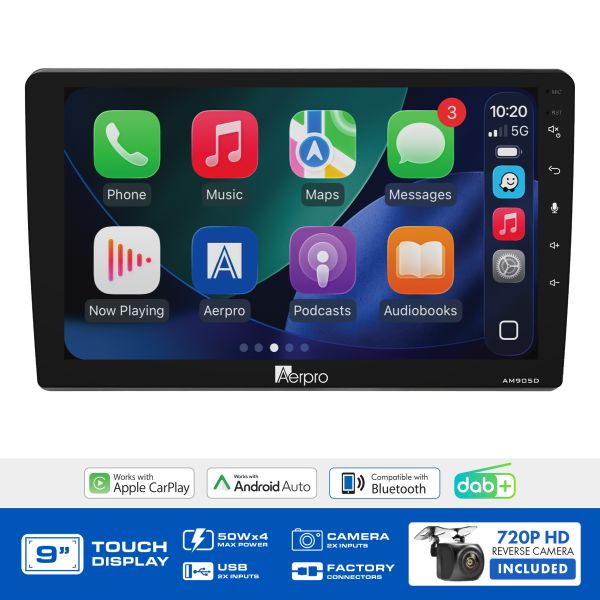

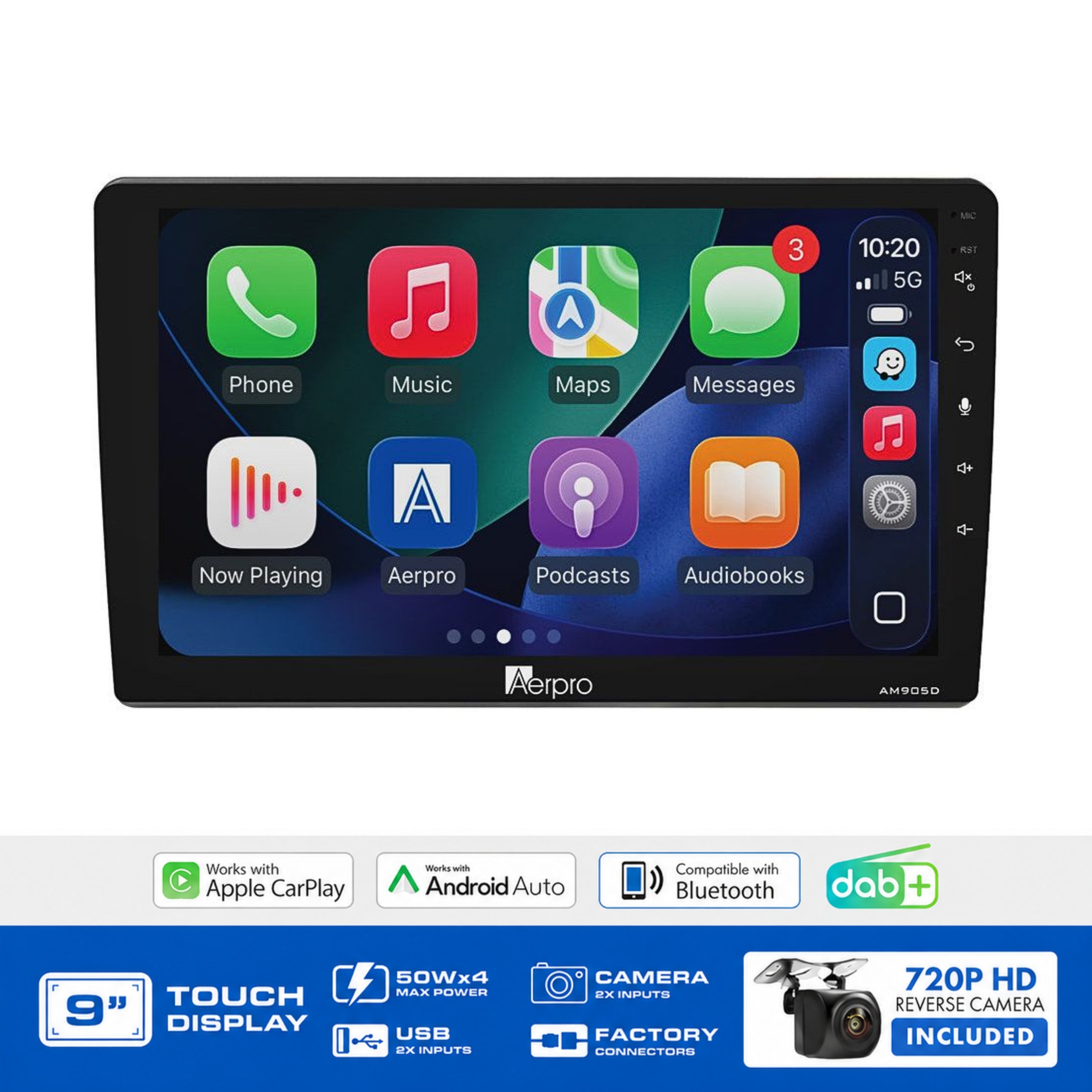

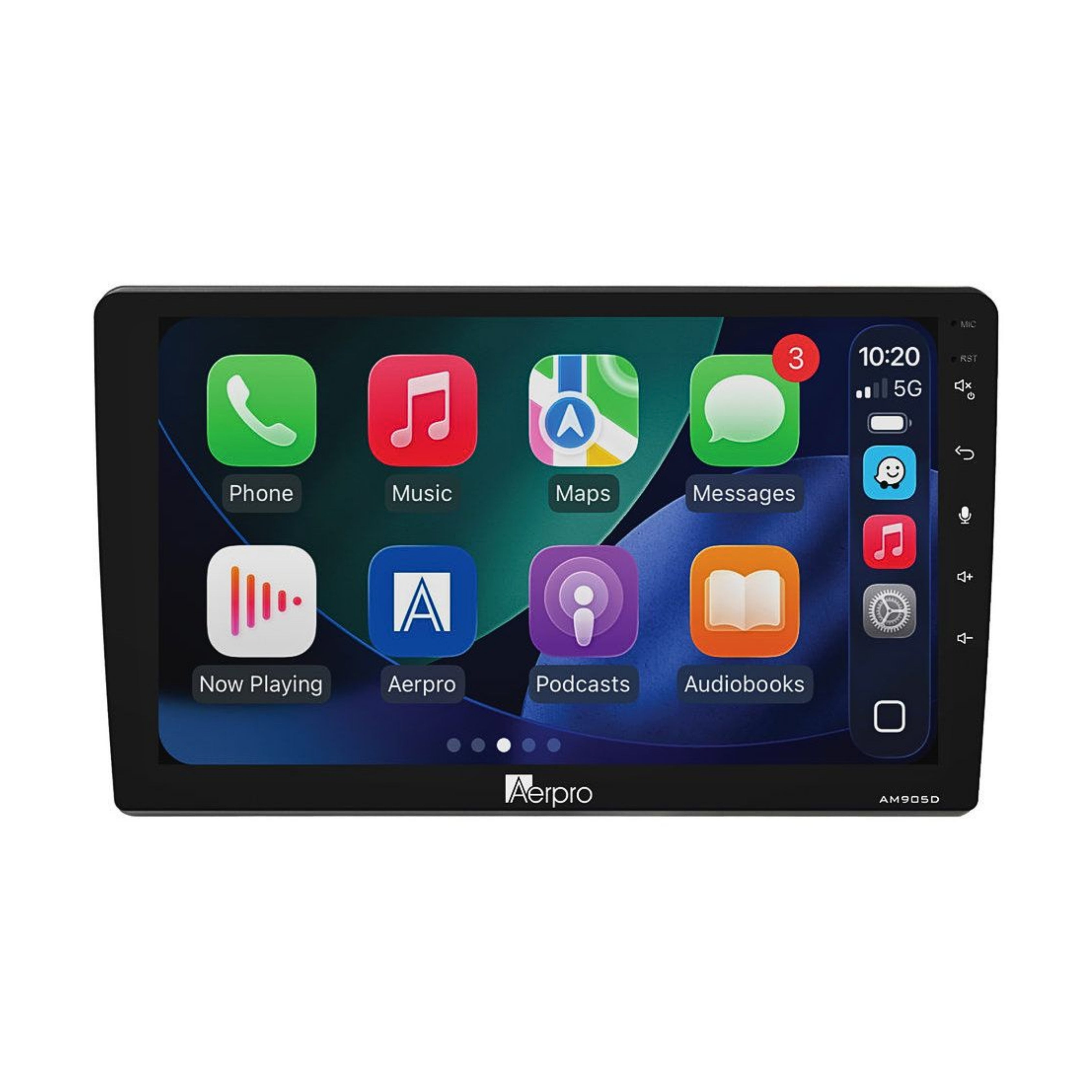

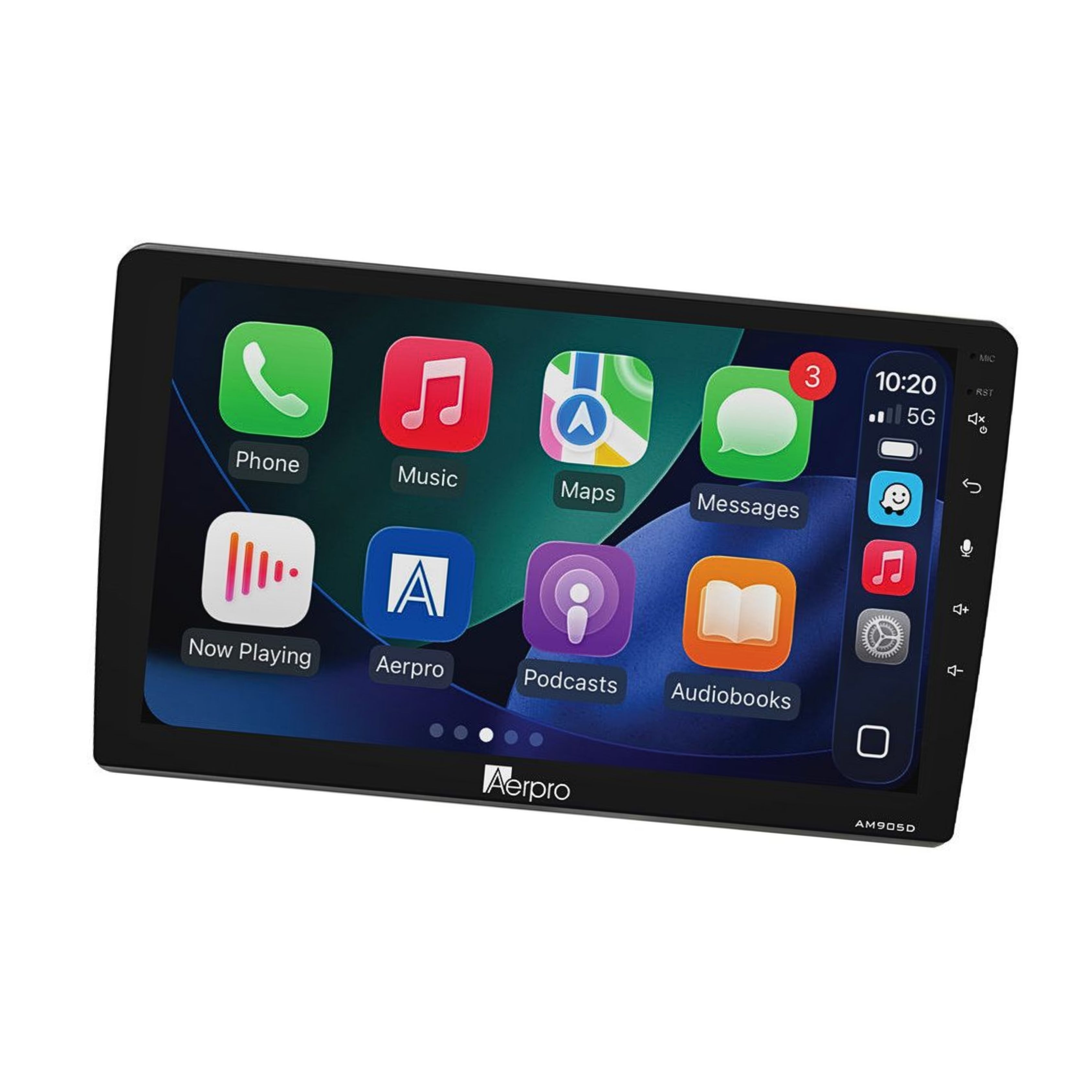

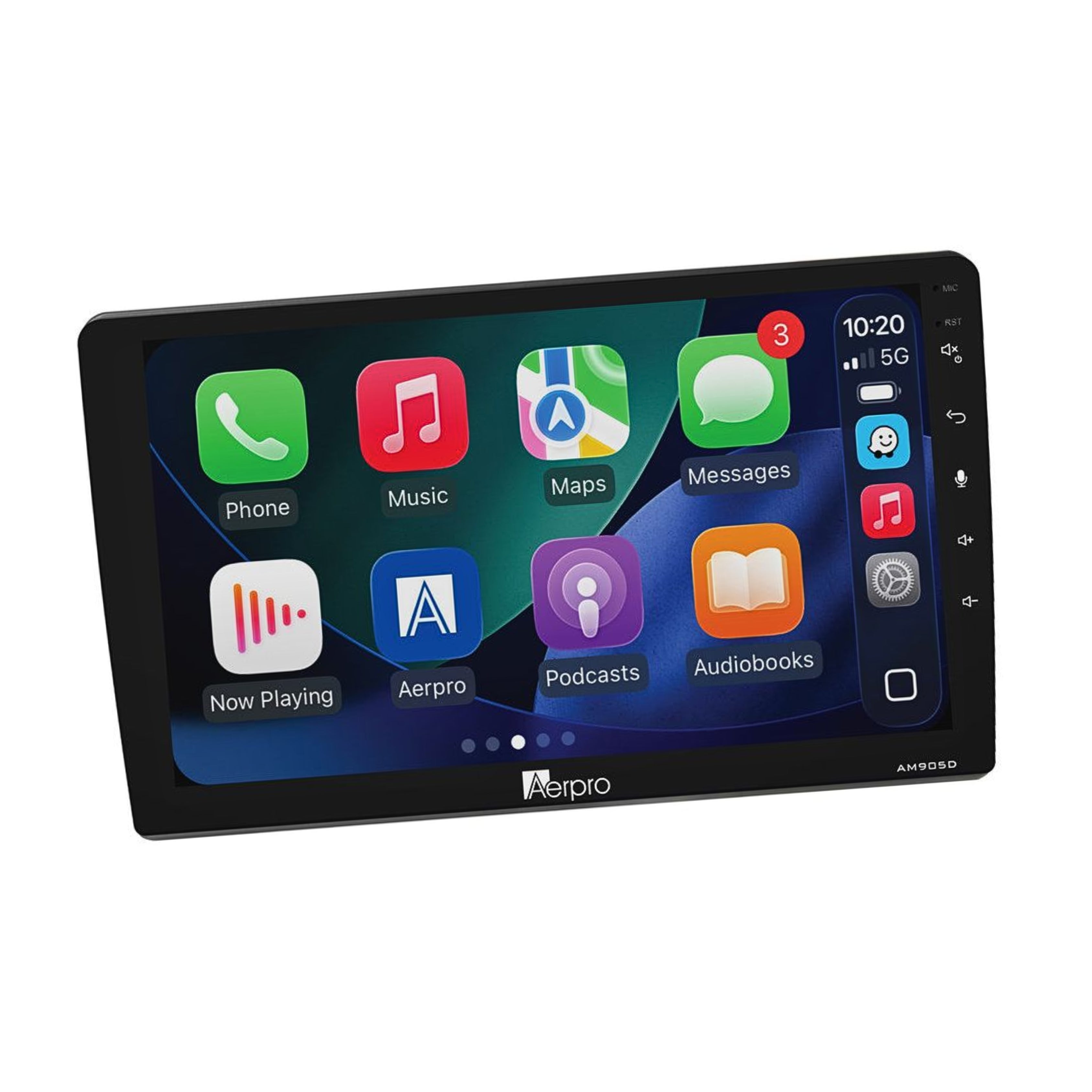

Aerpro AMDVW14 9" Multimedia Receiver VW MIB-PQ Models 2015+

9" Wireless CarPlay for Modern Volkswagens with Factory MIB-PQ Units SWC Retained, Optional Ignition Stabiliser and Camera Adaptor Available

Product Overview

The Aerpro AMDVW14 is a complete head unit upgrade kit for five newer-generation Volkswagen models fitted with the factory MIB-PQ (Modular Infotainment Toolbox, PQ platform) head unit: Amarok (2016-on), Caddy (2015–2020), Multivan (2016–2019), Tiguan (2015–2016), and Transporter (2016–2019). It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls.

Several installation requirements and optional accessories apply to this kit. An ignition stabiliser (Aerpro APIGNSTB, sold separately) may be required on stop-start equipped models. The factory reverse camera is not retained by this kit a separate camera retention adaptor (Aerpro APVVW03, sold separately) is required to retain the factory camera signal. The phone button on the steering wheel may require removal of the fuse from the factory Bluetooth module to function.

Features & Benefits

• MIB-PQ unit specific — designed for VW models fitted with the factory MIB-PQ head unit; the Aerpro What Fits Your Car Guide should be used to confirm your vehicle's factory unit type before ordering
• SWC retained — the SWC interface harness and patch lead carry over factory steering wheel control functions; the phone button may require fuse removal from the factory Bluetooth module to activate
• Stop-start models may need ignition stabiliser — the Aerpro APIGNSTB ignition stabiliser (sold separately) may be required on stop-start equipped VW models to prevent the head unit from cycling off during automatic stop events
• Factory reverse camera not retained — adaptor available separately — the factory reverse camera signal is not retained by this kit; the Aerpro APVVW03 camera retention adaptor (sold separately) is required to retain the factory camera; the included 720P AHD camera adds reversing visibility without factory camera retention
• Factory amplifier not retained — no amplifier retention harness is included; this kit does not support factory amplified system retention
• HD camera resolution reduction — connecting an aftermarket HD camera will result in reduced resolution output; the included 720P AHD camera is unaffected
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — major display upgrade across all covered MIB-PQ platform VW models
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; provides reversing visibility without factory camera retention
• Matte black vehicle-specific facia kit — matched across the covered VW MIB-PQ model range
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels

Technical Specs

Compatible With / Goes Well With

• Volkswagen Amarok (2016-on) with factory MIB-PQ unit
• Volkswagen Caddy (2015–2020) with factory MIB-PQ unit
• Volkswagen Multivan (2016–2019) with factory MIB-PQ unit
• Volkswagen Tiguan (2015–2016) with factory MIB-PQ unit
• Volkswagen Transporter (2016–2019) with factory MIB-PQ unit
• Not compatible with MIB-MQB or other factory head unit platforms — confirm factory unit type before purchasing
• Aerpro APIGNSTB Ignition Stabiliser (sold separately) — may be required for stop-start models
• Aerpro APVVW03 Camera Retention Adaptor (sold separately) — required to retain factory reverse camera
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing

Weight

Not specified

Frequently Asked Questions

What is the MIB-PQ unit and how do I know if my VW has one?

MIB stands for Modular Infotainment Toolbox — VW's factory infotainment platform. PQ refers to the PQ vehicle platform used in older-generation VW models. The MIB-PQ is the head unit installed in the Amarok, Caddy, Multivan, Tiguan, and Transporter variants covered by this kit. The Aerpro What Fits Your Car Guide is the most reliable way to confirm your factory unit type before purchasing.

Does my stop-start VW need an ignition stabiliser?

VW models with a stop-start engine management system may cause the head unit to cycle off when the engine stops automatically, then on again when it restarts. The Aerpro APIGNSTB ignition stabiliser (sold separately) prevents this by maintaining a steady power signal to the head unit. Whether it is required depends on the specific vehicle — the installer can determine this during the installation process.

Can I retain my factory reverse camera?

Not with this kit alone. The factory reverse camera signal is not retained by the AMDVW14 without the Aerpro APVVW03 camera retention adaptor, which is sold separately and not included in this kit. The 720P AHD universal rear camera included in the kit provides reversing visibility in its place or alongside the factory camera when the adaptor is used.

Why might the phone button need a fuse removed?

Some VW models with MIB-PQ units retain a factory Bluetooth module that can interfere with the phone button function on the aftermarket head unit. Removing the fuse from that factory module prevents the conflict. This is an installation step that the installer can identify and action based on the specific vehicle.

How does this differ from the AMDVW12 and AMDVW13?

The AMDVW12 and AMDVW13 cover older VW platforms (pre-2015 MFD-era models) with Panasonic or Blaupunkt amplifiers respectively. The AMDVW14 covers the newer MIB-PQ platform models (2015-on). The AMDVW14 does not include an amplifier retention harness, has additional optional accessories (APIGNSTB, APVVW03), and has the Bluetooth module fuse consideration that the older kits do not.
