Aerpro AMDVW12 9" Multimedia Receiver VW Multi-Model 2004-2016

9" Wireless CarPlay Across Eleven Volkswagen Models Panasonic Amp Retained, Blaupunkt Systems Not Compatible

Product Overview

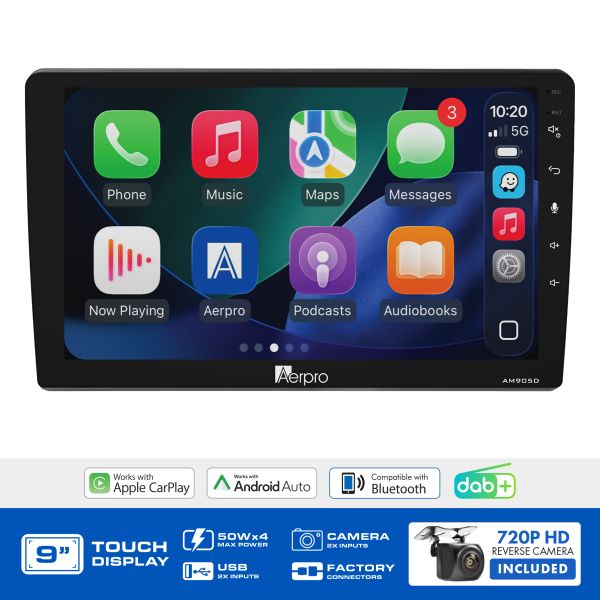

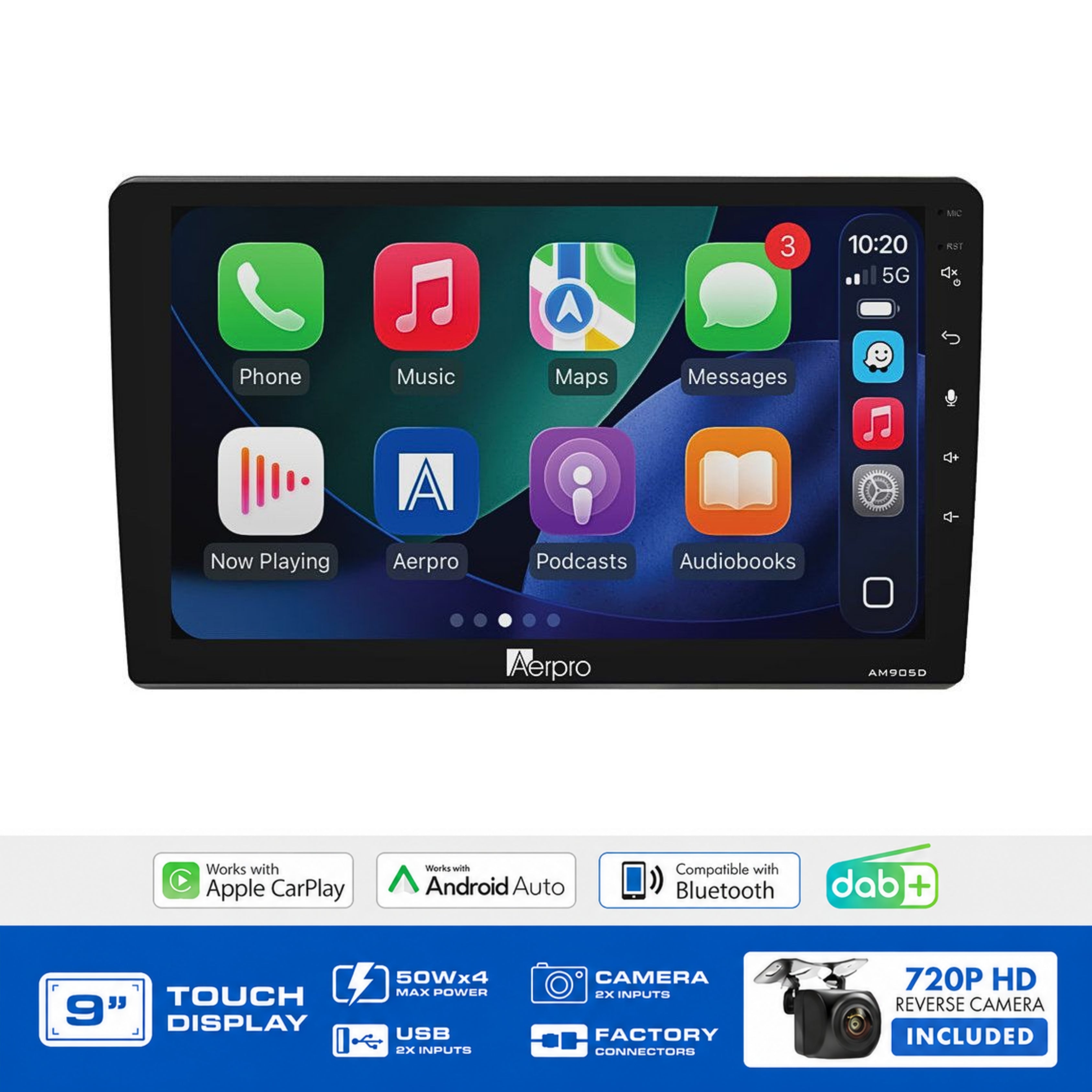

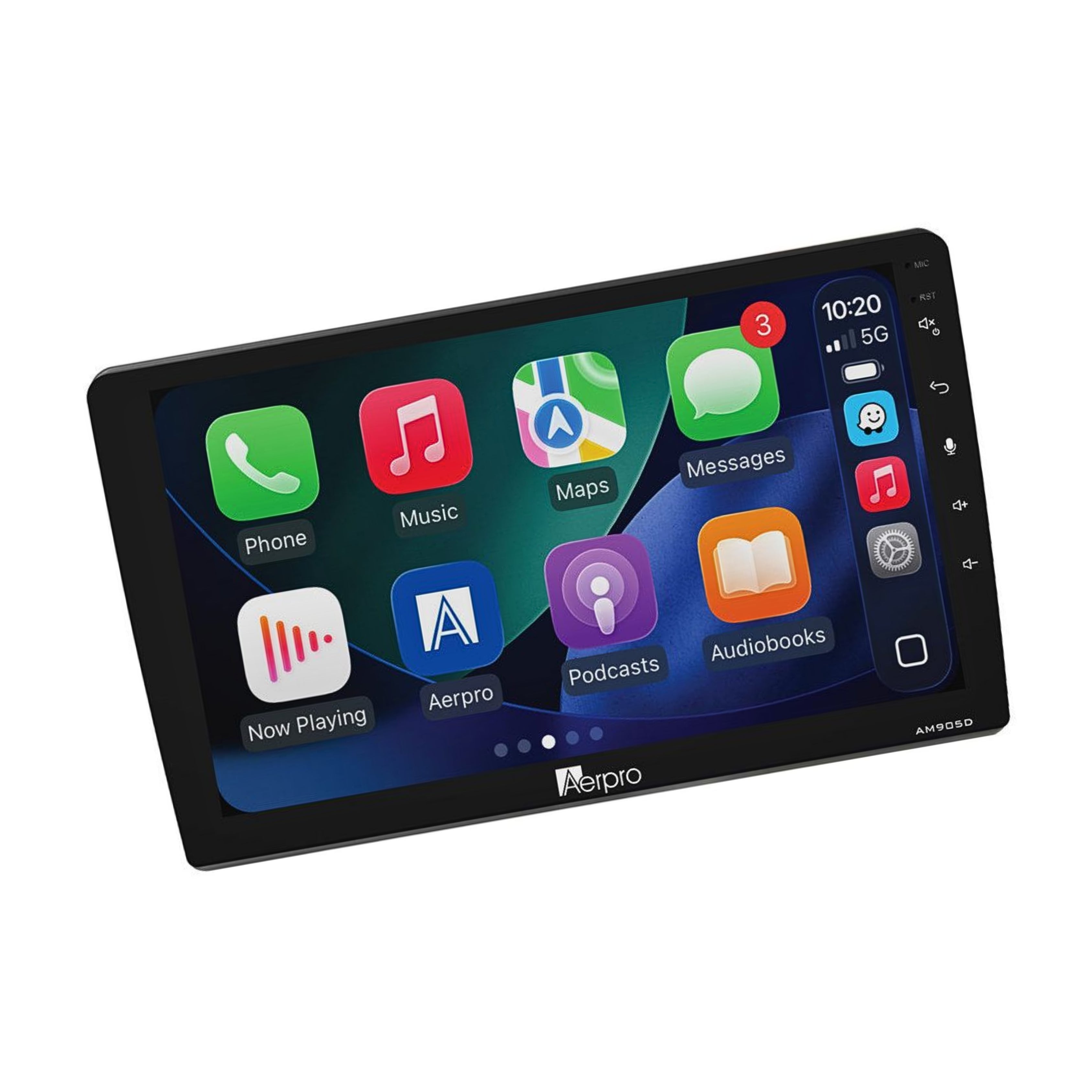

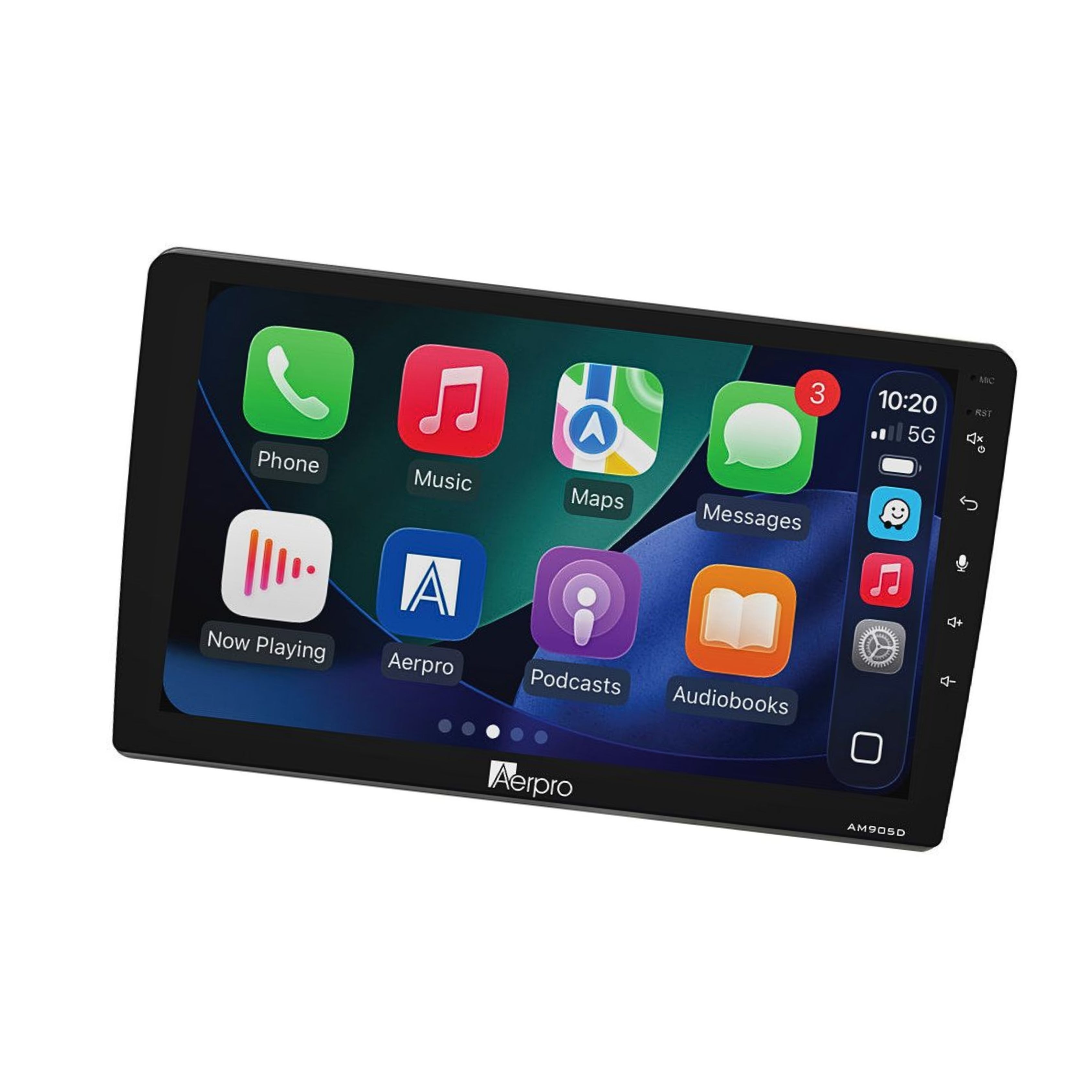

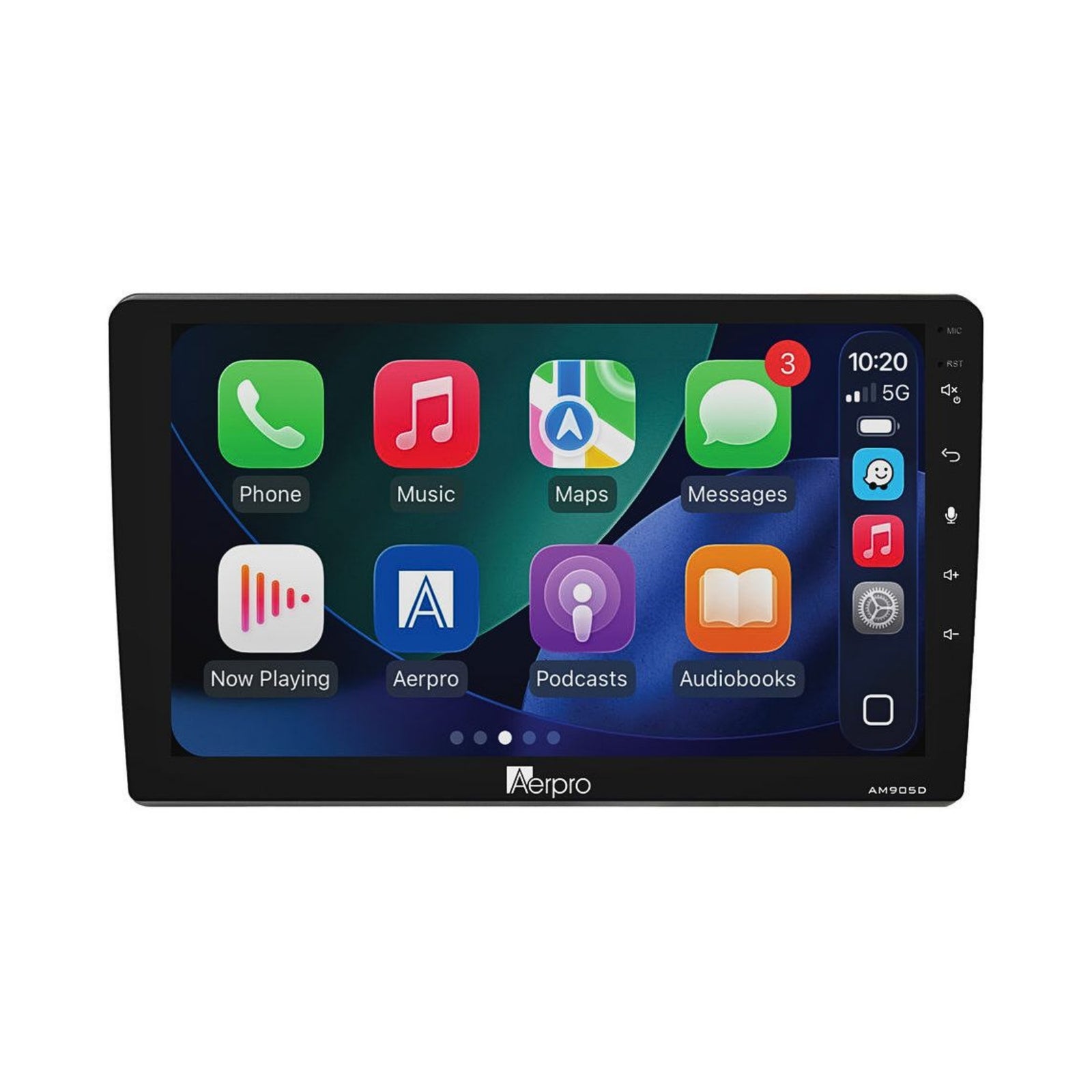

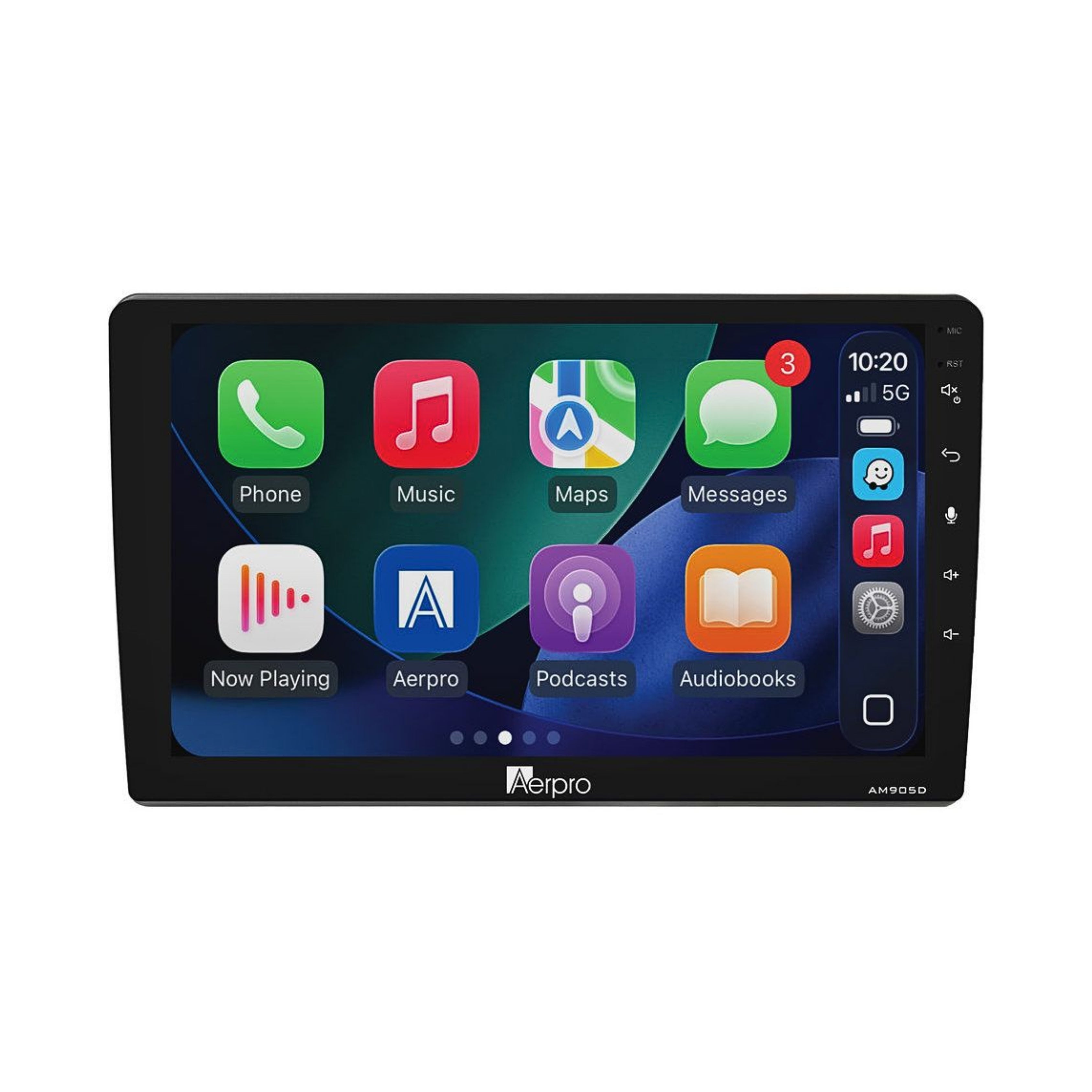

The Aerpro AMDVW12 is a complete head unit upgrade kit covering eleven Volkswagen models across more than a decade of production: Amarok (2011–2016), Beetle (2012–2014), Caddy (2005–2015), Eos (2007–2014), Golf (2004–2013), Jetta (2006–2015), Passat (2006–2015), Polo (2010–2015), Scirocco (2009–2014), Tiguan (2008–2014), and Transporter (2010–2015). It replaces the factory head unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining steering wheel controls (including the phone button) and the factory amplifier on compatible models.

Features & Benefits

• Covers eleven VW models across 12 years — a single kit suits the Amarok, Beetle, Caddy, Eos, Golf, Jetta, Passat, Polo, Scirocco, Tiguan, and Transporter across overlapping year ranges; broad workshop and dealer inventory value
• Factory amplifier retained — Panasonic systems only — the included amplifier retention harness preserves the factory Panasonic amplified audio system; Blaupunkt amplified vehicles are not compatible and require the AMDVW3 or AMDVW13
• Amplifier trigger wire may be required — on amplified models, a trigger wire may need to be connected during installation to activate the factory amplifier; this is an installation step, not a missing component
• SWC retained including phone button — all factory steering wheel controls carry over via the SWC interface harness and patch lead, including the phone button
• Factory reverse camera not retained — factory reverse camera signal is not preserved on this kit; the included 720P AHD camera provides reversing visibility in its place
• Parking tones not retained — factory parking tone function does not carry over after installation
• HD camera resolution reduction — if an aftermarket HD camera is connected to this head unit, resolution will be reduced; the included 720P AHD camera is not affected
• Matte black vehicle-specific facia kit — matched across the full range of covered VW models
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a significant display upgrade across all covered platforms
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
• 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained factory system
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Compatible With / Goes Well With

• Volkswagen Amarok (2011–2016)
• Volkswagen Beetle (2012–2014)
• Volkswagen Caddy (2005–2015)
• Volkswagen Eos (2007–2014)
• Volkswagen Golf (2004–2013)
• Volkswagen Jetta (2006–2015)
• Volkswagen Passat (2006–2015)
• Volkswagen Polo (2010–2015)
• Volkswagen Scirocco (2009–2014)
• Volkswagen Tiguan (2008–2014)
• Volkswagen Transporter (2010–2015)
• All models above: non-Blaupunkt amplified variants only — Blaupunkt amplified vehicles require the Aerpro AMDVW3 or AMDVW13
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing

Weight

Not specified

Frequently Asked Questions

Which VW models does this kit cover?

The AMDVW12 covers the Amarok (2011–2016), Beetle (2012–2014), Caddy (2005–2015), Eos (2007–2014), Golf (2004–2013), Jetta (2006–2015), Passat (2006–2015), Polo (2010–2015), Scirocco (2009–2014), Tiguan (2008–2014), and Transporter (2010–2015). Confirm your specific year and variant using the Aerpro What Fits Your Car Guide.

Does this work with Blaupunkt factory amplified systems?

No — the AMDVW12 is compatible with factory Panasonic amplified systems only. Vehicles with a factory Blaupunkt amplified system are not compatible and will require the Aerpro AMDVW3 or AMDVW13 kit instead.

What does "may need a trigger wired in for the amplifier" mean?

Some amplified VW models require a separate trigger wire to be connected during installation to signal the factory amplifier to activate. This is a wiring step performed during the install — not a missing accessory — and should be handled by the installer based on the specific vehicle.

Why is camera resolution reduced with an HD camera?

This head unit's camera inputs are optimised for AHD signals up to 720P. Connecting an aftermarket HD camera with a higher resolution than 720P will result in the camera signal being downscaled to the head unit's maximum supported input resolution. The included 720P AHD camera works at full resolution without any reduction.

Is the factory reverse camera retained after installation?

No — factory reverse camera retention is not supported on the AMDVW12. The 720P AHD universal rear camera included in the kit provides reversing visibility in its place.
