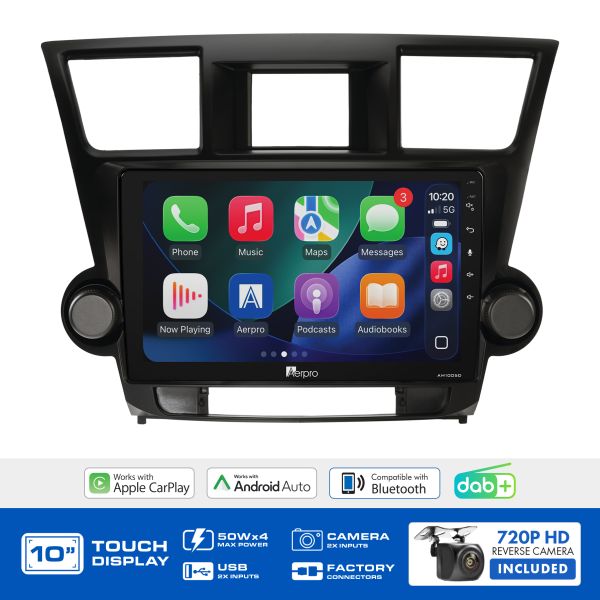

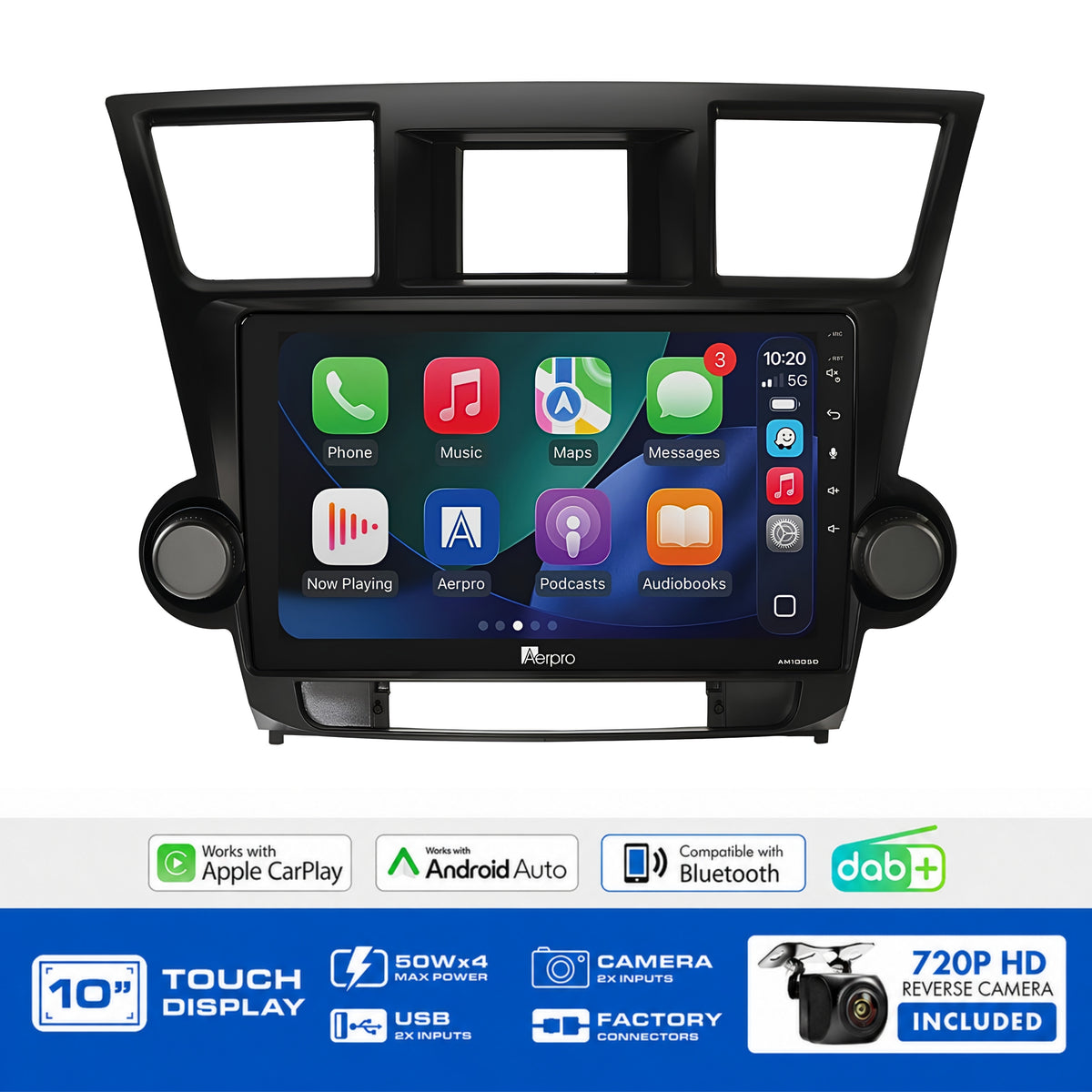

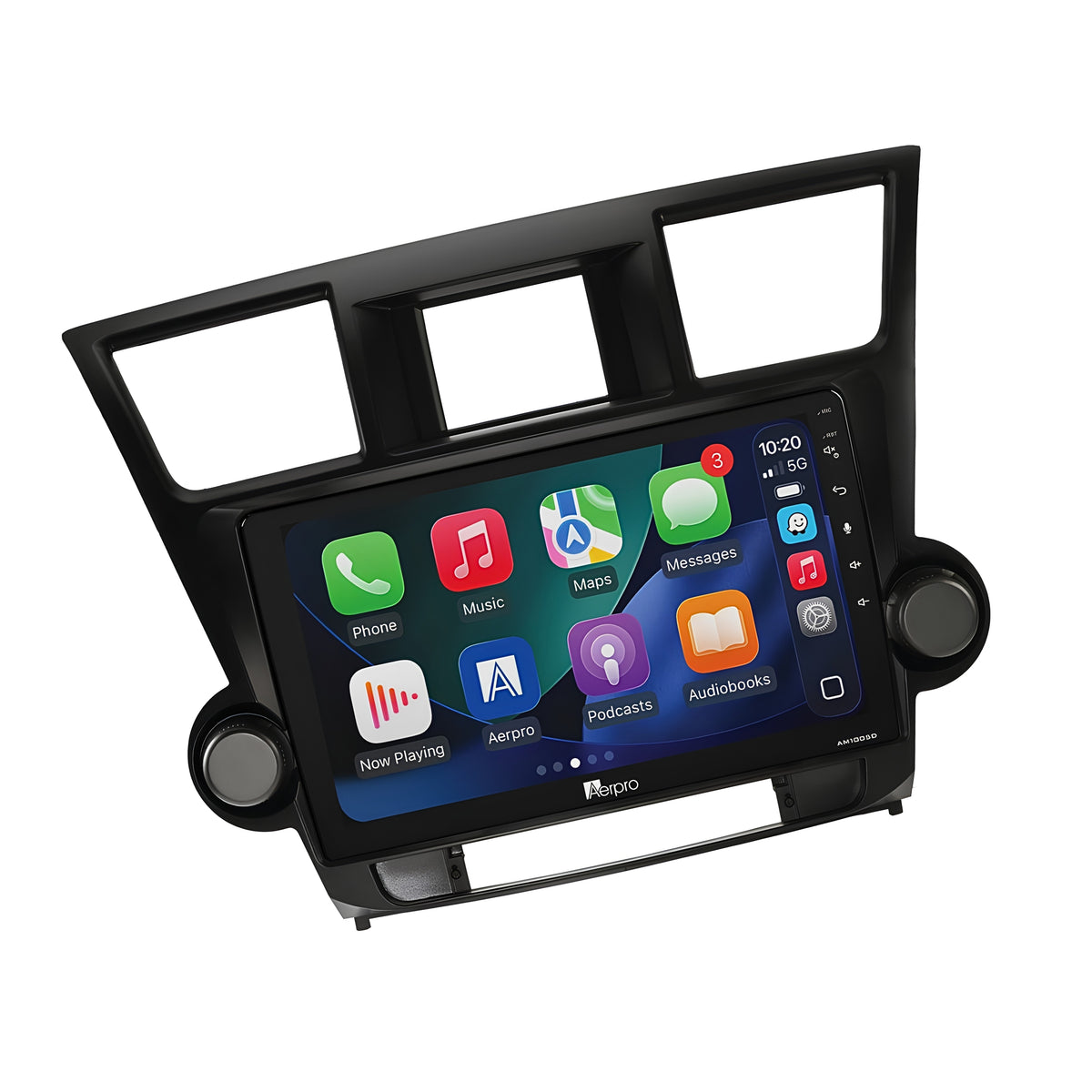

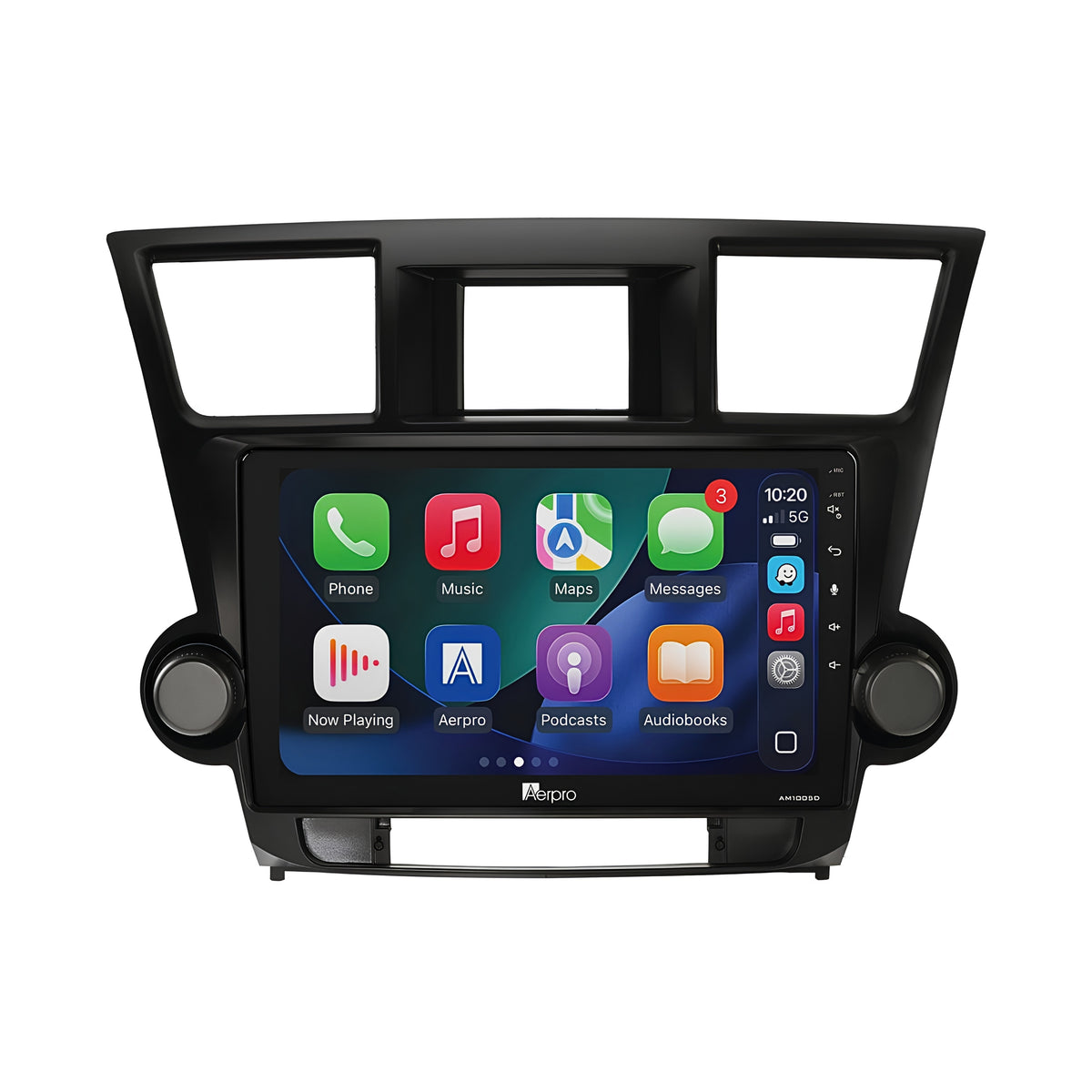

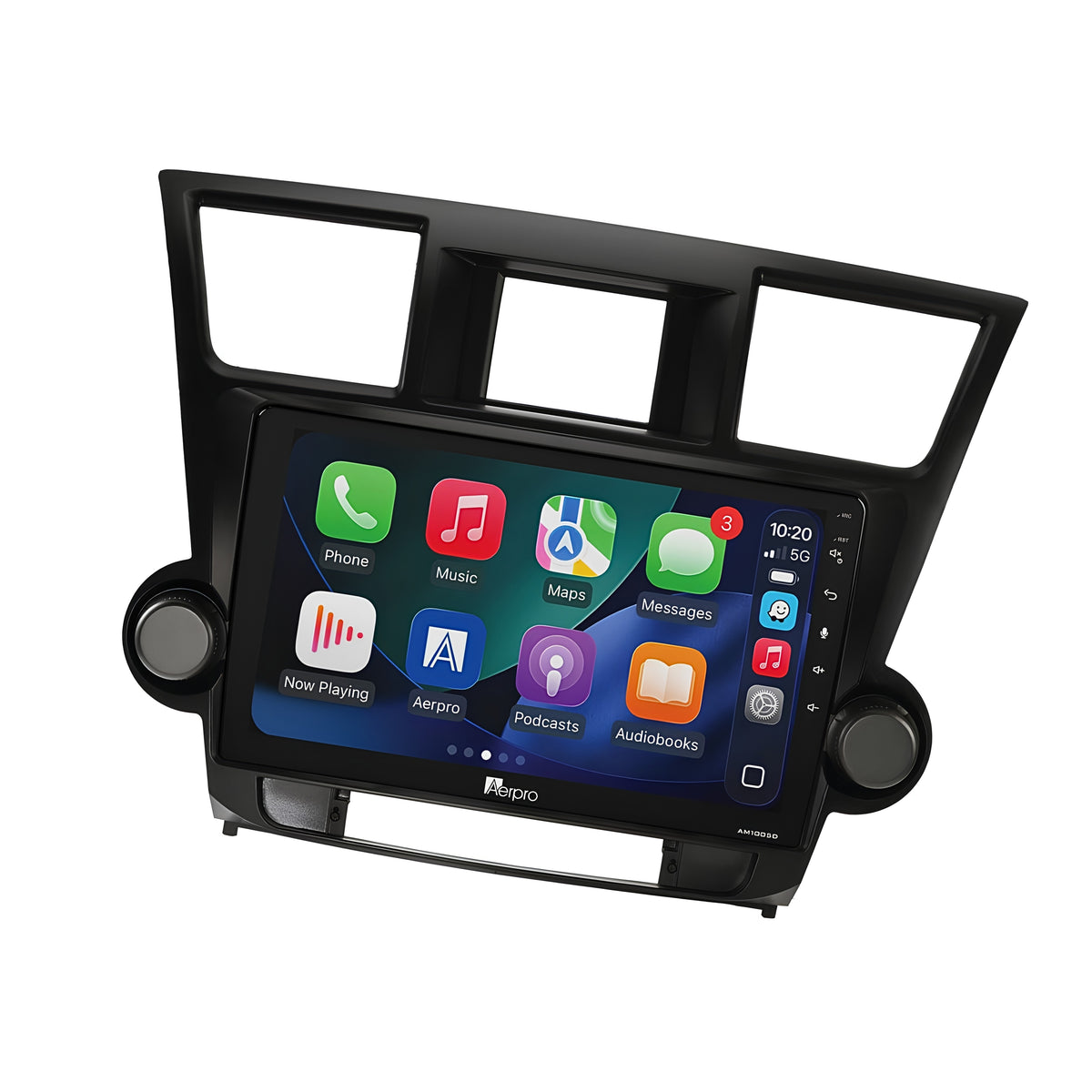

Aerpro AMDTO6 10" Multimedia Receiver Toyota Kluger 2007-2013

SKU: AMDTO6
Price
$1,299.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMDTO6 10 Inch Multimedia Receiver Toyota Kluger 2007-2013 Non-Amplified Wireless Apple CarPlay Android Auto DAB+ Bluetooth V5 720P AHD Camera Complete Kit

The Aerpro AMDTO6 is a complete head unit upgrade kit for Toyota Kluger (2007-2013) non-amplified vehicles. 10" capacitive touchscreen (1024x600), wireless and wired Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth V5, 4x50W max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment. Retains steering wheel controls and factory reverse camera (if equipped). Includes 720P AHD universal rear camera.

Important: Suits non-amplified vehicles only. Use Aerpro AMTO7 for factory amplified vehicles. Park brake wire must be connected to activate Apple CarPlay and Android Auto. Side dials on kit are cosmetic only.

Product overview

The AMDTO6 is Aerpro's complete multimedia upgrade solution for Toyota Kluger (2007-2013) non-amplified vehicles, replacing the factory head unit with the AM1005D 10" receiver and including all hardware, harnesses, and vehicle-specific fascia required for a clean, professional installation. The fixed trapezoid-style 10" capacitive touchscreen provides wireless Apple CarPlay and Android Auto for smartphone integration, DAB+ digital radio for crystal-clear audio, and Bluetooth V5 for hands-free calling and audio streaming with HD Voice. A 720P AHD universal rear camera is included, and the factory reverse camera is retained via the camera retention adaptor if the vehicle is equipped. Steering wheel controls are fully retained through the included SWC interface harness and patch lead.

Features and benefits

Complete head unit upgrade kit: Includes all parts required for a Toyota Kluger 2007-2013 non-amplified installation, no additional purchases needed.

10" capacitive touchscreen (1024x600): Large, responsive display for maps, media, and menu navigation.

Wireless and wired Apple CarPlay and Android Auto: Full smartphone integration without cables, or via USB for wired operation and charging.

DAB+ digital radio: Crystal-clear digital audio with a wider range of stations, plus AM/FM with RDS.

Bluetooth V5 with HD Voice: Hands-free calling, audio streaming, phonebook access, and HFP 1.6 HD Voice support.

4x50W max output with 5-channel 4V RCA preouts: High-power audio with front, rear, and subwoofer preamp outputs for amplifier expansion.

13-band graphic EQ, time alignment, and subwoofer control.

Steering wheel control retention: SWC interface harness and patch lead included.

Factory reverse camera retention: Camera retention adaptor included (if vehicle is equipped).

720P AHD universal rear camera included: Sony 225 image sensor, 150-degree lens, surface mount.

Second camera input: For a front or towing camera.

6-colour customisable button illumination.

Suits non-amplified Toyota Kluger 2007-2013 only.

Technical specs

Specification Detail
SKU AMDTO6
Brand Aerpro
Head Unit AM1005D
Display Size 10 inch
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Style Fixed screen (trapezoid)
Max Power Output 4 x 50W
RCA Preouts 4V, 5 channel (front, rear, subwoofer)
Apple CarPlay Yes (wireless and wired)
Android Auto Yes (wireless and wired)
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth Version V5 (A2DP, AVRCP, HFP, PBAP)
HFP Profile HFP 1.6 (HD Voice)
Microphone Internal and external
USB1 (Rear) CarPlay, Android Auto, charging (5V/1.5A)
USB2 (Rear) Media, charging (5V/1.5A)
USB Max Capacity FAT32 32GB
Rear A/V Input Yes (RCA, 3 connectors)
Composite Video Output Yes (two)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band graphic
Time Alignment Yes
Subwoofer Control Yes
Button Illumination 6-colour (red, yellow, green, blue, purple, white)
SWC Retention Yes
Factory Reverse Camera Yes (if equipped)
Factory Amplifier Not supported (non-amplified only)
Camera 720P AHD universal rear camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 degrees
Camera Mount Surface mount
Vehicle Toyota Kluger 2007-2013 (non-amplified)

What's in the box

  • AM1005D 10" multimedia receiver (trapezoid fixed screen)
  • Black facia kit
  • Steering wheel control interface harness
  • SWC patch lead
  • Camera retention adaptor
  • Hazard switch
  • 720P AHD universal rear camera (wired)
  • Mounting hardware screws
  • Wiring harness with ISO connection
  • AV, USB, and camera harnesses
  • DAB antenna
  • 3-wire learning SWC lead
  • External microphone with mount
  • GPS antenna with adhesive pad
  • QR digital manual leaflet

Frequently asked questions

Does the AMDTO6 suit factory amplified Toyota Kluger vehicles?

No. The AMDTO6 suits non-amplified vehicles only. For factory amplified Toyota Kluger vehicles, use the Aerpro AMTO7.

Does the AMDTO6 retain the factory steering wheel controls?

Yes. The kit includes a steering wheel control interface harness and SWC patch lead to retain factory steering wheel controls.

Does the AMDTO6 retain the factory reverse camera?

Yes, if the vehicle is equipped with a factory reverse camera. The camera retention adaptor is included and uses the reverse camera input of the head unit.

Does the park brake need to be connected for Apple CarPlay and Android Auto to work?

Yes. The head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

What camera is included and can a second camera be added?

A 720P AHD universal rear camera (Sony 225 sensor, 150-degree lens) is included. The head unit also has a second camera input for a front or towing camera.
