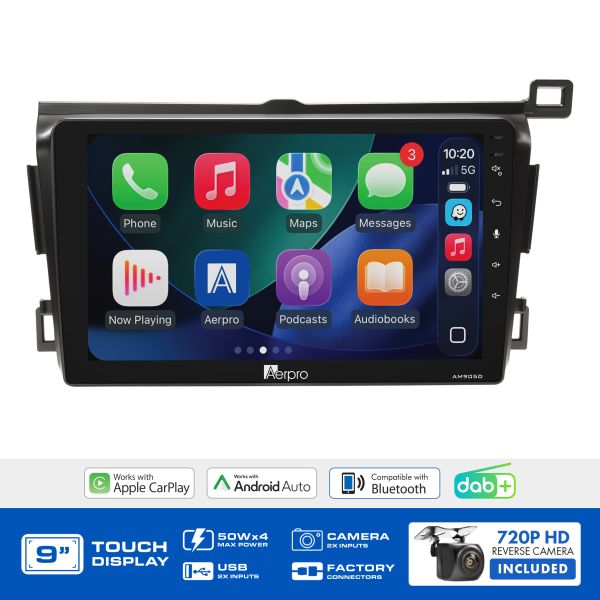

Aerpro AMDTO5 9" Wireless CarPlay Android Auto DAB+ Toyota RAV4 2013-2017 Non-Amplified

SKU: AMDTO5
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Toyota RAV4 2013–2017 (Non-Amplified, Non-JBL) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button, USB, AUX & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDTO5 is a complete head unit upgrade kit specifically designed for the Toyota RAV4 (2013–2017) without a factory amplified system. This is one of the most comprehensively retaining kits in the Aerpro Toyota range steering wheel controls (including the phone button), factory USB input, factory AUX input, and factory reverse camera are all retained where equipped.

Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Comprehensive factory feature retention: Retains SWC (including phone button), USB, AUX, and factory reverse camera one of the most feature-complete Toyota kits in the Aerpro range
  • Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor, if equipped
  • Factory USB & AUX inputs retained: Both USB and AUX inputs retained via included adaptors, if equipped
  • Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness
  • Not compatible with JBL amplified vehicles: Specifically for non-JBL, non-amplified RAV4 models
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDTO5
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera Retained Yes (if equipped)
USB Input Retained Yes (if equipped)
AUX Input Retained Yes (if equipped)
Factory Amplifier No
Kit Includes Rear Camera Yes 720P AHD universal
Suits Toyota RAV4 2013–2017 (non-amplified, non-JBL)

Compatible Vehicles

  • Toyota RAV4 2013–2017 (non-amplified only)

Frequently Asked Questions

Does this kit suit RAV4 models with the JBL sound system?

No the AMDTO5 does not suit JBL amplified vehicles. Confirm your RAV4 does not have the JBL factory audio system before purchasing.

Does this kit retain factory AUX input?

Yes if equipped, the factory AUX input is retained. AUX input retention uses the RCA AUX input on the rear of the head unit.

Does this kit retain the factory USB and reverse camera?

Yes both are retained if equipped. USB retention uses the rear USB input; reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain steering wheel controls including the phone button?

Yes the included SWC harness retains full steering wheel control function including the phone button.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
