Aerpro AMDTO49 9" Multimedia Receiver Toyota Hilux 2005-2011

9" Wireless CarPlay for the Toyota Hilux Workhorse No SWC, Non-Amplified, HVAC Stickers Included

Product Overview

The Aerpro AMDTO49 is a complete head unit upgrade kit for the Toyota Hilux (2005–2011) in non-amplified variants without factory steering wheel controls. The Hilux of this era was a no-frills workhorse no factory SWC, no reverse camera, no complex vehicle integration making this a clean, direct unit swap that brings wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to a vehicle that shipped without them.

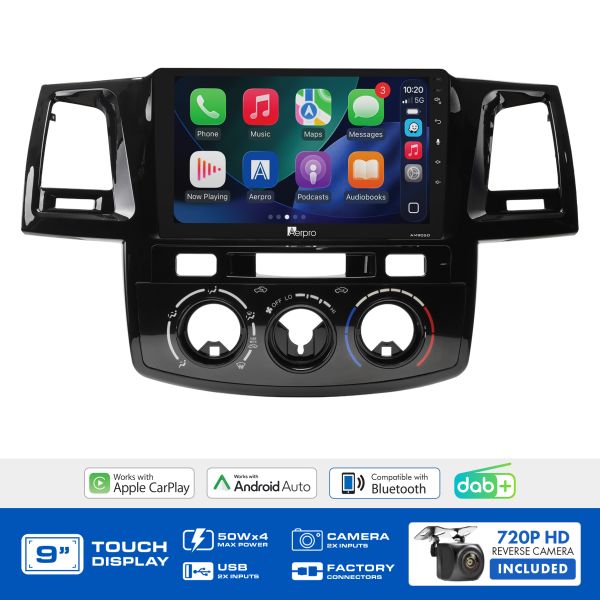

The kit includes the AM905D multimedia receiver, gloss black facia kit, wiring harness, HVAC stickers for the manual climate controls, and a 720P AHD universal rear camera. The HVAC stickers are included because the new facia replaces the dash panel surrounding the head unit the manual heater and fan control labels need to be transferred to the new panel to keep the controls clearly marked.

Features & Benefits

• No SWC variants only — this kit is designed for Hilux (2005–2011) models without factory steering wheel controls; SWC-equipped variants require a different kit
• Non-amplified models only — factory-amplified Hilux variants are not compatible with this kit
• HVAC stickers included — manual climate control labels are provided to keep the Hilux's heater and fan controls clearly marked after the new facia replaces the surrounding dash panel
• Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
• Gloss black vehicle-specific facia kit — matched to the 2005–2011 Hilux interior for a clean factory-finish installation
• Wireless Apple CarPlay & Android Auto — a major upgrade for a workhorse ute; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — transforms the Hilux cabin with a large, responsive display for navigation, media, and Bluetooth management
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a Hilux not factory-equipped with a reverse camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Compatible With / Goes Well With

• Toyota Hilux AN10/AN20/AN30 (2005–2011) — non-amplified, non-SWC variants only
• Not compatible with Hilux models fitted with factory steering wheel controls — a different kit is required for SWC variants
• Not compatible with factory-amplified Hilux variants
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Does this suit Hilux models with factory steering wheel controls?

No — the AMDTO49 is designed for Hilux (2005–2011) variants without factory SWC only. A different kit is required for Hilux models fitted with factory steering wheel controls. Use the Aerpro What Fits Your Car Guide to find the SWC-compatible kit for your build.

What are the HVAC stickers and what do I do with them?

The Hilux's manual climate control labels (heater, fan speed, temperature) are part of the factory dash panel that surrounds the head unit. When the new gloss black facia replaces this panel, the control labels need to be transferred to keep the climate controls clearly identified. The HVAC stickers included in this kit provide new labels for the controls on the replacement facia.

Why is the park brake wire required for CarPlay?

The AM905D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate. This is a design requirement of the head unit.

Does the Hilux have a factory reverse camera?

No — the 2005–2011 Hilux is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.

Is this the correct kit for an amplified Hilux?

No — the AMDTO49 is for non-amplified variants only. Factory-amplified Hilux models require a different kit. Confirm your Hilux's specification using the Aerpro What Fits Your Car Guide before ordering.
