Aerpro AMDTO44 10" Multimedia Receiver Kit Toyota Camry 2012-2017

Aerpro AMDTO44 10 Inch Multimedia Receiver Head Unit Upgrade Kit for Toyota Camry 2012 to 2017 with Wireless CarPlay Android Auto DAB+ SWC Camera USB and AUX Retention and AHD Rear Camera

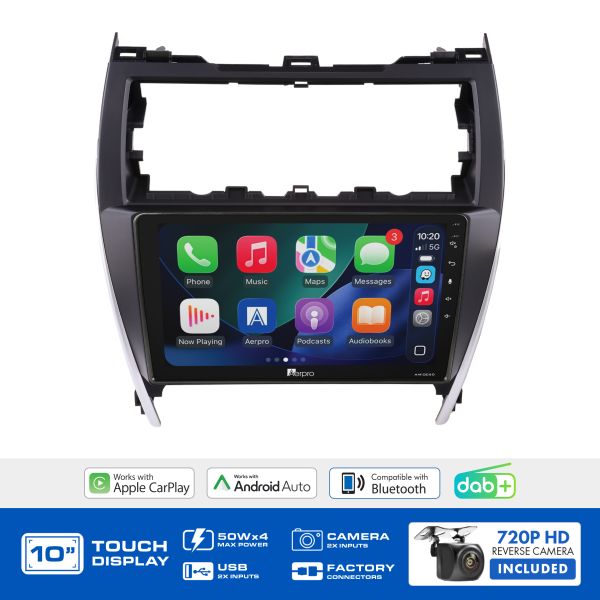

The Aerpro AMDTO44 is a complete head unit upgrade kit for the Toyota Camry (2012 to 2017). Includes the AM1005D 10-inch multimedia receiver, matte black and silver fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera. Retains factory steering wheel controls (including phone button), factory reverse camera (if equipped), factory USB input (if equipped), and factory AUX input (if equipped). Factory amplifier is not retained.

Product overview

The AMDTO44 delivers a complete upgrade for the Toyota Camry (2012 to 2017) with all installation hardware in the box. The AM1005D receiver features a 10-inch 1024x600 capacitive touchscreen in a fixed trapezoid-style format. Wireless and wired Apple CarPlay and Android Auto are both supported. DAB+ digital radio is built in alongside AM/FM with RDS. Bluetooth 5.0 provides hands-free calling with HD Voice (HFP 1.6) and A2DP audio streaming, with internal and external microphone options.

Audio output is 4 x 50W peak into 4 ohms, with a 4V 5-channel RCA preamp output (front/rear/subwoofer), 13-band graphic EQ with 6+2 custom presets, time alignment, subwoofer level control, and LPF. Two rear USB ports support CarPlay/Android Auto with charging (USB1) and media playback (USB2), with FAT32 support up to 32GB. A rear A/V RCA input, composite video output (two), reverse camera input (720P AHD compatible), and second camera input (720P AHD compatible) are included.

Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit.

The 720P AHD universal rear camera is a surface-mount unit with a Sony 225 1/3 CMOS sensor and a 150-degree lens angle.

Features and benefits

Complete head unit upgrade kit for Toyota Camry 2012 to 2017: AM1005D receiver, matte black and silver fascia, SWC interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and 720P AHD rear camera all included.

10-inch 1024x600 capacitive touchscreen: Fixed trapezoid-style display with smooth, responsive touch.

Wireless and wired Apple CarPlay and Android Auto: No need to plug in for CarPlay or Android Auto. Wired connection also supported.

Built-in DAB+ digital radio: DAB+ with AM/FM RDS tuning (AM 12 presets / FM 18 presets).

Bluetooth 5.0 with HD Voice: Hands-free calling (HFP 1.6), A2DP audio streaming, AVRCP, PBAP, internal and external microphone.

SWC retention including phone button: Factory steering wheel audio controls retained in full via the included interface harness.

Factory reverse camera retention (if equipped): Uses the reverse camera input of the head unit.

Factory USB input retention (if equipped): Uses the rear USB input of the head unit.

Factory AUX input retention (if equipped): Uses the RCA AUX input on the rear of the head unit.

Factory amplifier not retained.

4 x 50W peak output with 5-channel 4V RCA preamp: Front/rear/subwoofer RCA outputs for external amplifier connection.

13-band EQ with time alignment and subwoofer control: 6+2 custom presets and LPF.

720P AHD universal rear camera included: Surface-mount, Sony 225 sensor, 150-degree lens angle. Second camera input also available.

6-colour button illumination: Red, yellow, green, blue, purple, or white.

What's in the box

AM1005D Multimedia Receiver:

• 1x 10" Fixed Headunit (Trapezoid)
• Mounting Hardware Screws
• Wiring Harness with ISO Connection
• AV, USB and Camera Harnesses
• DAB Antenna
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Kit Components:

• Matte Black and Silver Fascia Kit
• Steering Wheel Control Interface Harness
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera (wired)

Technical specs

AM1005D Multimedia Receiver

720P AHD Universal Rear Camera

Vehicle feature retention

Compatible with

Frequently asked questions

What is included in the AMDTO44 kit? The kit includes the AM1005D 10-inch multimedia receiver with all receiver accessories, a matte black and silver fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Does this kit support wireless CarPlay and Android Auto? Yes. The AM1005D supports both wireless and wired Apple CarPlay and Android Auto.

Are factory steering wheel controls retained, including the phone button? Yes. Full steering wheel control retention including the phone button is confirmed for this kit.

Will my factory reverse camera, USB, and AUX inputs be retained? Yes, where factory fitted. Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit.

Is the factory amplifier retained? No. The factory amplifier is not retained by this kit. If the Camry's factory audio system uses an amplified setup, the AM1005D's built-in output stage will drive the speakers directly. The AM1005D provides 4 x 50W peak with a 4V 5-channel RCA output for adding an external amplifier if required.
