Aerpro AMDTO43 10" Multimedia Receiver Landcruiser 200 GX SWC

10" Wireless CarPlay for the Landcruiser 200 Series GX SWC Retained, Matte Black Facia, Park Brake Required

Product Overview

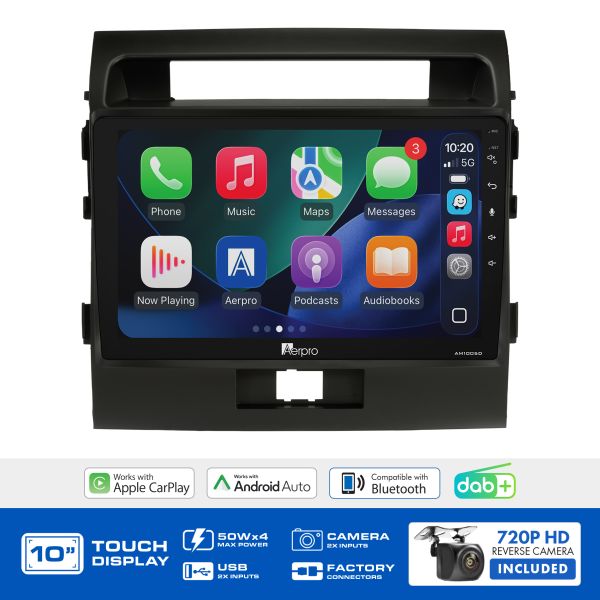

The Aerpro AMDTO43 is a complete head unit upgrade kit for the Toyota Landcruiser 200 Series GX (2012–2021) fitted with factory steering wheel controls. It replaces the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls.

The kit includes the AM1005D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. The GX is the base grade of the 200 Series and does not have factory reverse camera, amplifier, vehicle menu, or USB/AUX inputs all retention fields are N/A for this grade.

Features & Benefits

• SWC retained — the SWC interface harness and patch lead carry over factory Landcruiser 200 steering wheel controls; suits SWC-equipped models only
• GX grade specific — this kit addresses the base GX grade of the 200 Series, which does not have the JBL amplified audio, factory reverse camera, or other features present on higher grades (GXL and above); no retention hardware is needed beyond the SWC harness
• Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
• Matte black vehicle-specific facia kit — matched to the Landcruiser 200 GX interior trim; antenna adaptor included for a correct aerial connection
• 10" capacitive touchscreen at 1024x600 resolution — a significant display upgrade over the factory 200 Series GX head unit
• Wireless Apple CarPlay & Android Auto — a transformative addition for a vehicle that shipped without smartphone connectivity; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Compatible With / Goes Well With

• Toyota Landcruiser 200 Series GX (2012–2021) with factory steering wheel controls
• Not compatible with Landcruiser 200 Series models without factory SWC — a different kit is required for non-SWC variants
• Not compatible with Landcruiser 200 Series GXL and above — higher grades with JBL amplification and factory cameras require different kits
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Does this suit all 200 Series Landcruiser grades?

No — the AMDTO43 is specifically for the base GX grade with factory SWC. Higher grades such as the GXL, VX, and Sahara have JBL amplified audio, factory reverse cameras, and other features that require different integration hardware. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific grade.

Why is the factory reverse camera listed as N/A?

The Landcruiser 200 Series GX did not come standard with a factory reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch. Higher grades of the 200 Series that do have factory cameras require a kit with camera retention capability.

Why does the park brake need to be connected?

The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate — this is a design requirement of the head unit, not a fault.

Is this a 9" or 10" screen?

10" — the AMDTO43 uses the AM1005D with a 10" capacitive touchscreen, larger than the 9" AM905D units used in most other Aerpro vehicle-specific kits.

Does the Landcruiser 200 GX have a factory amplifier?

No — the GX is the base grade and does not have the JBL premium amplified audio system fitted to GXL, VX, and Sahara grades. Factory amplifier retention is therefore not applicable for this kit.
