Aerpro AMDTO42 10" Multimedia Receiver LC200 GX 2012-21 NoSWC

10" Wireless CarPlay for the Landcruiser 200 GX Without SWC Camera and USB Retained on Equipped Models, Park Brake Required

Product Overview

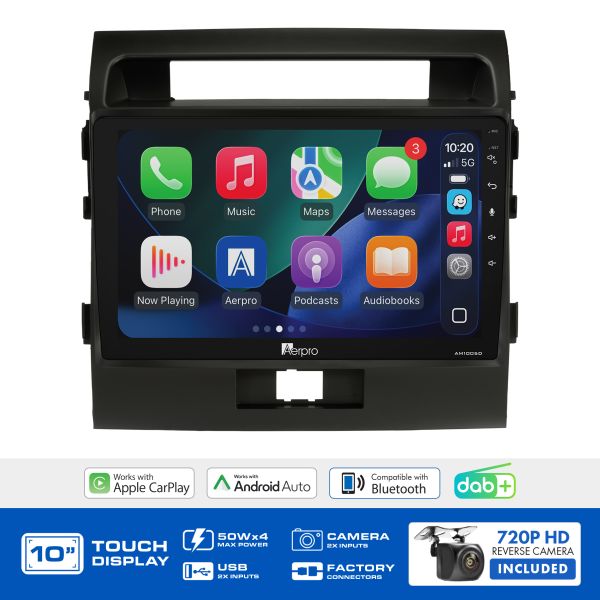

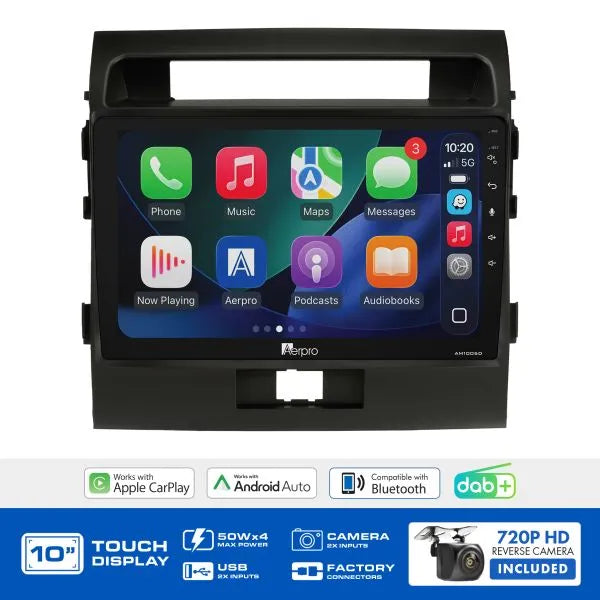

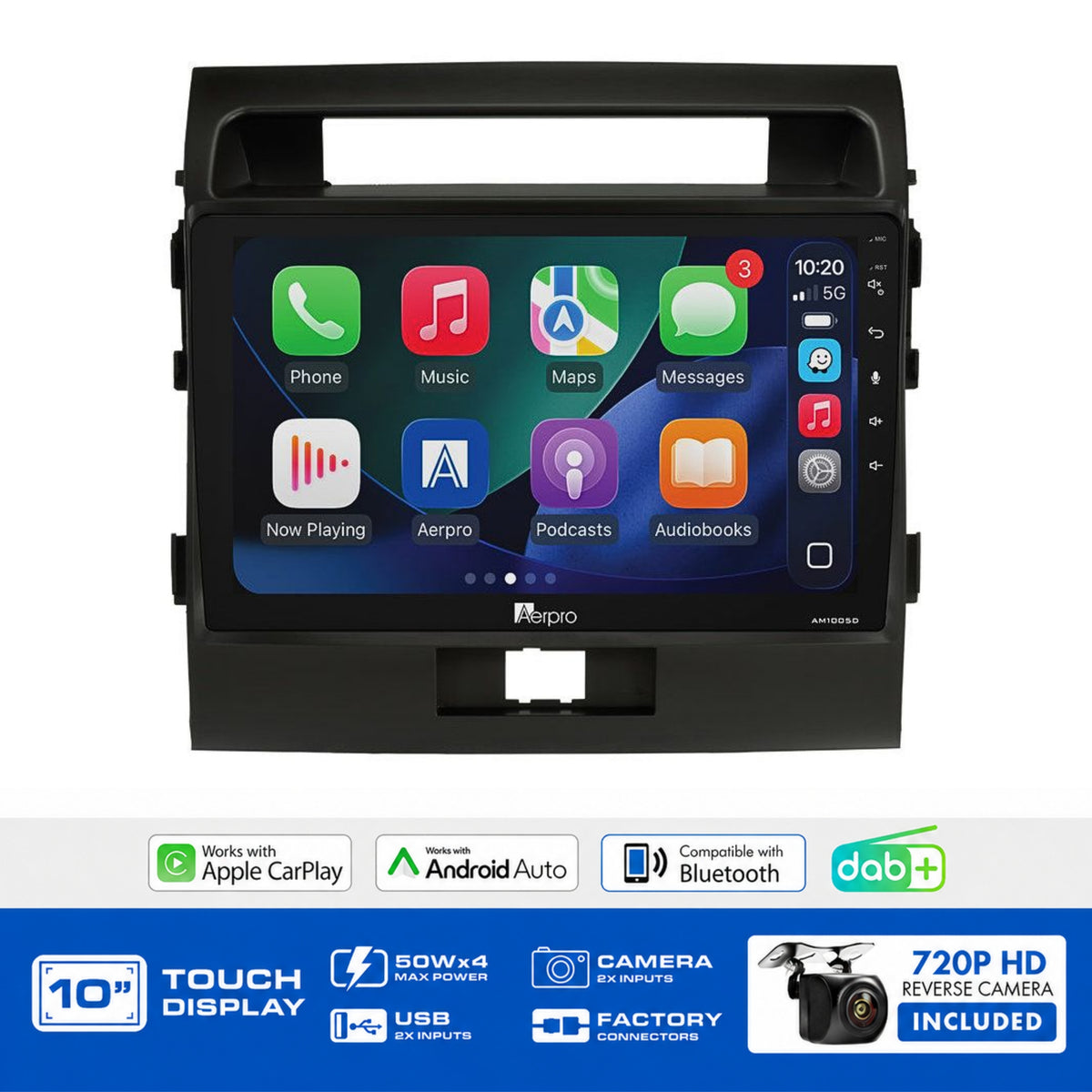

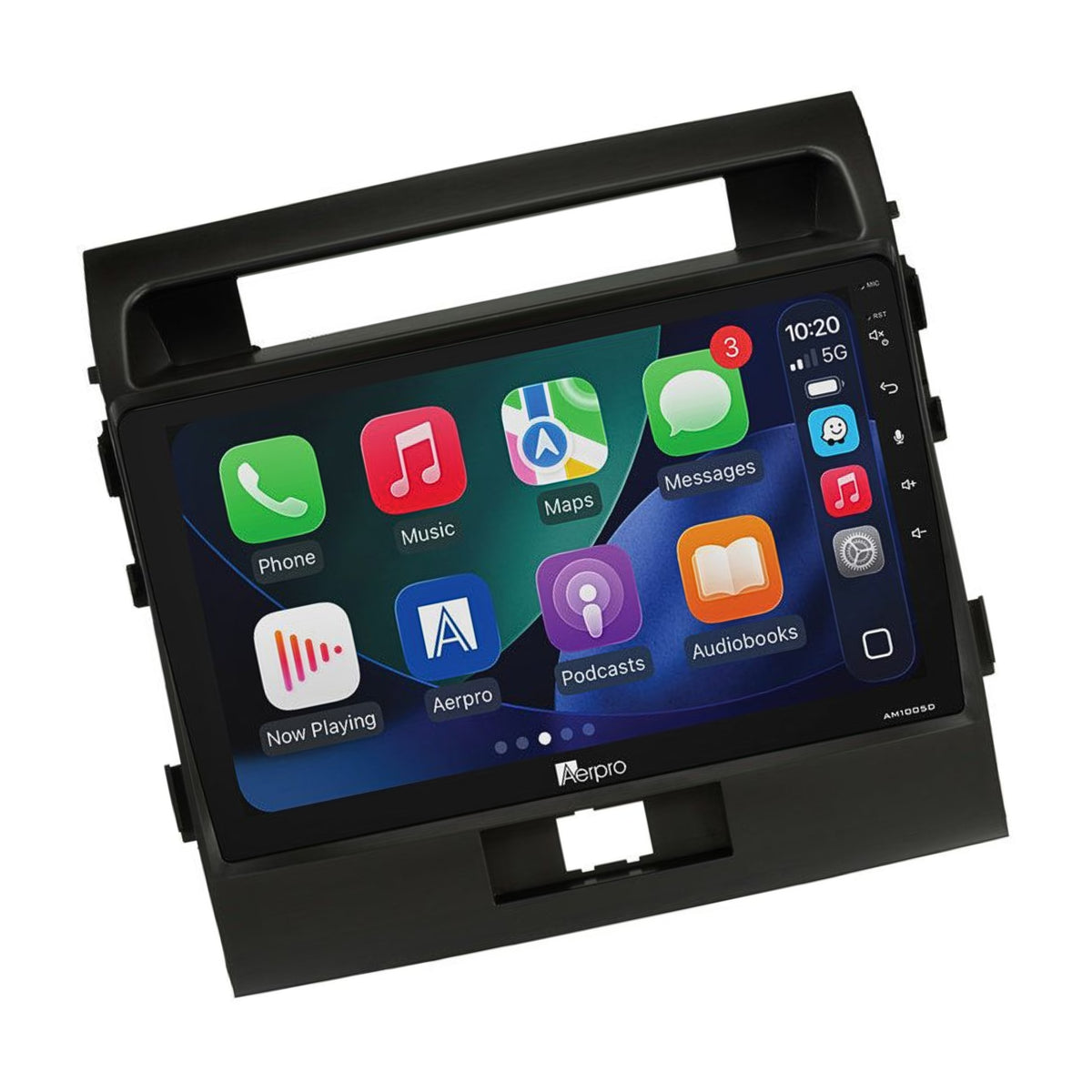

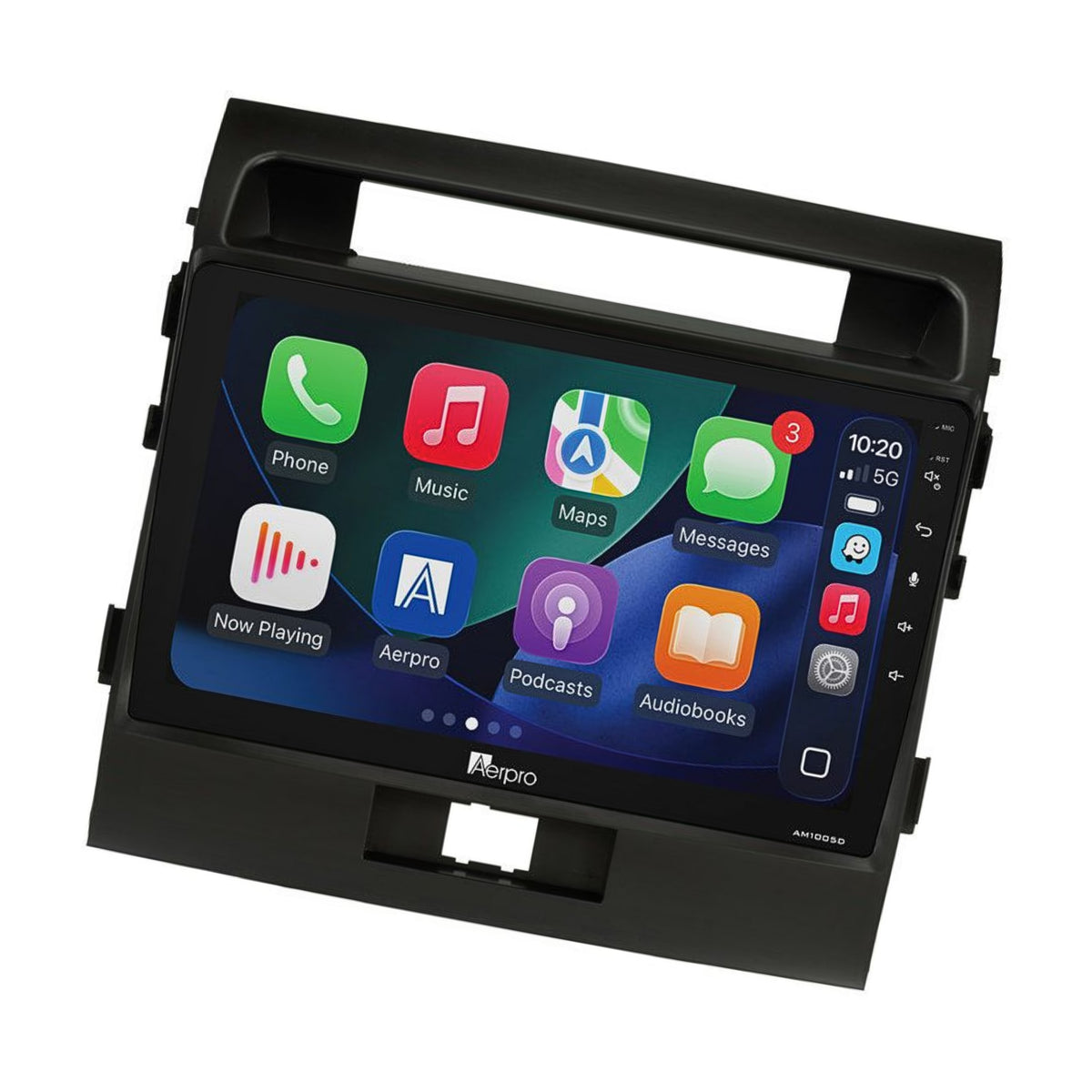

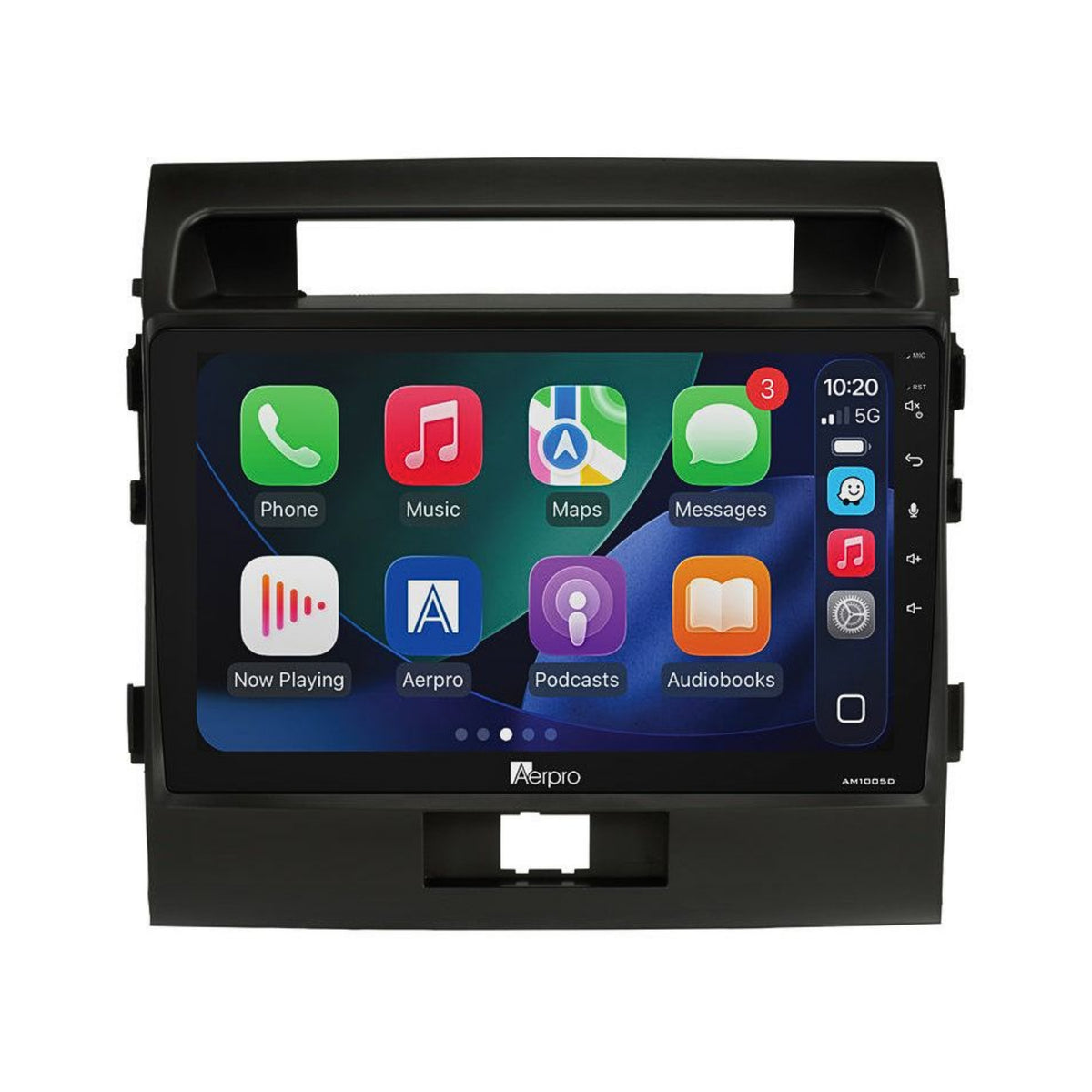

The Aerpro AMDTO42 is a complete head unit upgrade kit for the Toyota Landcruiser 200 Series GX (2012–2021) in variants without factory steering wheel controls. It replaces the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, retaining the factory reverse camera (if equipped, model dependent) and the factory USB input (if equipped, model dependent).

The kit includes camera retention adaptor, USB retention adaptor, and antenna adaptor more comprehensive than the earlier AMDTO41 (GXL/VX 2007–2011 no SWC) which did not include USB retention or antenna adaptor. Both camera and USB retention are model dependent, meaning not all GX variants in this range are confirmed to support both retention paths.

Features & Benefits

• GX grade, no-SWC, 2012–2021 only — specific to the base GX grade without factory SWC in the later 200 Series window; see AMDTO43 for GX with SWC
• Factory reverse camera retained (if equipped, model dependent) — the included camera retention adaptor carries over the factory reverse camera signal via the head unit's reverse camera input; applies to factory-fitted cameras only, on selected GX variants; confirm fitment using the Aerpro What Fits Your Car Guide
• Factory USB input retained (if equipped, model dependent) — the included USB retention adaptor carries over the factory USB port via the head unit's rear USB input; model dependent — confirm for your specific build
• Camera retention adaptor, USB retention adaptor, and antenna adaptor all included — more comprehensive base kit than the AMDTO41; no separately sold retention hardware required, subject to model dependent compatibility
• Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
• Matte black vehicle-specific facia kit — matched to the 200 Series GX interior; consistent with the AMDTO43
• 10" capacitive touchscreen at 1024x600 resolution — significant display upgrade for the Landcruiser 200 GX cabin
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds or supplements reversing visibility
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels

Technical Specs

Compatible With / Goes Well With

• Toyota Landcruiser 200 Series GX (2012–2021) — non-SWC variants only
• Not compatible with GX models fitted with factory SWC — use AMDTO43 for those
• Camera and USB retention are model dependent — confirm using the Aerpro What Fits Your Car Guide
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDTO42 differ from the AMDTO43 and AMDTO41?

The AMDTO43 covers the GX (2012–2021) with factory SWC — its primary retention is SWC. The AMDTO41 covers the GXL and VX (2007–2011) without SWC — its primary retention is factory camera (model dependent). The AMDTO42 covers the GX (2012–2021) without SWC and retains both factory camera and factory USB (each model dependent), with camera, USB, and antenna adaptors all included in the kit.

Why are camera and USB retention listed as "model dependent"?

Not all Landcruiser 200 GX variants from 2012–2021 were factory-equipped with a reverse camera or USB port. The camera retention adaptor works only with the factory-fitted camera (not aftermarket units), and the USB retention works only where the GX had a factory USB connection. Confirm whether your specific build supports each retention path using the Aerpro What Fits Your Car Guide before purchasing.

The description mentions 40Wx4 — is that the correct power output?

The product description states 40Wx4, but the AM1005D specification sheet states 50Wx4. This listing reflects the specification sheet figure of 50Wx4. The 40Wx4 figure in the description appears to be a supplier data error; confirm with Aerpro if maximum power output is a key purchase criterion.

Does this kit include DAB+?

Yes — DAB+ is confirmed in the AM1005D specification sheet. The product description appears to have omitted the DAB+ reference, but the head unit itself supports it.

Why is the park brake wire required?

The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate.
