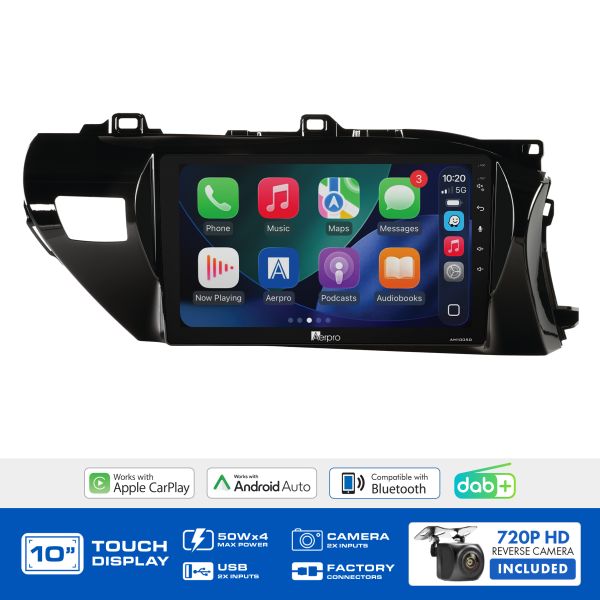

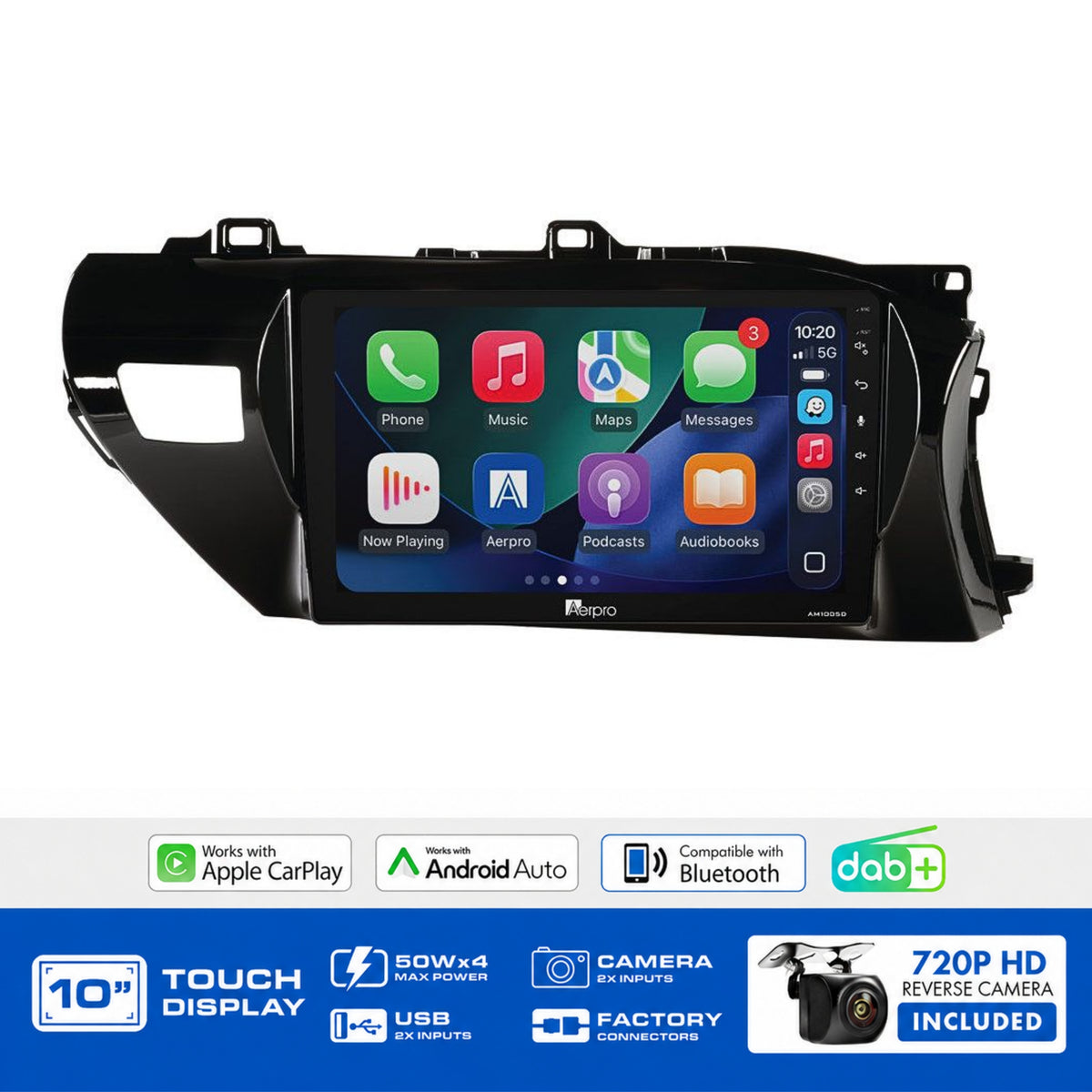

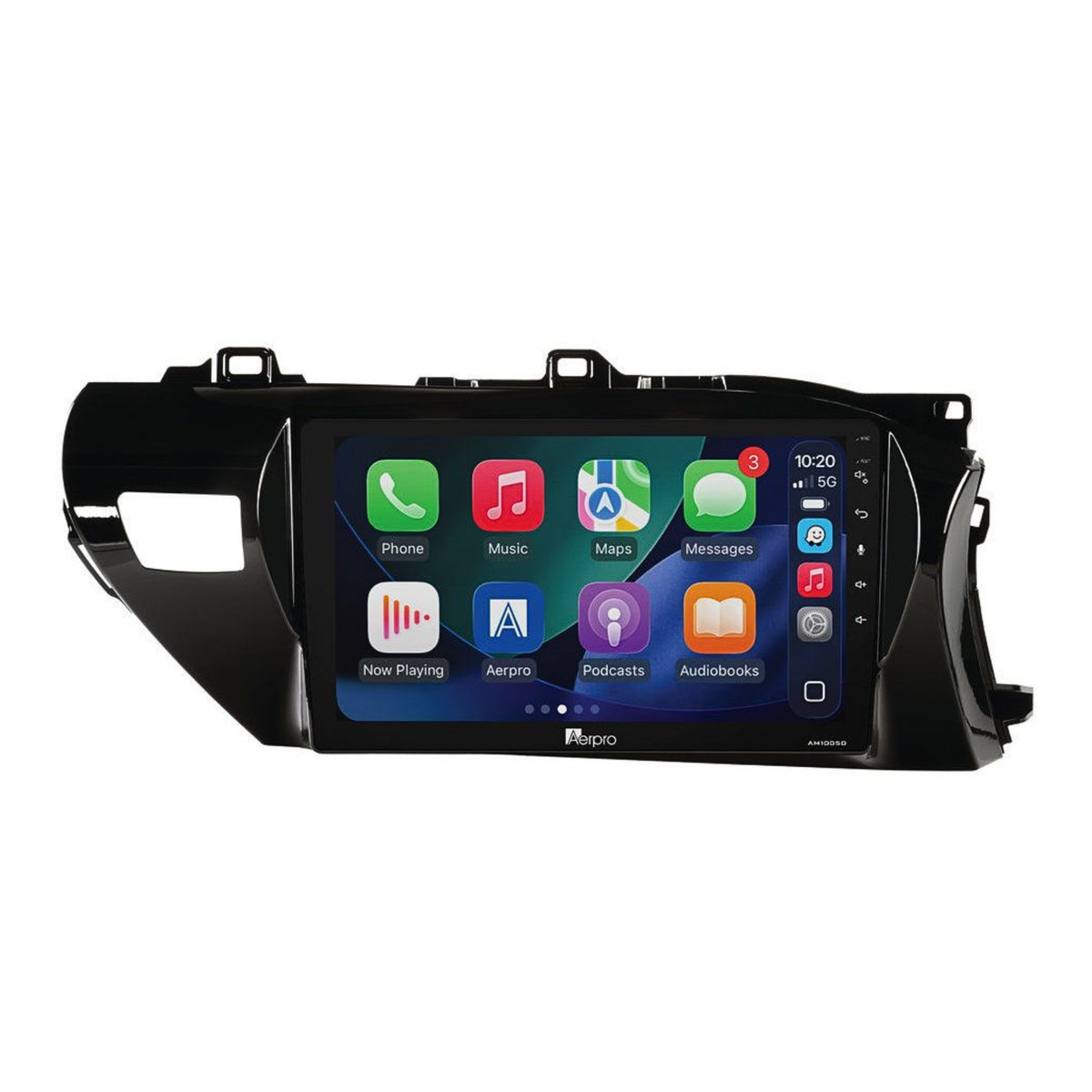

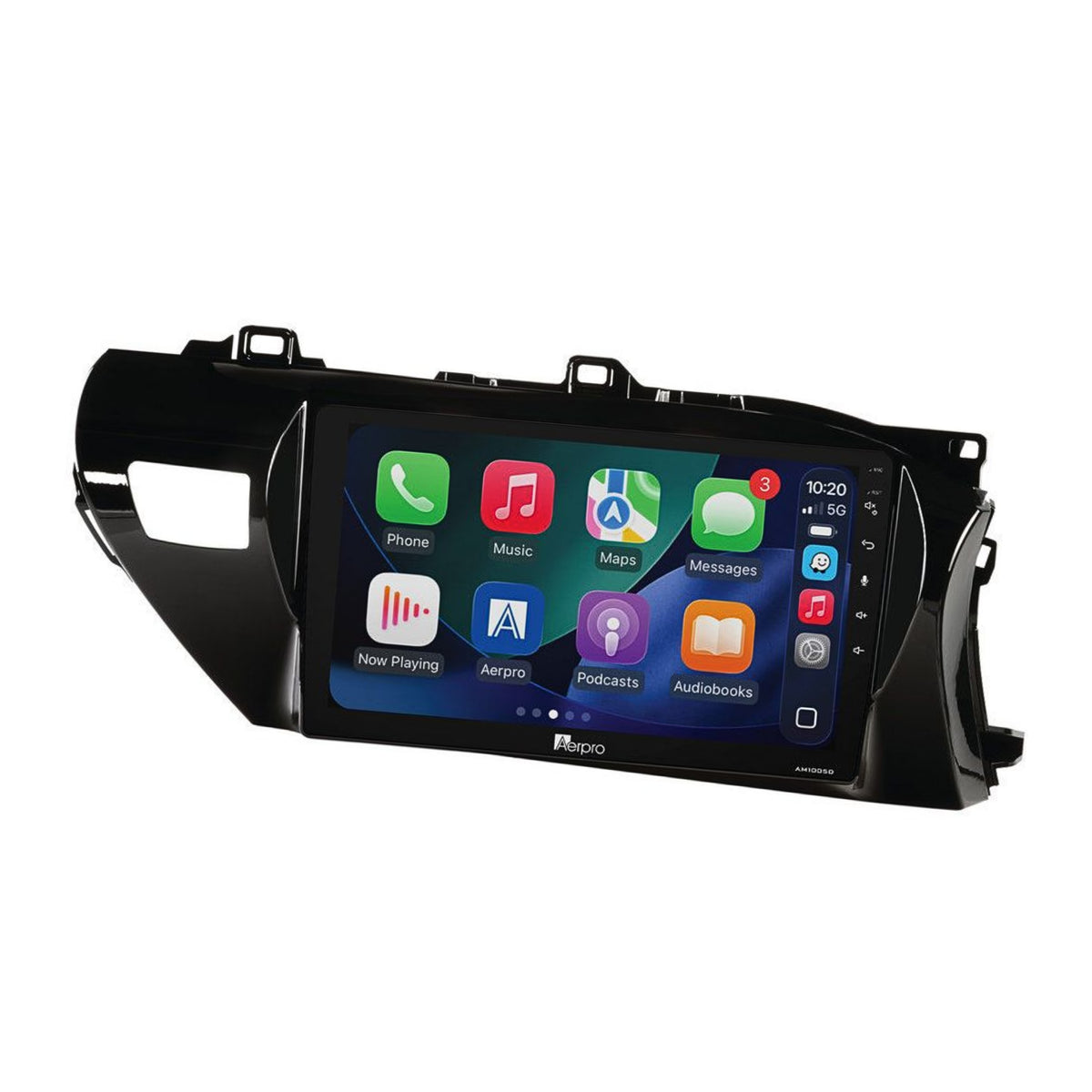

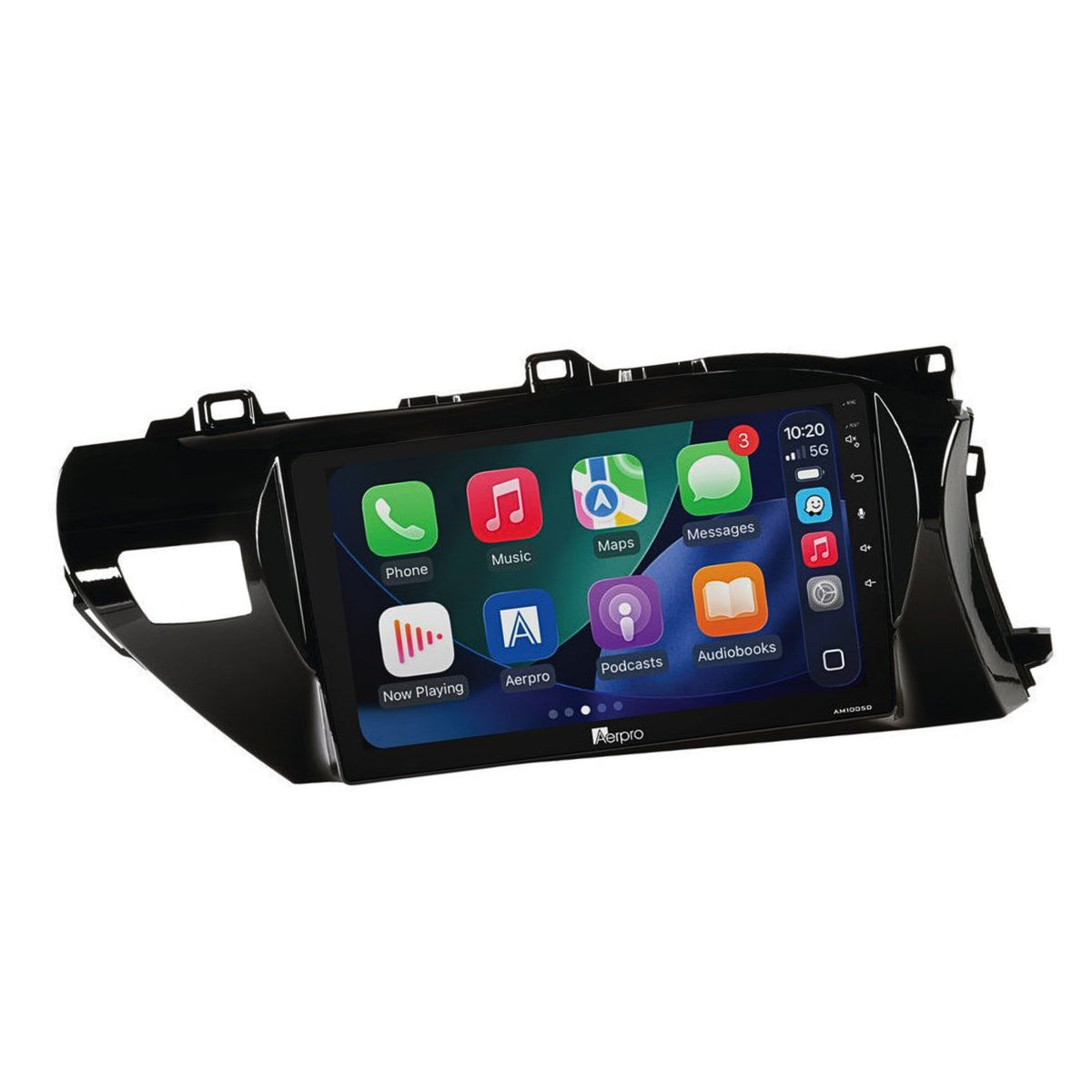

Aerpro AMDTO4 Toyota Hilux 2020-On 10" Head Unit CarPlay DAB+ JBL 360 Camera Amp

SKU: AMDTO4
Price
$1,299.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 10" Head Unit Upgrade Kit for Toyota Hilux 2020-On (JBL Amplified, 360° Camera) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button, USB, AUX, 360° Camera & Factory JBL Amplifier Retained, Rear Camera Included.

Product Overview

The Aerpro AMDTO4 is a complete head unit upgrade kit designed for the Toyota Hilux (2020-on) with a factory JBL amplified system and 360° degree camera the amplified, 360° camera counterpart to the AMDTO3 (non-amplified). Steering wheel controls (including phone button), factory JBL amplifier, USB, AUX, and the full factory 360° camera system are all retained. Fade control is not supported on amplified vehicles.

Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with AUX and camera retention), SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Important: Suits JBL amplified vehicles only fade is not supported. 360° camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input. For the non-amplified Hilux 2020-on, refer to the AMDTO3.

Kit Inclusions

  • AM1005D 10" Multimedia Receiver
  • Gloss Black Fascia Kit
  • Steering Wheel Control Interface Harness (with AUX and camera retention)
  • SWC Patch Lead
  • Antenna Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes (including phone button)
Factory 360° Camera System Yes
USB Input Yes (if equipped)
AUX Input Yes (if equipped)
Factory JBL Amplifier Yes (fade not supported)
Parking Tones N/A
Vehicle Menu N/A

Toyota Hilux 2020-On Kit Comparison (this session)

Model Amplifier Camera USB AUX
AMDTO3 Non-amplified Yes (if equip.) No Yes (3.5mm adaptor req.)
AMDTO4 JBL amplified Yes (360°) Yes (if equip.) Yes (if equip.)

Key Specifications

  • Screen: 10" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Factory JBL amplifier retained: The JBL amplified audio system is fully retained fade control is not supported
  • Factory 360° camera system retained: Full factory 360° camera system retained via the SWC harness uses the reverse camera input of the head unit
  • Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness and patch lead
  • Factory USB and AUX retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input
  • JBL amplified models only: For non-amplified Hilux 2020-on, refer to the AMDTO3
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 10" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: Further amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDTO4
Brand Aerpro
Receiver Model AM1005D
Screen Size 10"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory 360° Camera Retained Yes
USB Input Retained Yes (if equipped)
AUX Input Retained Yes (if equipped)
Factory JBL Amplifier Yes (fade not supported)
Kit Includes Rear Camera Yes 720P AHD universal
Suits Toyota Hilux 2020-on (JBL amplified, 360° camera)

Compatible Vehicles

  • Toyota Hilux 2020–2025 (JBL amplified, 360° camera models)

Frequently Asked Questions

Does this suit non-amplified Hilux models?

No the AMDTO4 suits JBL amplified Hilux 2020-on models only. For non-amplified models, refer to the AMDTO3.

Is fade control supported?

No fade control is not supported on amplified vehicles.

Does this retain the factory 360° camera system?

Yes the full factory 360° camera system is retained. 360° camera retention uses the reverse camera input of the head unit.

Are USB and AUX inputs retained?

Yes both are retained if equipped. USB uses the rear USB input; AUX uses the RCA AUX input on the rear of the head unit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
