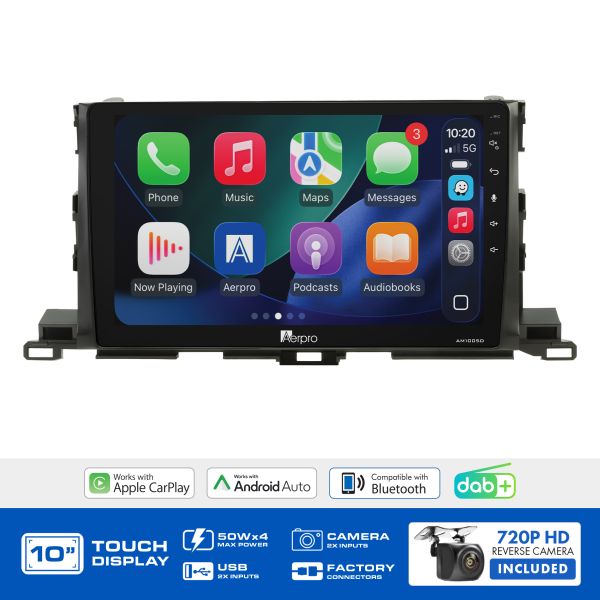

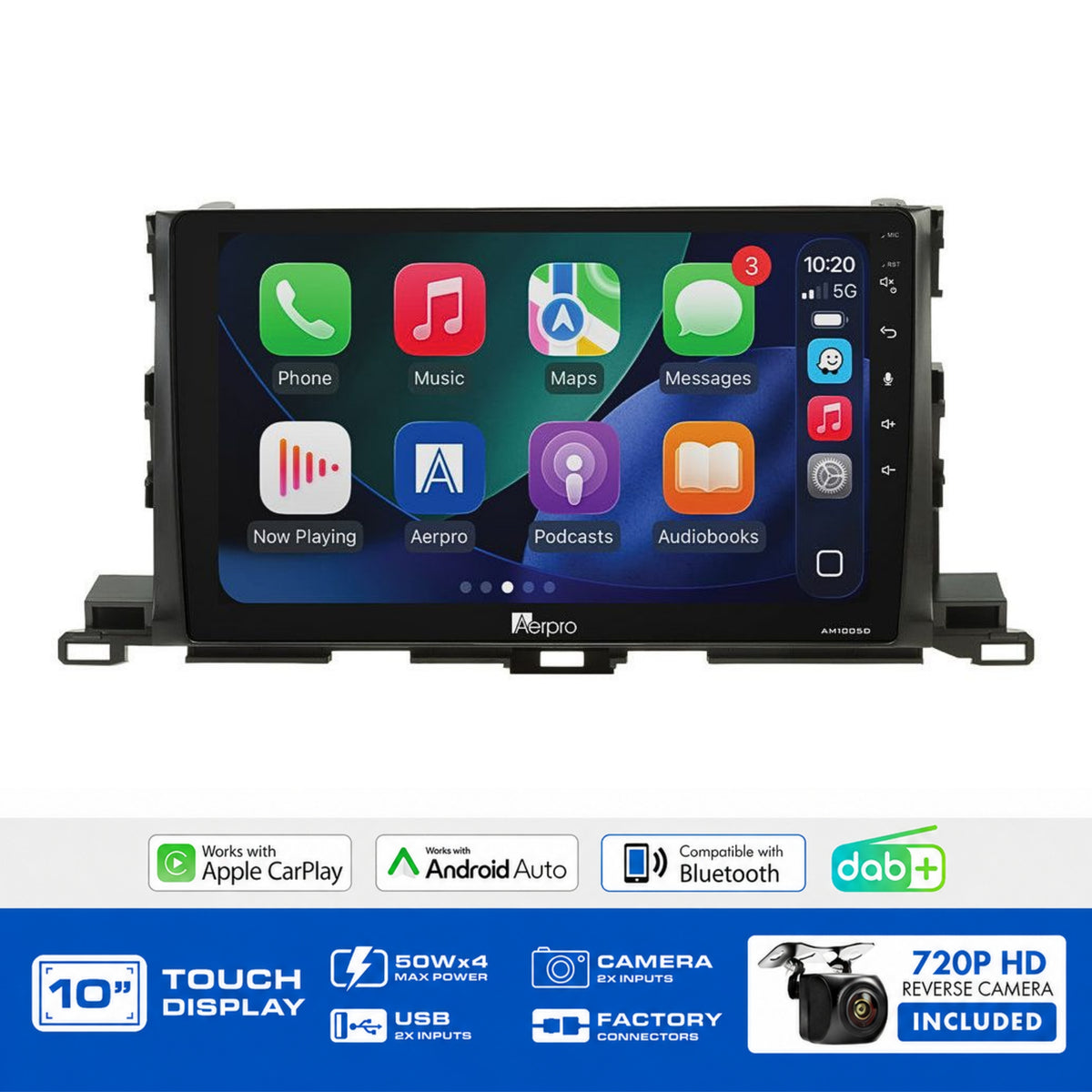

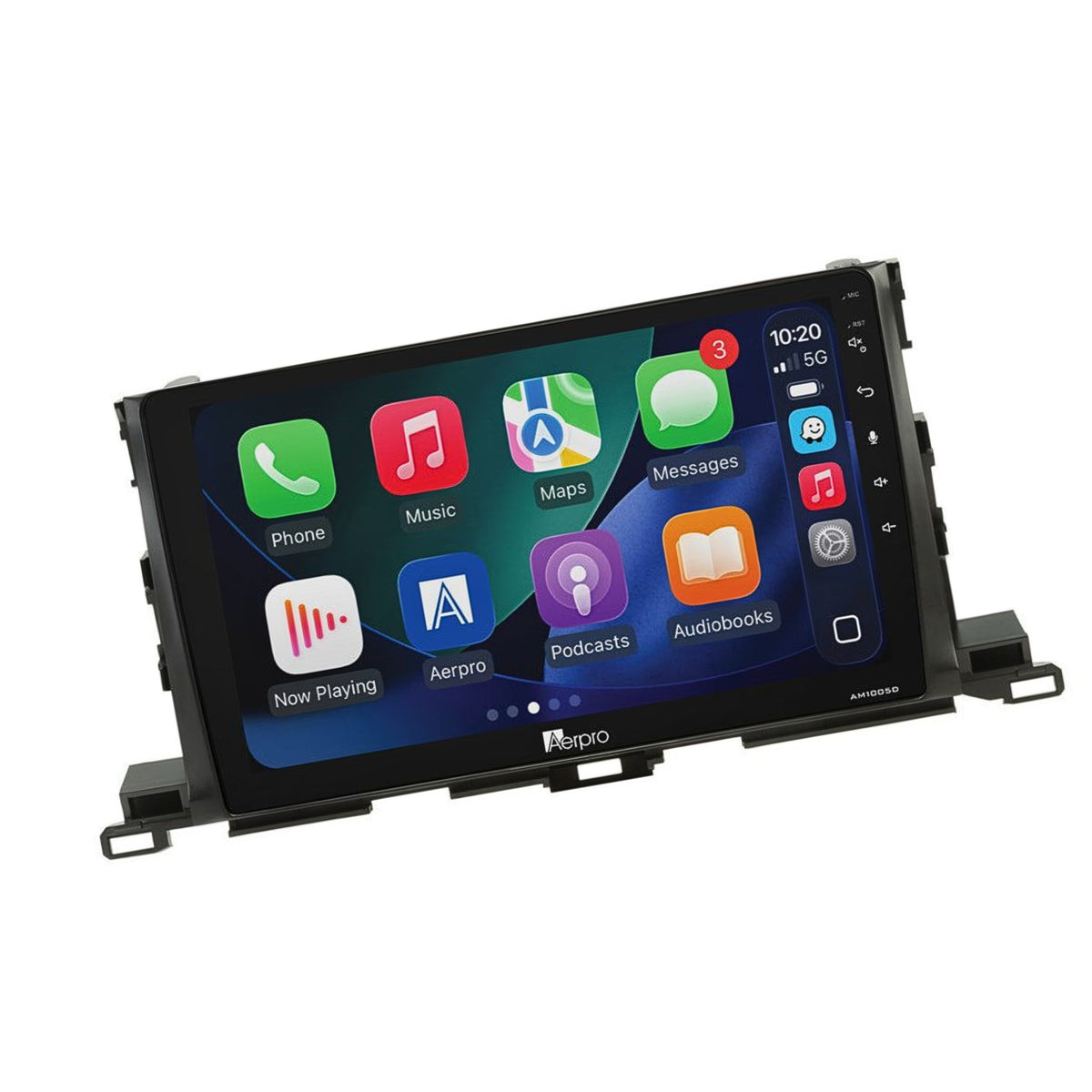

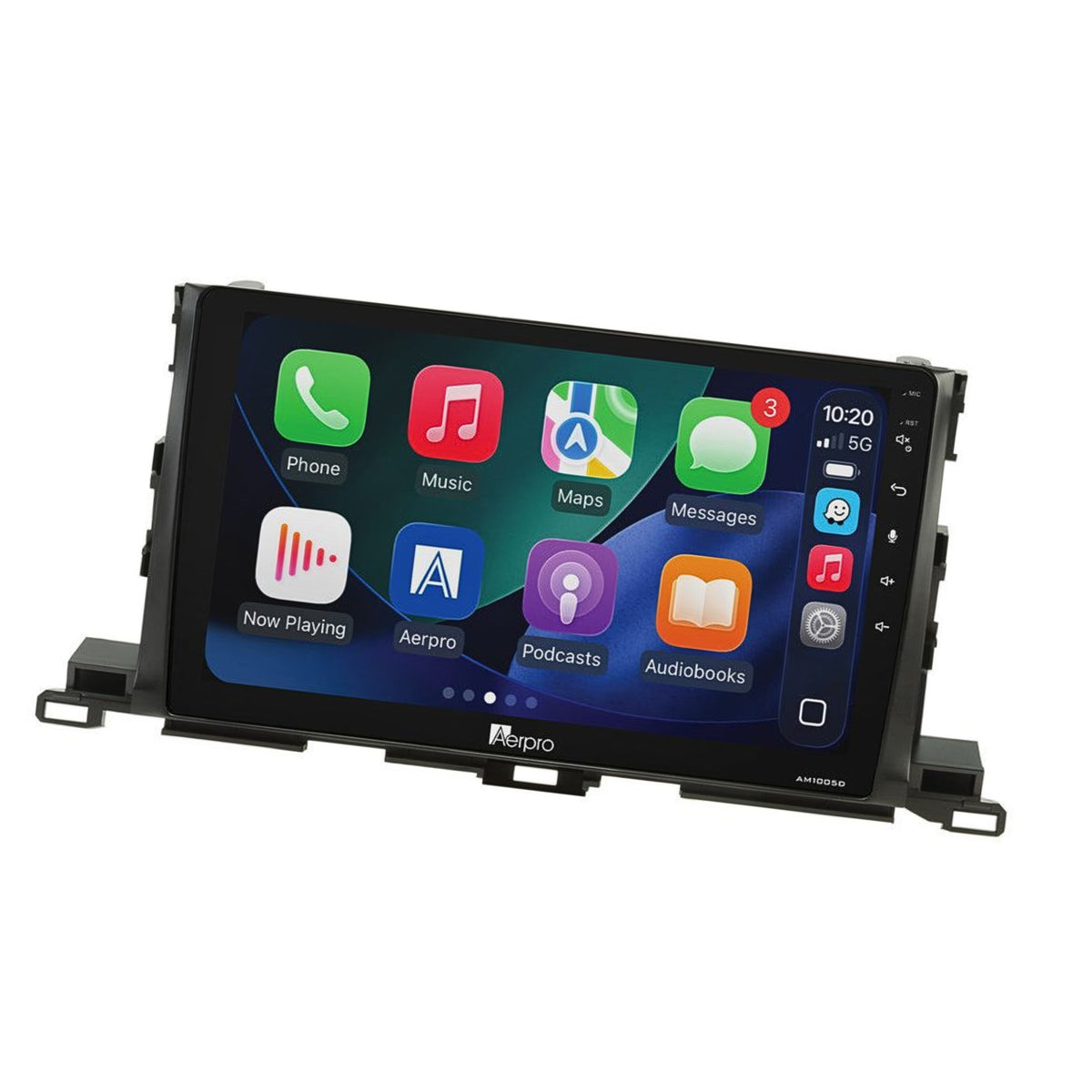

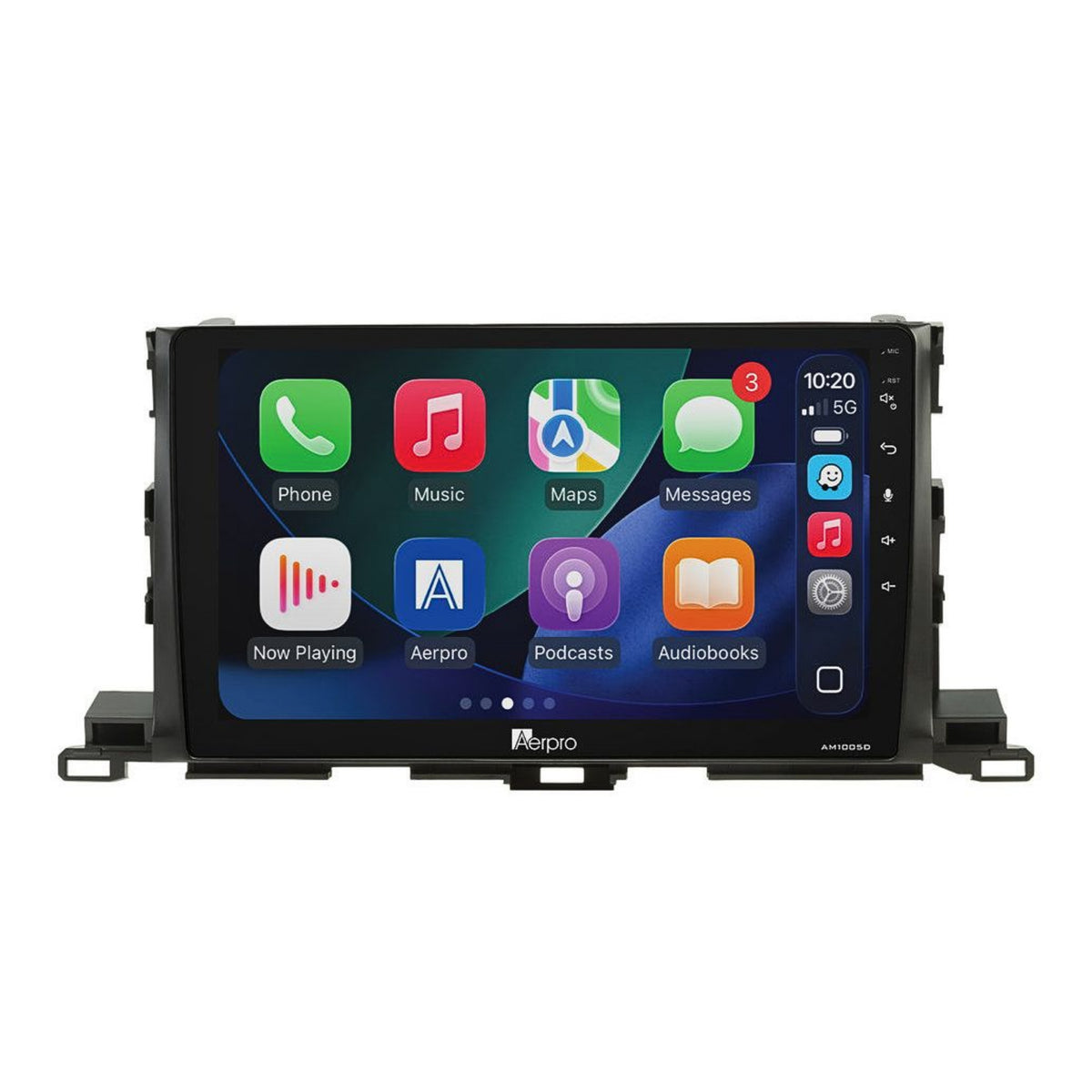

Aerpro AMDTO38 Toyota Kluger 2014 to 2019 10" Head Unit CarPlay DAB+ 360 Camera Amp

Complete 10" Head Unit Upgrade Kit for Toyota Kluger 2014 to 2019 (360° Camera Models) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button, USB, AUX, 360° Camera & Factory Amplifier Retained, Rear Camera Included.

Product Overview

The Aerpro AMDTO38 is a complete head unit upgrade kit designed for the Toyota Kluger (2014 to 2019) with 360° reverse camera, retaining steering wheel controls (including phone button), factory USB, AUX, factory 360° reverse camera, and the factory amplifier. The factory amplifier is retained note that fade control is not supported for amplified vehicles.

Everything required for installation is included the AM1005D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, 360 camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Important: When fitting the fascia, Aerpro recommends removing the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly. 360° camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input. Amplified vehicles do not support fade control.

Kit Inclusions

• AM1005D 10" Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• 360 Camera Retention Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 10" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Factory amplifier retained: The factory amplifier is retained. Note: fade control is not supported on amplified vehicles
• Factory 360° reverse camera retained: Full 360° reverse camera system retained via the included 360 camera retention adaptor uses the reverse camera input of the head unit
• Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness and patch lead
• Factory USB and AUX retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input
• Fascia fit note: Remove the clip at the bottom behind the factory silver trim so the factory panel does not bow
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 10" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with further amplifier expansion capability

Technical Specs

Compatible Vehicles

• Toyota Kluger 2014 to 2019 (360° camera models)

FAQ

What vehicles does the Aerpro AMDTO38 suit?

The Aerpro AMDTO38 suits the Toyota Kluger (2014 to 2019) fitted with the factory 360 degree camera.

Is there anything to watch when fitting the fascia?

Aerpro recommends removing the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.

Does this kit suit Kluger models without a 360° camera?

This kit is designed for 360° camera models. Use the Aerpro What Fits Your Car Guide to find the correct kit for non-360° Kluger models.

Is the factory amplifier retained?

Yes, the factory amplifier is retained. Note that fade control is not supported on amplified vehicles.

Does this retain the factory 360° reverse camera?

Yes, the full factory 360° reverse camera system is retained via the included 360 camera retention adaptor. 360° camera retention uses the reverse camera input of the head unit.

Will I keep my steering wheel controls?

Yes. The kit is supplied to retain the factory steering wheel controls.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
