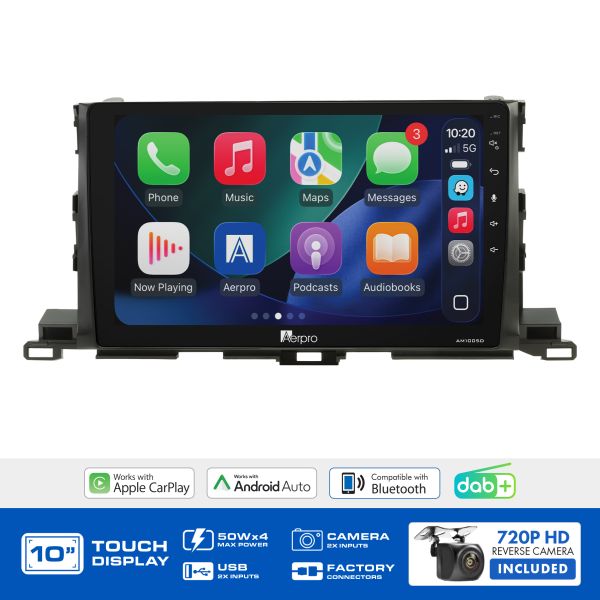

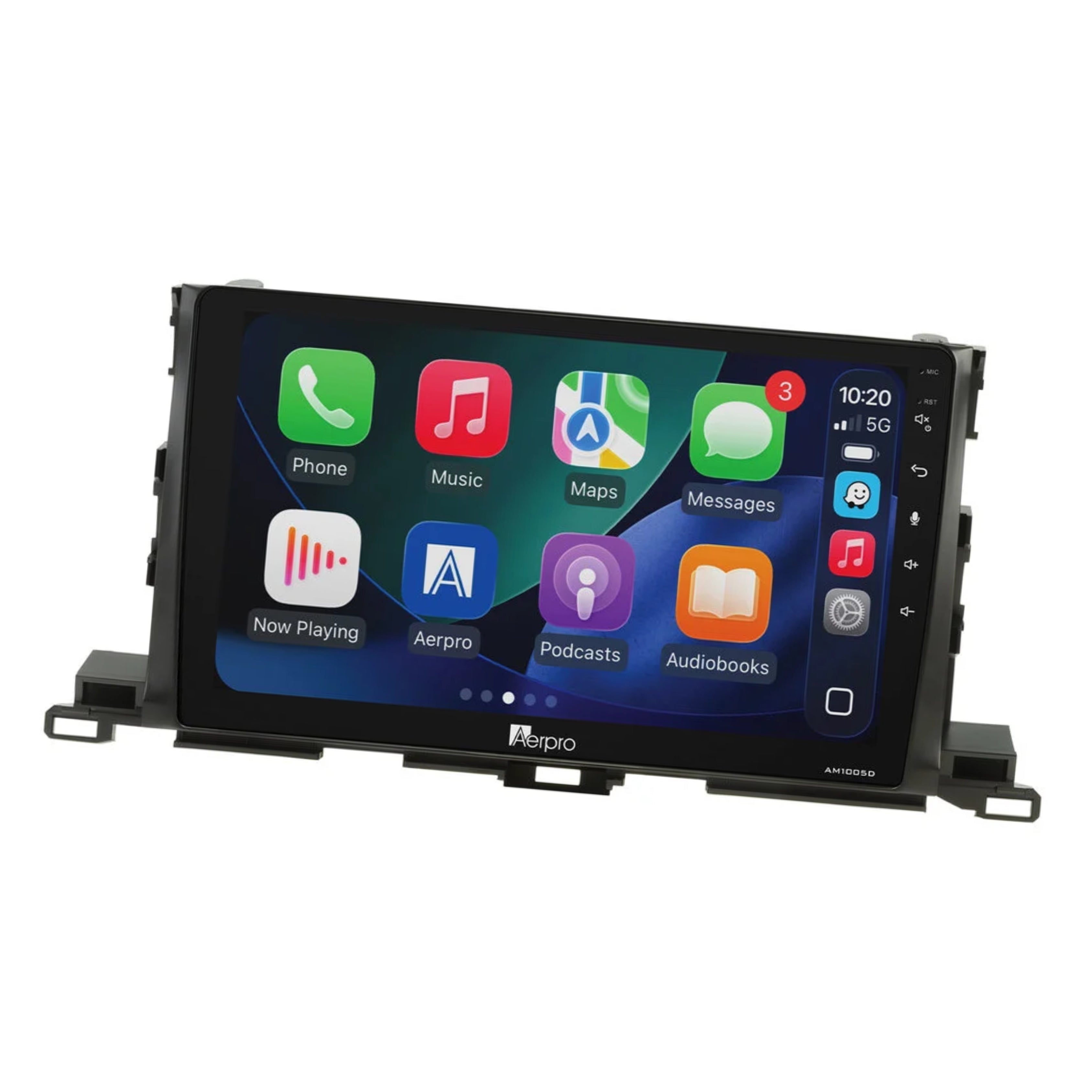

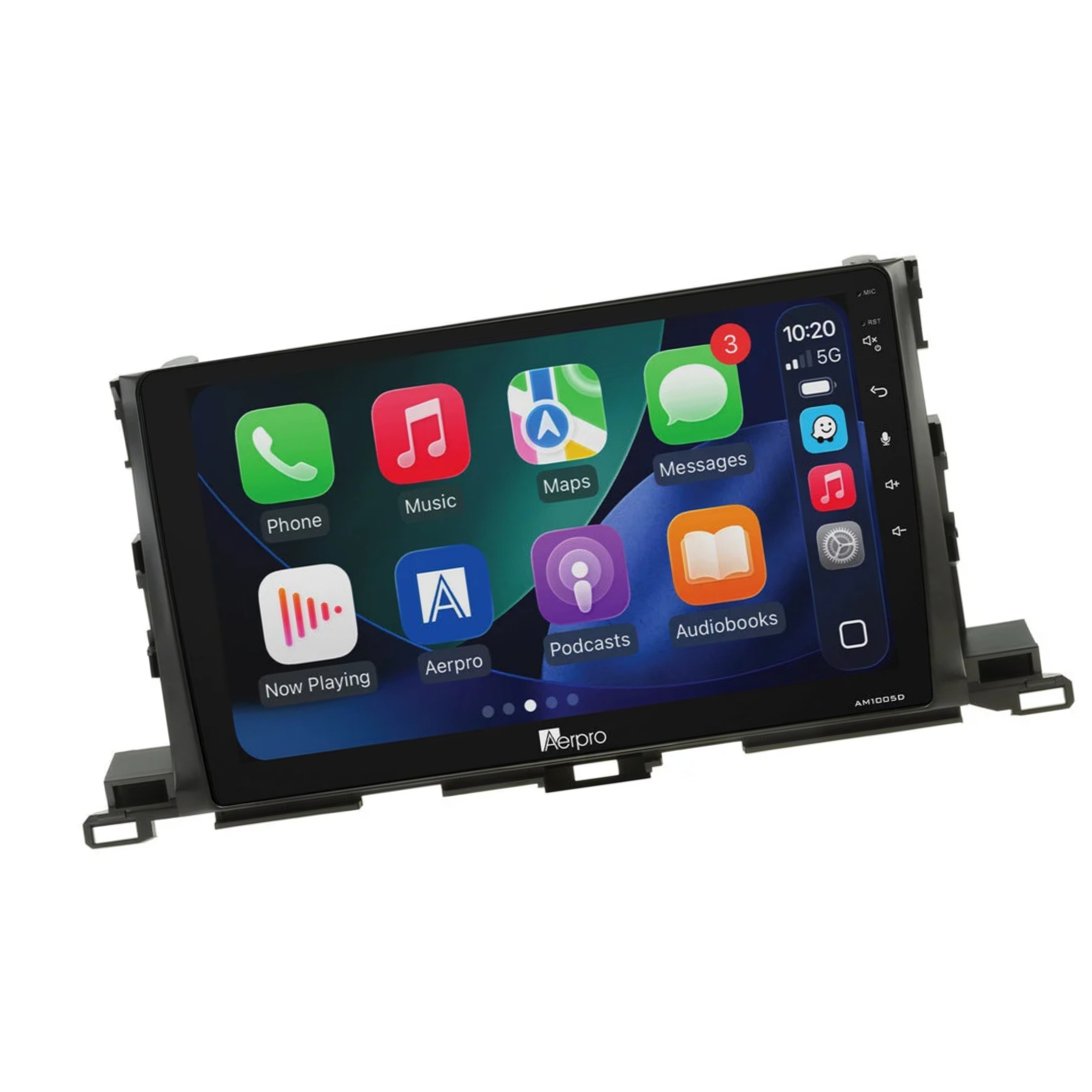

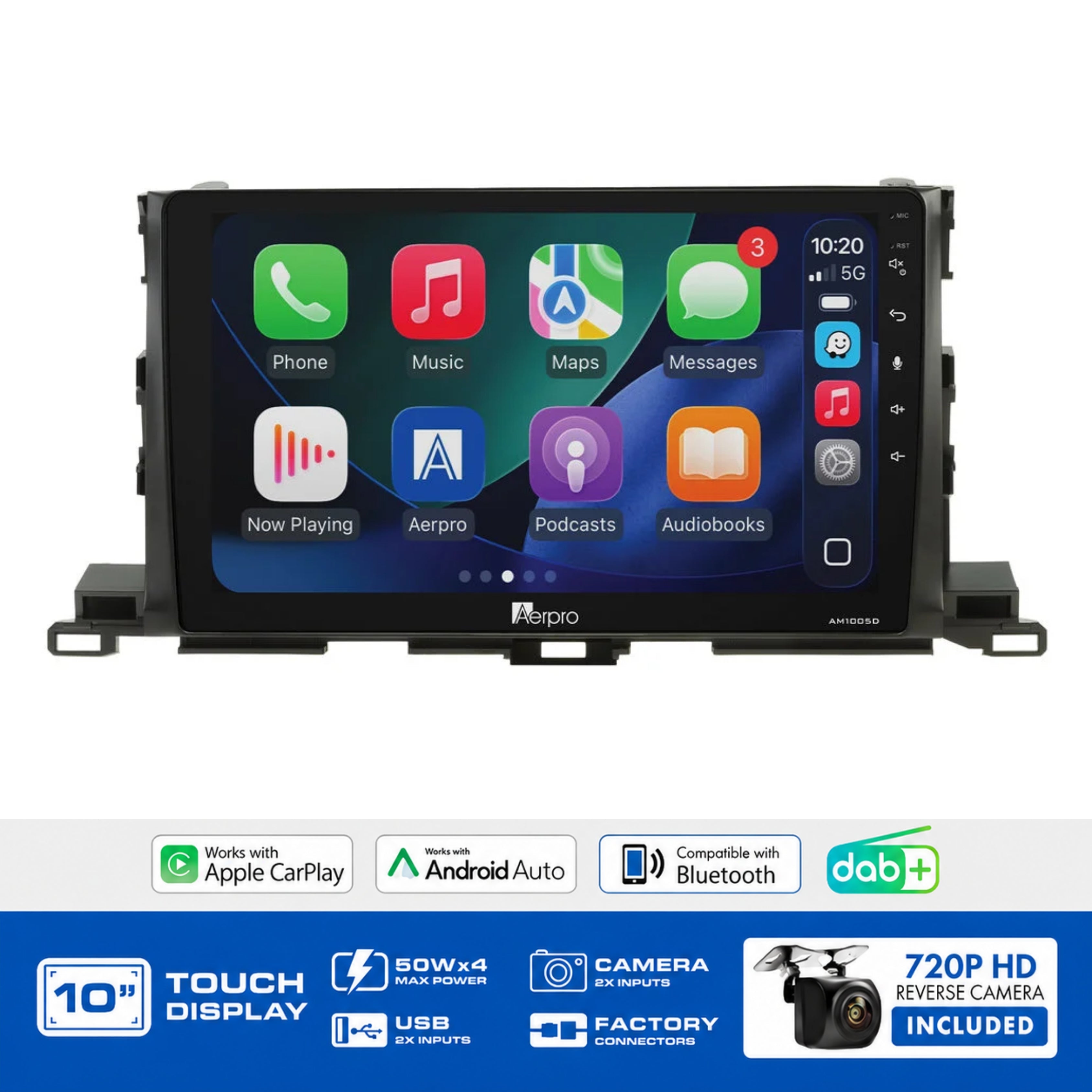

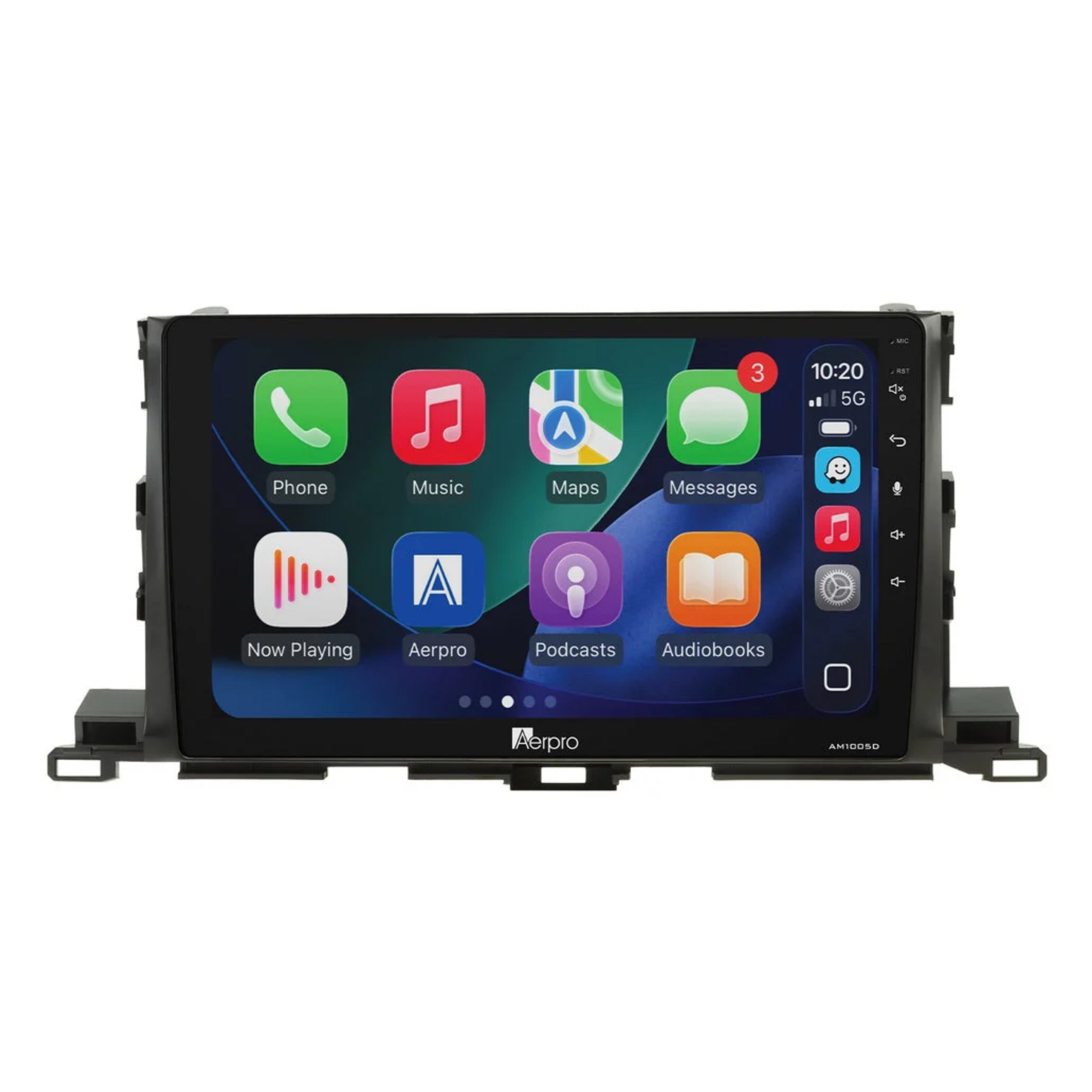

Aerpro AMDTO37 10" Multimedia Receiver Kit Toyota Kluger 2014-2019

SKU: AMDTO37
Regular price
$899.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMDTO37 10" Multimedia Receiver Complete Kit Toyota Kluger 2014-2019

A complete 10" head unit upgrade kit from Aerpro for Toyota Kluger 2014-2019 vehicles, the AMDTO37 includes the AM1005D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a matte black fascia kit, SWC interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and 720P AHD universal rear camera. Retains steering wheel controls, factory reverse camera, USB input, and AUX input (where equipped).

Product Overview

The Aerpro AMDTO37 is a vehicle-specific complete head unit upgrade kit for Toyota Kluger 2014-2019, supplied with everything required to complete the installation and retain important factory vehicle features without cutting or permanently modifying the vehicle wiring. The included AM1005D multimedia receiver features a 10" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included in the kit.

Vehicle feature retention covers steering wheel controls including phone button, factory reverse camera (if equipped), USB input (if equipped), and AUX input (if equipped). Factory amplifier retention is not supported. A camera retention adaptor and USB retention adaptor are included in the kit for seamless connection of the factory camera and USB without additional hardware.

Important installation notes: The fascia kit included is designed for left-hand drive vehicles. It will fit without modification, however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly. Use the Aerpro What Fits Your Car Guide to confirm suitability for your specific Kluger variant before purchase.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDTO37 is supplied as a complete kit including the AM1005D multimedia receiver, matte black fascia kit, SWC interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and 720P AHD universal rear camera. No additional parts are required to complete the installation.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the vehicle's touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS for full broadcast coverage. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

10" Capacitive Touchscreen - 1024x600 Resolution: The large 10" capacitive touchscreen at 1024 x 600 resolution provides smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: The AM1005D delivers 50W x 4 maximum output with 5-channel 4V RCA preouts (front, rear, subwoofer) for connection of aftermarket amplifiers without signal loss.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: The 13-band graphic EQ covers 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer level and LPF control for precise audio tuning.

720P AHD Universal Rear Camera Included: The Sony 225 1/3 CMOS 720P AHD surface mount reverse camera with 150-degree lens angle is included for improved reversing visibility. A second camera input is also available for a front or towing camera (not included).

Steering Wheel Control Retention Including Phone Button: The included SWC interface harness and patch lead retain the factory steering wheel controls including the phone button, providing full audio and call management from the steering wheel.

Factory Reverse Camera, USB, and AUX Retention: Camera retention adaptor and USB retention adaptor are included to retain the factory reverse camera (if equipped), USB input (if equipped), and AUX input (if equipped) without modification.

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white to match the vehicle interior.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included in the kit.

What's in the Box

  • AM1005D 10" Fixed Multimedia Receiver (Trapezoid)
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • Wiring Harness with ISO Connection
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDTO37
Brand Aerpro
Compatible Vehicle Toyota Kluger 2014-2019
Head Unit Model AM1005D
Screen Size 10"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
SWC Retention Yes (Including Phone Button)
Reverse Camera Retention Yes (If Equipped)
USB Input Retention Yes (If Equipped)
AUX Input Retention Yes (If Equipped)
Factory Amplifier Retention No
Barcode 9317114954619

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls (Including Phone Button) Yes
Factory Reverse Camera Yes (If Equipped)
USB Input Yes (If Equipped)
AUX Input Yes (If Equipped)
Factory Amplifier No
Parking Tones N/A
Vehicle Menu N/A

Compatible With

Make Model Years
Toyota Kluger 2014-2019

Note: The fascia kit is designed for left-hand drive vehicles. It will fit the Australian-market Kluger without modification, however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent slight bowing of the factory panel. Factory amplifier retention is not supported. Confirm your specific Kluger variant using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Does the AMDTO37 retain the factory reverse camera?

Yes. The kit includes a camera retention adaptor that retains the factory reverse camera (if equipped) using the reverse camera input of the head unit.

Does the AMDTO37 support wireless CarPlay and Android Auto?

Yes. The AM1005D supports both wireless and wired Apple CarPlay and Android Auto. Wired connection also provides simultaneous phone charging.

Does the AMDTO37 retain the factory amplifier on the Toyota Kluger?

No. Factory amplifier retention is not supported by the AMDTO37. If the vehicle has a factory amplified audio system, confirm suitability with your installer before purchase.

Is a rear camera included with the AMDTO37?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included in the kit. A second camera input is also available on the head unit for a front or towing camera (not included).

Does the AMDTO37 include DAB+ digital radio?

Yes. The AM1005D includes built-in DAB+ with a DAB antenna included in the kit for crystal-clear digital radio reception.
