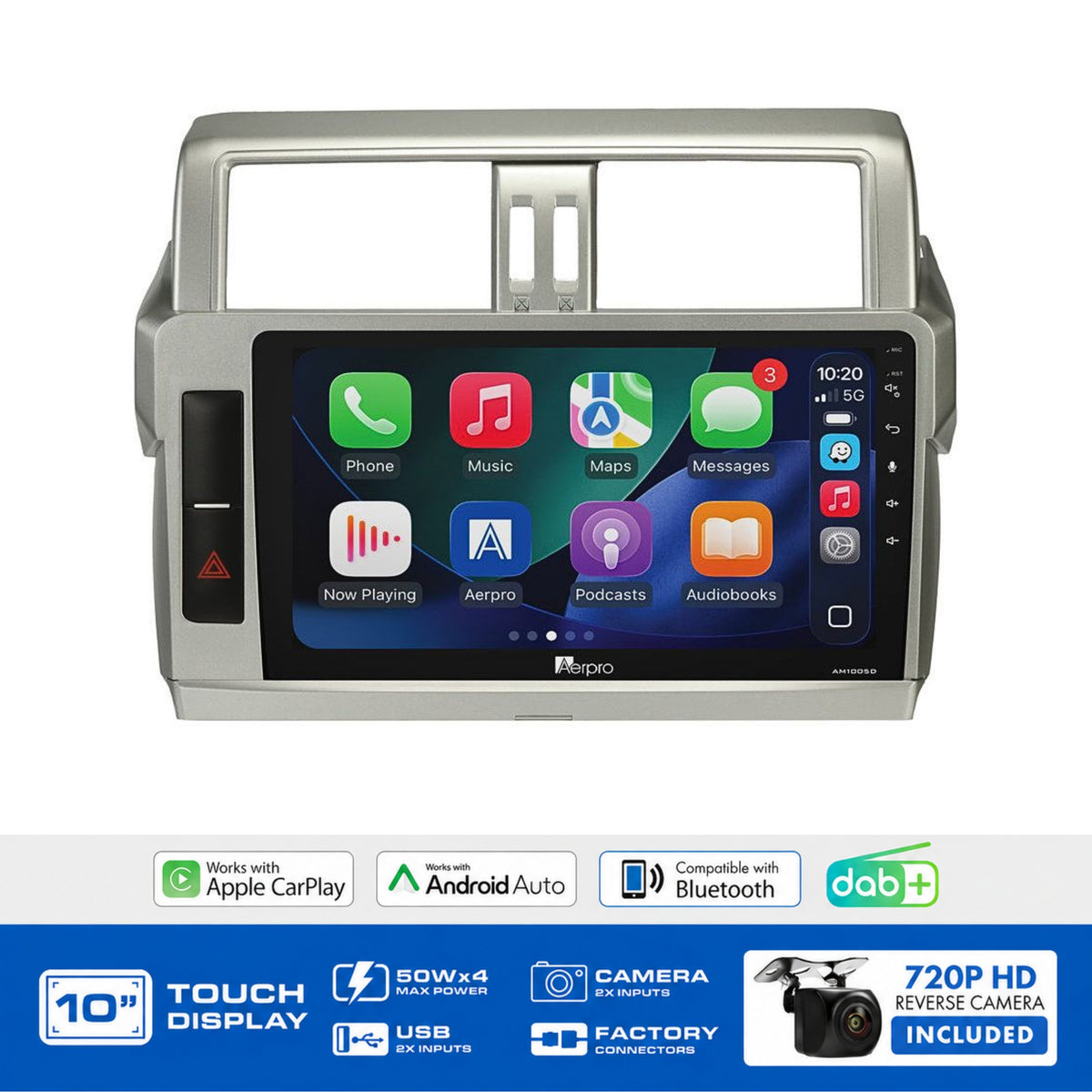

Aerpro AMDTO36 Toyota Prado 150 Series 2014 to 2017 10" Head Unit CarPlay DAB+ USB AUX

Complete 10" Head Unit Upgrade Kit for Toyota Prado 150 Series 2014 to 2017 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB, AUX, Parking Tones & Factory Reverse Camera Retained, Silver Fascia, Rear Camera Included.

Product Overview

The Aerpro AMDTO36 is a complete head unit upgrade kit specifically designed for the Toyota Prado 150 Series (2014 to 2017). Steering wheel controls, factory USB, AUX, parking sensor tones, and factory reverse camera are all retained. The kit also includes a left-hand hazard button cover to transfer the factory hazard button to its new position, and reverse sensor audio is retained.

Everything required for installation is included the AM1005D multimedia receiver, silver fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Important: The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Reverse camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input on the rear of the head unit. Reverse sensor visualisation (overlay showing active sensor) is not retained audio tones only.

Kit Inclusions

• AM1005D 10" Multimedia Receiver
• Silver Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
• Left-Hand Hazard Button Cover
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 10" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Comprehensive factory feature retention: SWC, USB, AUX, parking tones, and factory reverse camera all retained
• Parking tones retained visualisation not retained: Factory parking sensor audio tones are retained; the small visual overlay showing which sensor is active is not retained

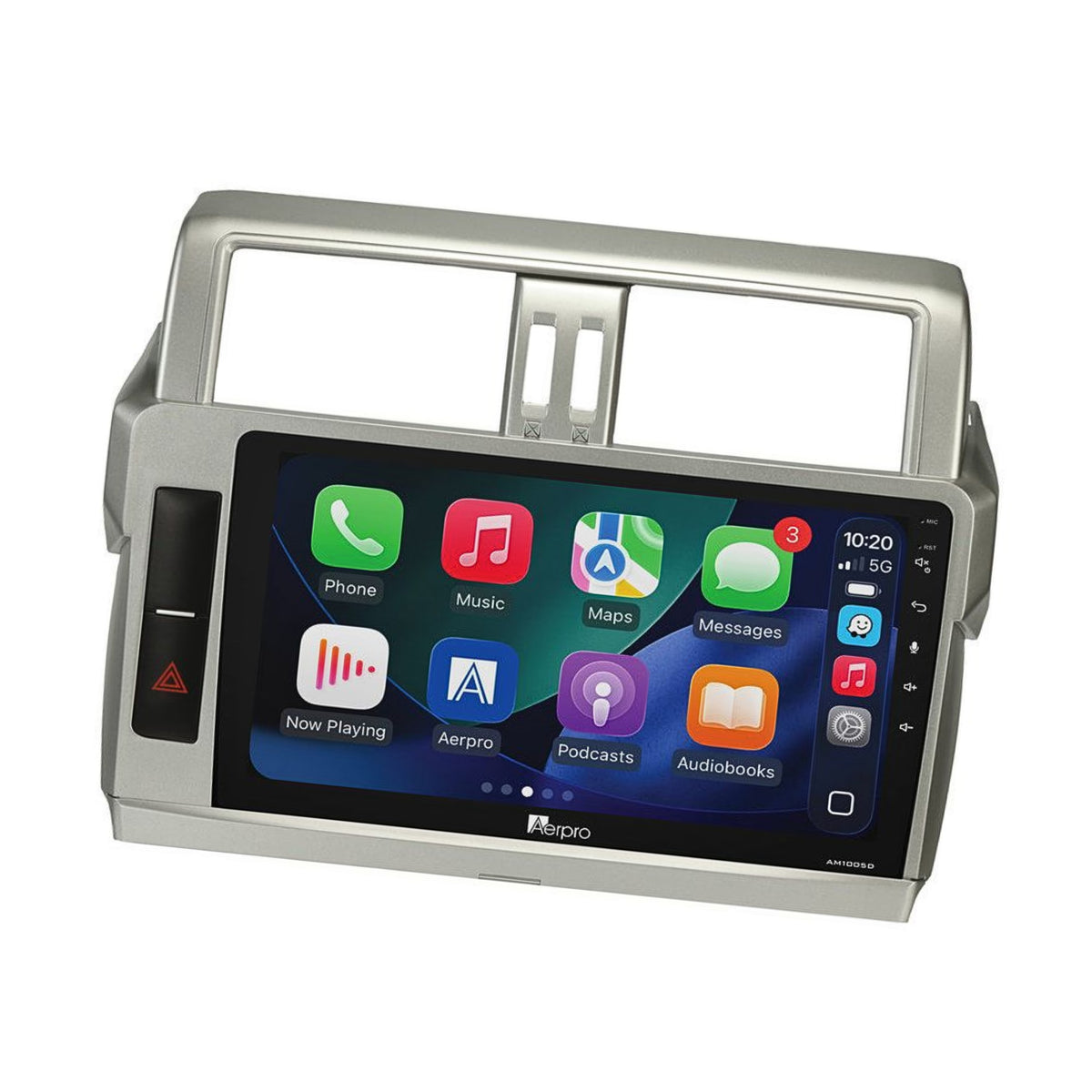

• Left-hand hazard button cover included: Allows the factory hazard button to be transferred to its new position for a clean finish
• Factory reverse camera retained: Retained via the included camera retention adaptor uses the reverse camera input of the head unit
• Factory USB and AUX retained: Both retained USB uses rear USB input; AUX uses RCA AUX input

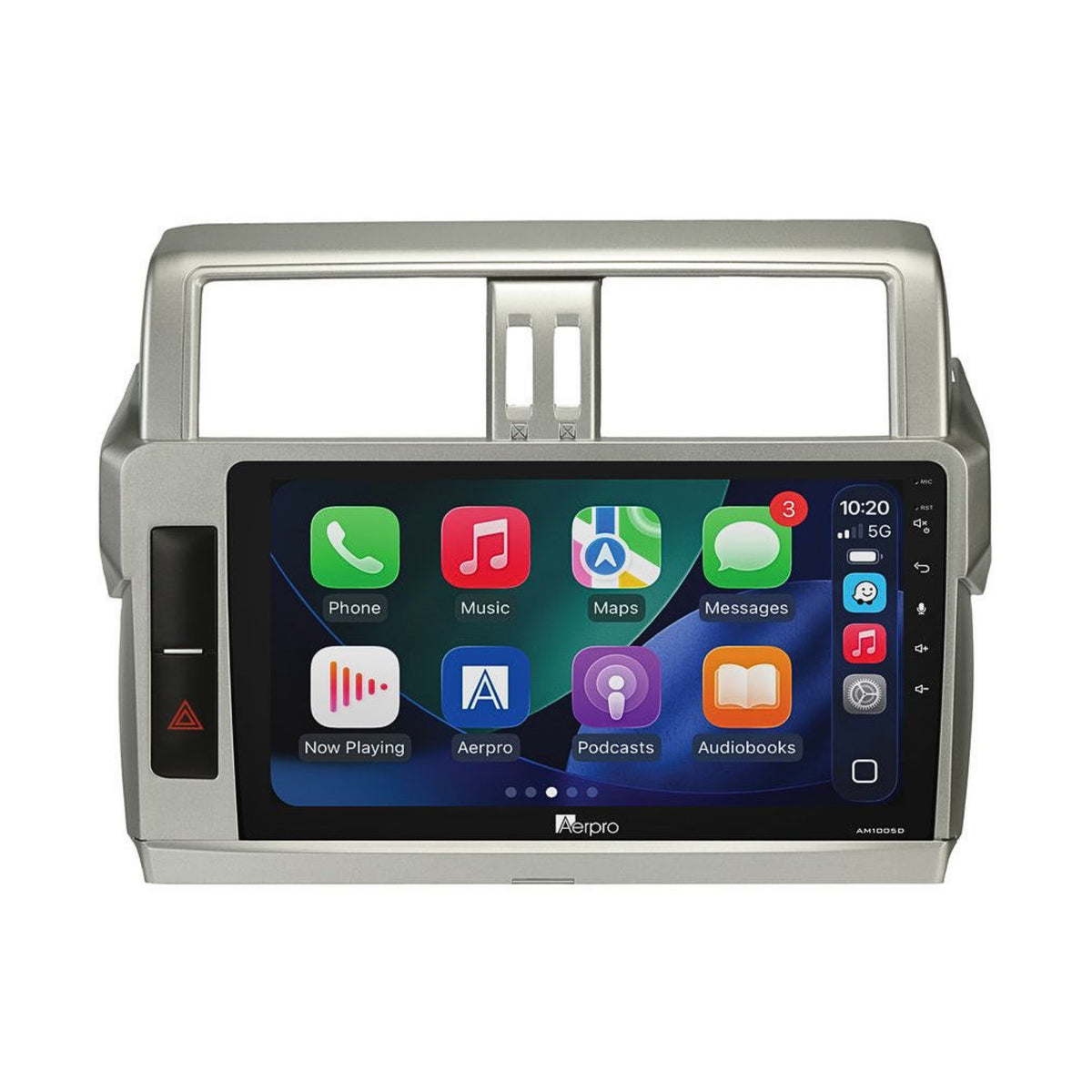

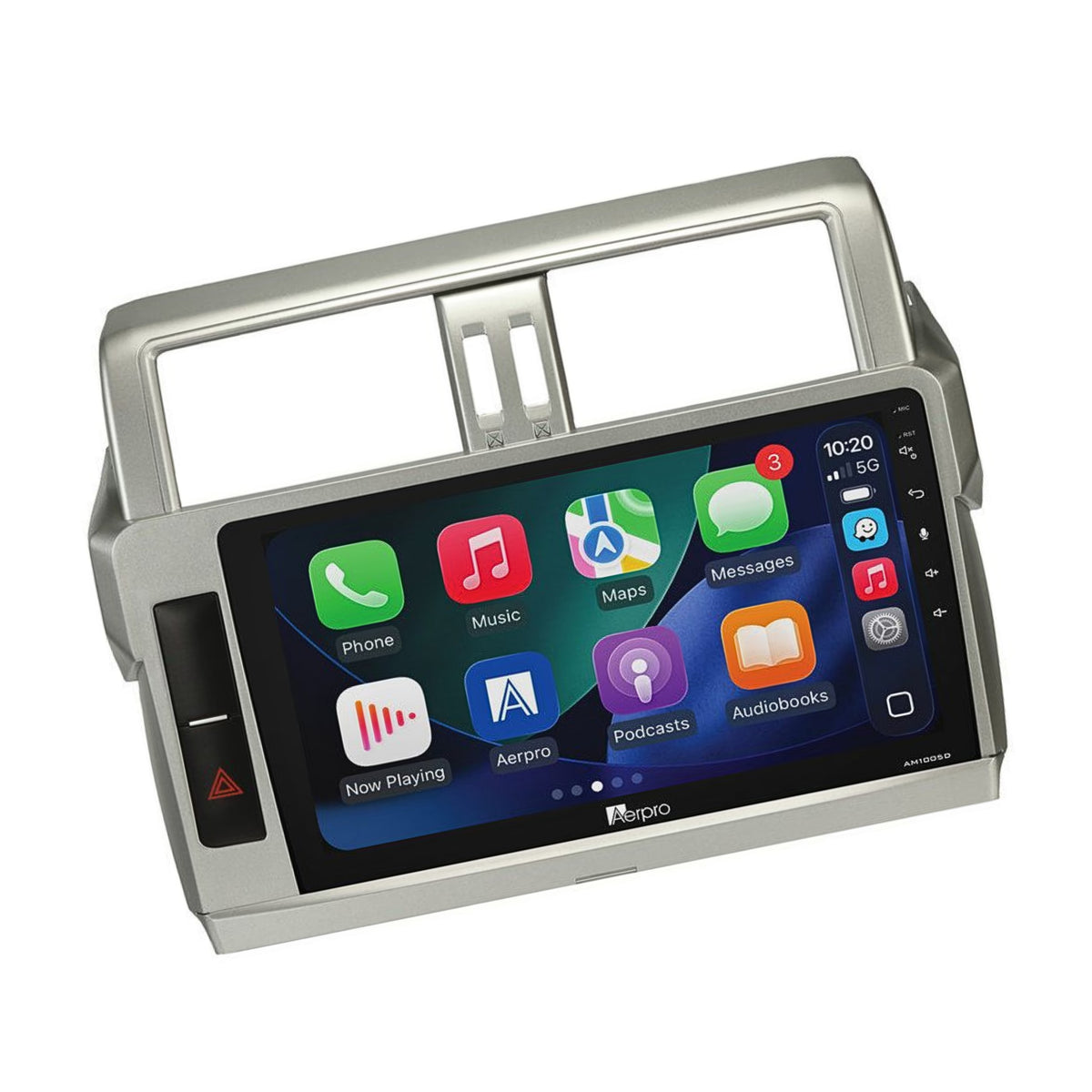

• Silver fascia kit: Silver finish to match the Prado interior aesthetic
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 10" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Compatible Vehicles

• Toyota Prado 2014 to 2017 150 Series

FAQ

What vehicles does the Aerpro AMDTO36 suit?

The Aerpro AMDTO36 suits the Toyota Prado 150 Series (2014 to 2017).

Are parking sensor tones retained?

Yes parking sensor audio tones are retained. The visual sensor overlay (tiny overlay of car showing which sensor is active) is not retained.

What is the left-hand hazard button cover for?

The left-hand hazard button cover is included to transfer the factory hazard button to its new position, ensuring a clean and complete finished installation.

Does the park brake wire need to be connected?

Yes, the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Are USB and AUX inputs retained?

Yes, both are retained. USB retention uses the rear USB input; AUX retention uses the RCA AUX input on the rear of the head unit.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
