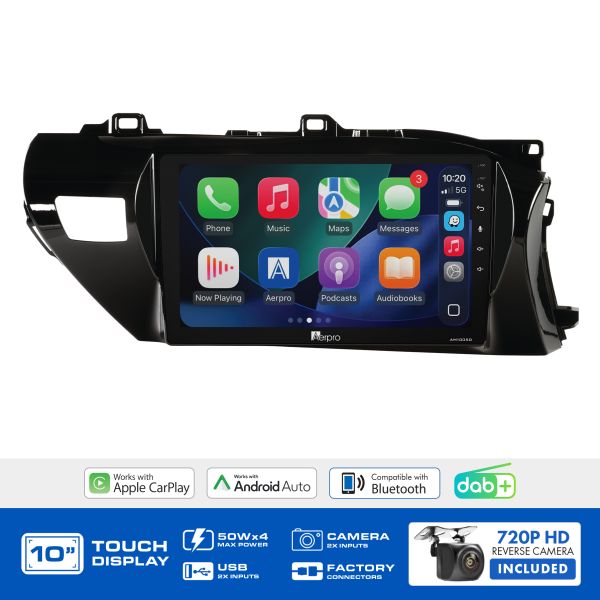

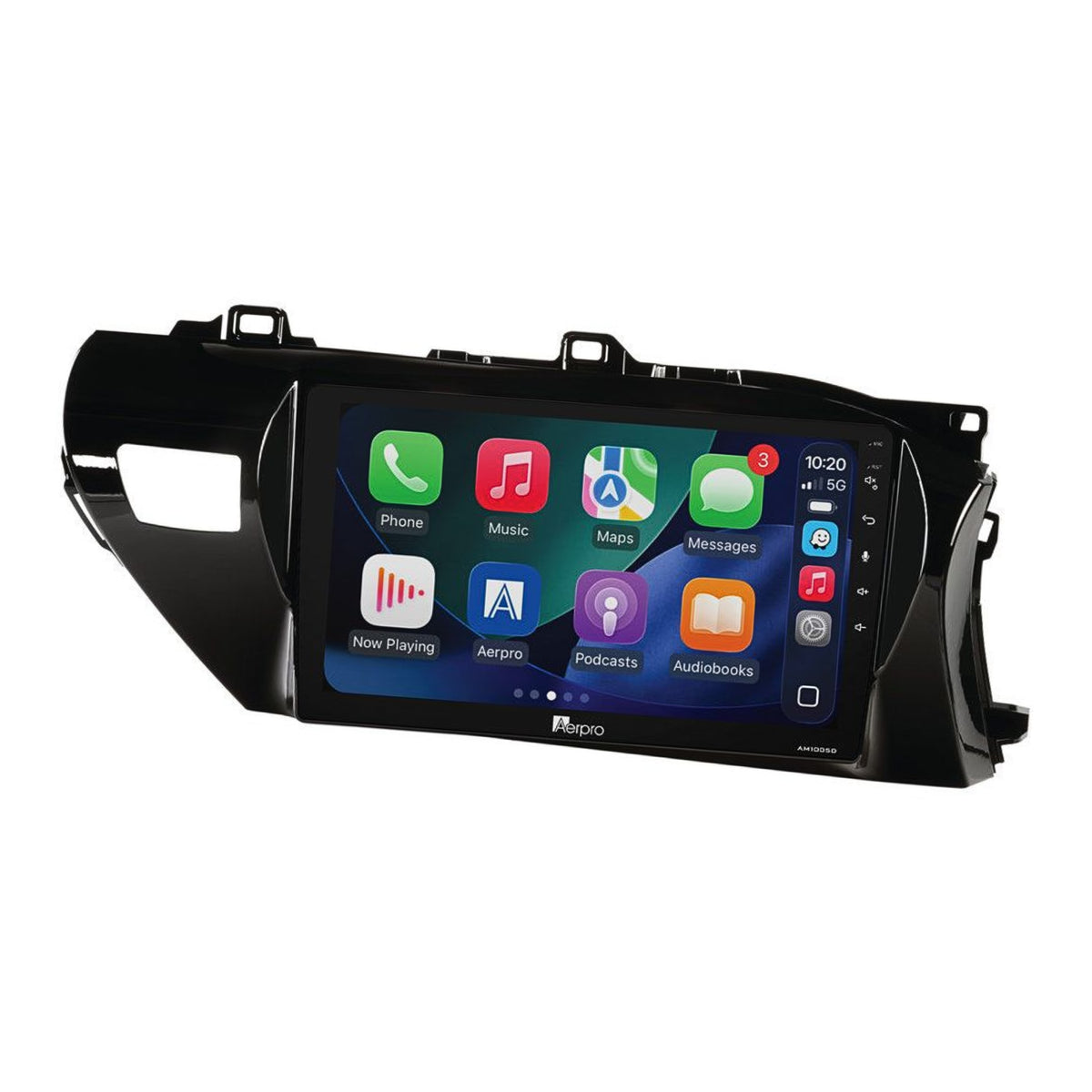

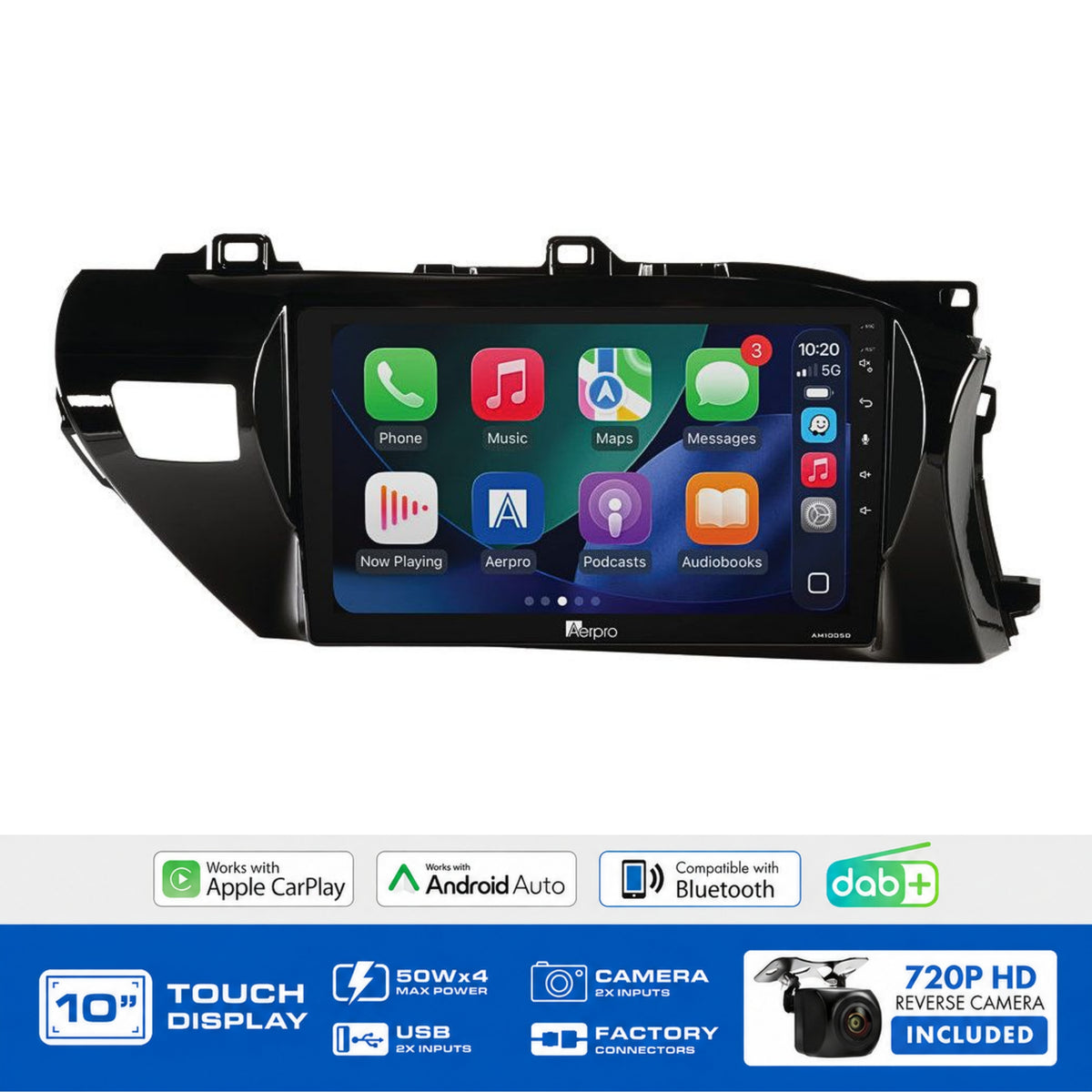

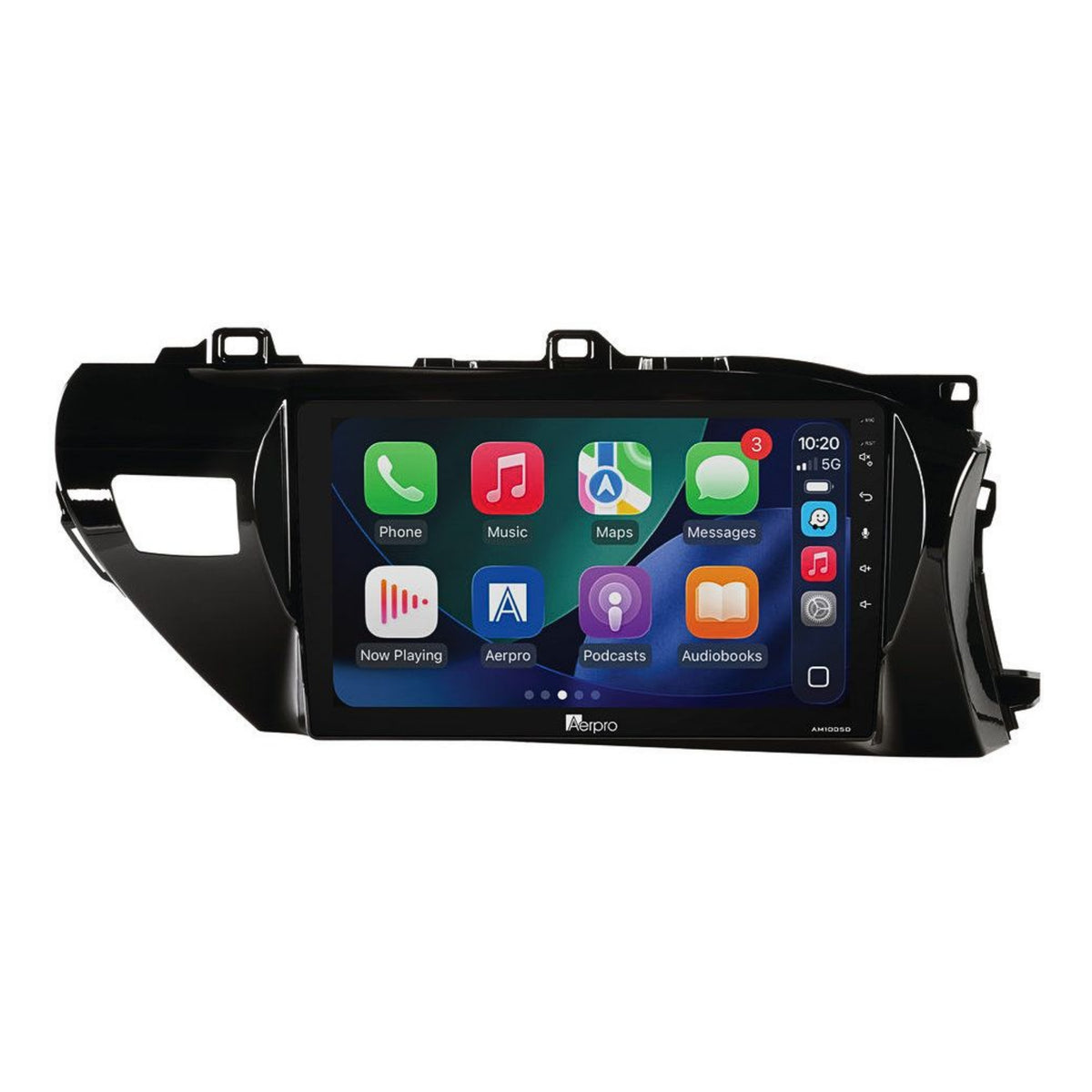

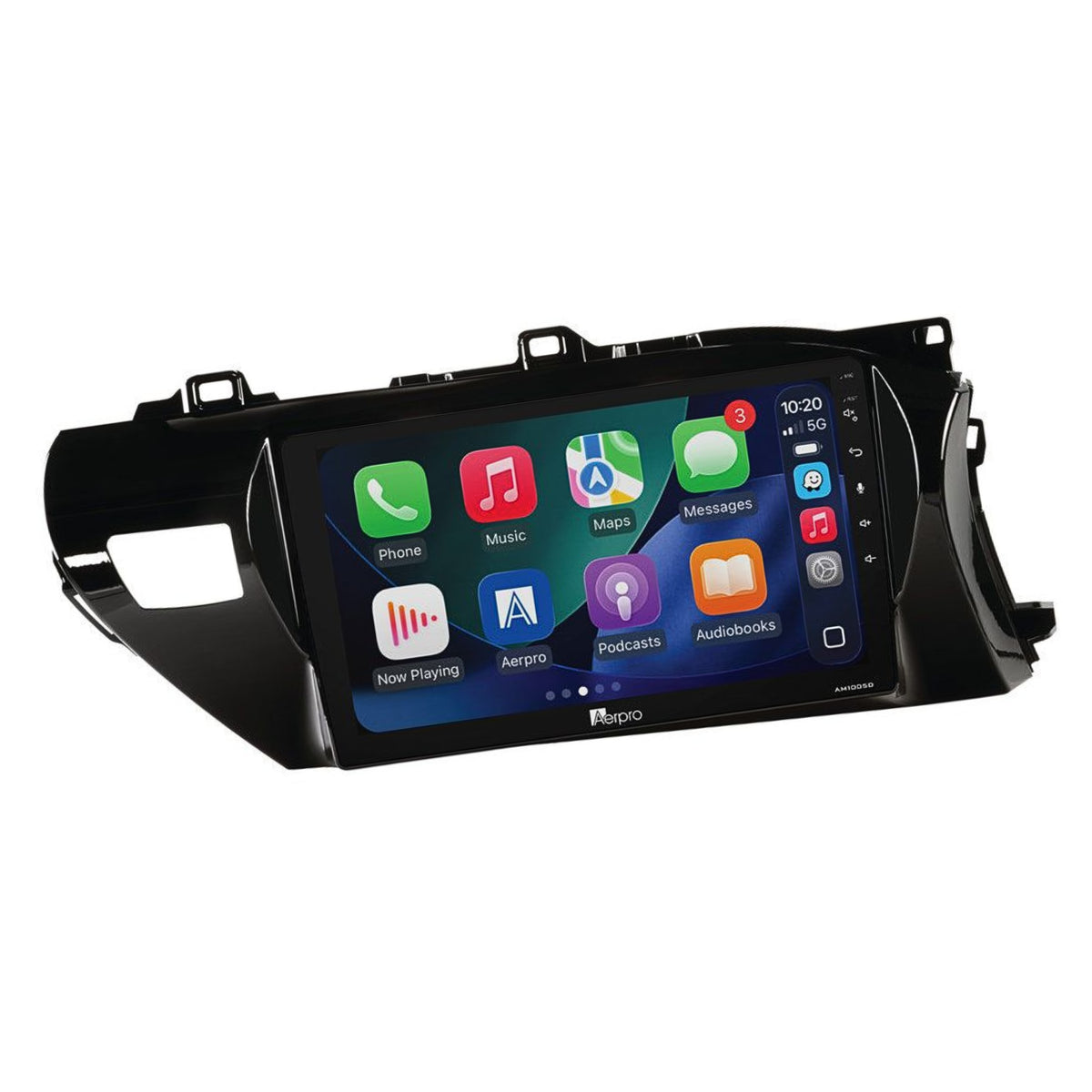

Aerpro AMDTO3 Toyota Hilux 2020-On 10" Head Unit Wireless CarPlay DAB+ Non-Amplified

SKU: AMDTO3
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 10" Head Unit Upgrade Kit for Toyota Hilux 2020-On (Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, AUX & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDTO3 is a complete head unit upgrade kit specifically designed for the Toyota Hilux (2020-on) without a factory amplified system. This kit uses the AM1005D 10" multimedia receiver. Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with camera retention), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Steering wheel controls (including phone button), AUX input, and factory reverse camera (if equipped) are retained. Note that AUX retention requires an additional 3.5mm to RCA adaptor (sold separately) and factory USB input is not retained.

Important: Suits non-amplified vehicles only. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Reverse camera retention uses the reverse camera input of the head unit. AUX input retention requires a 3.5mm to RCA adaptor (sold separately).

Kit Inclusions

  • AM1005D 10" Multimedia Receiver
  • Gloss Black Fascia Kit
  • Steering Wheel Control Interface Harness (with camera retention)
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes (including phone button)
Factory Reverse Camera Yes (if equipped)
AUX Input Yes (3.5mm to RCA adaptor required sold separately)
USB Input No
Factory Amplifier No
Vehicle Menu N/A

Key Specifications

  • Screen: 10" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits non-amplified Hilux 2020-on: Specifically for non-amplified models factory amplifier is not supported
  • Factory reverse camera retained: If equipped, retained via the SWC harness (camera retention integrated) uses the reverse camera input of the head unit
  • AUX input retained: AUX retained a 3.5mm to RCA adaptor is required and sold separately
  • Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness and patch lead
  • Factory USB not retained: Confirm this suits your requirements before purchasing
  • Gloss black fascia: Premium gloss black finish suited to the Hilux interior
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 10" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDTO3
Brand Aerpro
Receiver Model AM1005D
Screen Size 10"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera Yes (if equipped)
AUX Input Retained Yes (3.5mm to RCA adaptor required sold separately)
USB Input Retained No
Factory Amplifier No
Kit Includes Rear Camera Yes 720P AHD universal
Suits Toyota Hilux 2020-on (non-amplified)

Compatible Vehicles

  • Toyota Hilux 2020–2025 (non-amplified)

Frequently Asked Questions

Does this kit suit amplified Hilux models?

No the AMDTO3 suits non-amplified Toyota Hilux 2020-on models only. Factory amplifier is not supported.

Does AUX input retention require an additional adaptor?

Yes AUX input retention requires an additional 3.5mm to RCA adaptor, sold separately.

Is factory USB input retained?

No factory USB input retention is not supported by the AMDTO3.

Does the park brake wire need to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
