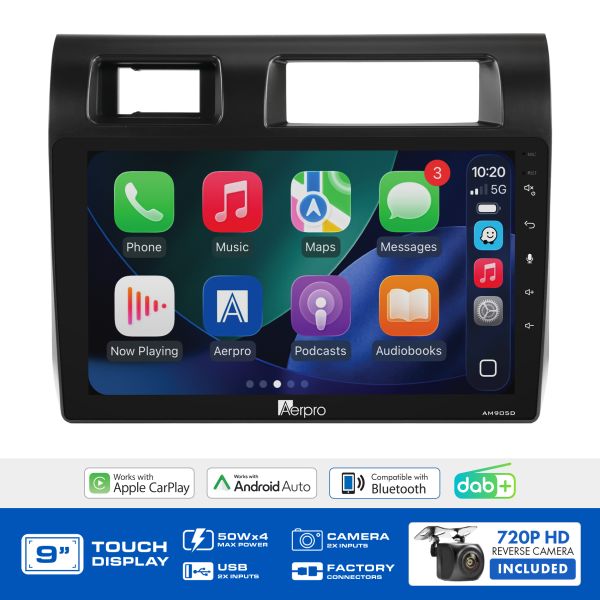

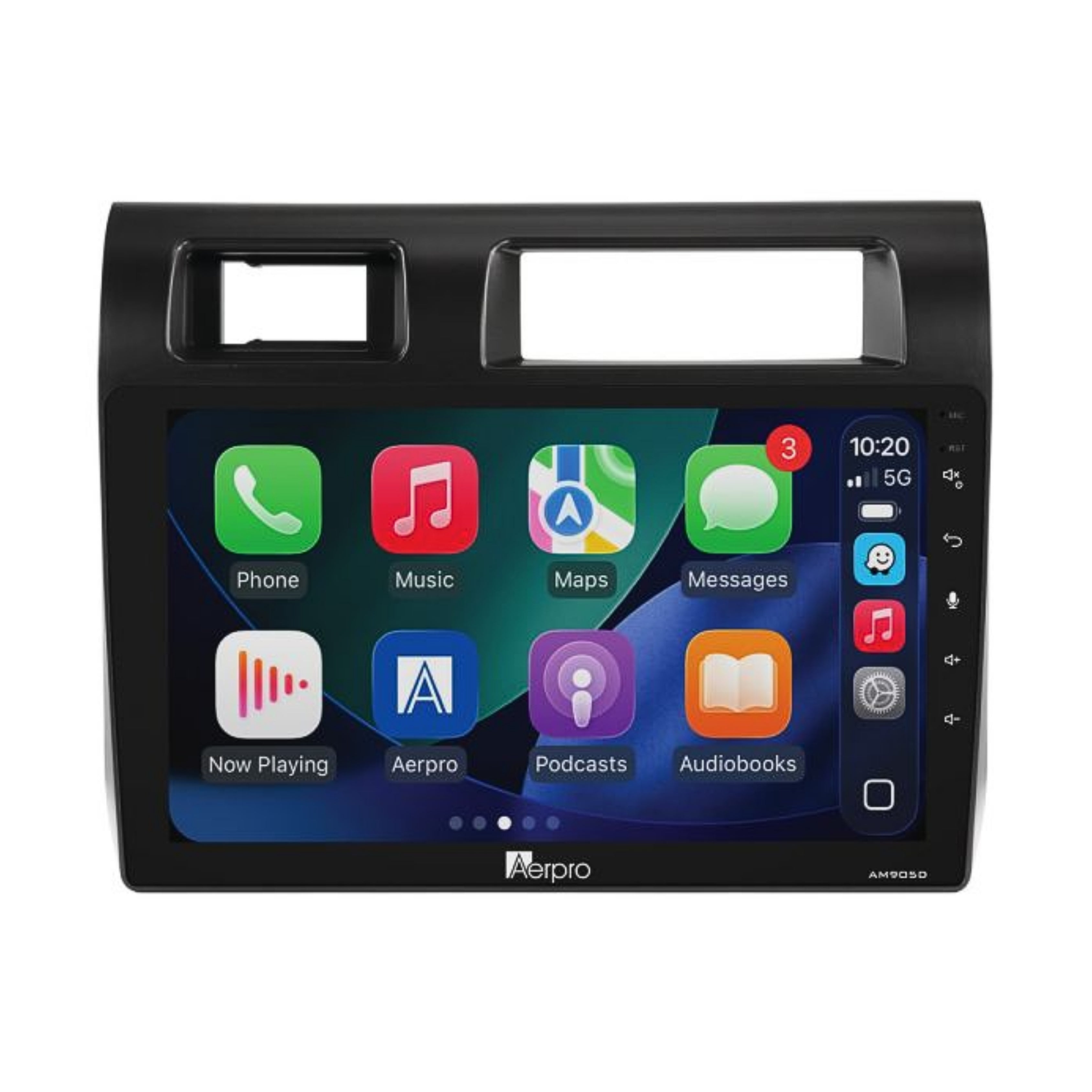

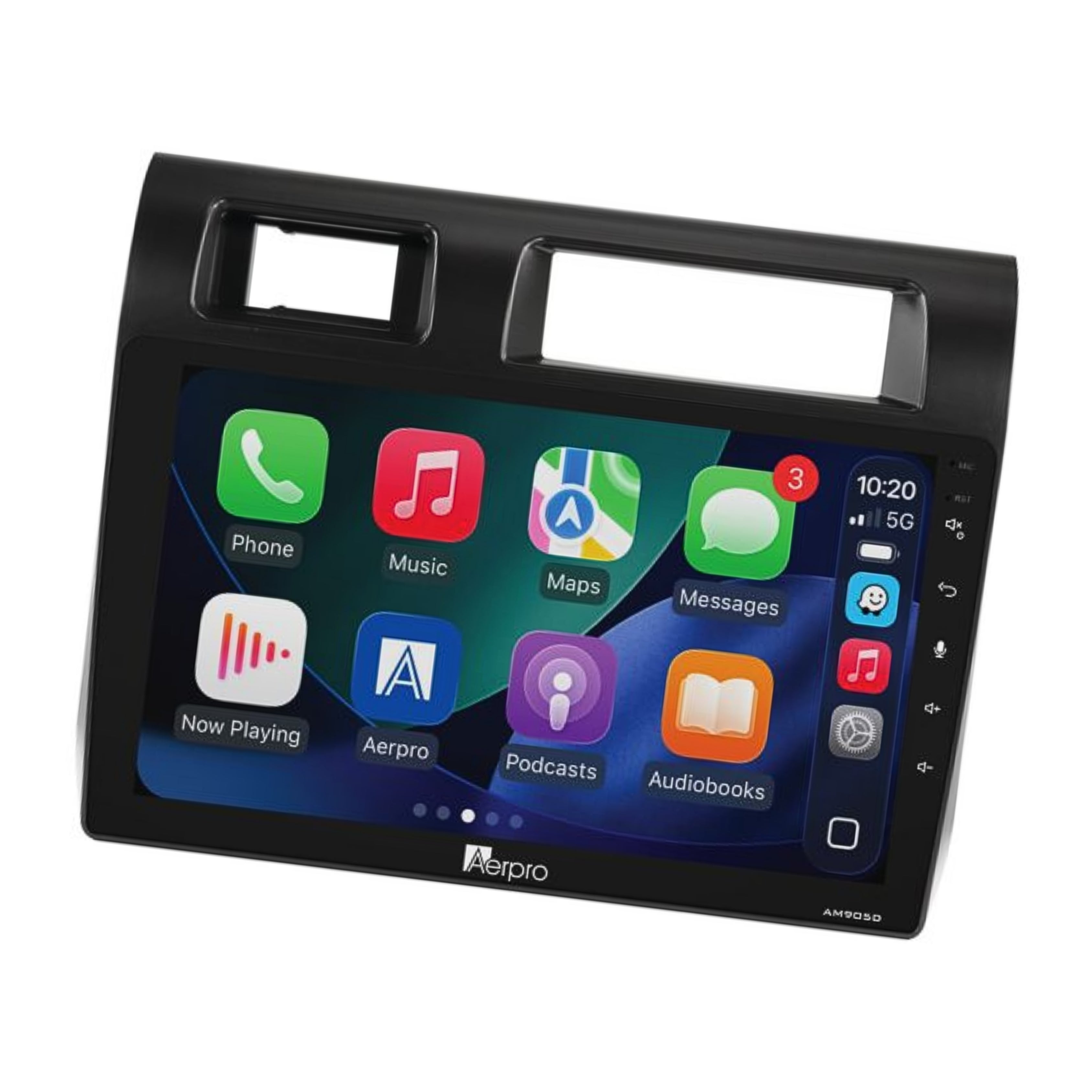

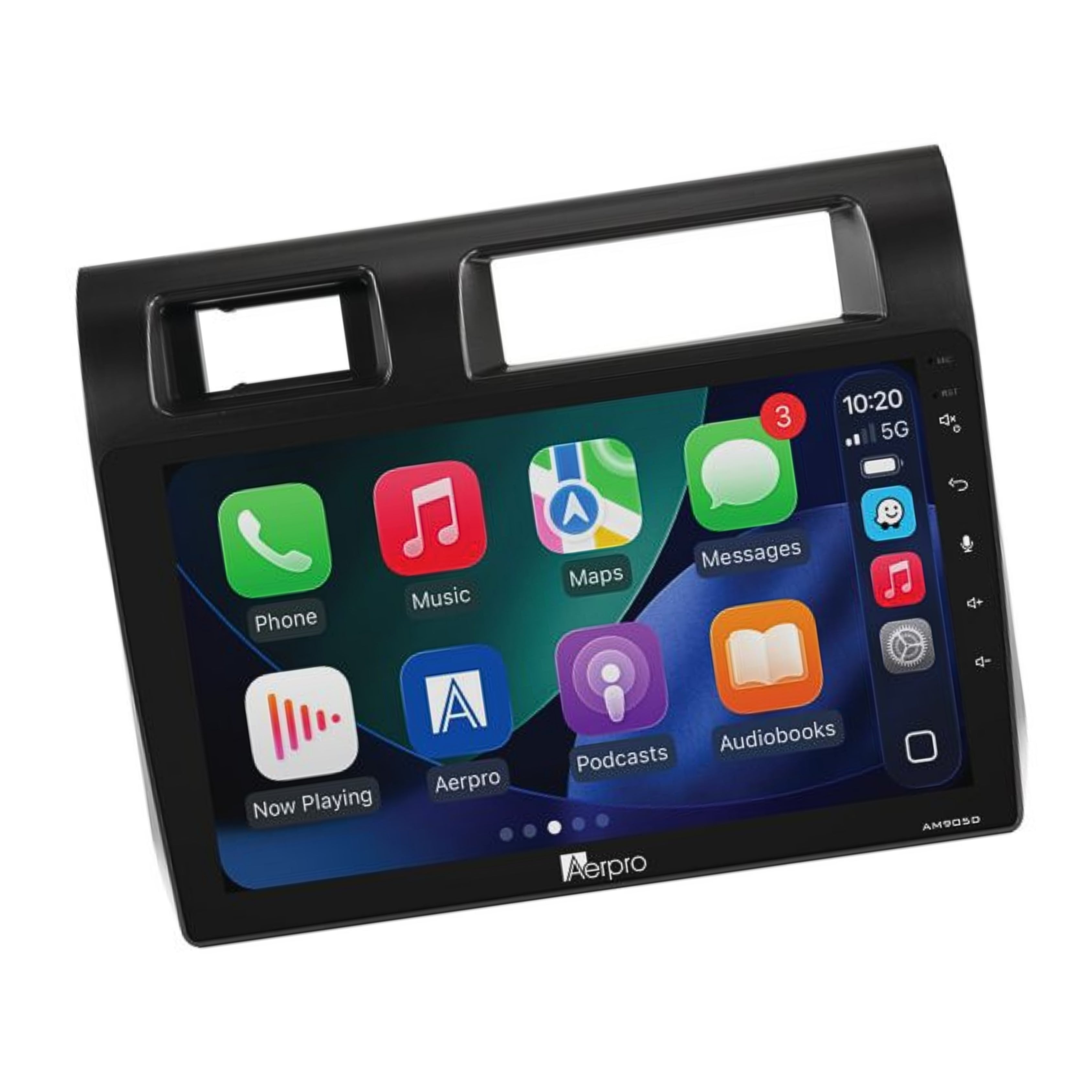

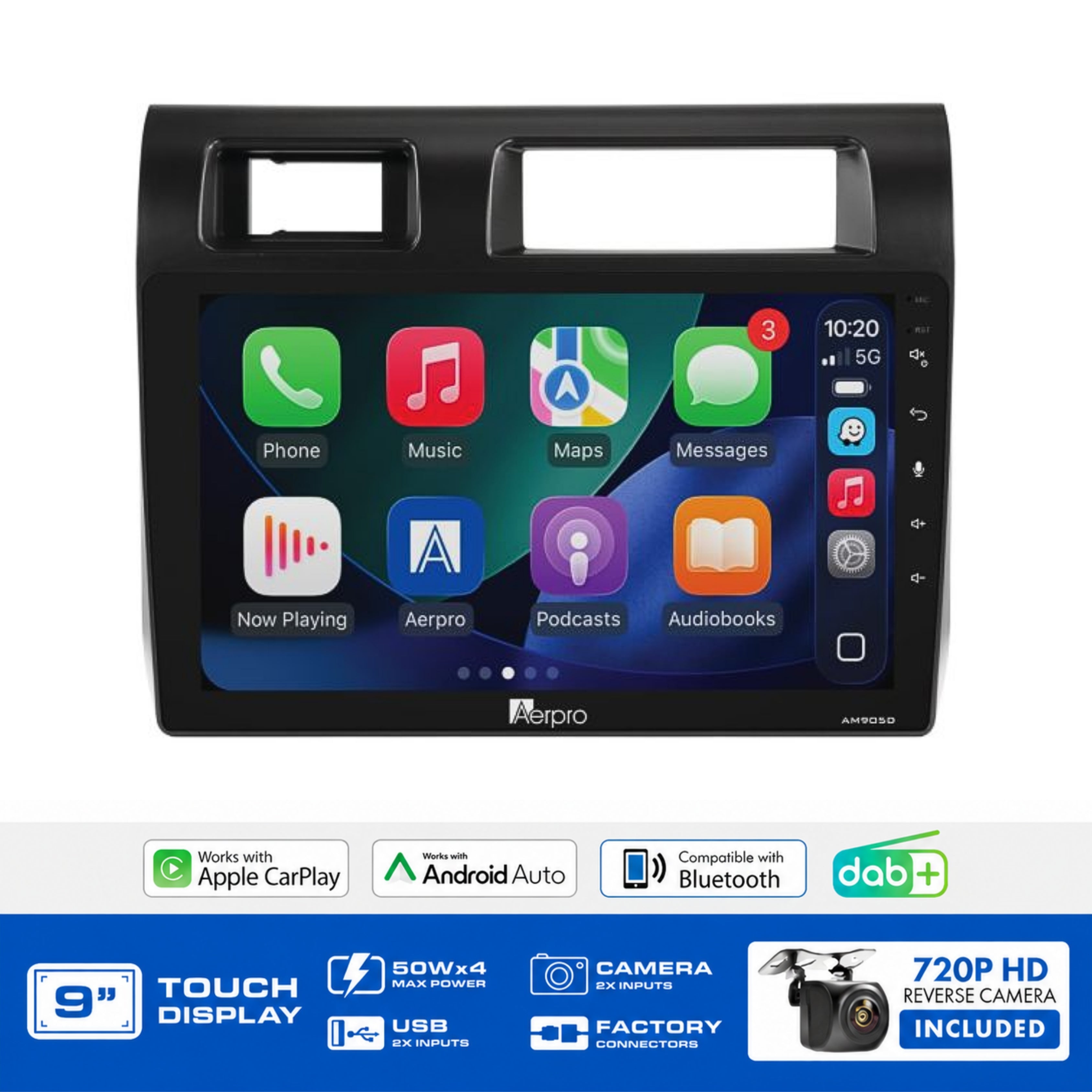

Aerpro AMDTO29 9" Multimedia Receiver Kit Toyota Landcruiser 70 Series

SKU: AMDTO29
Regular price
$799.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMDTO29 9" Multimedia Receiver Complete Kit Toyota Landcruiser 70 Series 2010-2022

A complete 9" head unit upgrade kit from Aerpro for Toyota Landcruiser 70 Series (2010-2022) vehicles, the AMDTO29 includes the AM905D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a black fascia kit, wiring harness, antenna adaptor, and 720P AHD universal rear camera. Not compatible with 2023-on models with steering wheel controls. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Product Overview

The Aerpro AMDTO29 is a vehicle-specific complete head unit upgrade kit for Toyota Landcruiser 70 Series (2010-2022), supplying everything required to complete a clean, factory-style installation of the AM905D multimedia receiver. The AM905D features a 9" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included.

The Toyota Landcruiser 70 Series (2010-2022) does not feature factory steering wheel controls, factory reverse camera, USB, AUX, or amplifier systems, therefore no factory feature retention adaptors are required or included in this kit. The wiring harness and antenna adaptor provide a clean direct installation. Note: this kit does not suit 2023-on Landcruiser 70 Series models with steering wheel controls, as the hazard and clock positions differ. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDTO29 includes the AM905D multimedia receiver, black fascia kit, wiring harness, antenna adaptor, and 720P AHD universal rear camera. No additional installation parts are required.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

9" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included for improved reversing visibility. A second camera input is available for a front or towing camera (not included).

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

  • AM905D 9" Fixed Multimedia Receiver (Trapezoid)
  • Black Fascia Kit
  • Wiring Harness
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDTO29
Brand Aerpro
Compatible Vehicle Toyota Landcruiser 70 Series (2010-2022)
Head Unit Model AM905D
Screen Size 9"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
Park Brake Requirement Park Brake Wire Must Be Connected for CarPlay/Android Auto
SWC Retention N/A
Reverse Camera Retention N/A
USB Input Retention N/A
AUX Input Retention N/A
Factory Amplifier Retention N/A
Barcode 9317114954671

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls N/A
Factory Reverse Camera N/A
USB Input N/A
AUX Input N/A
Factory Amplifier N/A
Parking Tones N/A
Vehicle Menu N/A

Compatible With

Make Model Variant Years
Toyota Landcruiser 70 Series 2010-2022

Note: Does not suit 2023-on Landcruiser 70 Series models with steering wheel controls, as the hazard button and clock positions differ on the updated dashboard. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Confirm your specific Landcruiser 70 Series variant using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Is the AMDTO29 compatible with the 2023-on Landcruiser 70 Series?

No. The AMDTO29 does not suit 2023-on Landcruiser 70 Series models with steering wheel controls, as the hazard button and clock positions differ on the updated dashboard. This kit suits 2010-2022 models only.

Does the AMDTO29 retain factory steering wheel controls?

The Toyota Landcruiser 70 Series (2010-2022) does not feature factory steering wheel controls, therefore SWC retention is not applicable for this kit.

Does the AMDTO29 support wireless CarPlay and Android Auto?

Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Is a rear camera included with the AMDTO29?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available on the head unit for a front or towing camera (not included).

Does the AMDTO29 include DAB+ digital radio?

Yes. The AM905D includes built-in DAB+ with a DAB antenna included in the kit for crystal-clear digital radio reception.
