Aerpro AMDTO22 10" Multimedia Receiver Kit Toyota Prado GXL 2017-2020

SKU: AMDTO22
Regular price
$1,199.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

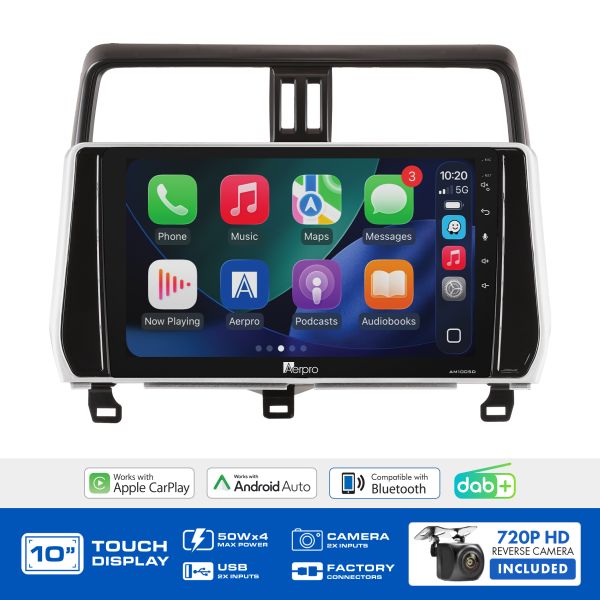

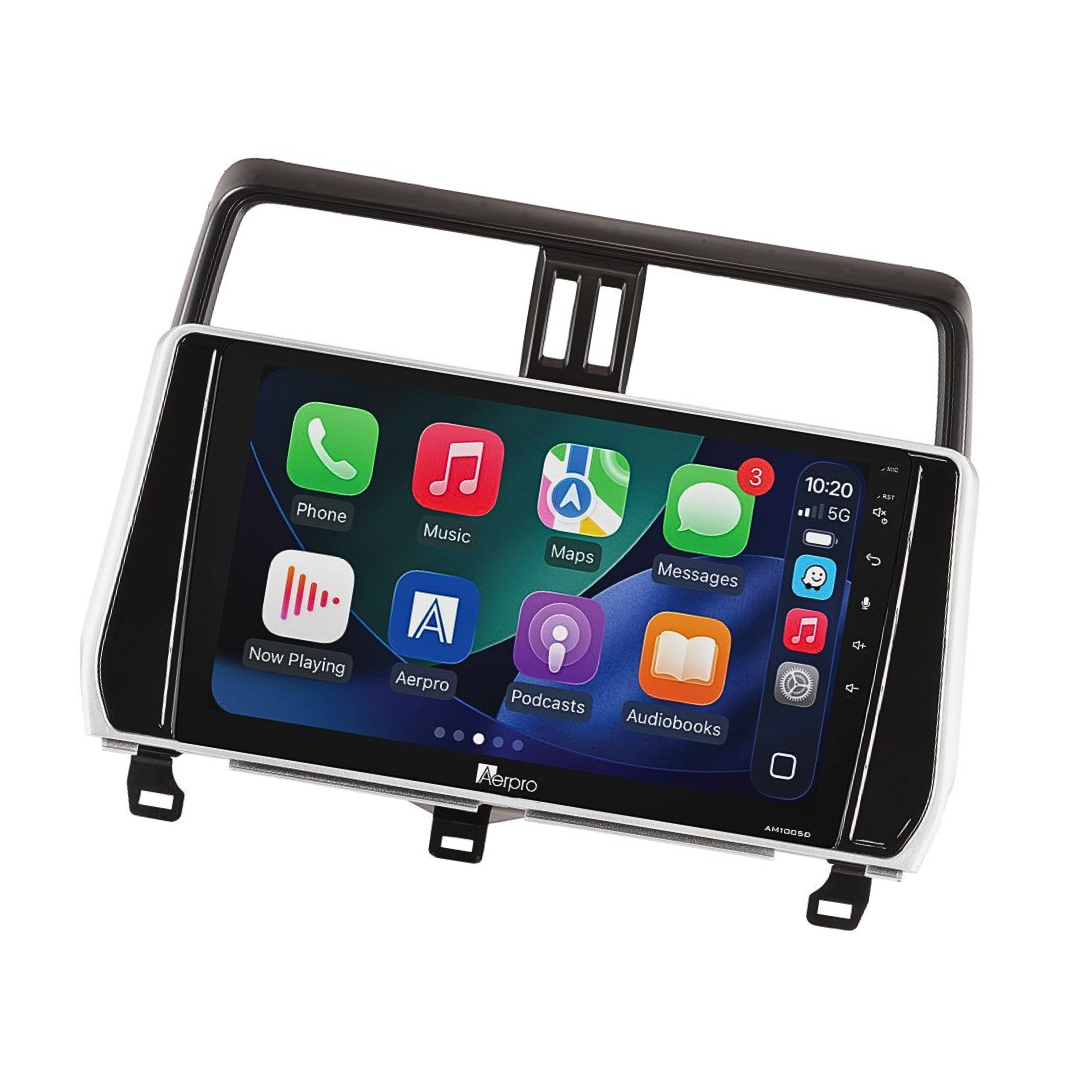

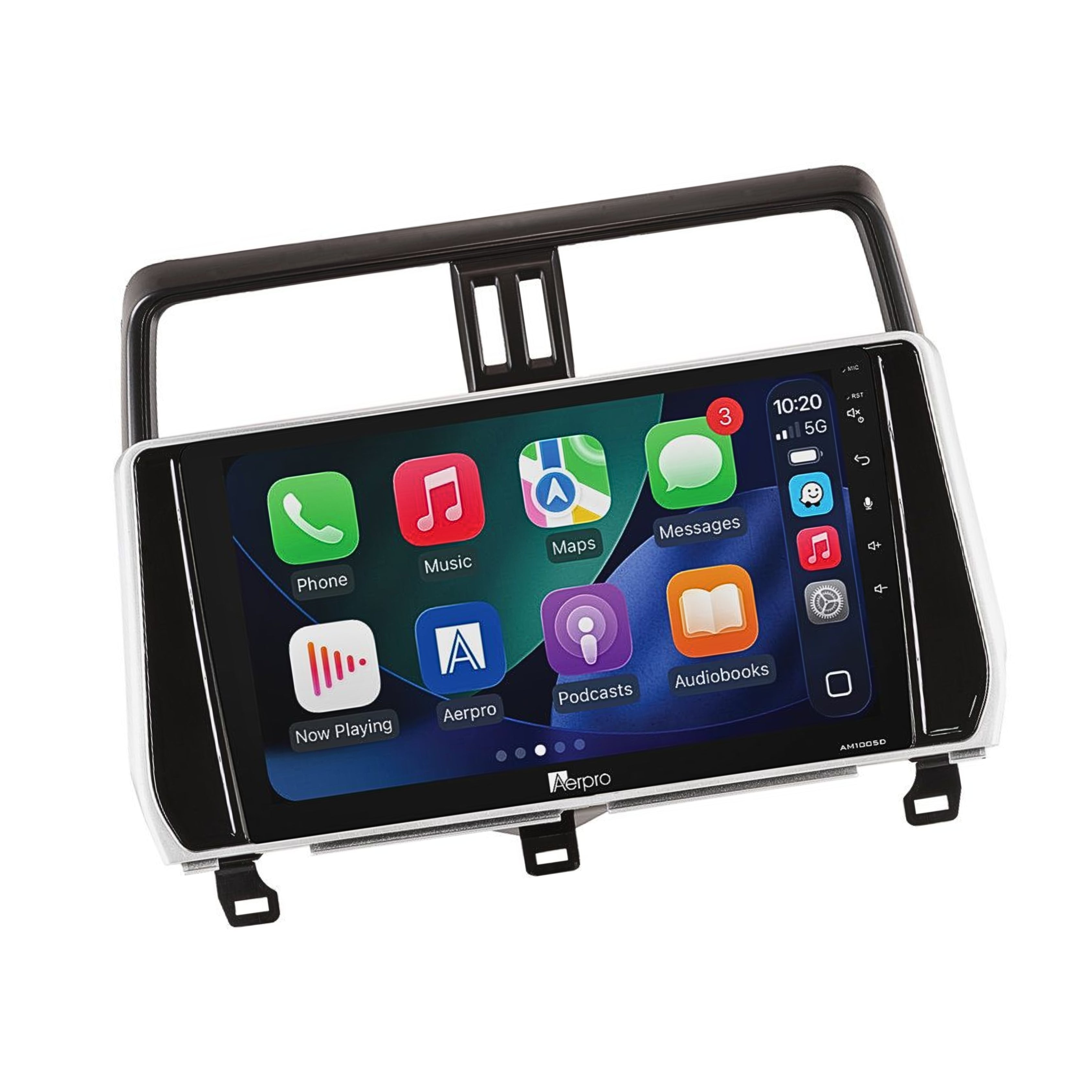

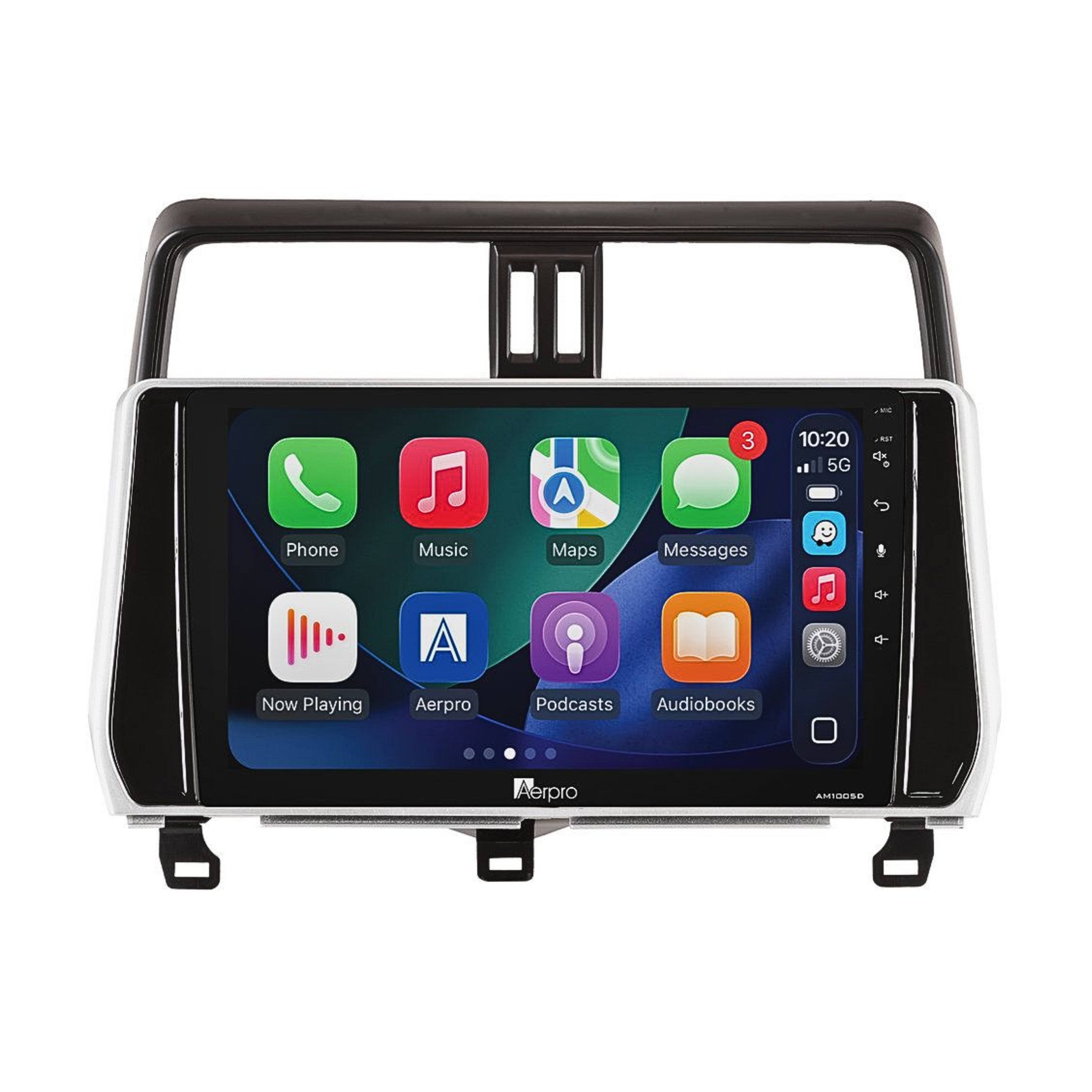

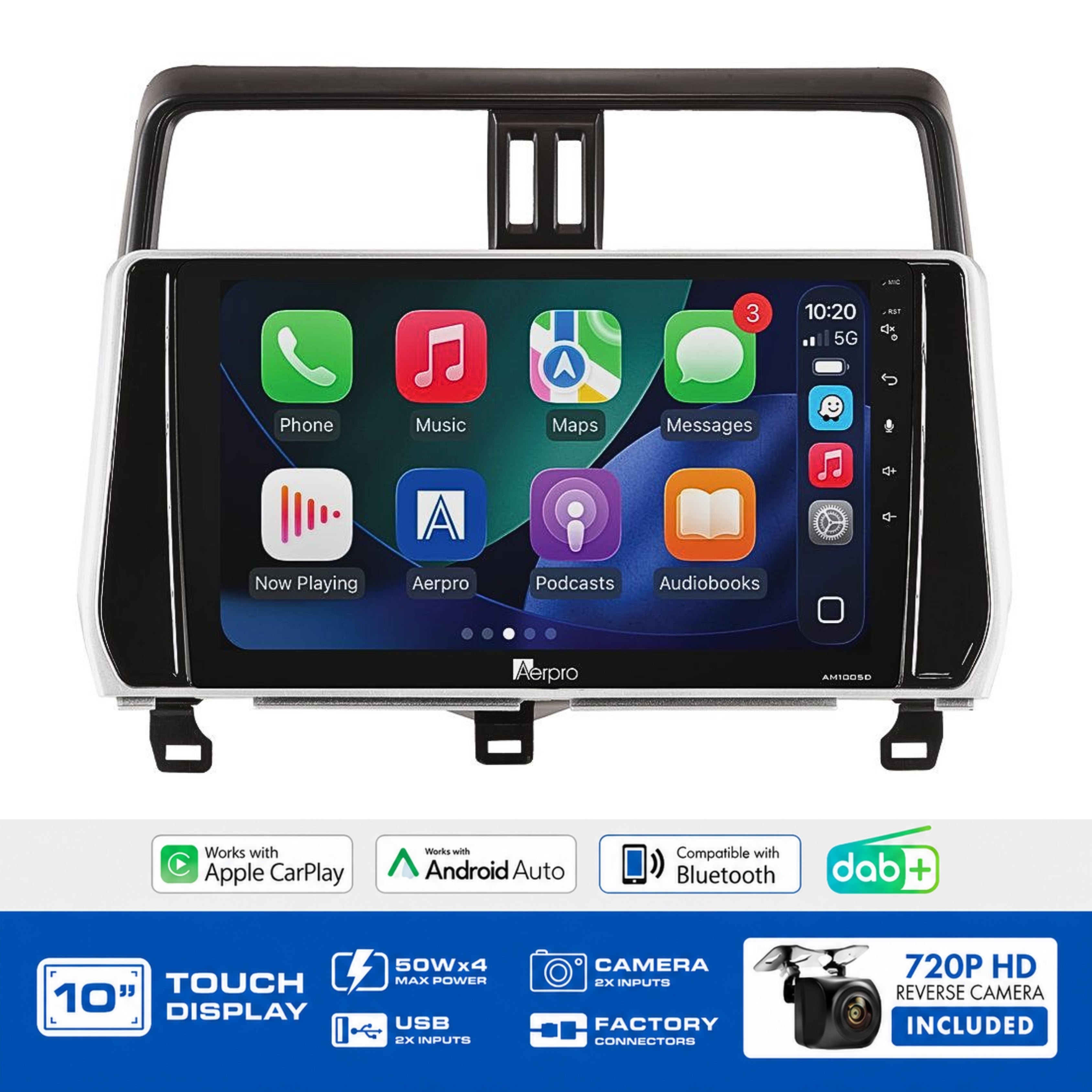

Aerpro AMDTO22 10" Multimedia Receiver Complete Kit Toyota Prado GXL 2017-2020

A complete 10" head unit upgrade kit from Aerpro for Toyota Prado GXL (2017-2020) vehicles with steering wheel controls, the AMDTO22 includes the AM1005D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a gloss black and silver fascia kit, SWC interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and 720P AHD universal rear camera. Retains steering wheel controls, factory reverse camera, USB input, AUX input, parking tones, and non-JBL factory amplifier (all where equipped and model dependent). Does not suit JBL amplified models.

Product Overview

The Aerpro AMDTO22 is a vehicle-specific complete head unit upgrade kit for Toyota Prado GXL (2017-2020) with factory steering wheel controls. This kit does not suit JBL amplified models. The included AM1005D multimedia receiver features a 10" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera is included.

Vehicle feature retention covers steering wheel controls, factory reverse camera (if equipped, excluding 360-camera variants), USB input (if equipped), AUX input (if equipped), parking tones, and non-JBL factory amplifier. Camera retention adaptor (non-360) and USB retention adaptor are included. Note: Toyota Connect features such as calendar and trip information that appear on the factory screen are not retained after installation.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDTO22 includes the AM1005D multimedia receiver, gloss black and silver fascia kit, SWC interface harness, SWC patch lead, antenna adaptor, camera retention adaptor (non-360), USB retention adaptor, and 720P AHD universal rear camera.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

10" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included. A second camera input is available for a front or towing camera (not included).

Steering Wheel Control, Parking Tones, and Non-JBL Factory Amplifier Retention: SWC interface harness retains factory steering wheel controls. Parking tones and non-JBL factory amplifier are also retained. Does not suit JBL amplified Prado models.

Factory Reverse Camera, USB, and AUX Input Retention: Camera retention adaptor (non-360) and USB retention adaptor included. Reverse camera, USB, and AUX retention are all model dependent and where equipped.

Note - Toyota Connect Features Not Retained: Toyota Connect features including calendar and trip information that appear on the factory screen are not retained after installation of the AMDTO22.

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

  • AM1005D 10" Fixed Multimedia Receiver (Trapezoid)
  • Gloss Black and Silver Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor (Non-360)
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • Wiring Harness with ISO Connection
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDTO22
Brand Aerpro
Compatible Vehicle Toyota Prado GXL (2017-2020) with SWC
Excluded Variants Does Not Suit JBL Amplified Models
Head Unit Model AM1005D
Screen Size 10"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
SWC Retention Yes
Parking Tones Retention Yes
Factory Amplifier Retention Yes (Non-JBL Only)
Reverse Camera Retention Yes (If Equipped, Model Dependent, Excl. 360-Camera)
USB Input Retention Yes (If Equipped, Model Dependent)
AUX Input Retention Yes (If Equipped, Model Dependent)
Toyota Connect Features Not Retained
Barcode 9317114954701

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes
Factory Reverse Camera Yes (If Equipped, Model Dependent, Excl. 360-Camera)
USB Input Yes (If Equipped, Model Dependent)
AUX Input Yes (If Equipped, Model Dependent)
Parking Tones Yes
Factory Amplifier (Non-JBL) Yes
Factory Amplifier (JBL) No
Toyota Connect Features Not Retained
Vehicle Menu N/A

Compatible With

Make Model Variant Years
Toyota Prado GXL with Steering Wheel Controls 2017-2020

Note: Does not suit JBL amplified models. Camera retention adaptor is non-360 and does not suit 360-camera variants for camera retention. Toyota Connect features including calendar and trip information that appear on the factory screen are not retained. Confirm your specific Prado variant and factory audio configuration using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Is the AMDTO22 compatible with JBL amplified Toyota Prado models?

No. The AMDTO22 does not suit JBL amplified Prado models. Factory amplifier retention is supported for non-JBL factory amplifier systems only. Confirm your factory audio system before purchase.

Are Toyota Connect features retained after installing the AMDTO22?

No. Toyota Connect features such as calendar and trip information that appear on the factory screen are not retained after installation of the AMDTO22.

Does the AMDTO22 suit 360-camera Prado models for camera retention?

The included camera retention adaptor is for non-360 reverse camera configurations. 360-camera variants are not supported for camera retention by this kit.

Does the AMDTO22 support wireless CarPlay and Android Auto?

Yes. The AM1005D supports both wireless and wired Apple CarPlay and Android Auto.

Is a rear camera included with the AMDTO22?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available for a front or towing camera (not included).
