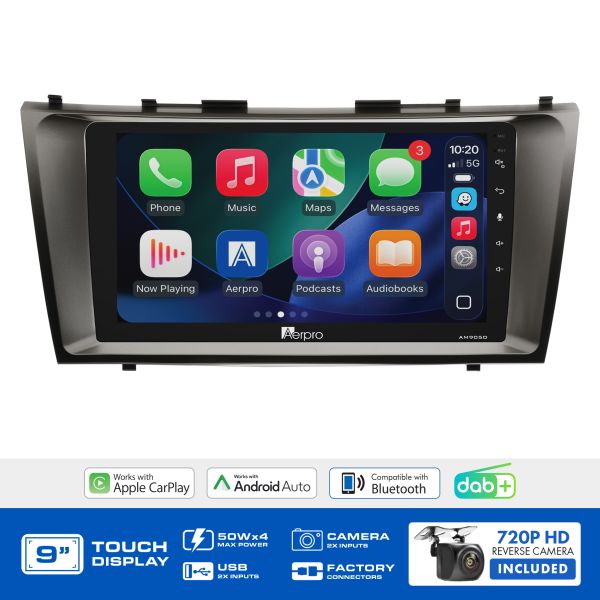

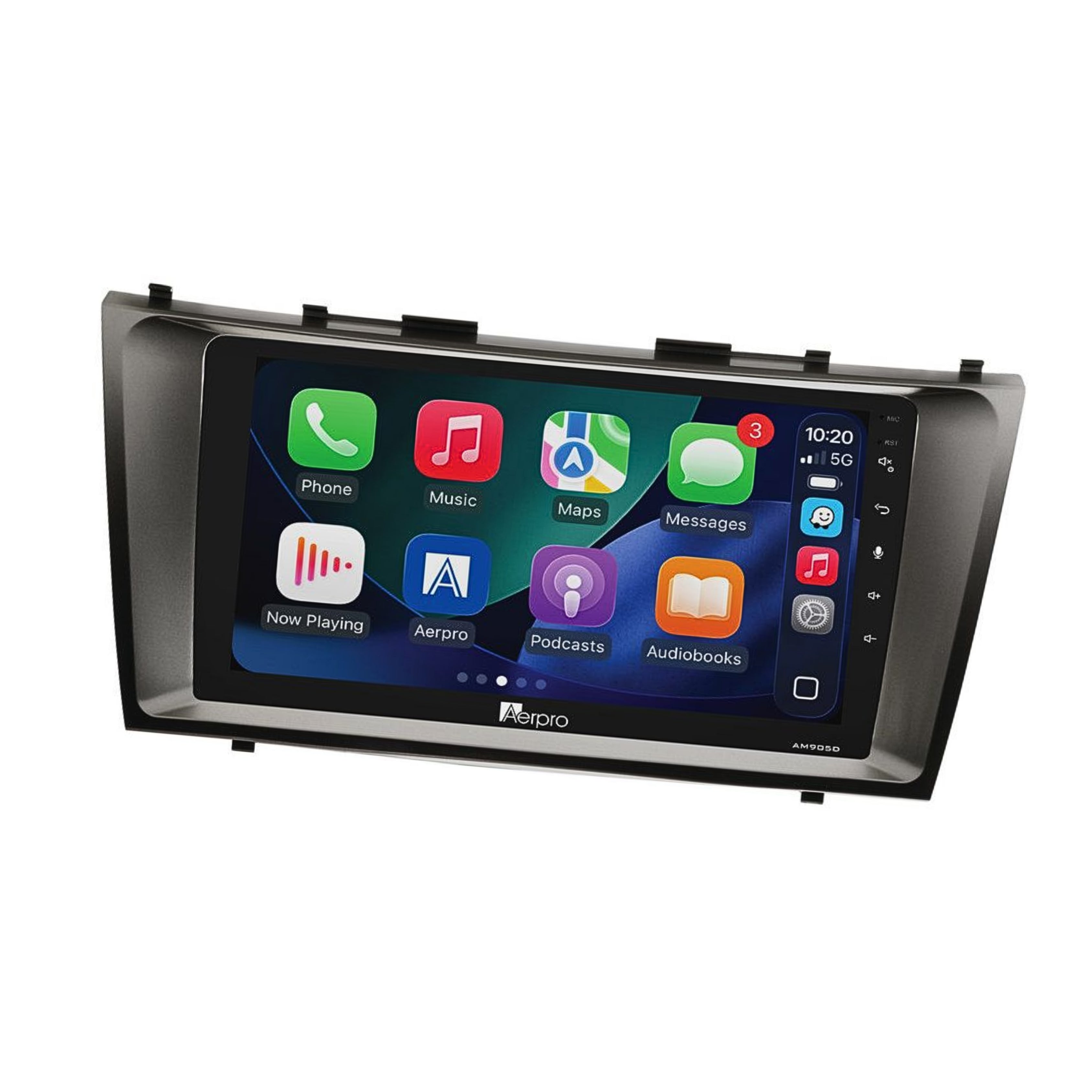

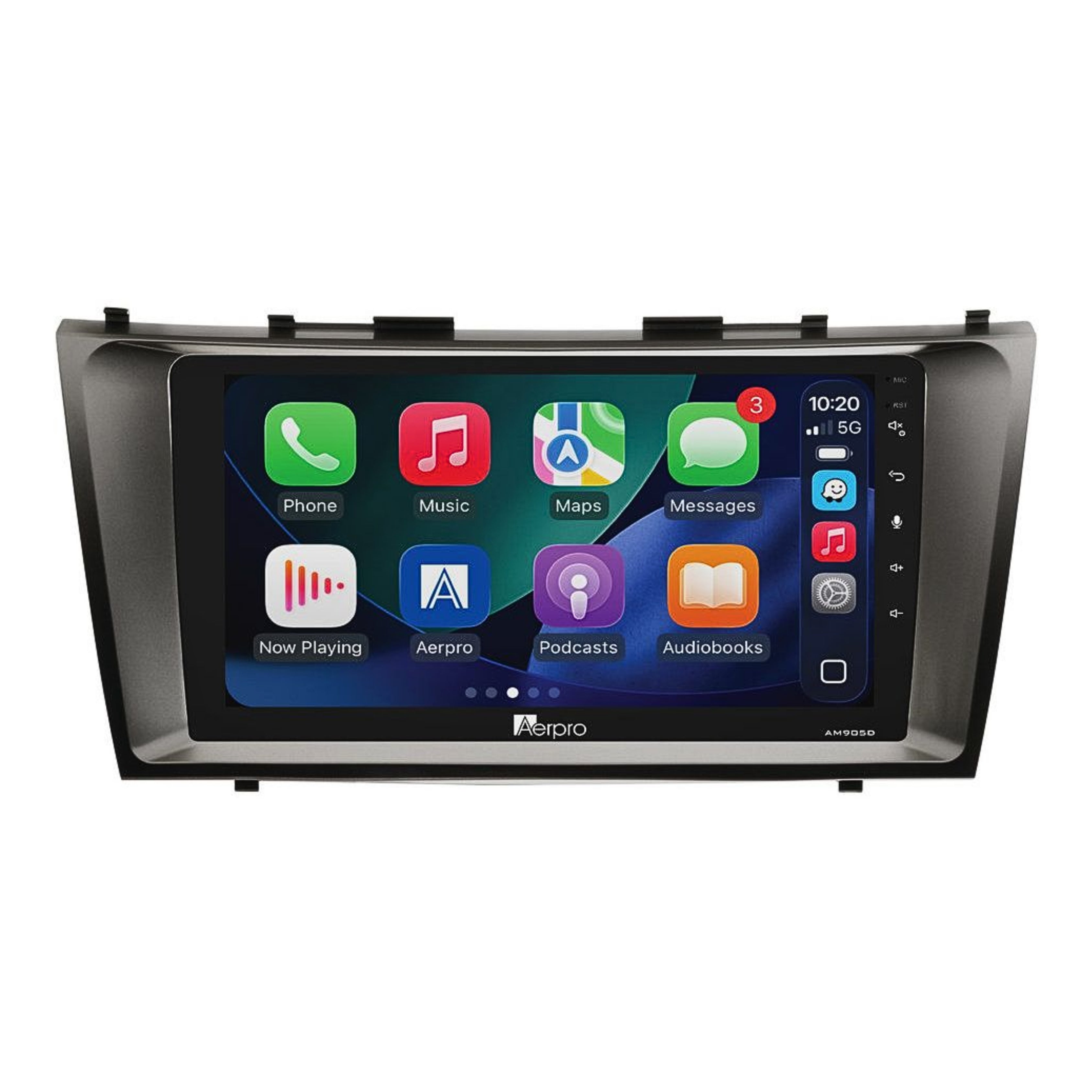

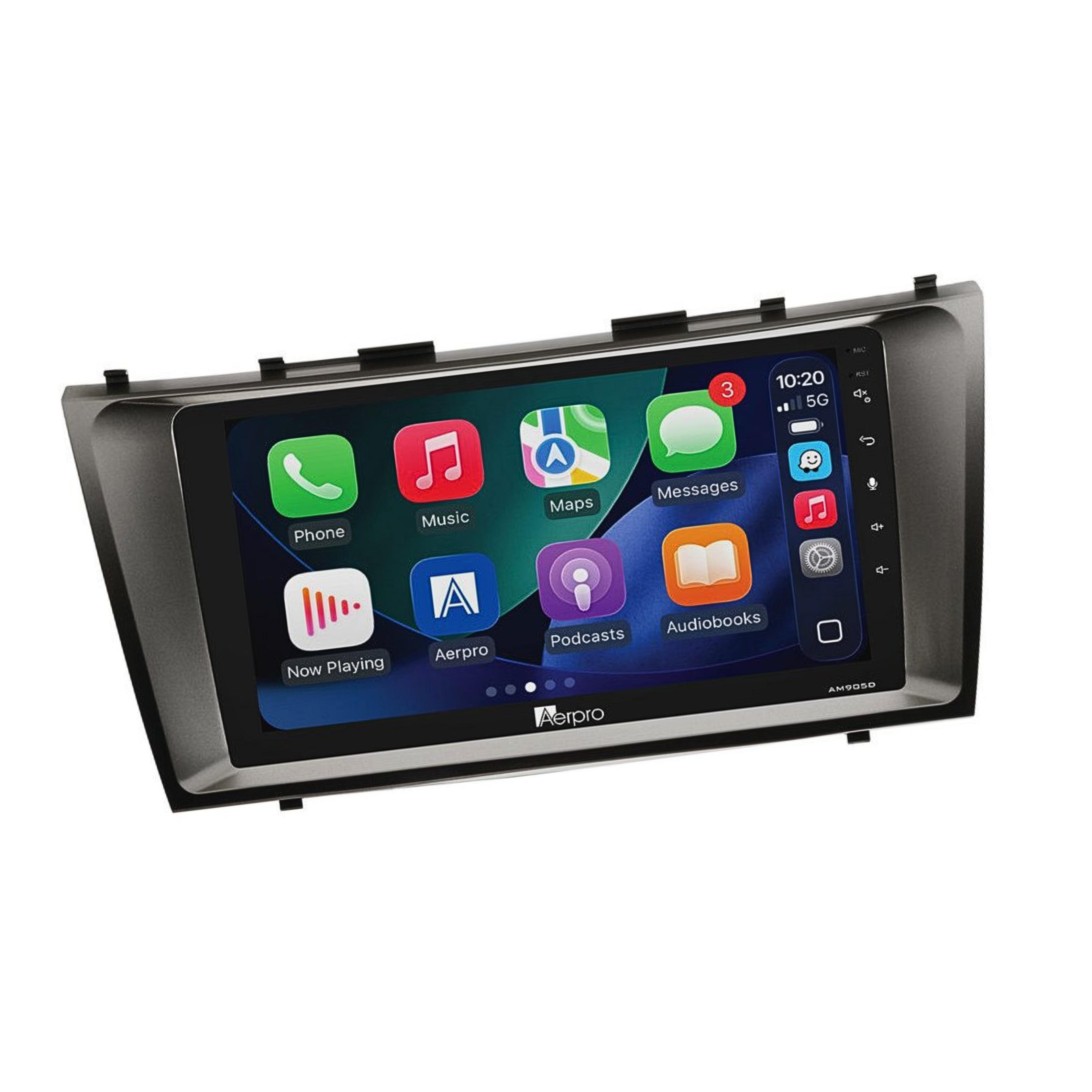

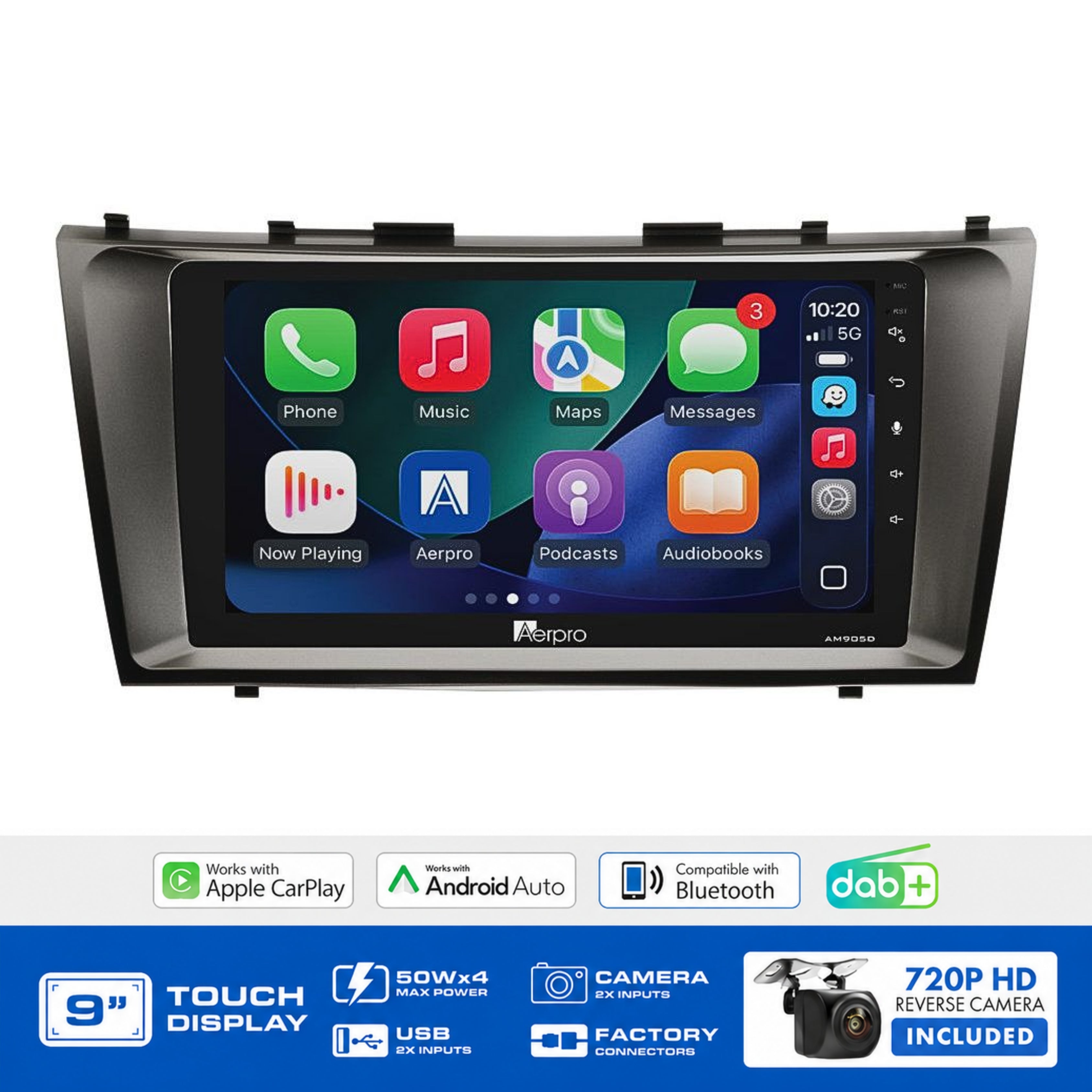

Aerpro AMDTO1 9" Multimedia Receiver Kit Toyota Camry Aurion 2006-2011

SKU: AMDTO1
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete Head Unit Upgrade Kit for Toyota Camry/Aurion 2006–2011 (Non-Amplified, Silver)

Product Overview

The Aerpro AMDTO1 is a complete head unit upgrade kit engineered specifically for the Toyota Camry and Aurion (2006–2011) in non-amplified variants. It pairs the AM905D 9" multimedia receiver with a matching silver facia kit, steering wheel control interface harness, SWC patch lead, and a 720P AHD universal rear camera everything needed for a clean, complete installation in one box.

The AM905D features a 9" capacitive touchscreen at 1024x600 resolution running Linux OS, wireless and wired Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth V5 with HD Voice, dual rear USB inputs, and 4 x 50W max power output. A 5-channel 4V RCA preout, 13-band graphic EQ, and time alignment capability give installers full flexibility to integrate external amplifiers and tune the system. Six-colour button illumination allows the display to match the vehicle's interior aesthetic.

Features & Benefits

  • Complete kit — includes AM905D receiver, silver facia kit, SWC interface harness, SWC patch lead, and 720P AHD universal rear camera
  • Retains factory steering wheel controls — SWC interface harness included in the kit
  • Factory reverse camera retention available — requires APVTY17 harness, sold separately
  • 9" capacitive touchscreen — 1024x600 resolution with smooth, responsive touch
  • Wireless Apple CarPlay and Android Auto — connect wirelessly or via USB for wired operation and charging
  • Built-in DAB+ digital radio — crystal-clear digital stations plus AM/FM with RDS
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, PBAP phonebook, internal and external microphone
  • Dual rear USB inputs — USB1 for CarPlay/Android Auto with charging; USB2 for media playback with charging
  • 4 x 50W max power output — strong onboard amplification with 5CH 4V RCA preouts for external amp integration
  • 13-band graphic EQ and time alignment — advanced audio tuning with 6+2 custom EQ presets
  • 720P AHD universal rear camera included — Sony 1/3" CMOS sensor, 150-degree lens angle, surface mount
  • Second camera input — supports a front or towing camera (720P AHD compatible)
  • 6-colour button illumination — red, yellow, green, blue, purple, or white to suit your interior

Technical Specs

Specification Detail
Part Number AMDTO1
Brand Aerpro
Vehicle Fit Toyota Camry / Aurion 2006–2011 (Non-Amplified)
Facia Colour Silver
Included Receiver AM905D
Screen Size 9"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Size Fixed Screen Style (Trapezoid)
Max Power Output 4CH x 50W
RCA Preouts 4V, 5 Channel (Front / Rear / Subwoofer)
Smartphone Connectivity Apple CarPlay & Android Auto (Wireless and Wired)
Bluetooth Version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + External
DAB+ Yes
AM Presets 12
FM Presets 18
RDS Yes
USB1 (Rear) CarPlay / Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media Playback + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-Band Graphic EQ
Time Alignment Yes
Button Illumination 6 Colours (Red, Yellow, Green, Blue, Purple, White)
SWC Retention Yes
Factory Amplifier Retention No — non-amplified vehicles only
Factory Reverse Camera Retention Harness sold separately (APVTY17)
Camera (Included)
Camera Model 720P AHD Universal Rear Camera
Image Sensor Sony 225, 1/3" CMOS AHD
Lens Angle 150°
Mount Type Surface Mount

Compatible With

  • Toyota Camry 2006–2011 (non-amplified variants only)
  • Toyota Aurion 2006–2011 (non-amplified variants only)

Use the Aerpro What Fits Your Car Guide to confirm fitment for your specific vehicle before purchasing. This kit is not suitable for factory-amplified variants. Factory reverse camera retention requires the APVTY17 harness, sold separately.

Weight

Confirm with supplier.

Frequently Asked Questions

Does this kit suit the amplified version of the Toyota Camry or Aurion?

No. The AMDTO1 is designed for non-amplified Toyota Camry/Aurion (2006–2011) variants only. Using it in an amplified vehicle will result in poor audio performance. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific variant.

Can I retain my factory reverse camera?

Factory reverse camera retention is not included in this kit. The APVTY17 retention harness is required and sold separately. The head unit itself is compatible with a 720P AHD camera input, and a universal 720P AHD rear camera is included in the kit.

Does wireless CarPlay and Android Auto require any special setup?

Wireless CarPlay and Android Auto connect over Wi-Fi and Bluetooth. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function. Initial pairing is required on first use.

Can I add an external amplifier to this system?

Yes. The AM905D features 5-channel 4V RCA preouts (front, rear, subwoofer) for connecting external amplifiers. The onboard 4 x 50W max output is sufficient for most factory speaker setups without an external amp.

What steering wheel control retention is included?

A steering wheel control interface harness and SWC patch lead are included in the kit, retaining factory SWC functions when paired with compatible Aerpro SWC adaptors.
