Aerpro AMDSZ8 Suzuki Baleno 2016 to 2022 9" Head Unit Wireless CarPlay DAB+ Camera USB

Complete 9" Head Unit Upgrade Kit for Suzuki Baleno 2016 to 2022 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, USB & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

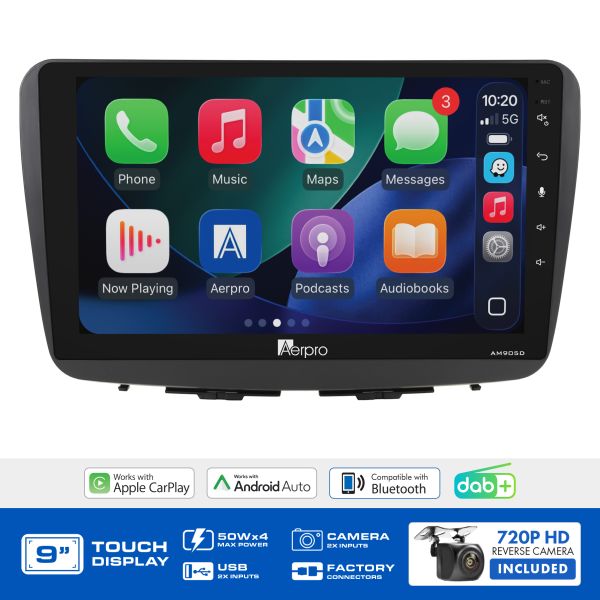

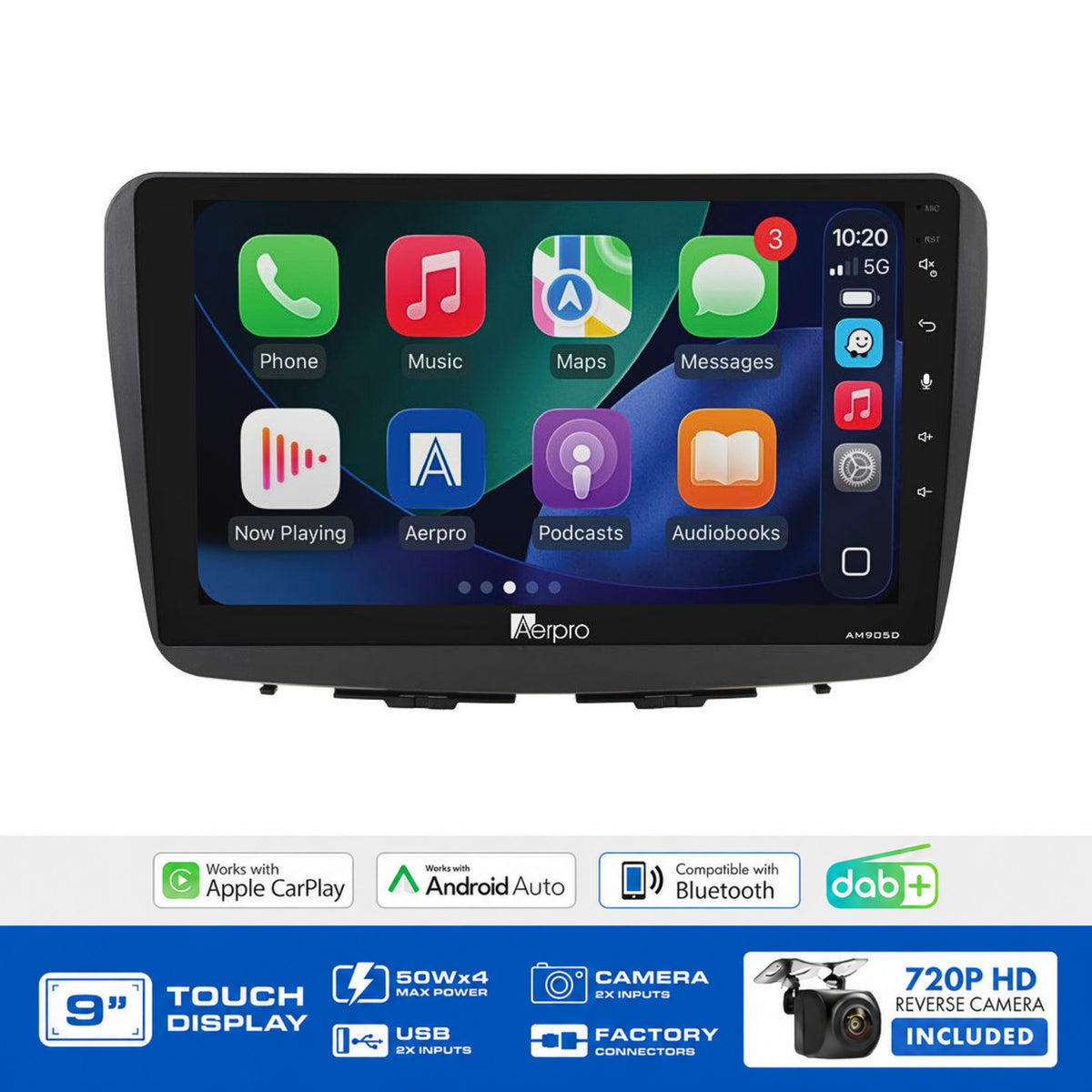

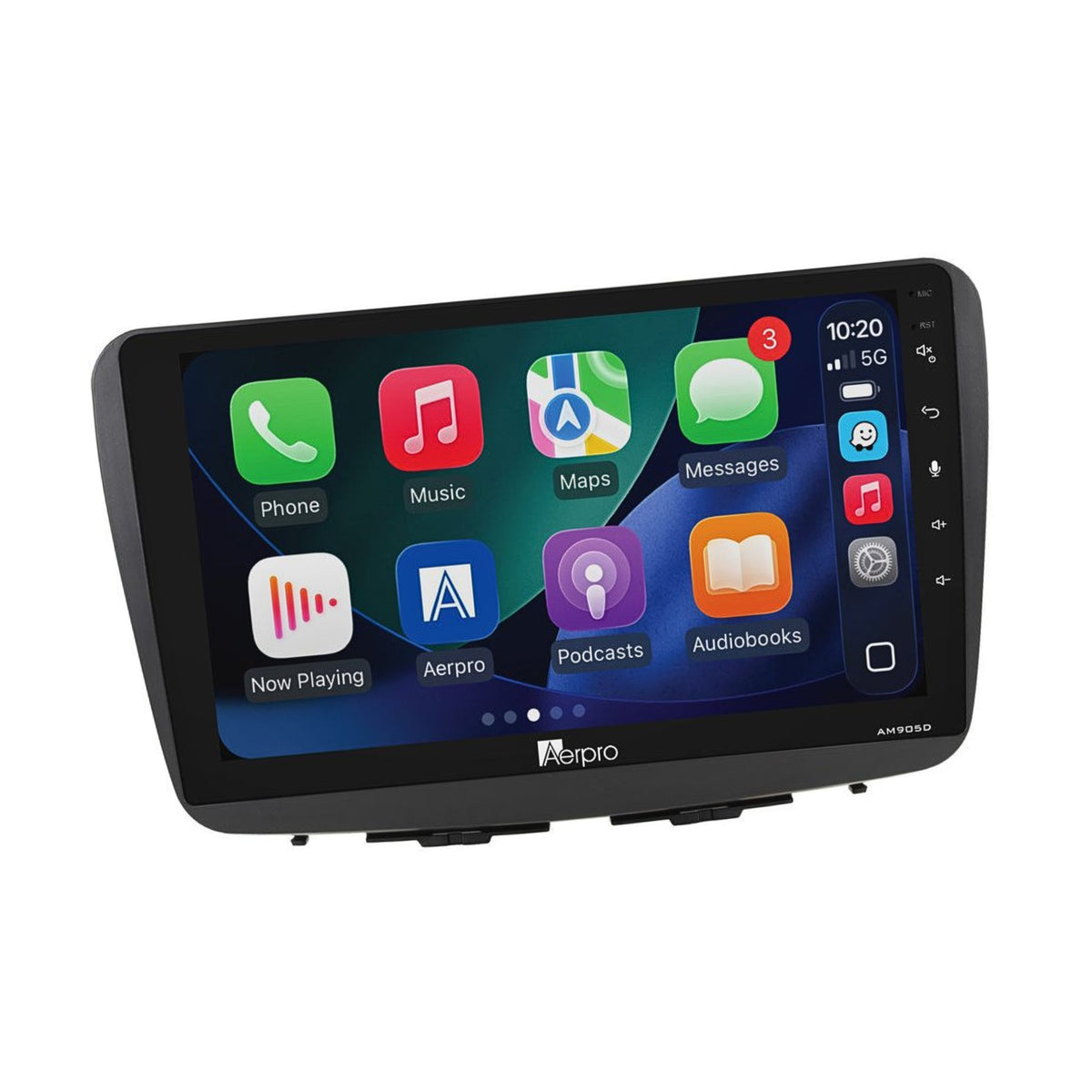

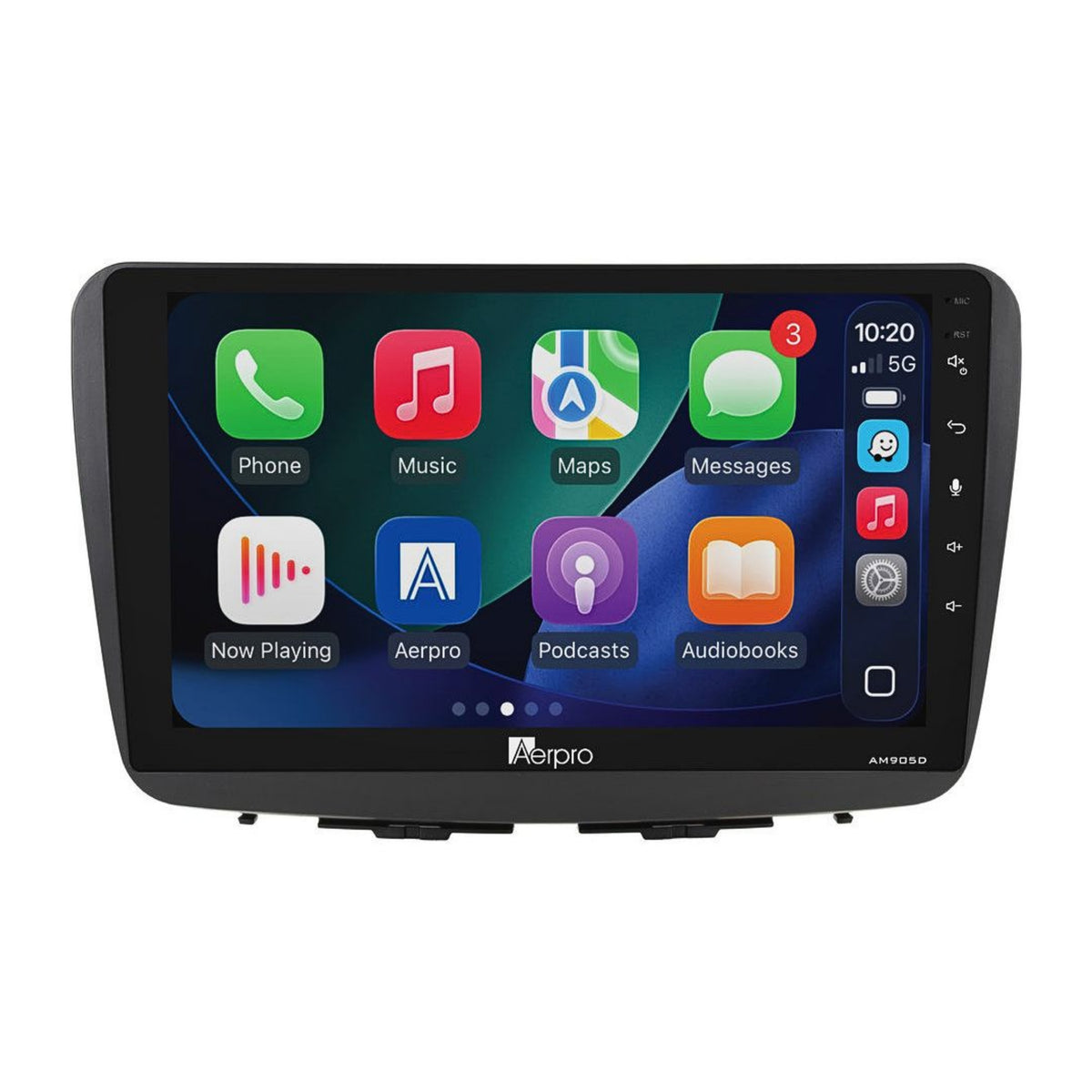

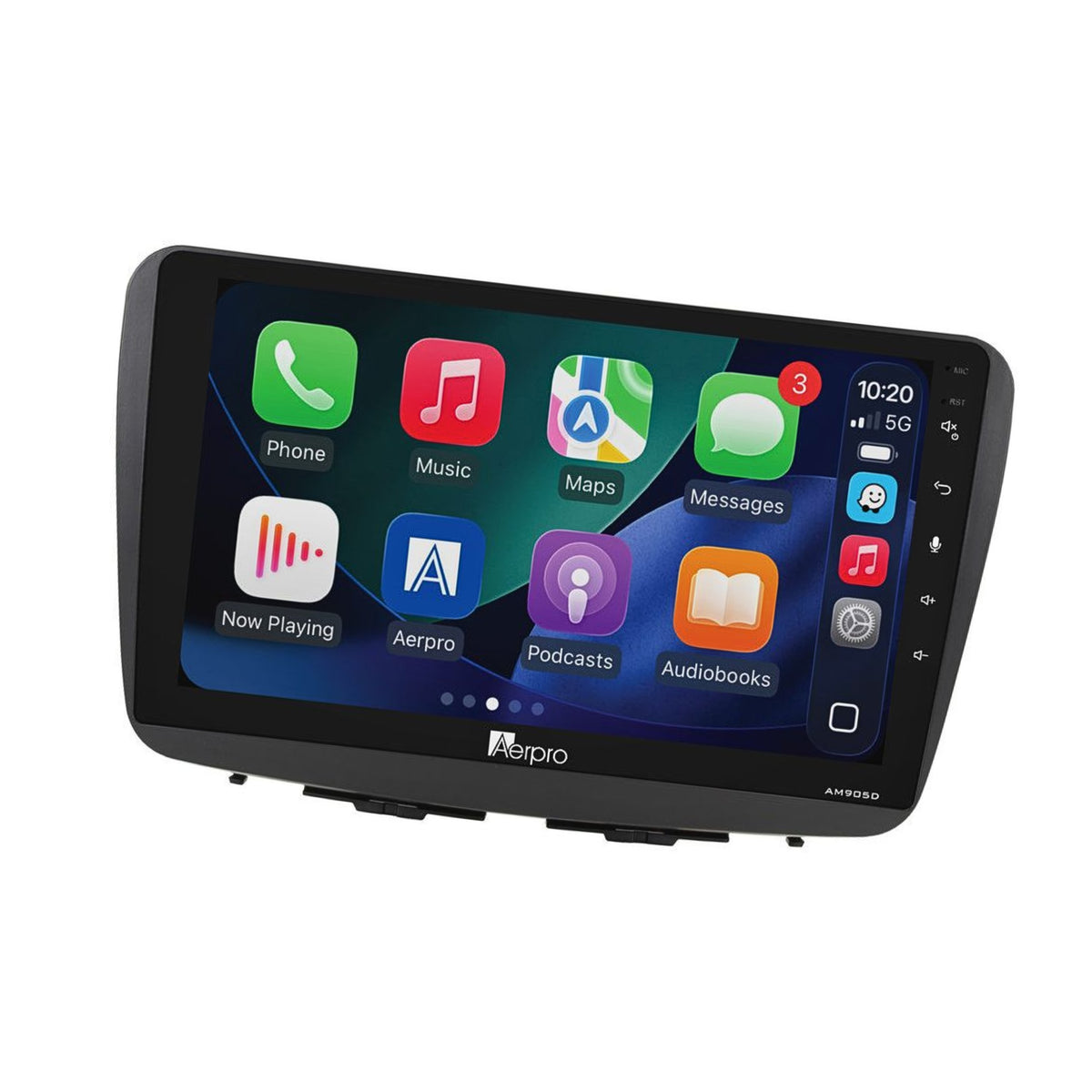

The Aerpro AMDSZ8 is a complete head unit upgrade kit specifically designed for the Suzuki Baleno (2016 to 2022). Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, USB retention adaptor, camera retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls (including phone button), factory USB input, and factory reverse camera are all retained where equipped. Note that AUX input is not retained by this kit. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Important: Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input is not retained.

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• USB Retention Adaptor
• Camera Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
• Factory USB input retained: If equipped, retained via the included USB retention adaptor uses the rear USB input of the head unit
• Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness and patch lead
• AUX input not retained: Confirm this suits your needs before purchasing
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Compatible Vehicles

• Suzuki Baleno 2016 to 2022

FAQ

What vehicles does the Aerpro AMDSZ8 suit?

The Aerpro AMDSZ8 suits the Suzuki Baleno (2016 to 2022).

Does this kit retain the factory reverse camera?

Yes if equipped, retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain the factory USB input?

Yes if equipped. USB input retention uses the rear USB input of the head unit.

Is the AUX input retained?

No, AUX input retention is not supported by the AMDSZ8.

Is the phone button on the steering wheel retained?

Yes where applicable, the phone button is retained via the included SWC harness and patch lead.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
