Aerpro AMDSZ6 Suzuki Swift 2017-On 9
Click to open expanded view
AERPRO logo

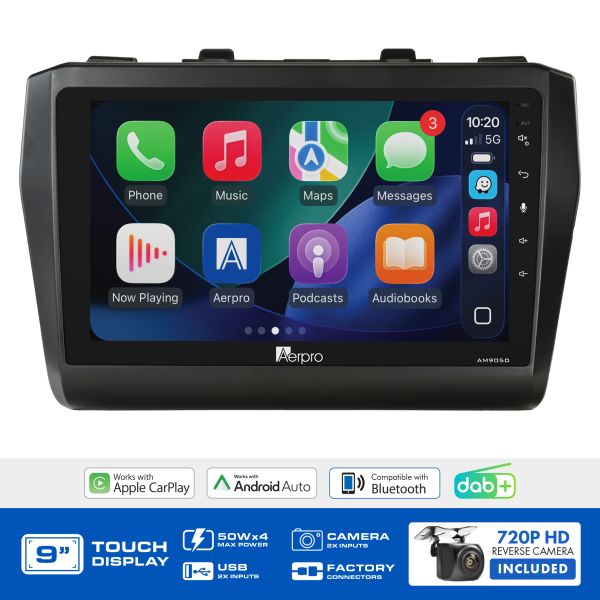

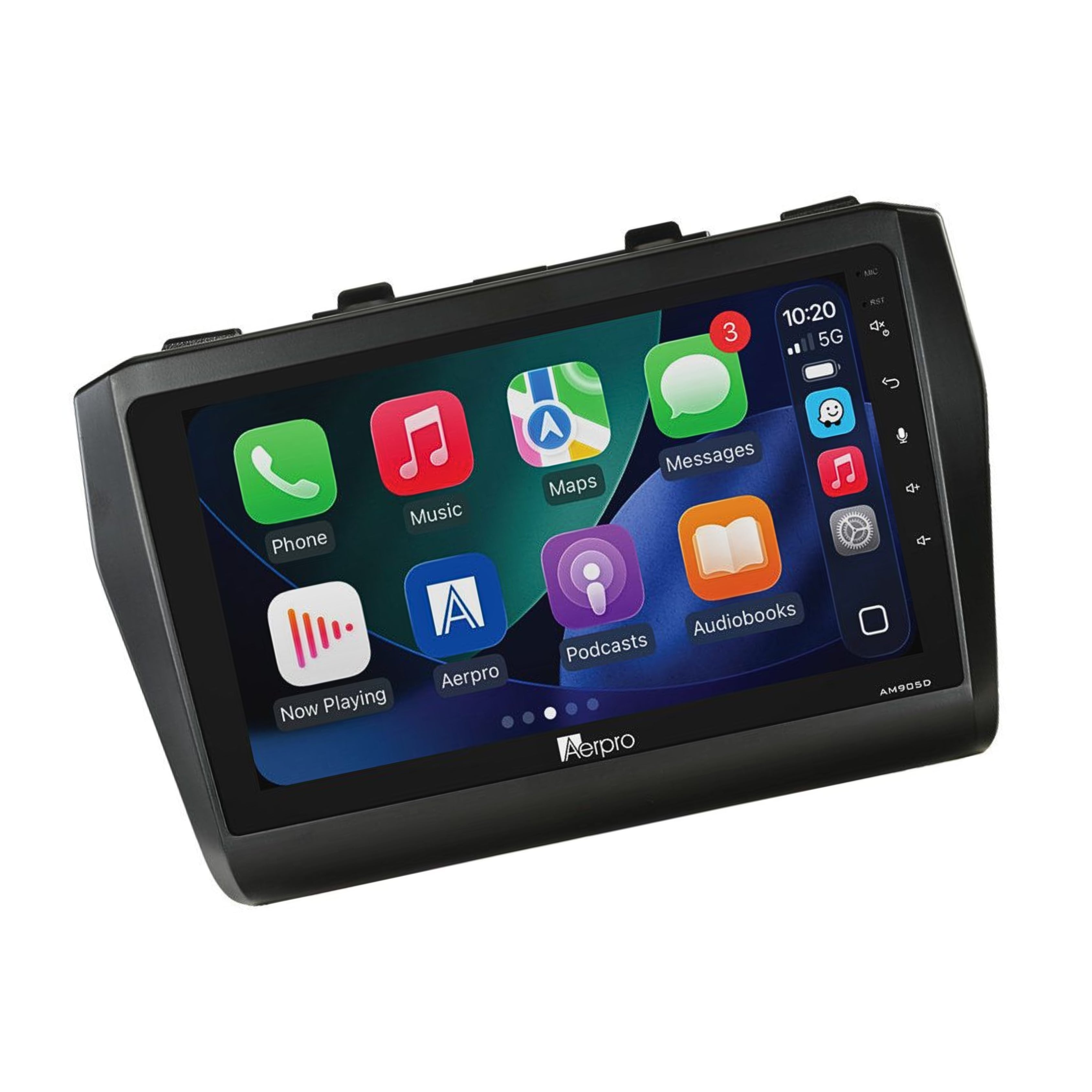

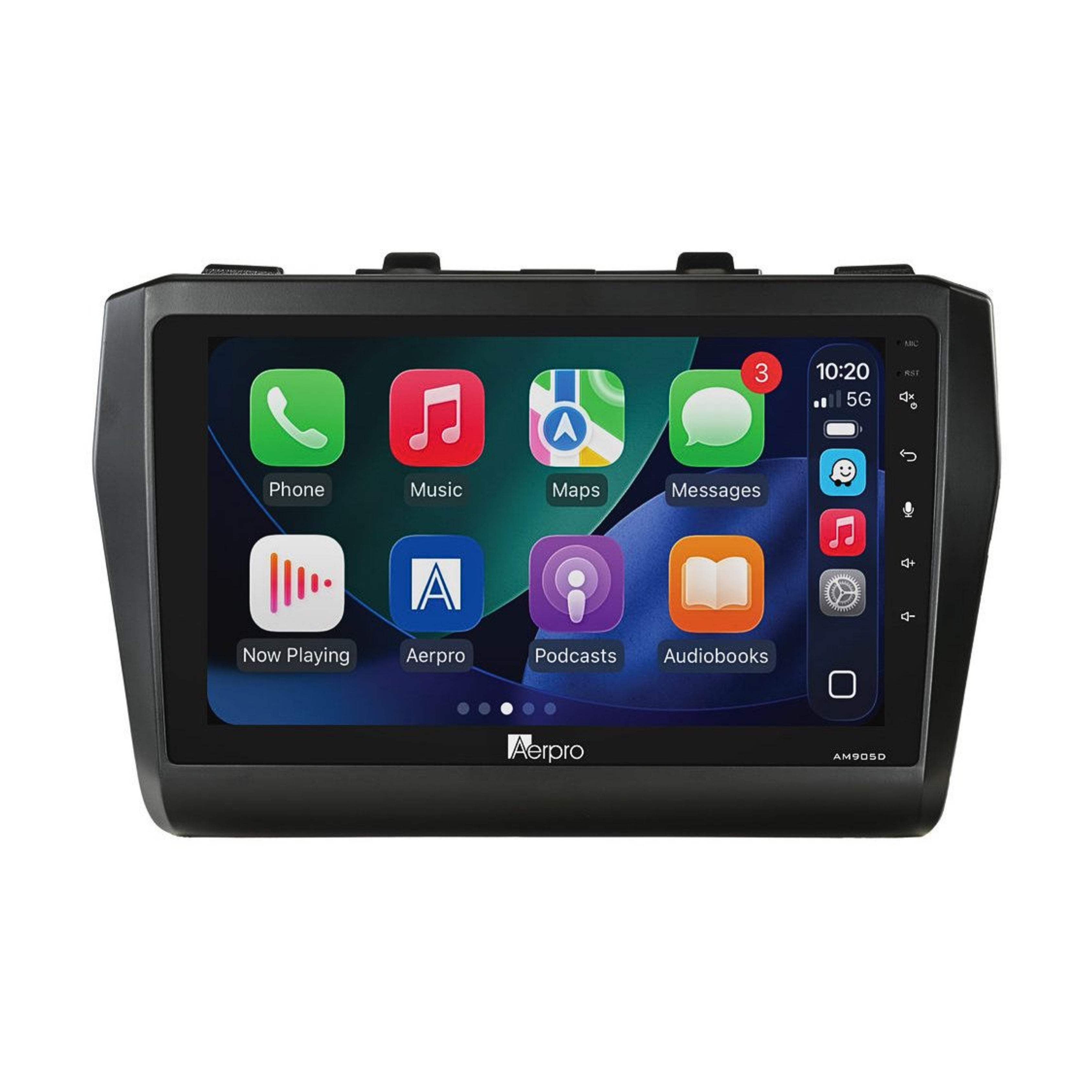

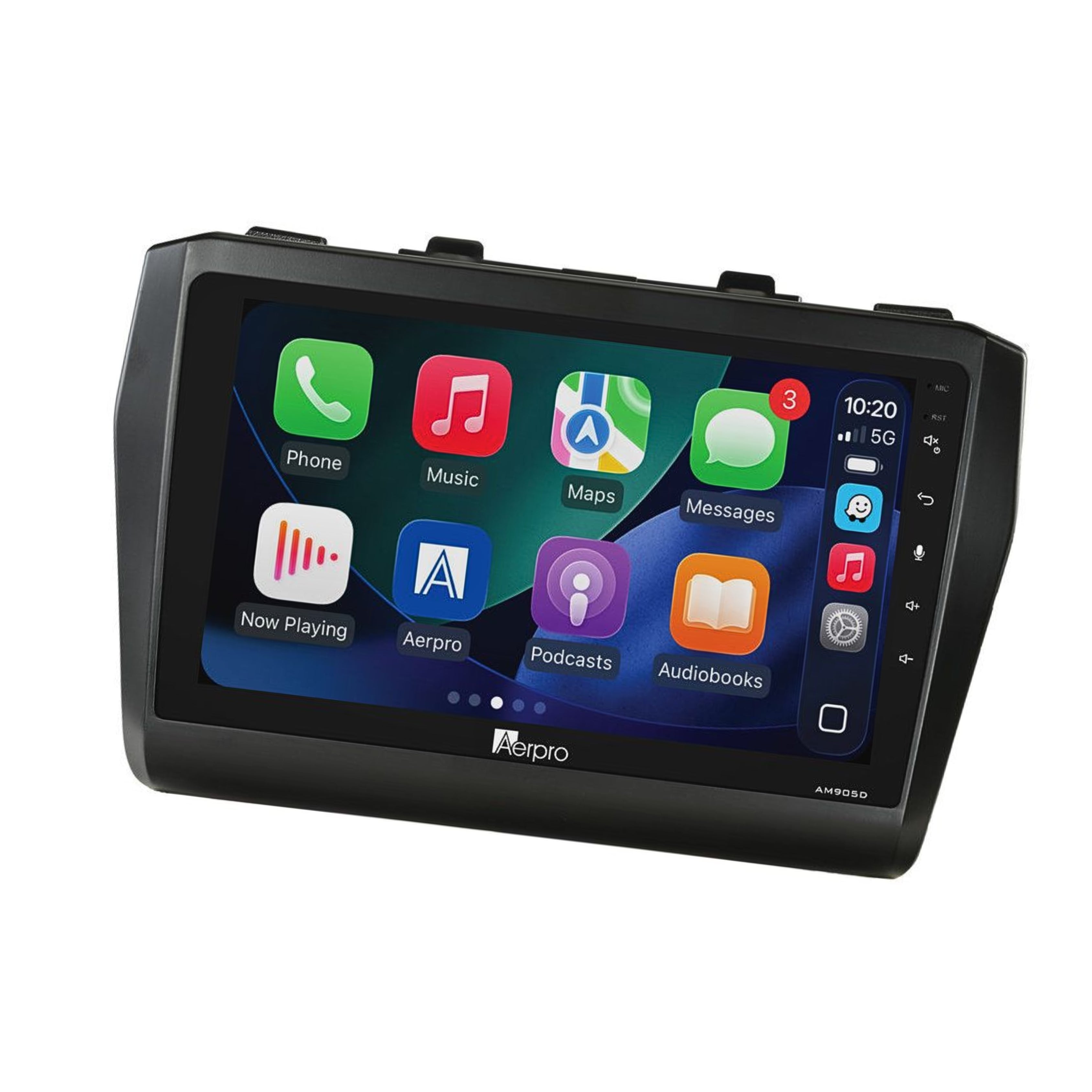

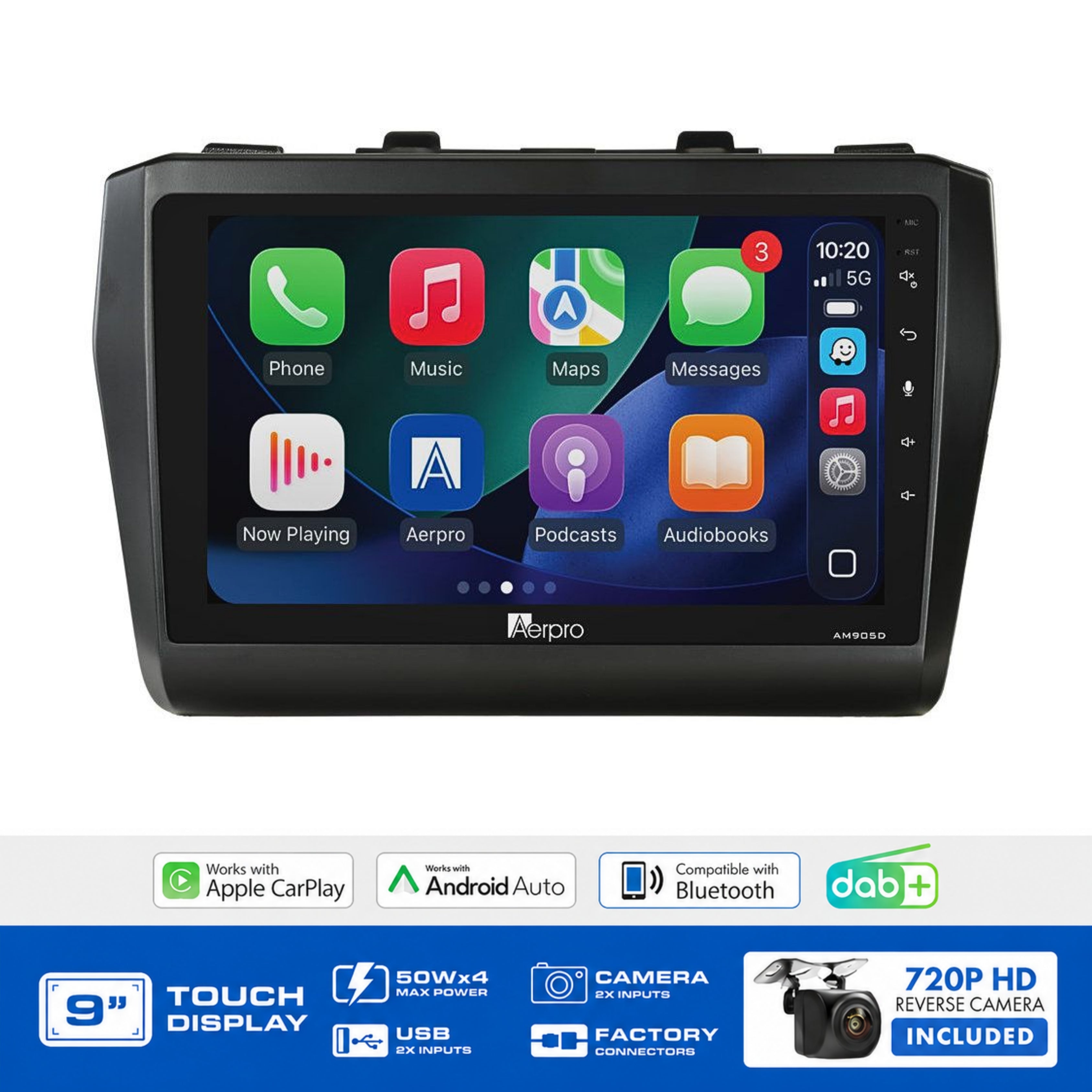

Aerpro AMDSZ6 Suzuki Swift 2017-On 9" Head Unit Wireless CarPlay DAB+ Camera USB AUX

SKU: AMDSZ6
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Suzuki Swift 2017-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, USB, AUX & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSZ6 is a complete head unit upgrade kit specifically designed for the Suzuki Swift (2017-on) the later Swift variant offering significantly more factory feature retention than the earlier AMDSZ4 (2011–2017). Where the AMDSZ4 retains SWC and USB only, the AMDSZ6 adds AUX input retention and factory reverse camera retention, making it the more comprehensive upgrade kit for the newer Swift.

Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls (including phone button), factory USB, AUX input, and factory reverse camera are all retained where equipped.

Important: Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit. All retention features are subject to the vehicle being equipped with that feature.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes (including phone button)
Factory Reverse Camera Yes (if equipped)
USB Input Yes (if equipped)
AUX Input Yes (if equipped)
Factory Amplifier N/A
Vehicle Menu N/A

Swift Kit Comparison (this session)

Model Suits Camera USB AUX
AMDSZ4 Swift 2011–2017 No Yes (if equipped) N/A
AMDSZ6 Swift 2017-on Yes (if equipped) Yes (if equipped) Yes (if equipped)

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Most comprehensive Swift retention kit: Compared to the AMDSZ4 (2011–2017), the AMDSZ6 adds factory reverse camera and AUX input retention for the newer Swift platform
  • Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
  • Factory USB and AUX inputs retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input on head unit
  • Steering wheel controls retained including phone button: Full SWC including phone button retained via the included harness and patch lead
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDSZ6
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera Retained Yes (if equipped)
USB Input Retained Yes (if equipped)
AUX Input Retained Yes (if equipped)
Kit Includes Rear Camera Yes 720P AHD universal
Suits Suzuki Swift 2017-on

Compatible Vehicles

  • Suzuki Swift 2017-on

Frequently Asked Questions

How does the AMDSZ6 differ from the AMDSZ4?

The AMDSZ6 suits the newer Suzuki Swift (2017-on) while the AMDSZ4 suits the earlier Swift (2011–2017). The AMDSZ6 adds factory reverse camera retention and AUX input retention features not available with the AMDSZ4.

Does this kit retain the factory reverse camera?

Yes if equipped, retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Does this retain the factory AUX input?

Yes if equipped. AUX input retention uses the RCA AUX input on the rear of the head unit.

Does this retain the factory USB input?

Yes if equipped. USB input retention uses the rear USB input of the head unit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
