Aerpro AMDSZ5 Suzuki Vitara 2015-On 9
Click to open expanded view
AERPRO logo

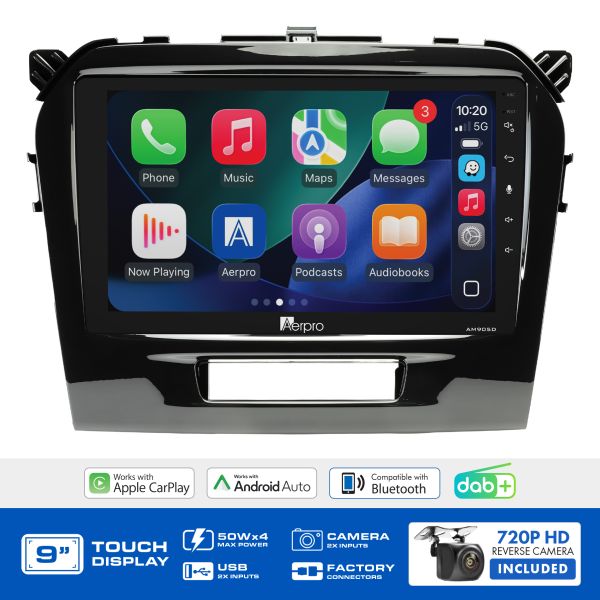

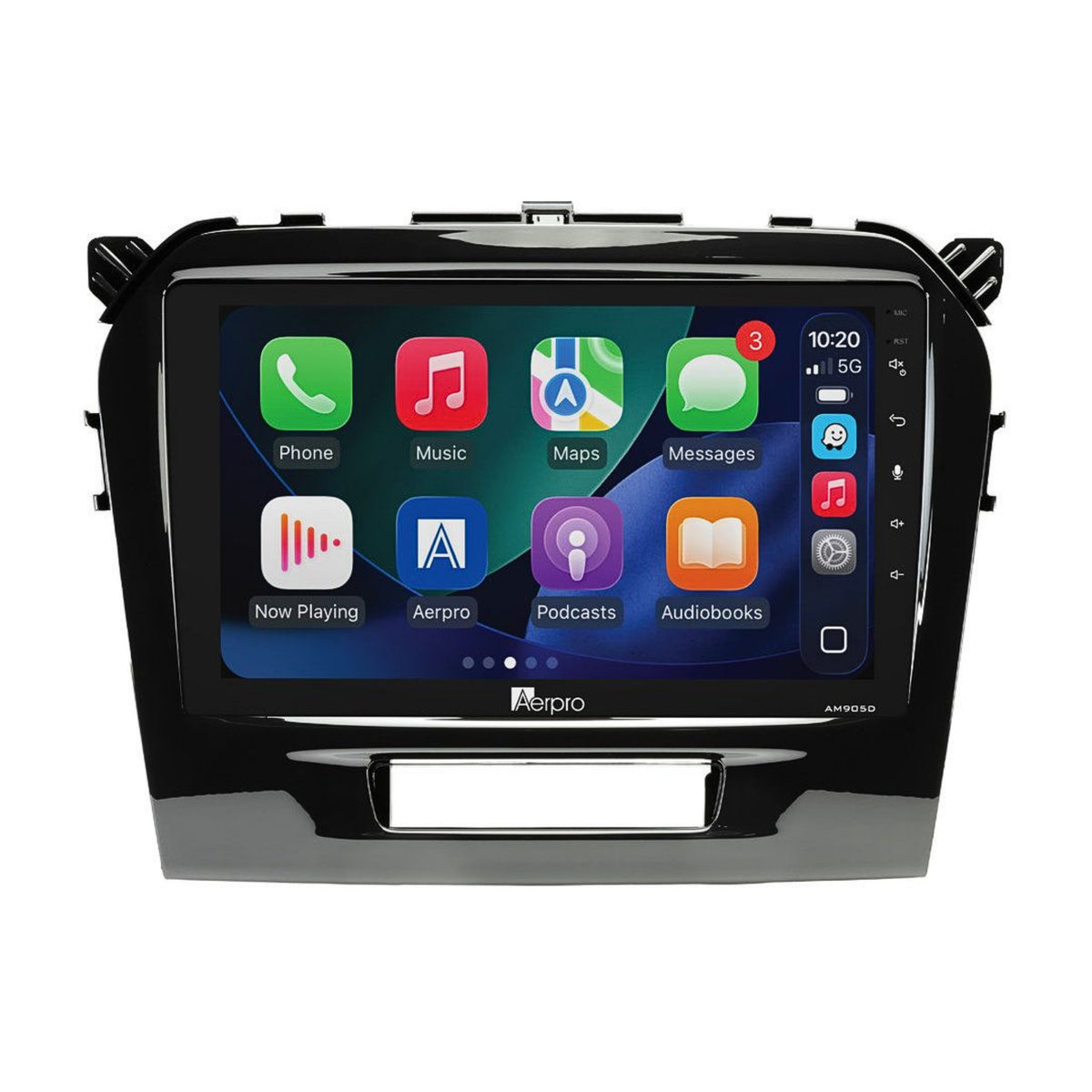

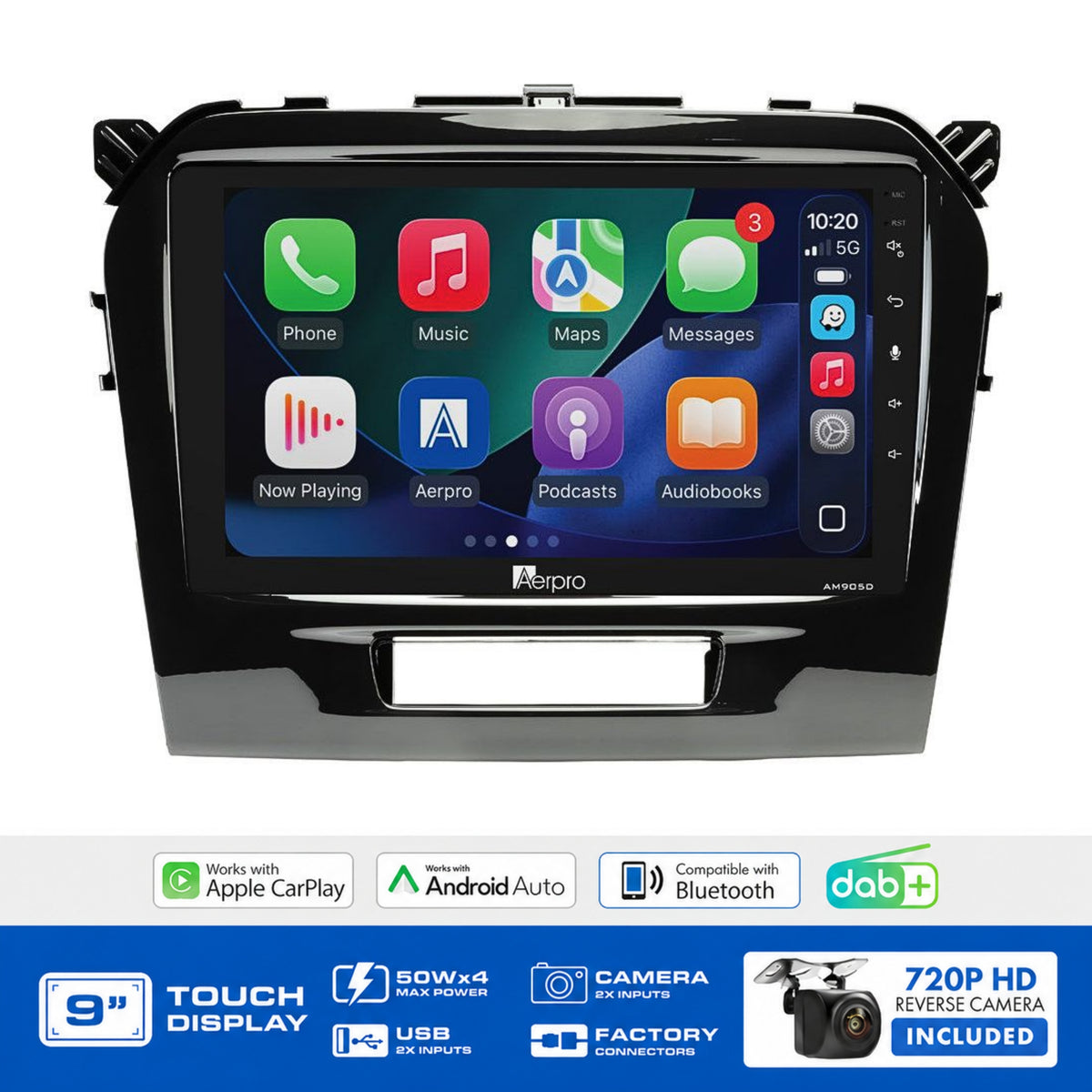

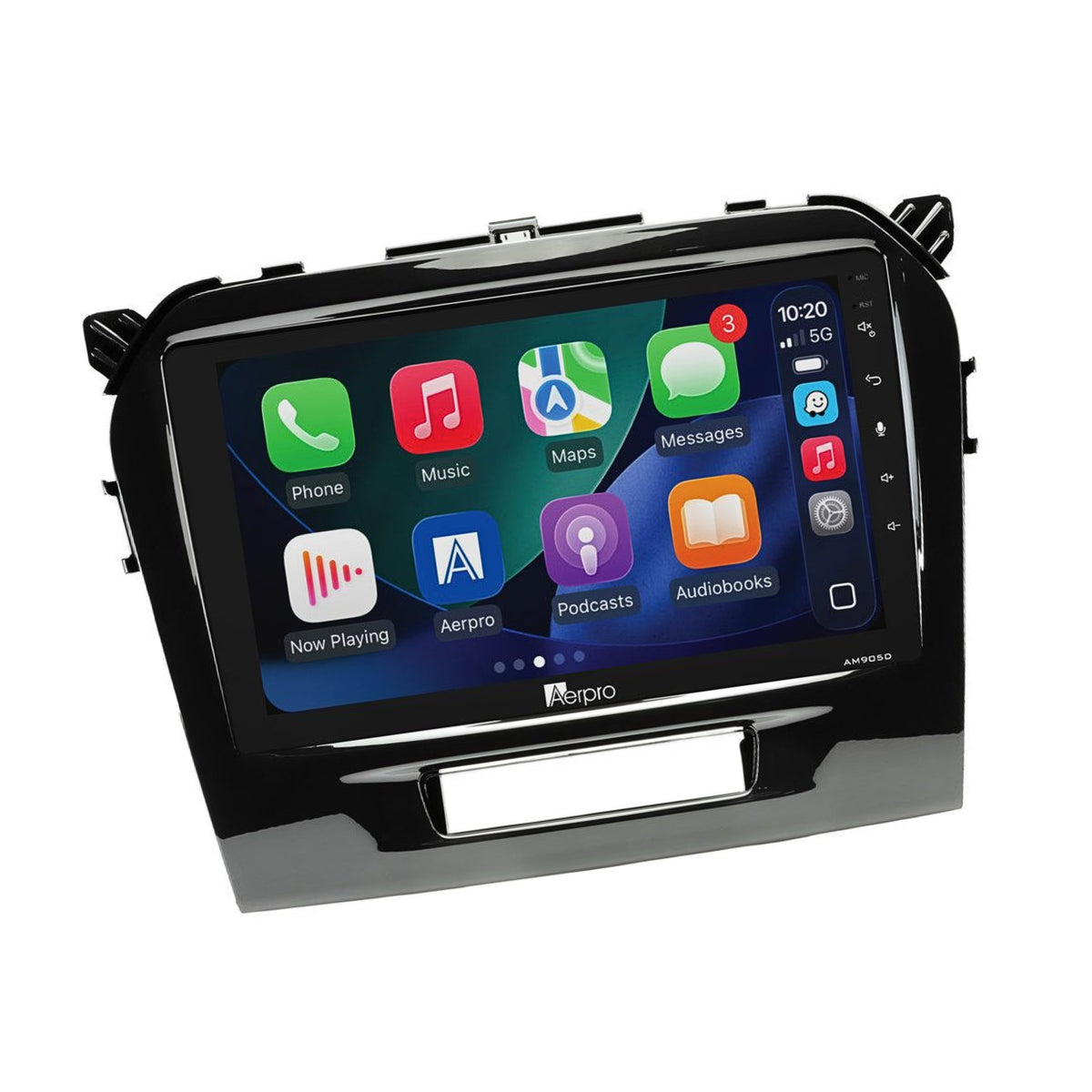

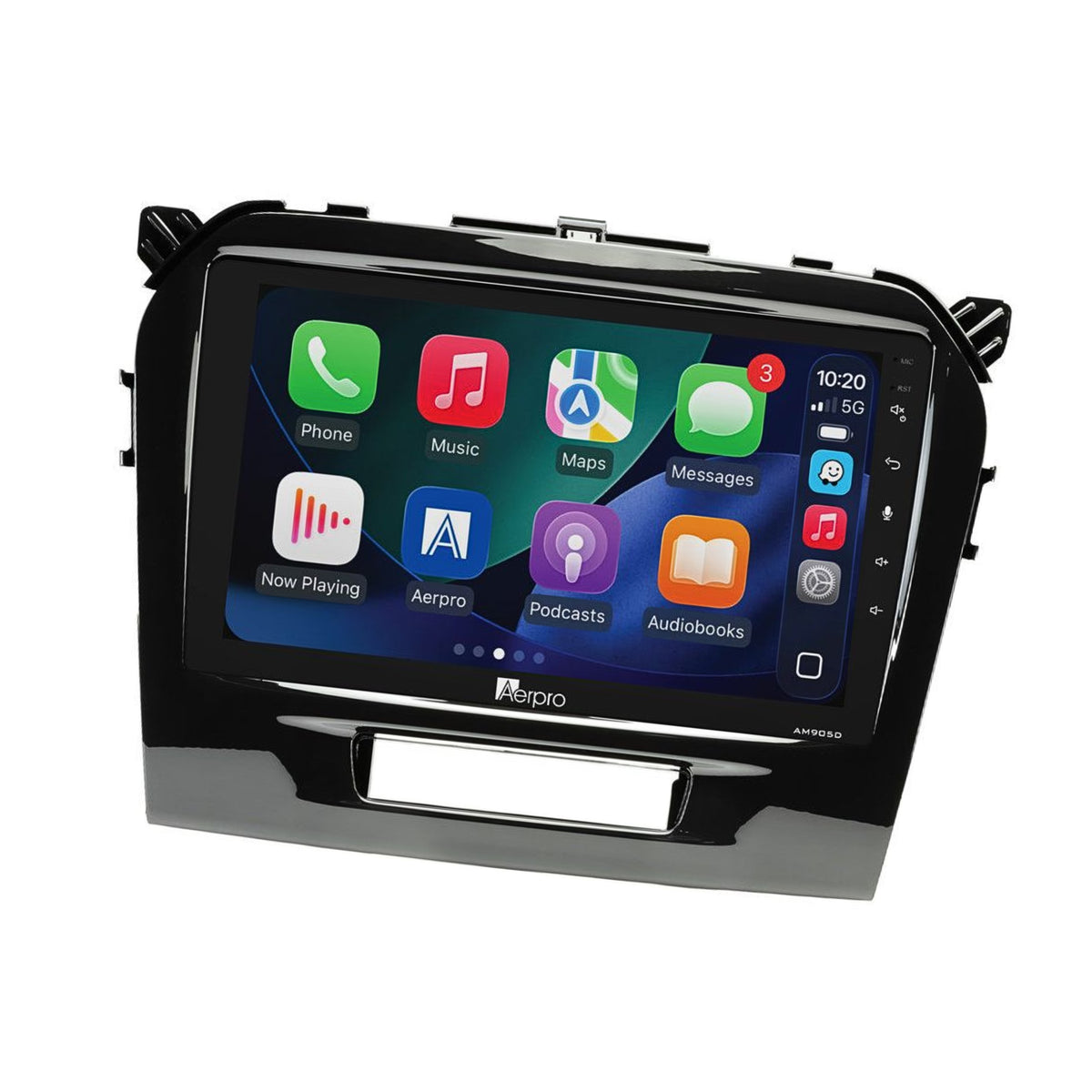

Aerpro AMDSZ5 Suzuki Vitara 2015-On 9" Head Unit Wireless CarPlay DAB+ Camera USB

SKU: AMDSZ5
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Suzuki Vitara 2015-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB & Factory Reverse Camera Retained, Gloss Black Fascia, Rear Camera Included.

Product Overview

The Aerpro AMDSZ5 is a complete head unit upgrade kit specifically designed for the Suzuki Vitara (2015-on). Everything required for installation is included the AM905D multimedia receiver, gloss black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls, factory USB input, and factory reverse camera are all retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Important: Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input is not retained. Always verify fitment using the Aerpro What Fits Your Car Guide.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Gloss Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes
Factory Reverse Camera Yes
USB Input Yes
AUX Input No
Factory Amplifier N/A
Vehicle Menu N/A

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Factory reverse camera retained: Retained via the included camera retention adaptor uses the reverse camera input of the head unit
  • Factory USB input retained: Retained via the included USB retention adaptor uses the rear USB input of the head unit
  • Steering wheel controls retained: Full factory SWC retained via the included harness and patch lead
  • Gloss black fascia: Premium gloss black finish suited to the Vitara interior
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Additional reversing camera additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDSZ5
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Reverse Camera Retained Yes
USB Input Retained Yes
AUX Input Retained No
Kit Includes Rear Camera Yes 720P AHD universal
Suits Suzuki Vitara 2015-on

Compatible Vehicles

  • Suzuki Vitara 2015-on

Frequently Asked Questions

Does this kit retain the factory reverse camera?

Yes the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain the factory USB input?

Yes retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.

Is the AUX input retained?

No AUX input retention is not supported by the AMDSZ5.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included in addition to the retained factory reverse camera. An additional camera input is also available for a front or tow camera.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
