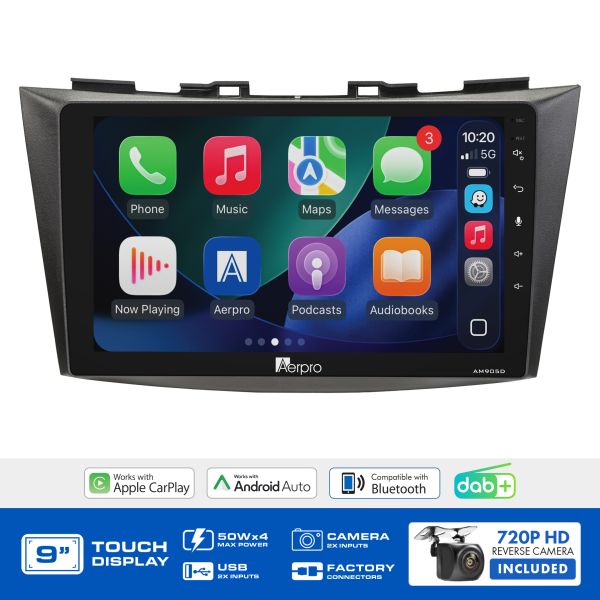

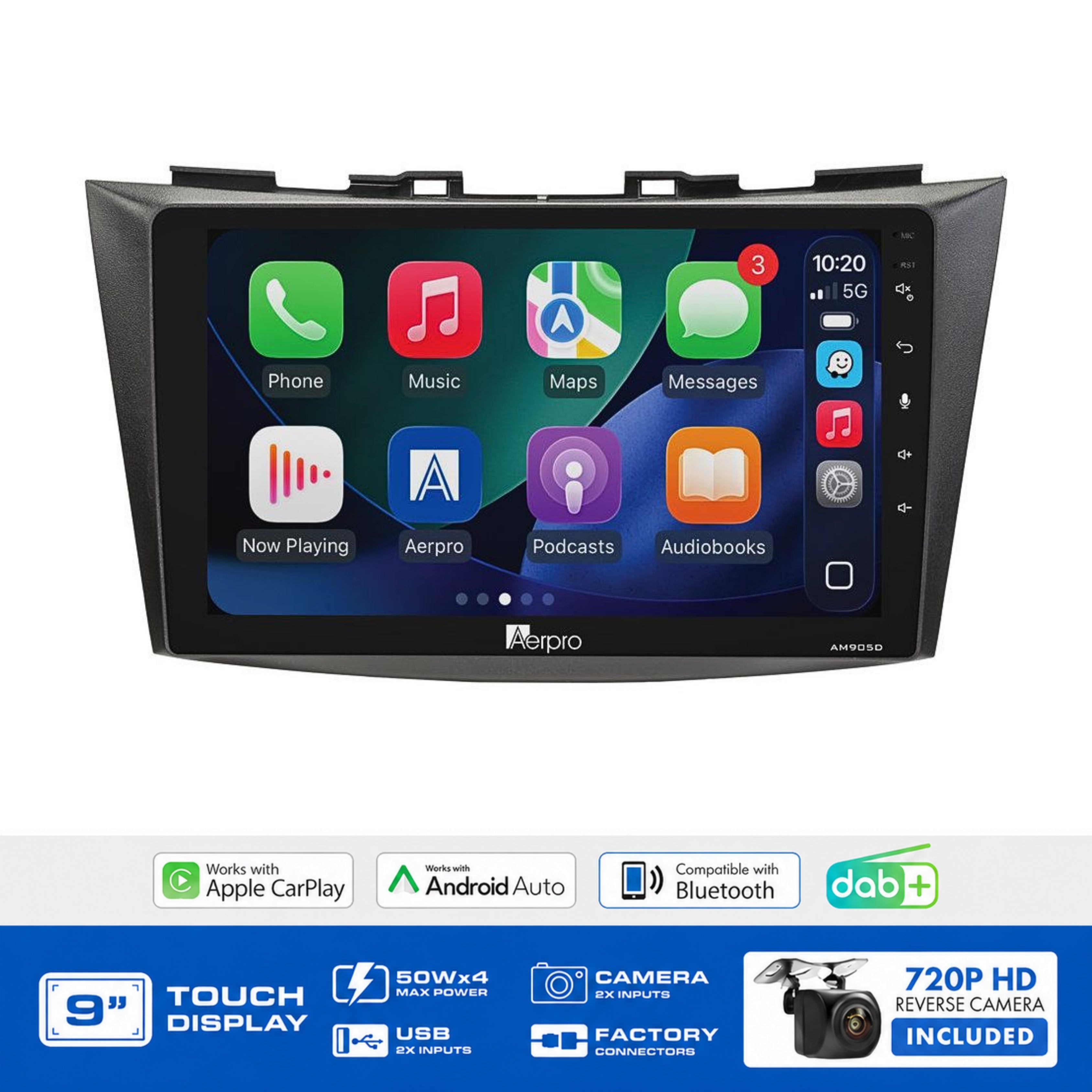

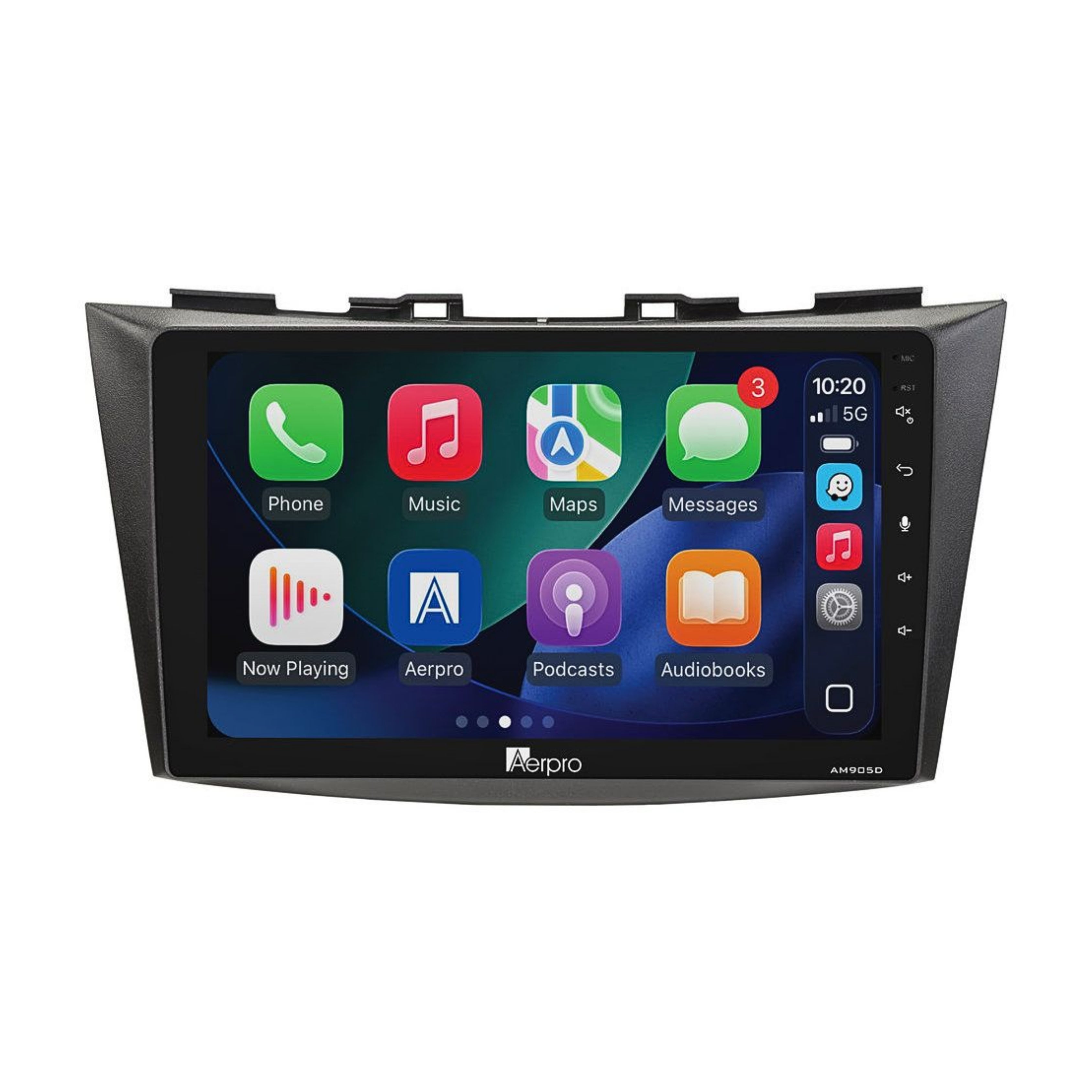

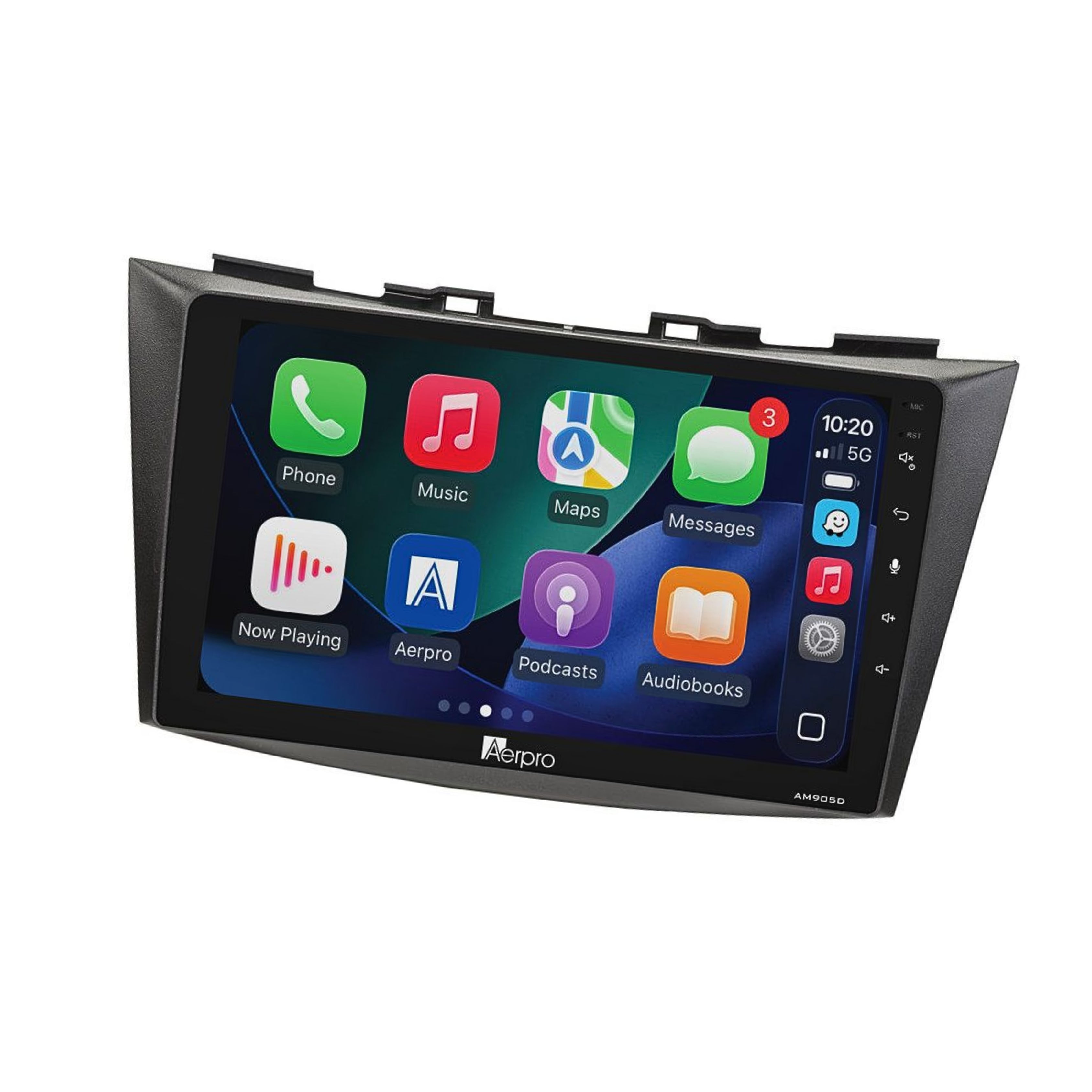

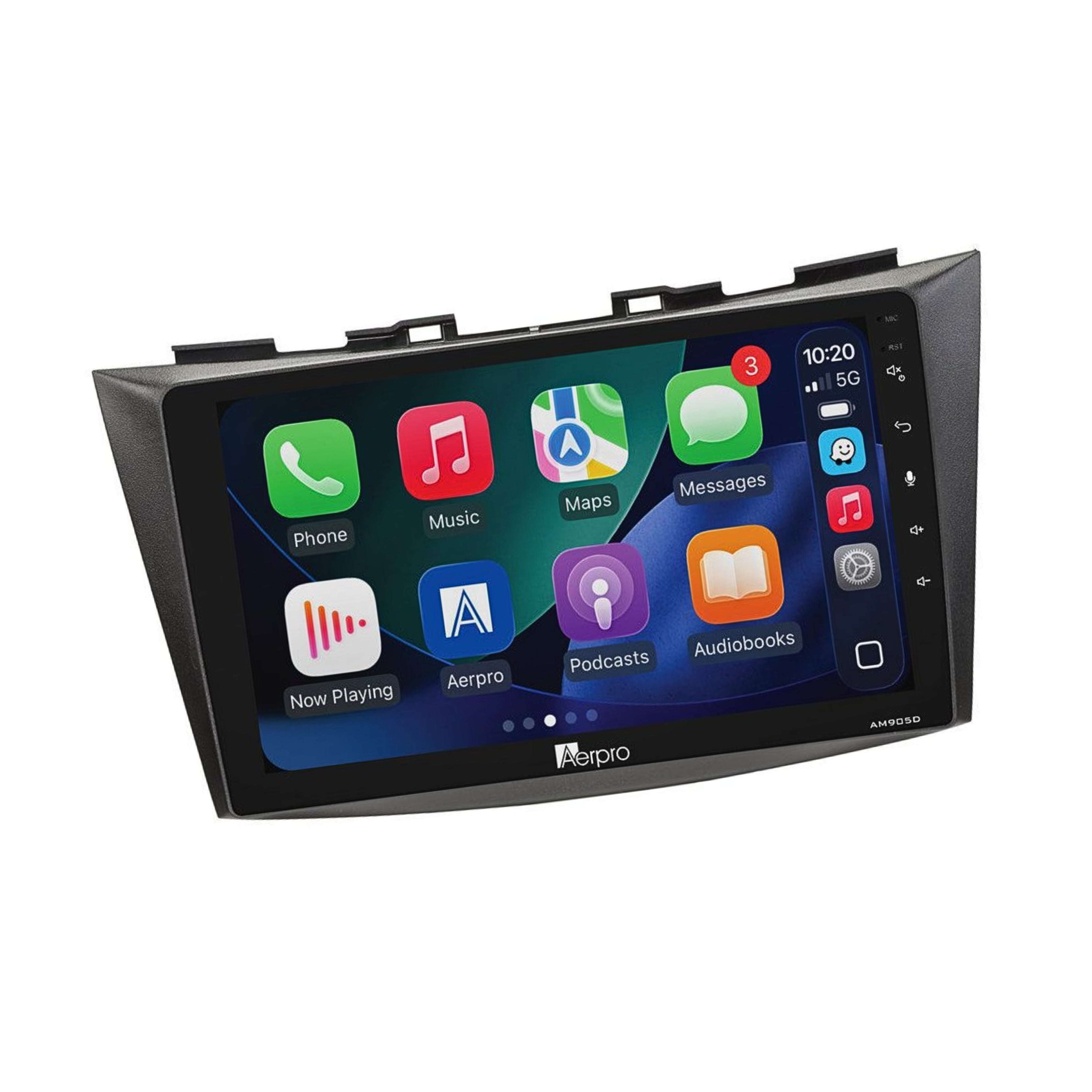

Aerpro AMDSZ4 Suzuki Swift 2011 to 2017 9" Head Unit Wireless CarPlay DAB+ SWC USB

Complete 9" Head Unit Upgrade Kit for Suzuki Swift 2011 to 2017 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC (Including Phone Button) & USB Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSZ4 is a complete head unit upgrade kit specifically designed for the Suzuki Swift (2011 to 2017). Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls (including phone button, if applicable) and factory USB input (if equipped) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Important: Factory reverse camera is not retained by this kit. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. USB input retention uses the rear USB input of the head unit.

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Steering wheel controls retained including phone button: Full SWC including phone button (where applicable) retained via the included harness and patch lead
• Factory USB retained: If equipped, factory USB input retained via the included USB retention adaptor uses the rear USB input of the head unit
• Factory reverse camera not retained: The included 720P AHD rear camera provides reversing visibility as a replacement
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
• 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Compatible Vehicles

• Suzuki Swift 2011 to 2017

FAQ

What vehicles does the Aerpro AMDSZ4 suit?

The Aerpro AMDSZ4 suits the Suzuki Swift (2011 to 2017).

Does this kit retain the factory reverse camera?

No factory reverse camera retention is not supported by the AMDSZ4. The included 720P AHD universal rear camera provides reversing visibility on the aftermarket head unit.

Does the park brake wire need to be connected?

Yes, the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Does this kit retain the factory USB input?

Yes if equipped, the factory USB input is retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.

Is the phone button on the steering wheel retained?

Yes where applicable. The SWC harness retains steering wheel controls including the phone button where the vehicle is equipped with it.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
