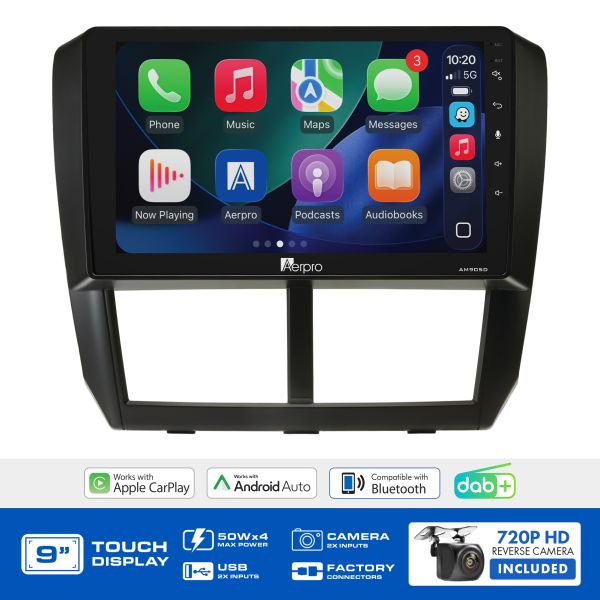

Aerpro AMDSU7 Subaru Forester Impreza WRX 2007 to 2014 9" Head Unit CarPlay DAB With Nav

Complete 9" Head Unit Upgrade Kit for Subaru Forester 2007 to 2012, Impreza 2007 to 2011 & WRX 2007 to 2014 (With Factory Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & AUX Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSU7 is a complete head unit upgrade kit designed for the Subaru Forester (2007 to 2012), Impreza (2007 to 2011), and WRX (2007 to 2014) all with factory navigation. Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls, factory AUX input, and factory reverse camera (if equipped) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Important: Suits factory navigation models only. AUX input retention uses the RCA AUX input on the rear of the head unit. Reverse camera retention uses the reverse camera input of the head unit. USB input is not retained. Always verify fitment using the Aerpro What Fits Your Car Guide.

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• Antenna Adaptor
• Camera Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Suits factory navigation Forester, Impreza & WRX: Covers three platforms across 2007 to 2014 factory navigation models
• Factory AUX input retained: AUX input retention uses the RCA AUX input on the rear of the head unit
• Steering wheel controls retained: Full SWC retained via the included harness
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
• 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Compatible Vehicles

• Subaru Forester 2007 to 2012 (with factory navigation)
• Subaru Impreza 2007 to 2011 (with factory navigation)
• Subaru WRX 2007 to 2014 (with factory navigation)

FAQ

What vehicles does the Aerpro AMDSU7 suit?

The Aerpro AMDSU7 suits the Subaru Forester (2007 to 2012), Impreza (2007 to 2011), and WRX (2007 to 2014) all with factory navigation.

Does this kit retain the factory reverse camera?

The kit specification table states yes (if equipped) and a camera retention adaptor is included. However, the supplier's important information note states "Does not retain factory reverse camera." Confirm this with Aerpro or the retailer before purchasing if reverse camera retention is a critical requirement.

Does this kit retain the factory AUX input?

Yes, AUX input retention uses the RCA AUX input on the rear of the head unit.

Does this suit non-navigation Subaru models?

No, the AMDSU7 suits factory navigation models only.

Is a rear camera included?

Yes, a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
