Aerpro AMDSU6 Subaru Forester Impreza WRX 9
Click to open expanded view
AERPRO logo

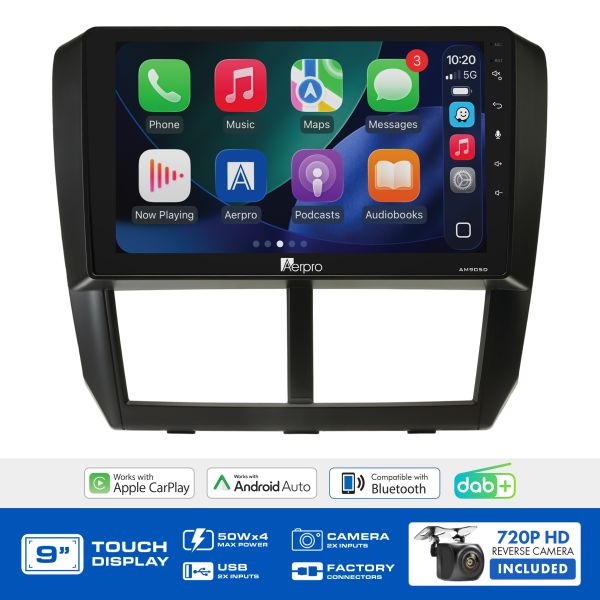

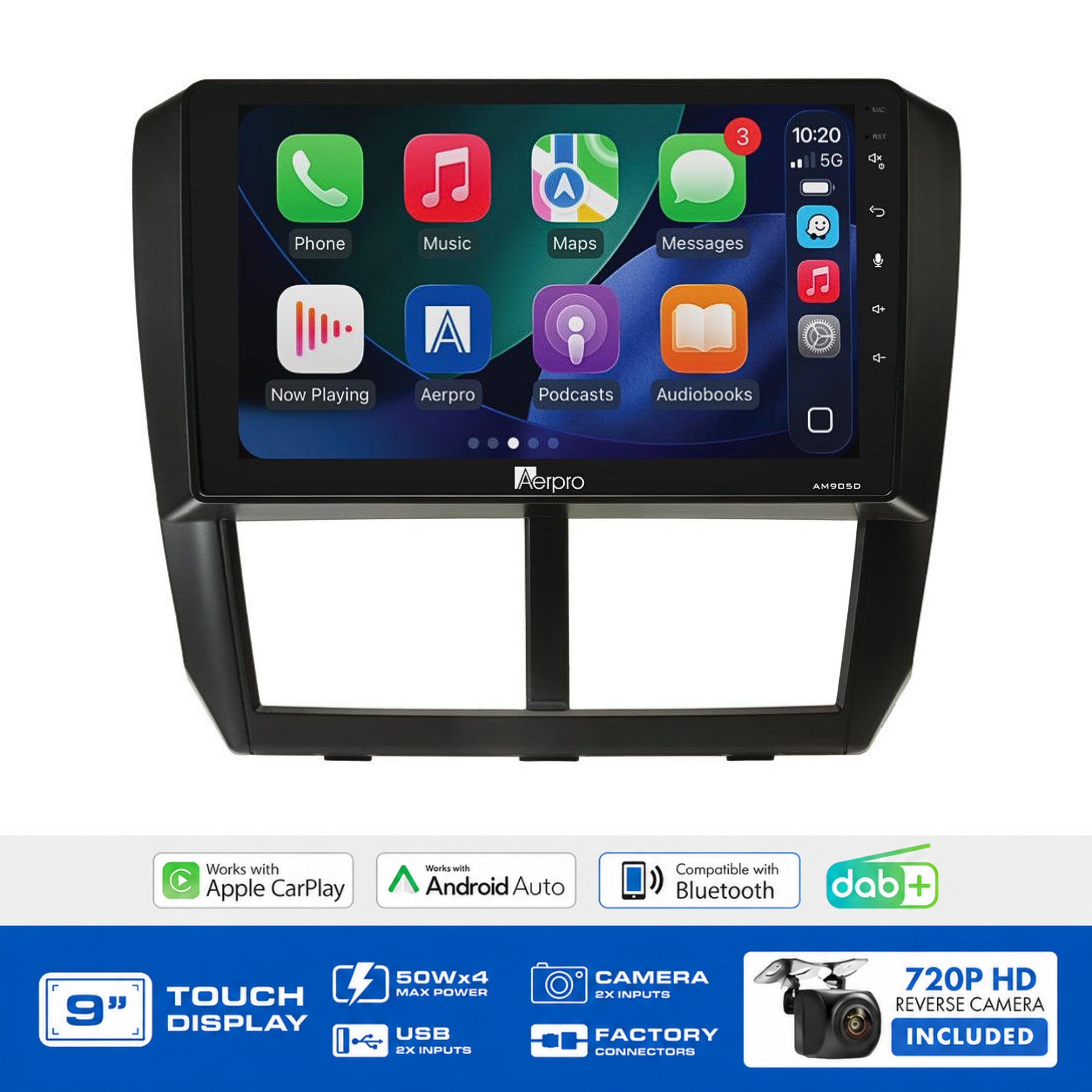

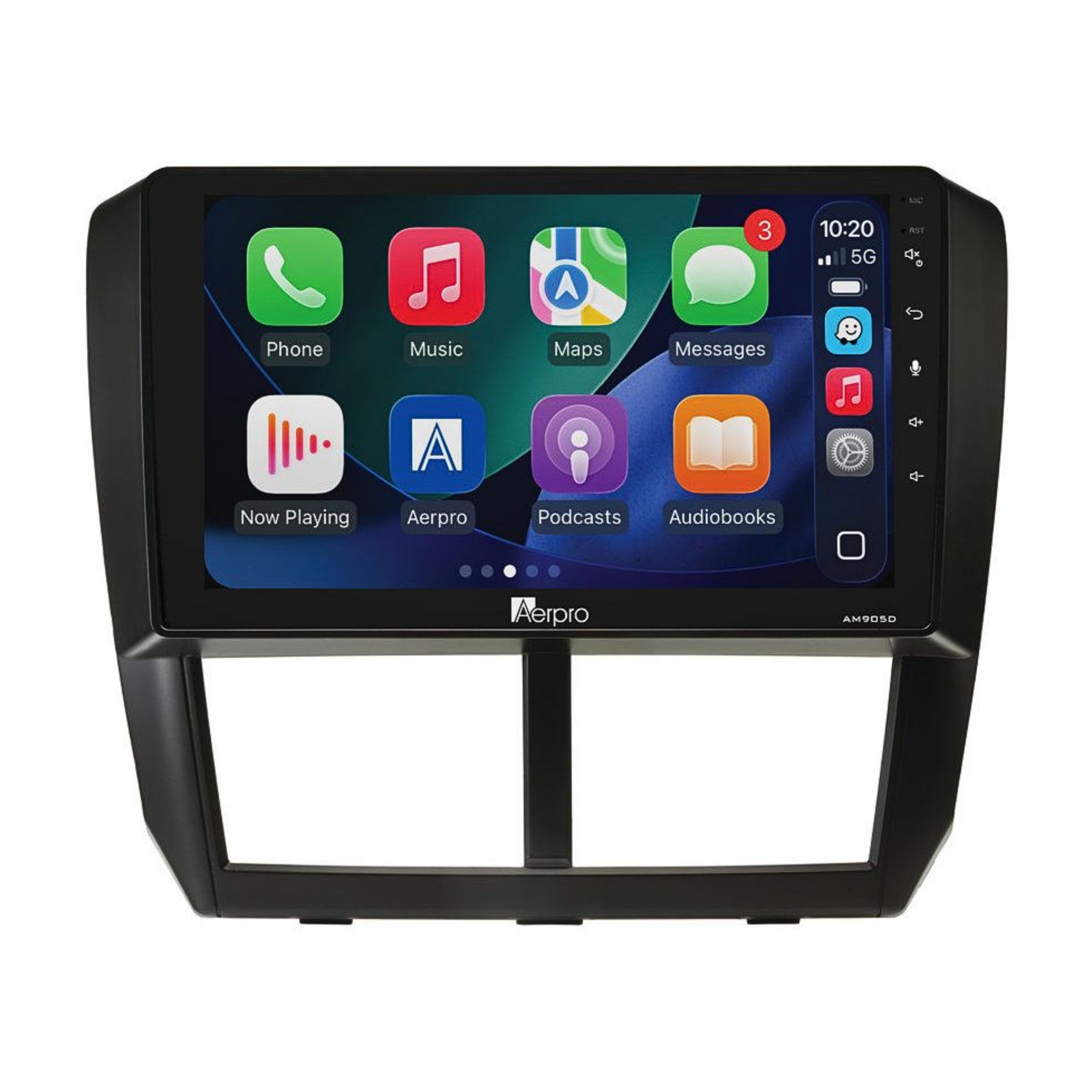

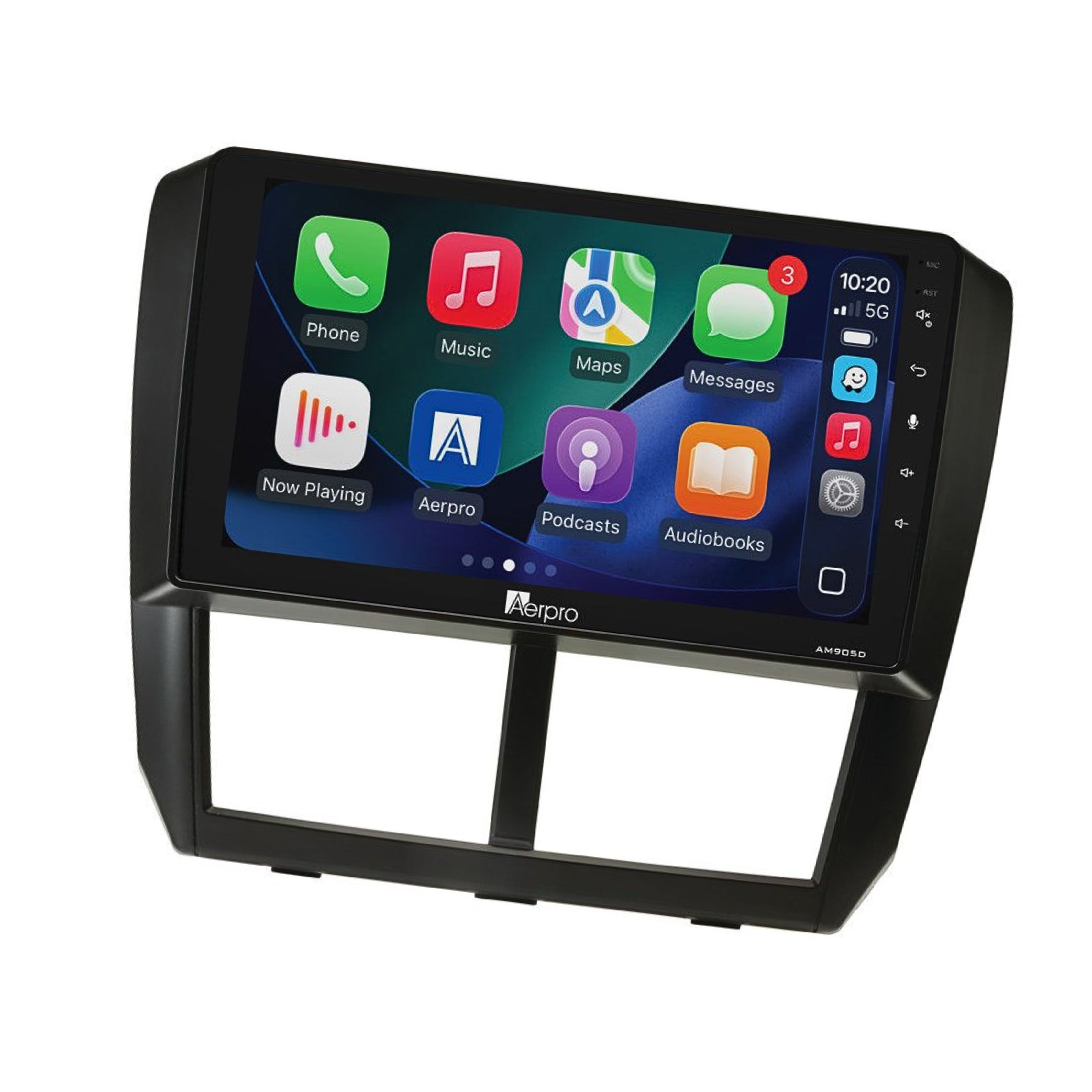

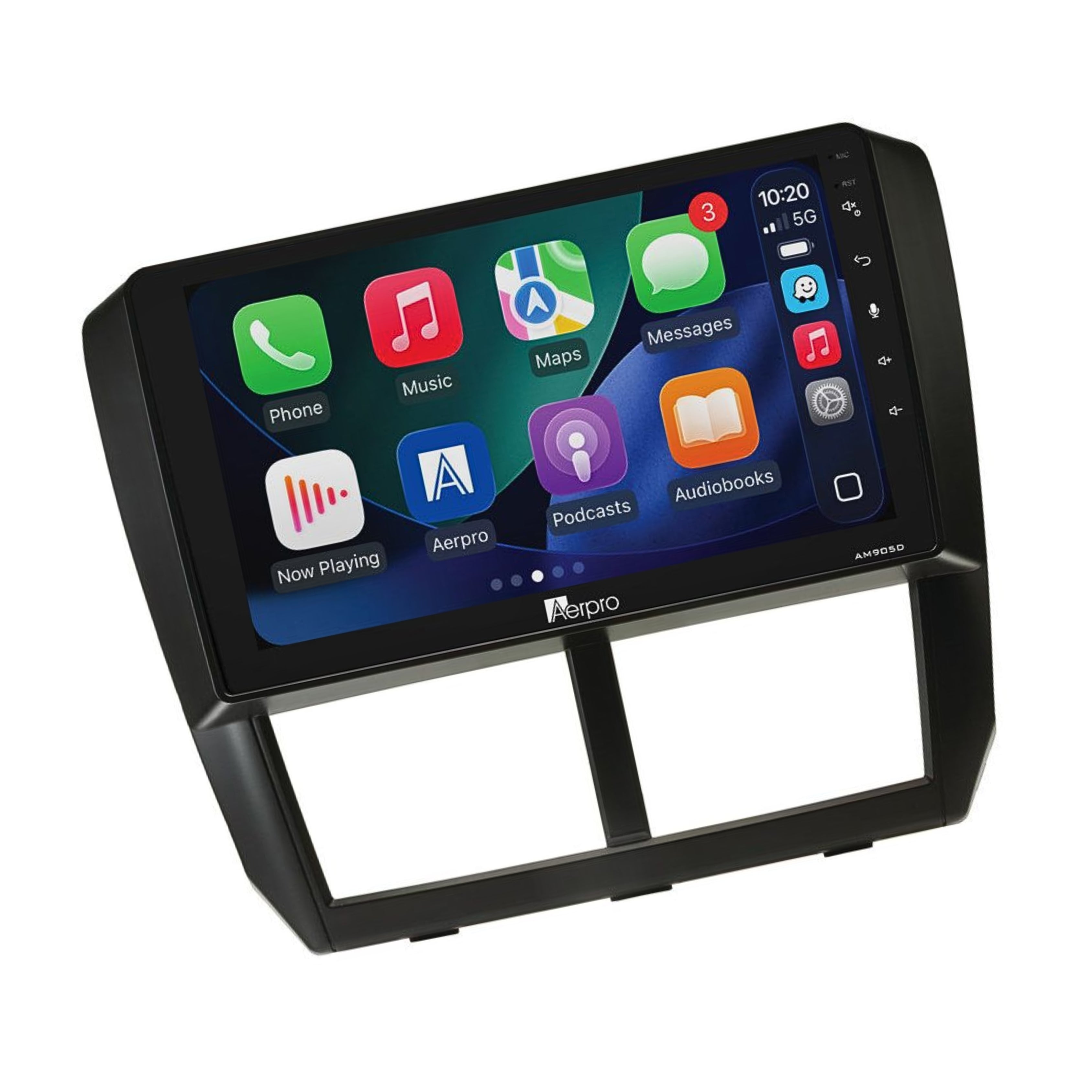

Aerpro AMDSU6 Subaru Forester Impreza WRX 9" Head Unit CarPlay DAB+ No Nav Phone SWC

SKU: AMDSU6
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Subaru Forester 2011–2012, Impreza 2011 & WRX 2011–2014 (Without Navigation, With Phone Buttons) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSU6 is a complete head unit upgrade kit designed for the Subaru Forester (2011–2012), Impreza (2011), and WRX (2011–2014) specifically for vehicles with phone buttons on the steering wheel and without factory navigation. Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, and a 720P AHD universal rear camera.

Steering wheel controls including the phone button are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes (including phone button)
Factory Reverse Camera N/A
USB Input N/A
AUX Input N/A
Factory Amplifier N/A
Vehicle Menu N/A

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits phone button SWC models without navigation: Specifically designed for Forester 2011–2012, Impreza 2011, and WRX 2011–2014 with phone buttons on the steering wheel and without factory navigation
  • Steering wheel controls retained including phone button: Full SWC including the phone button retained via the included harness
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDSU6
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera N/A
USB Input Retained N/A
AUX Input Retained N/A
Kit Includes Rear Camera Yes 720P AHD universal
Suits Subaru Forester 2011–2012, Impreza 2011, WRX 2011–2014 (no nav, phone button SWC)

Compatible Vehicles

  • Subaru Forester 2011–2012 (without navigation, with phone buttons)
  • Subaru Impreza 2011 (without navigation, with phone buttons)
  • Subaru WRX 2011–2014 (without navigation, with phone buttons)

Frequently Asked Questions

Does this kit suit Subaru models without phone buttons on the steering wheel?

No the AMDSU6 suits models with phone buttons on the steering wheel only. For models without phone buttons, use the appropriate Aerpro kit for your vehicle.

Does this kit suit models with factory navigation?

No the AMDSU6 suits models without factory navigation only.

Does the park brake wire need to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
