Aerpro AMDSU4 Subaru Forester Impreza Levorg WRX XV 9
Click to open expanded view
AERPRO logo

Aerpro AMDSU4 Subaru Forester Impreza Levorg WRX XV 9" Head Unit CarPlay DAB With Nav

SKU: AMDSU4
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2018 & XV GP 2016–2017 (With Factory Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

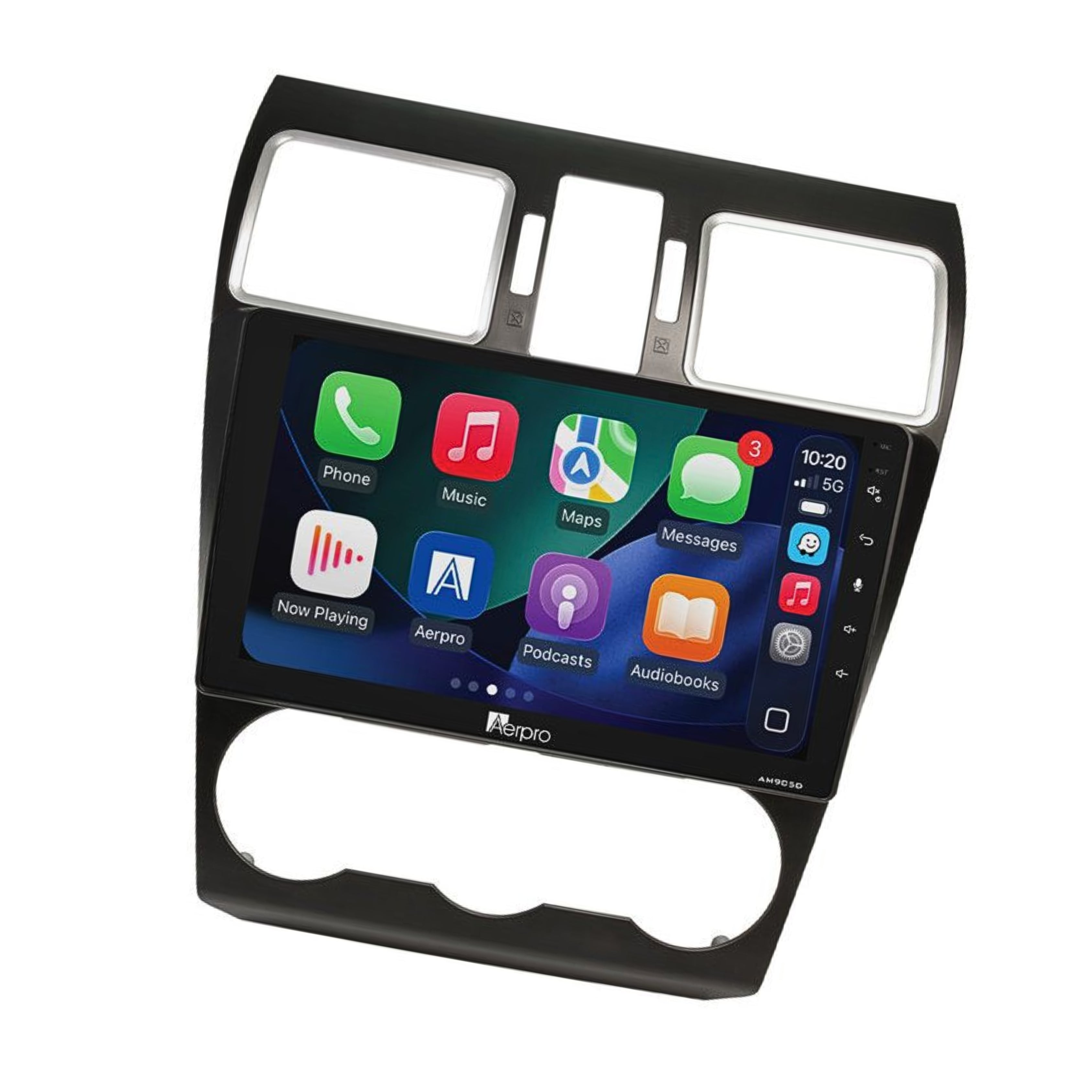

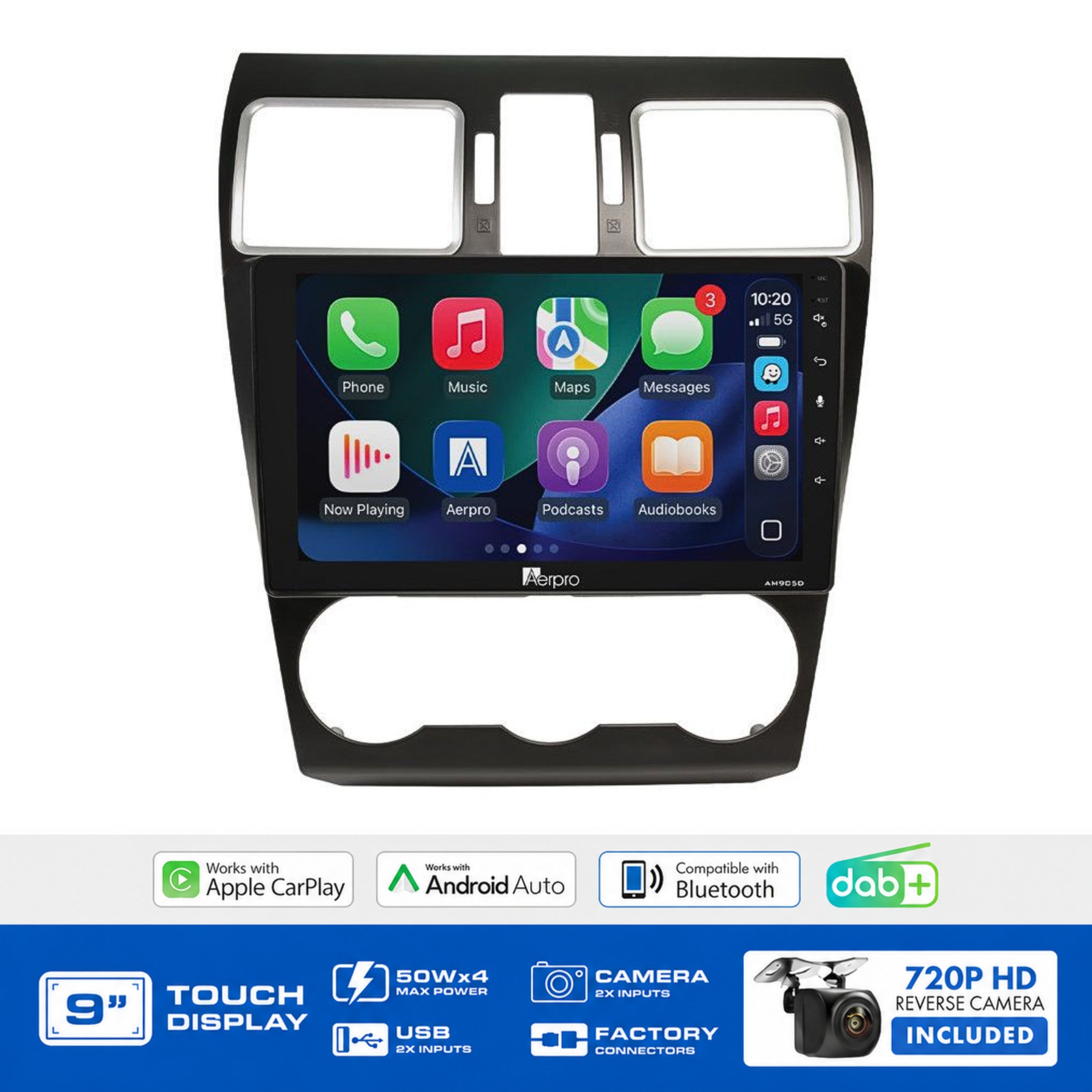

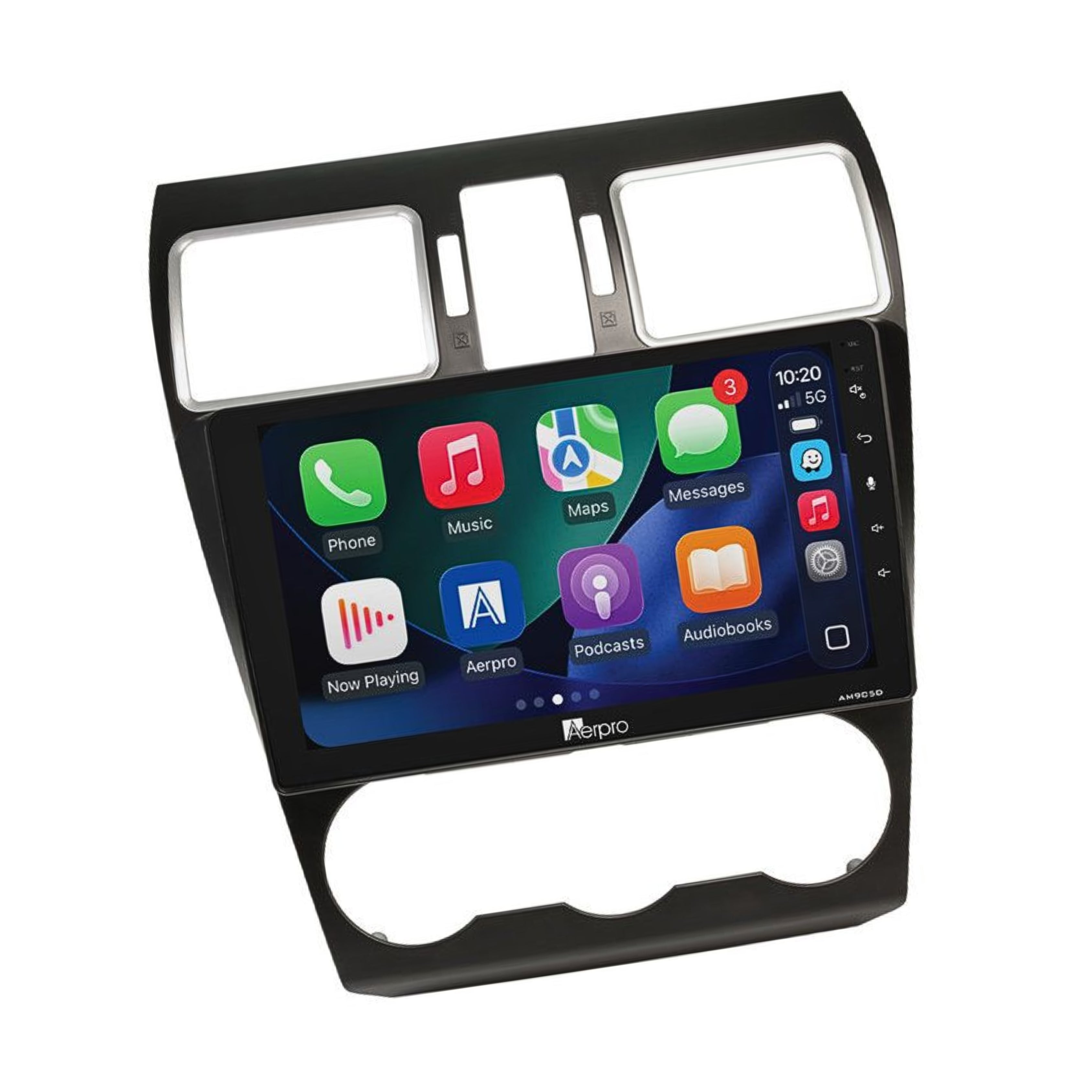

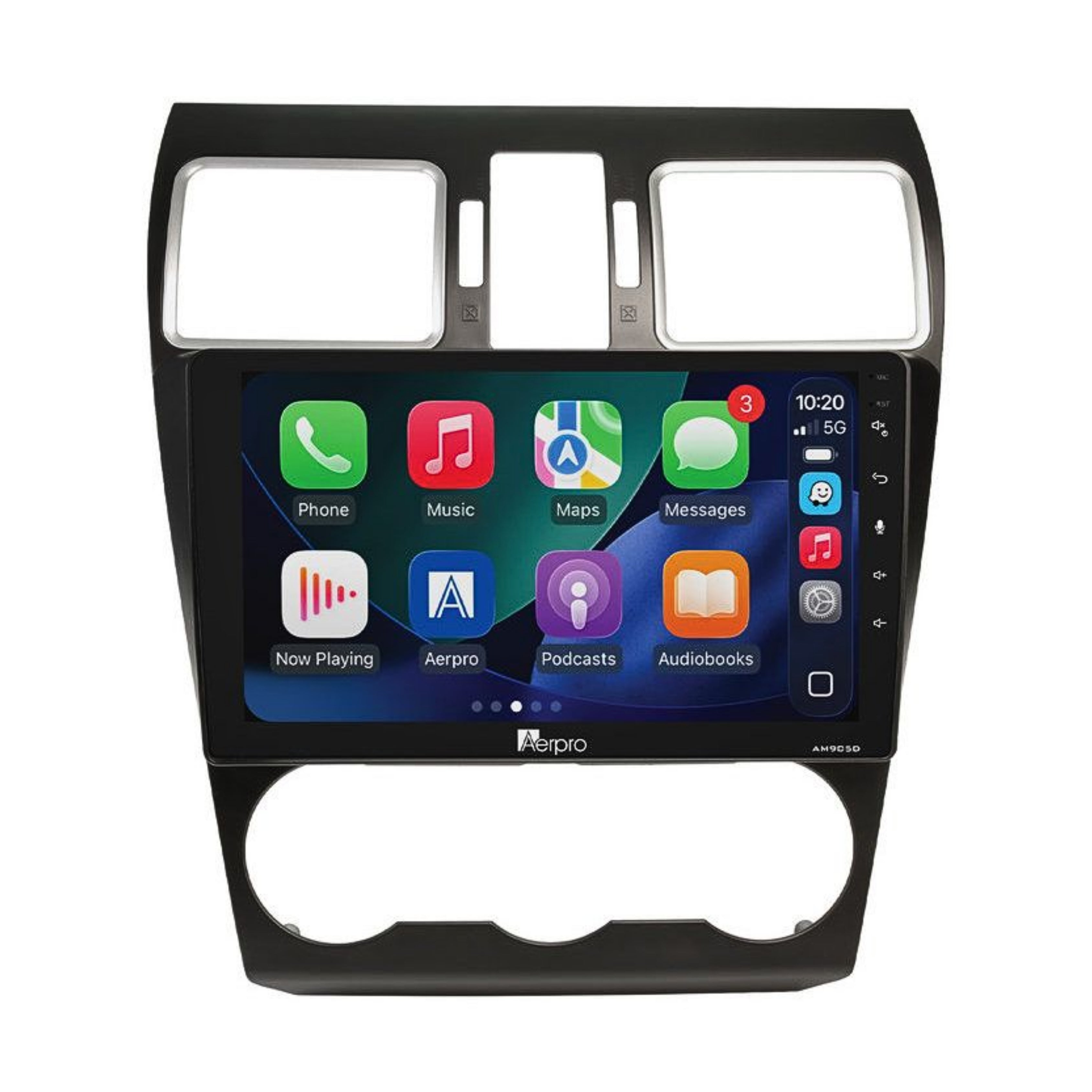

The Aerpro AMDSU4 is a complete head unit upgrade kit designed for five Subaru platforms with factory navigation Forester SJ (2015–2018), Impreza GP/GJ (2015–2016), Levorg VM (2016–2020), WRX VA (2016–2018), and XV GP (2016–2017). This is the navigation variant for the same platforms without navigation, refer to the AMDSU3.

Everything required for installation is included the AM905D multimedia receiver, black fascia kit, hazard button surrounds, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls and factory reverse camera (if equipped) are retained.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • Hazard Button Surrounds
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes
Factory Reverse Camera Yes (if equipped)
USB Input No
AUX Input No
Factory Amplifier N/A
Vehicle Menu N/A

Vehicle Settings Confirm Before Installation

The following settings are stored in the factory navigation head unit and will not be accessible after the aftermarket unit is installed. Record these settings before removing the factory head unit:

  • Rear Camera Time Out
  • Autolight Sensor
  • Welcome Lighting
  • Clock
  • Interior Light
  • Defogger
  • Keyless Entry
  • One Touch Lane Change

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Five-platform navigation variant: Suits Forester SJ, Impreza GP/GJ, Levorg VM, WRX VA, and XV GP all with factory navigation for non-navigation models use AMDSU3
  • Hazard button surrounds included: Ensures a clean, factory-finish installation unique to this fascia kit
  • Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
  • Steering wheel controls retained: Full SWC retained via the included harness and patch lead
  • Not compatible with Harman Kardon systems: Confirm your vehicle does not have HK audio before purchasing
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDSU4
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Reverse Camera Retained Yes (if equipped)
USB Input Retained No
AUX Input Retained No
Kit Includes Rear Camera Yes 720P AHD universal
Suits Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2018, XV GP 2016–2017 (with navigation)

Compatible Vehicles

  • Subaru Forester 2015–2018 SJ (with factory navigation)
  • Subaru Impreza 2015–2016 GP, GJ (with factory navigation)
  • Subaru Levorg 2016–2020 VM (with factory navigation)
  • Subaru WRX 2016–2018 VA (with factory navigation)
  • Subaru XV 2016–2017 GP (with factory navigation)

Frequently Asked Questions

How does the AMDSU4 differ from the AMDSU3?

Both suit the same five Subaru platforms. The AMDSU4 is for vehicles with factory navigation while the AMDSU3 is for vehicles without factory navigation. Confirm your vehicle's factory head unit type before purchasing.

What vehicle settings will be lost after installation?

The following settings stored in the factory navigation unit will not be accessible after installation record them before removing the head unit: Rear Camera Time Out, Autolight Sensor, Welcome Lighting, Clock, Interior Light, Defogger, Keyless Entry, and One Touch Lane Change.

Does this suit Harman Kardon amplified models?

No the AMDSU4 will not suit Harman Kardon amplified systems.

Does this retain factory USB or AUX?

No USB and AUX input retention are not supported by the AMDSU4.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
