Aerpro AMDSU3 9
Click to open expanded view
AERPRO logo

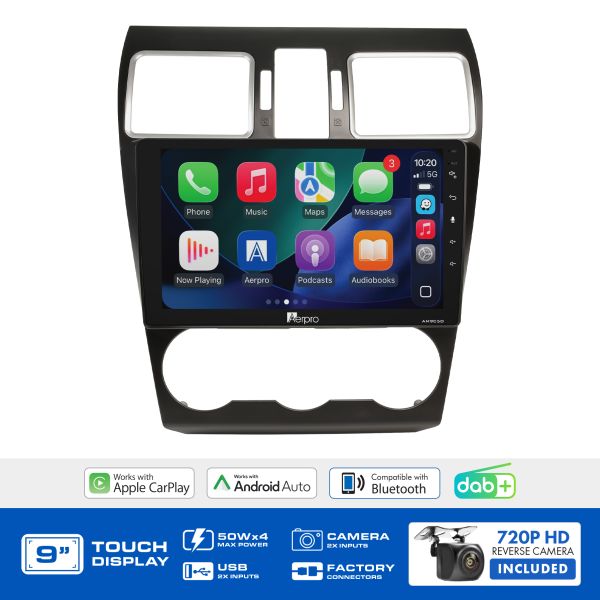

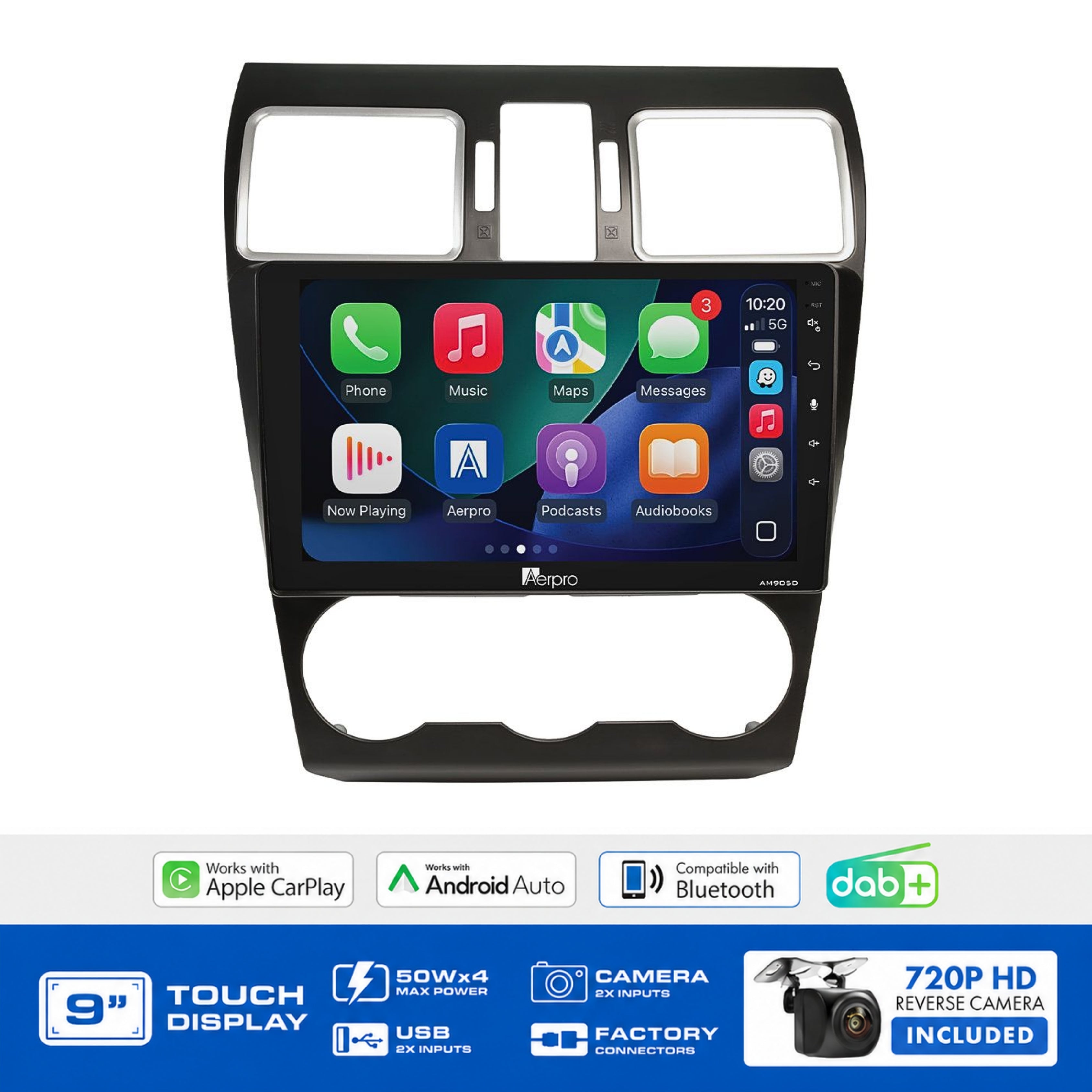

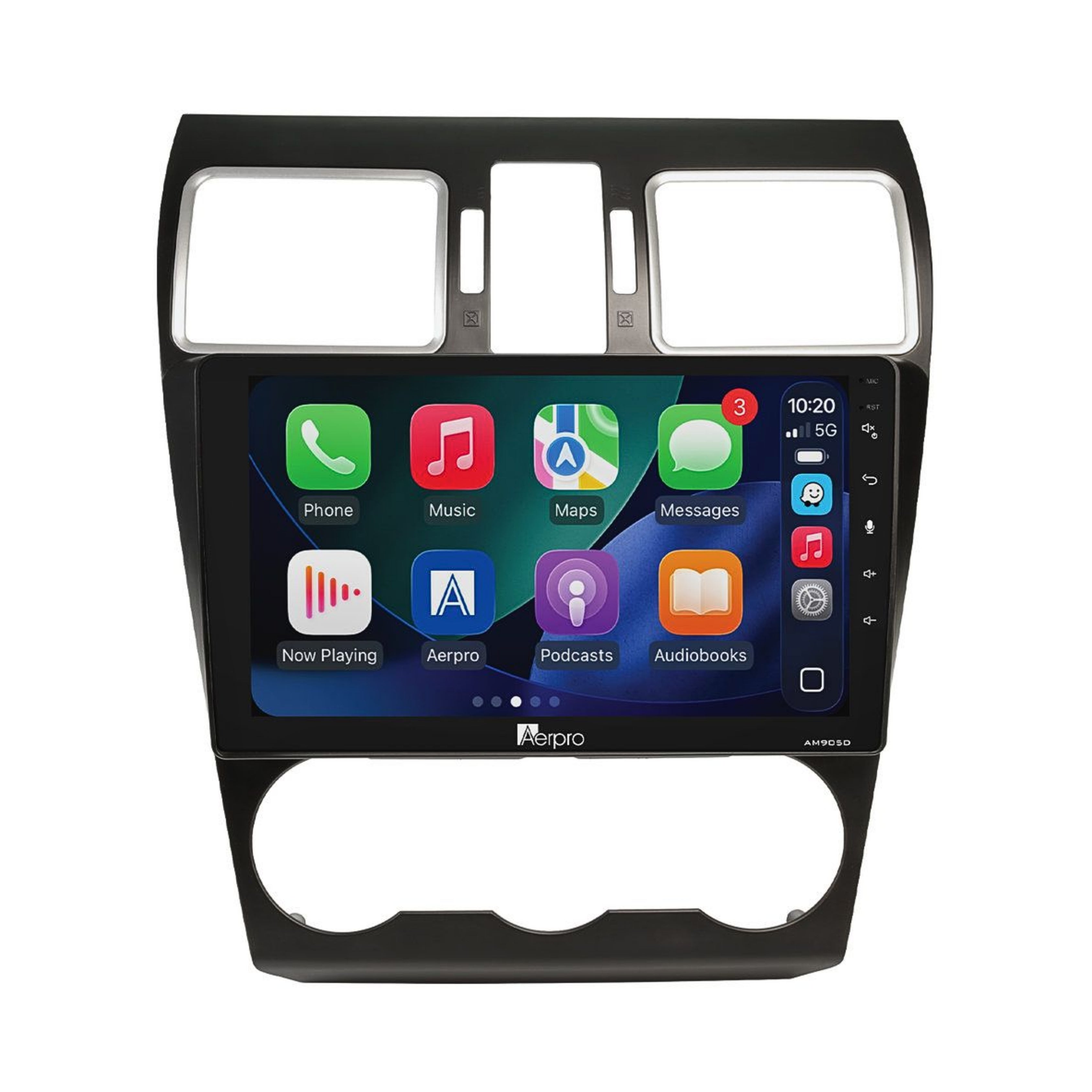

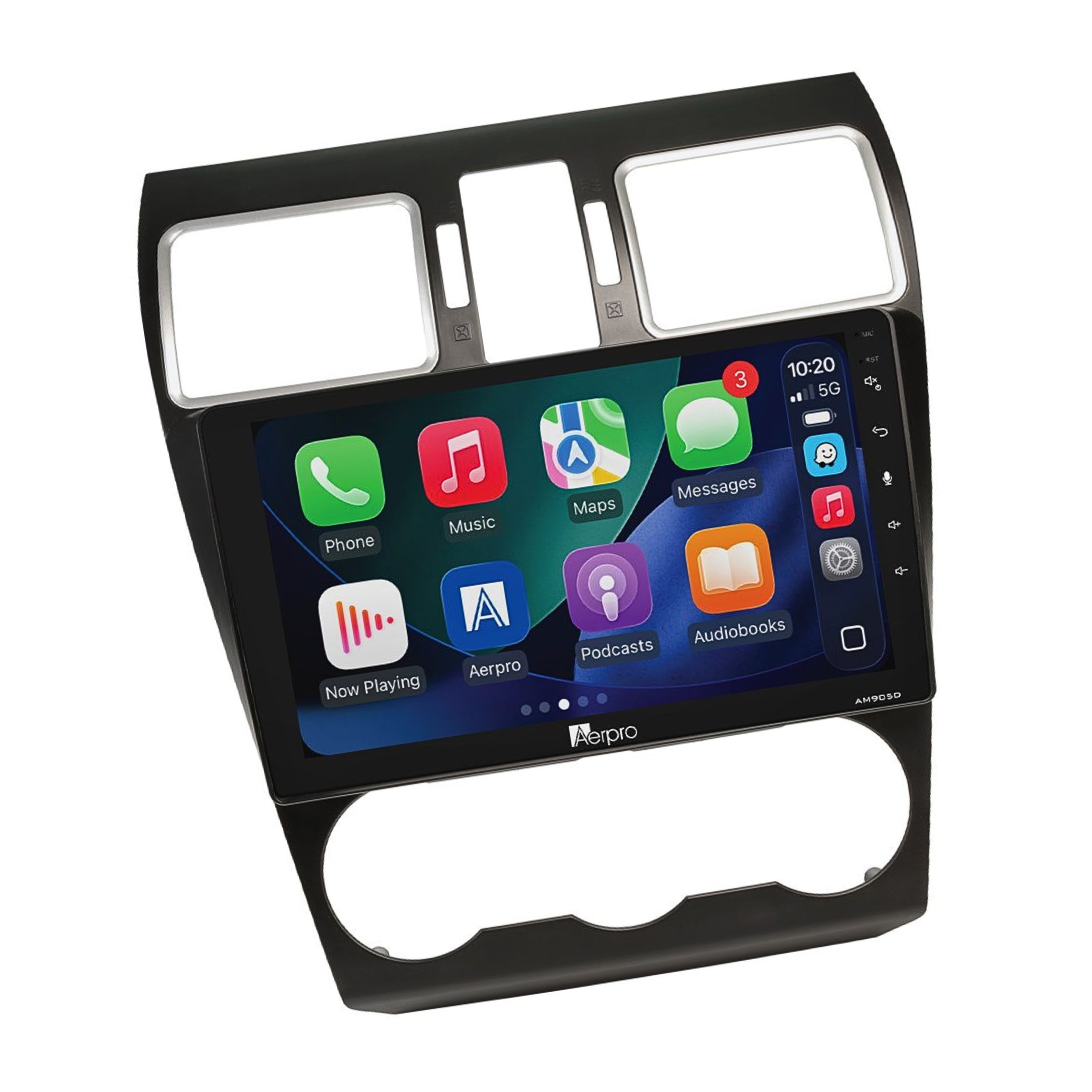

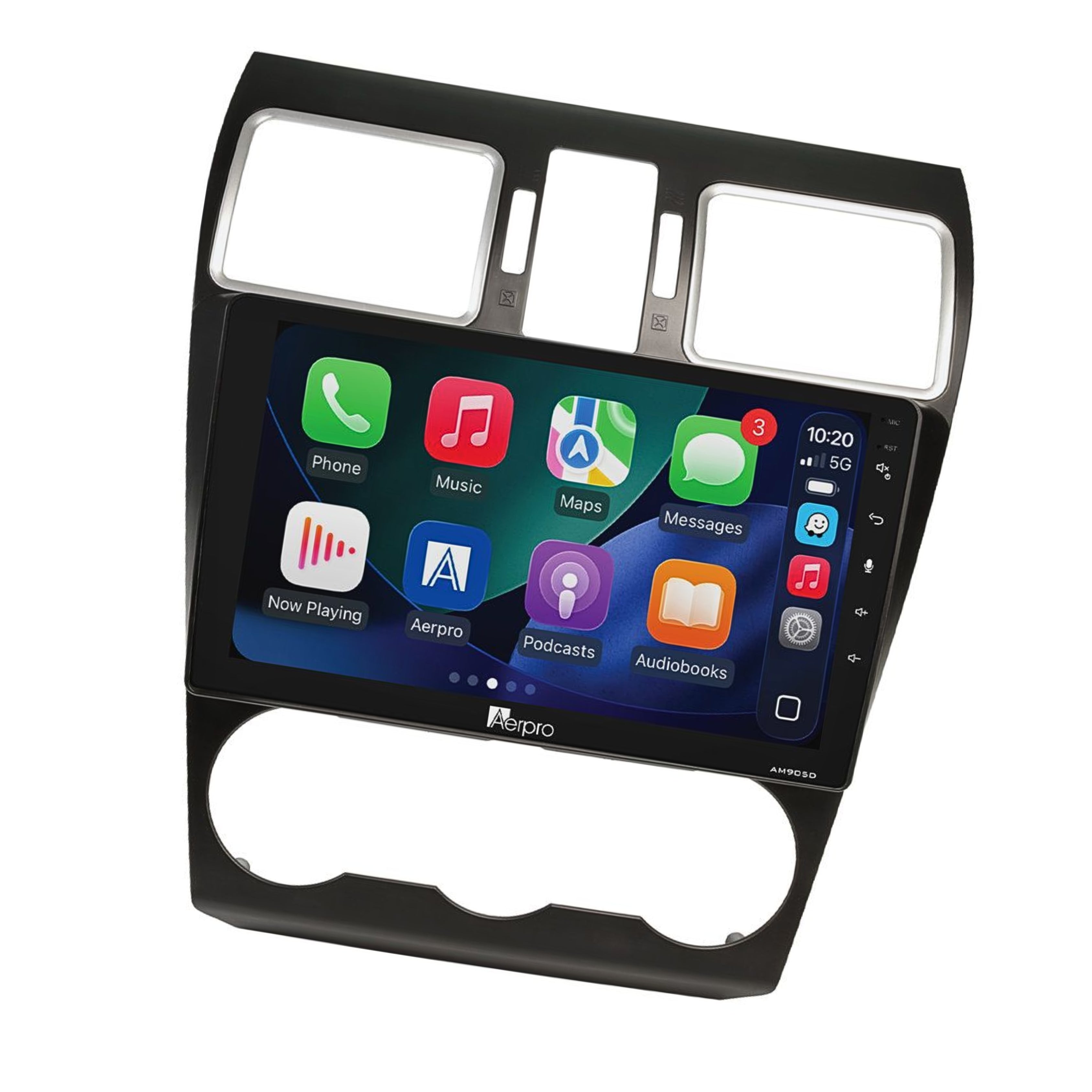

Aerpro AMDSU3 9" Wireless CarPlay DAB+ Subaru Forester Impreza Levorg WRX XV No Nav

SKU: AMDSU3
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2021 & XV GP 2016–2017 (Without Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSU3 is a complete head unit upgrade kit designed for five Subaru platforms Forester SJ (2015–2018), Impreza GP/GJ (2015–2016), Levorg VM (2016–2020), WRX VA (2016–2021), and XV GP (2016–2017) all without factory navigation. Everything required for installation is included the AM905D multimedia receiver, black fascia kit, hazard button surrounds, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls and factory reverse camera (if equipped) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • Hazard Button Surrounds
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Five-platform compatibility: One kit suits Forester SJ, Impreza GP/GJ, Levorg VM, WRX VA, and XV GP all without factory navigation
  • Hazard button surrounds included: A unique addition to this kit not included in other Subaru kits ensures a clean, factory-finish installation
  • Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor, if equipped camera signal is also wired through the main plug if the 5-pin plug is absent
  • Steering wheel controls retained: Factory SWC retained via the included harness and patch lead
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDSU3
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Reverse Camera Retained Yes (if equipped)
USB Input Retained No
AUX Input Retained No
Kit Includes Rear Camera Yes 720P AHD universal
Weight 2.00kg
Suits Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2021, XV GP 2016–2017 (without navigation)

Compatible Vehicles

  • Subaru Forester 2015–2018 SJ (headunit dependent)
  • Subaru Impreza 2015–2016 GP, GJ (headunit dependent)
  • Subaru Levorg 2016–2020 VM (headunit dependent)
  • Subaru WRX 2015–2021 (headunit dependent)
  • Subaru XV 2016–2017 GP (headunit dependent)

Frequently Asked Questions

Does this kit suit Subaru models with factory navigation?

No the AMDSU3 suits models without factory navigation only. Use the appropriate Aerpro navigation kit for navigation-equipped variants.

What are the hazard button surrounds included for?

The hazard button surrounds are included to ensure a clean, complete installation around the new fascia for the applicable Subaru models a unique inclusion specific to this kit.

Does this kit retain the factory reverse camera?

Yes if equipped, the factory reverse camera is retained via the camera retention adaptor. If the 5-pin camera plug is not present in your vehicle, disregard it the camera signal is also wired through the main plug.

Are factory USB and AUX inputs retained?

No USB and AUX input retention are not included in this kit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
