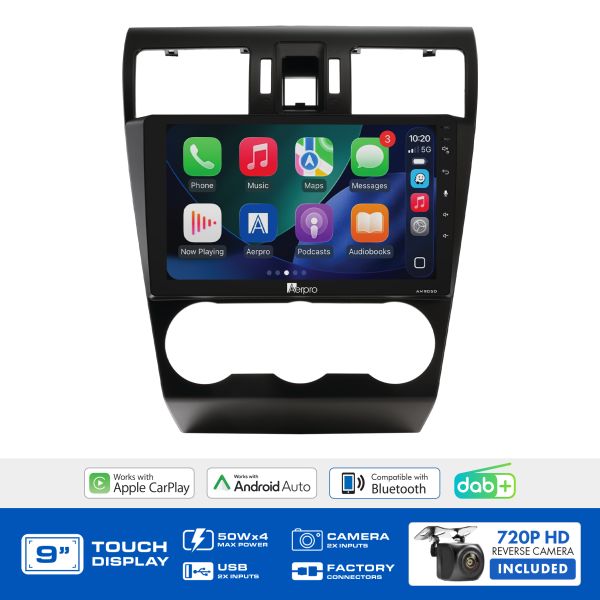

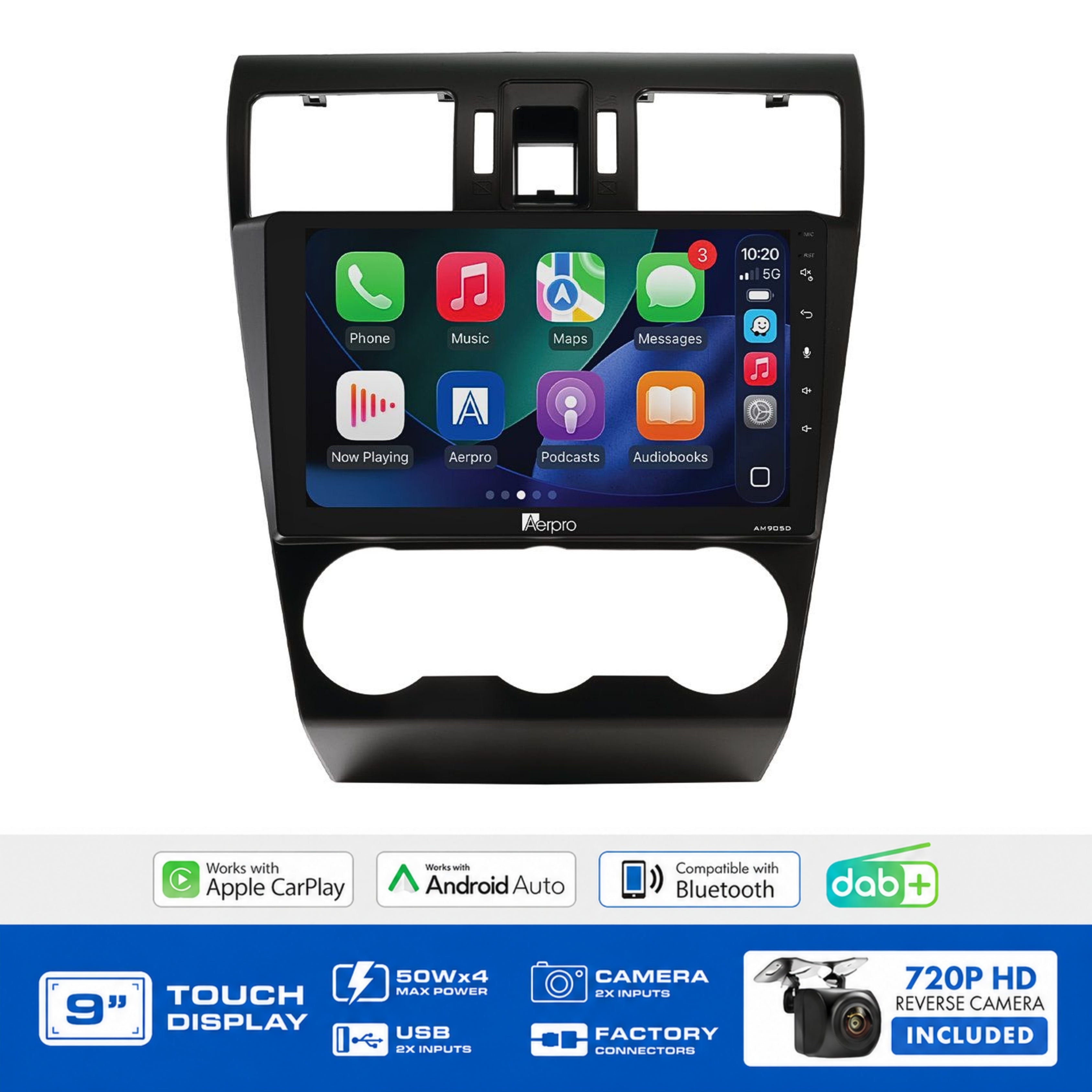

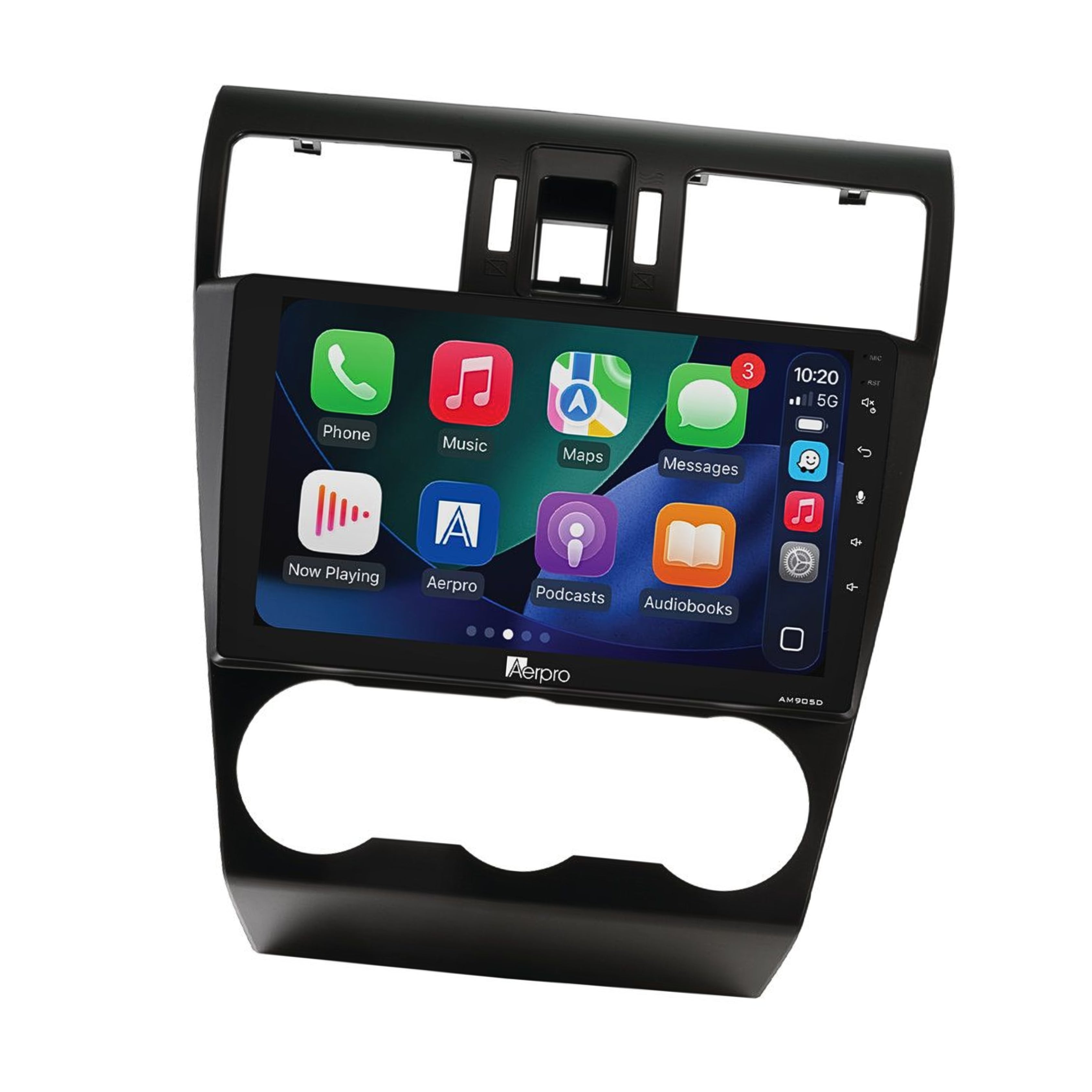

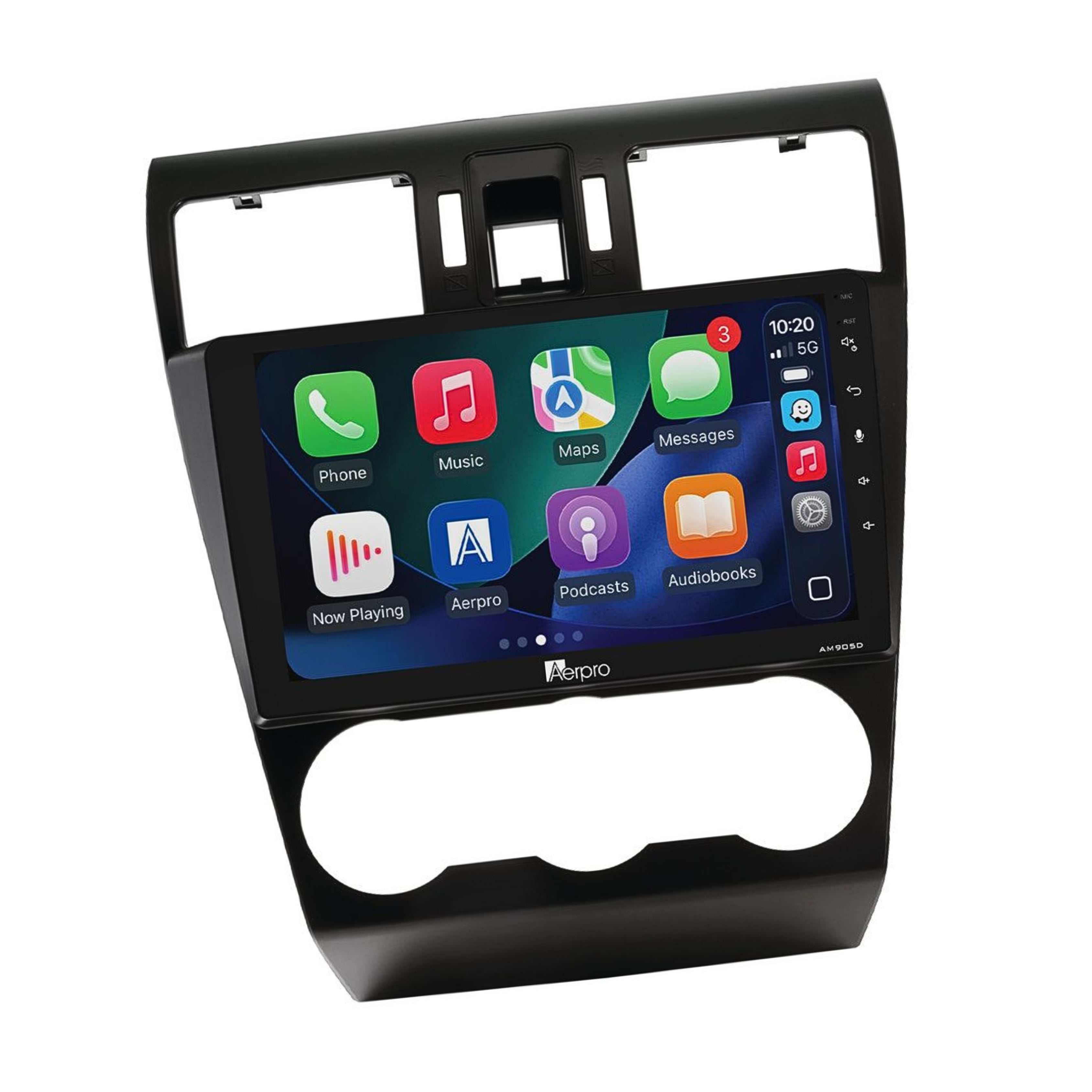

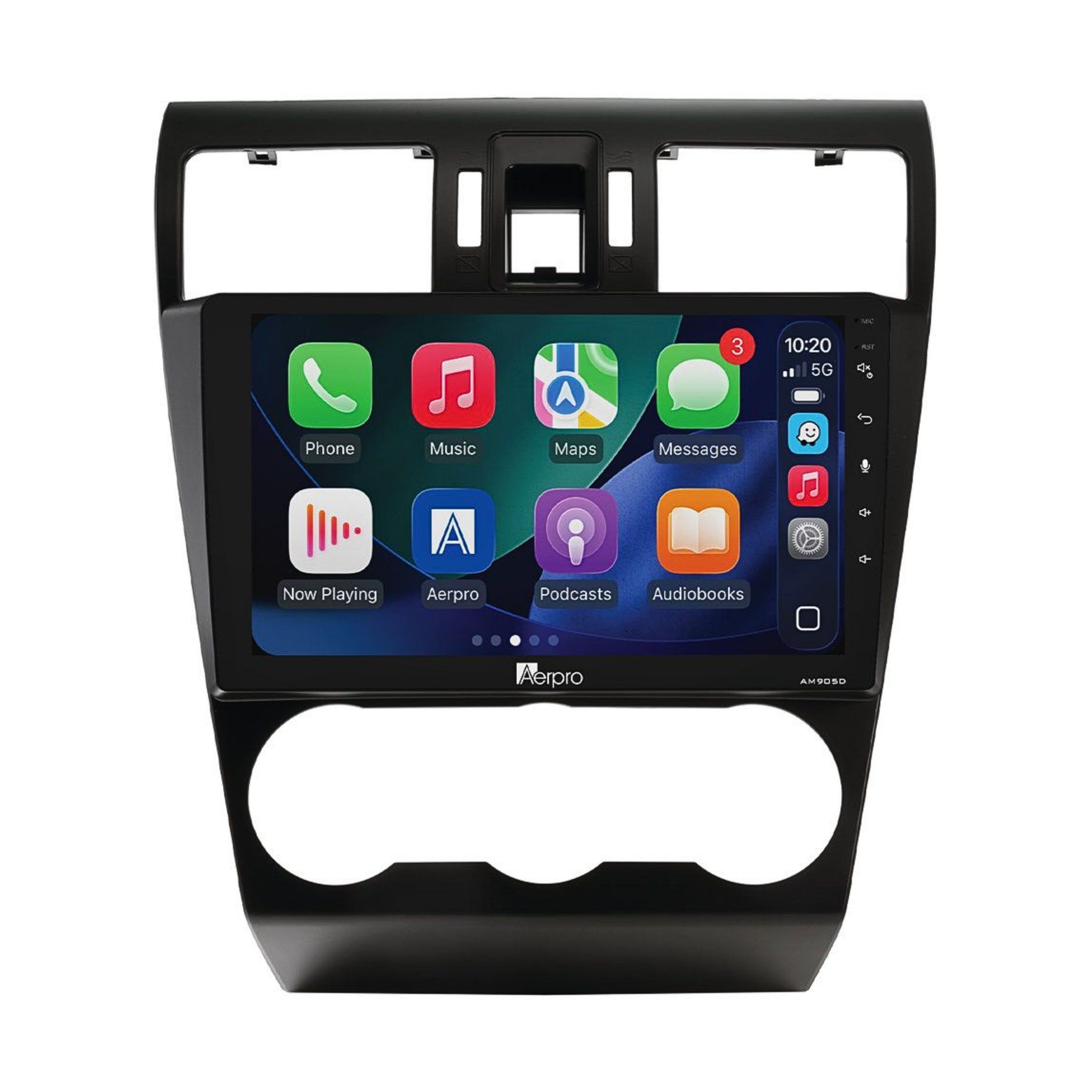

Aerpro AMDSU2 9" Wireless CarPlay DAB+ Subaru Forester Impreza XV Factory 6.1" Screen

SKU: AMDSU2
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014 & XV 2012–2015 (With Factory 6.1" Touchscreen) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, Factory USB & Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDSU2 is a complete head unit upgrade kit designed for Subaru Forester SJ (2013–2014), Impreza GP/GJ (2012–2014), and XV (2012–2015) specifically for vehicles with the factory 6.1" touchscreen (Fujitsu 10 Denso head unit). For vehicles without the 6.1" factory touchscreen (Clarion head unit), the correct kit is the AMDSU1.

Everything required for installation is included the AM905D multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls, factory USB input, and factory reverse camera (all if equipped) are retained. Suits non-amplified systems only.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits Fujitsu 10 Denso 6.1" factory touchscreen variants: Specifically designed for Subaru models with the factory 6.1" screen for non-screen Clarion variants, use the AMDSU1
  • Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor, if equipped
  • Factory USB input retained: Factory USB input retained via the included USB retention adaptor, if equipped uses the rear USB input of the head unit
  • Steering wheel controls retained: Factory SWC retained via the included harness and patch lead
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDSU2
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Reverse Camera Retained Yes (if equipped)
USB Input Retained Yes (if equipped)
Factory Amplifier No
Kit Includes Rear Camera Yes 720P AHD universal
Weight 2.00kg
Suits Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014, XV 2012–2015 (Fujitsu 10 Denso 6.1" screen)

Compatible Vehicles

  • Subaru Forester 2013–2014 SJ (headunit dependent Fujitsu 10 Denso 6.1" screen only)
  • Subaru Impreza 2012–2014 GP, GJ (headunit dependent Fujitsu 10 Denso 6.1" screen only)
  • Subaru XV 2012–2015 (headunit dependent Fujitsu 10 Denso 6.1" screen only)

Frequently Asked Questions

How do I know if my Subaru has the Fujitsu 10 Denso or Clarion head unit?

The AMDSU2 suits vehicles with the factory 6.1" touchscreen (Fujitsu 10 Denso head unit). If your vehicle does not have a factory touchscreen (Clarion head unit), use the AMDSU1 instead. Check your vehicle's current head unit before ordering.

Does this kit retain the factory reverse camera?

Yes if equipped, the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain the factory USB input?

Yes if equipped, the factory USB input is retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.

Does this suit amplified Subaru models?

No the AMDSU2 does not support factory amplified systems.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
