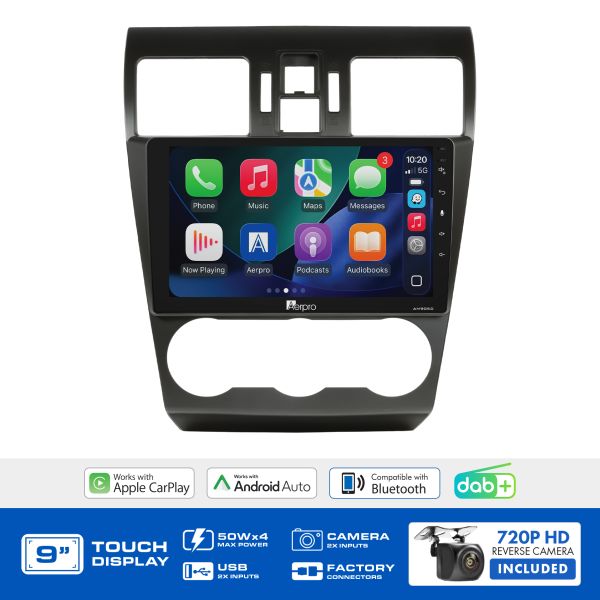

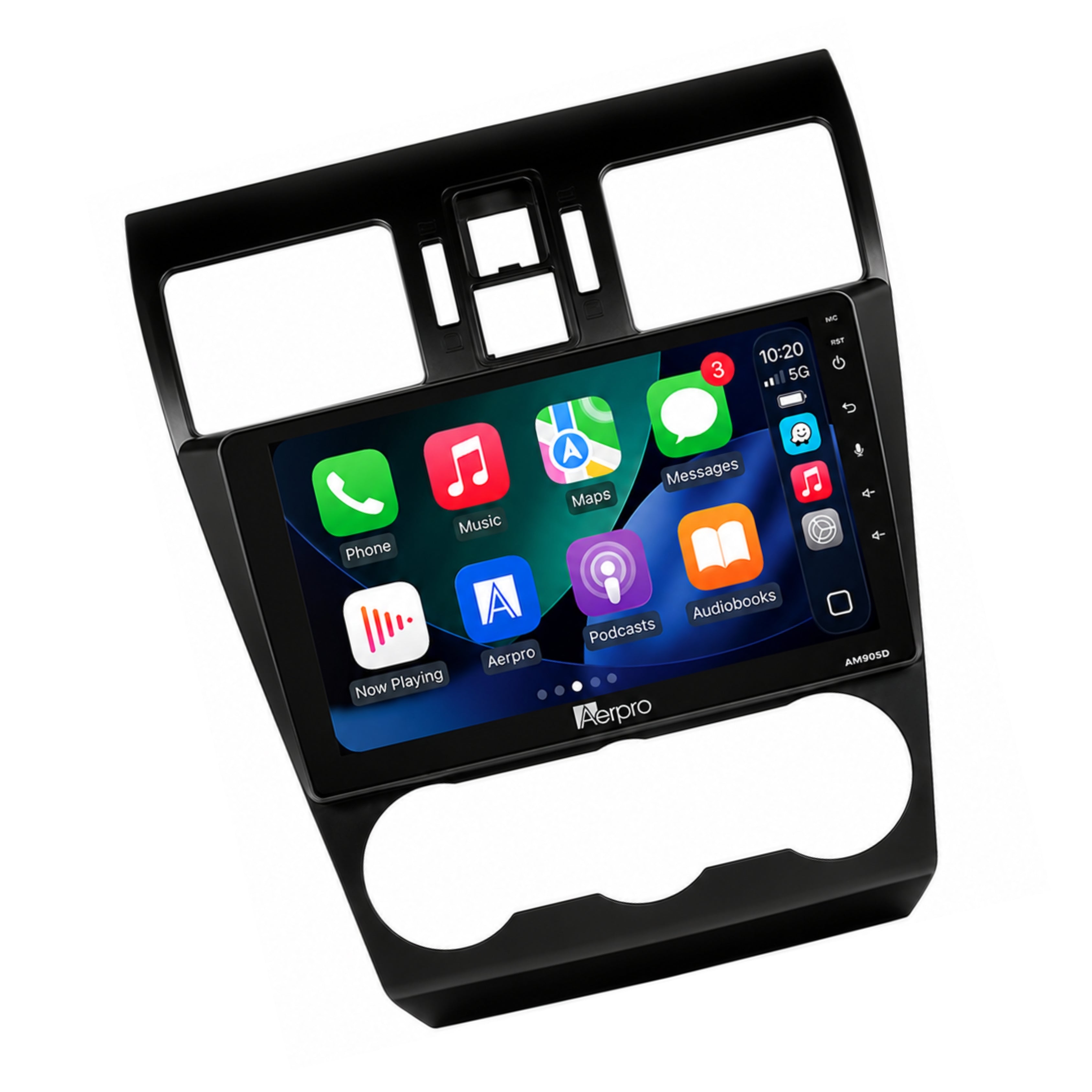

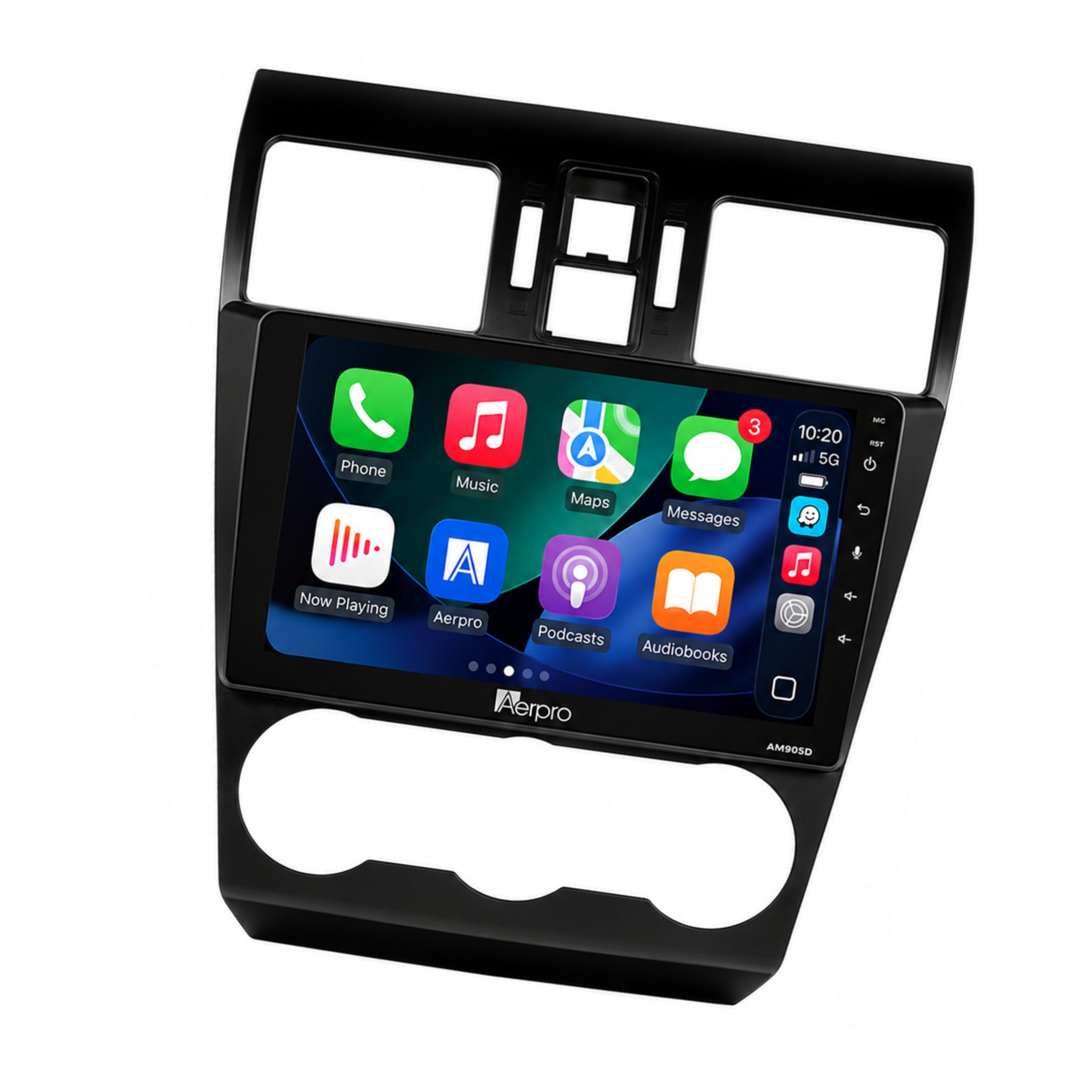

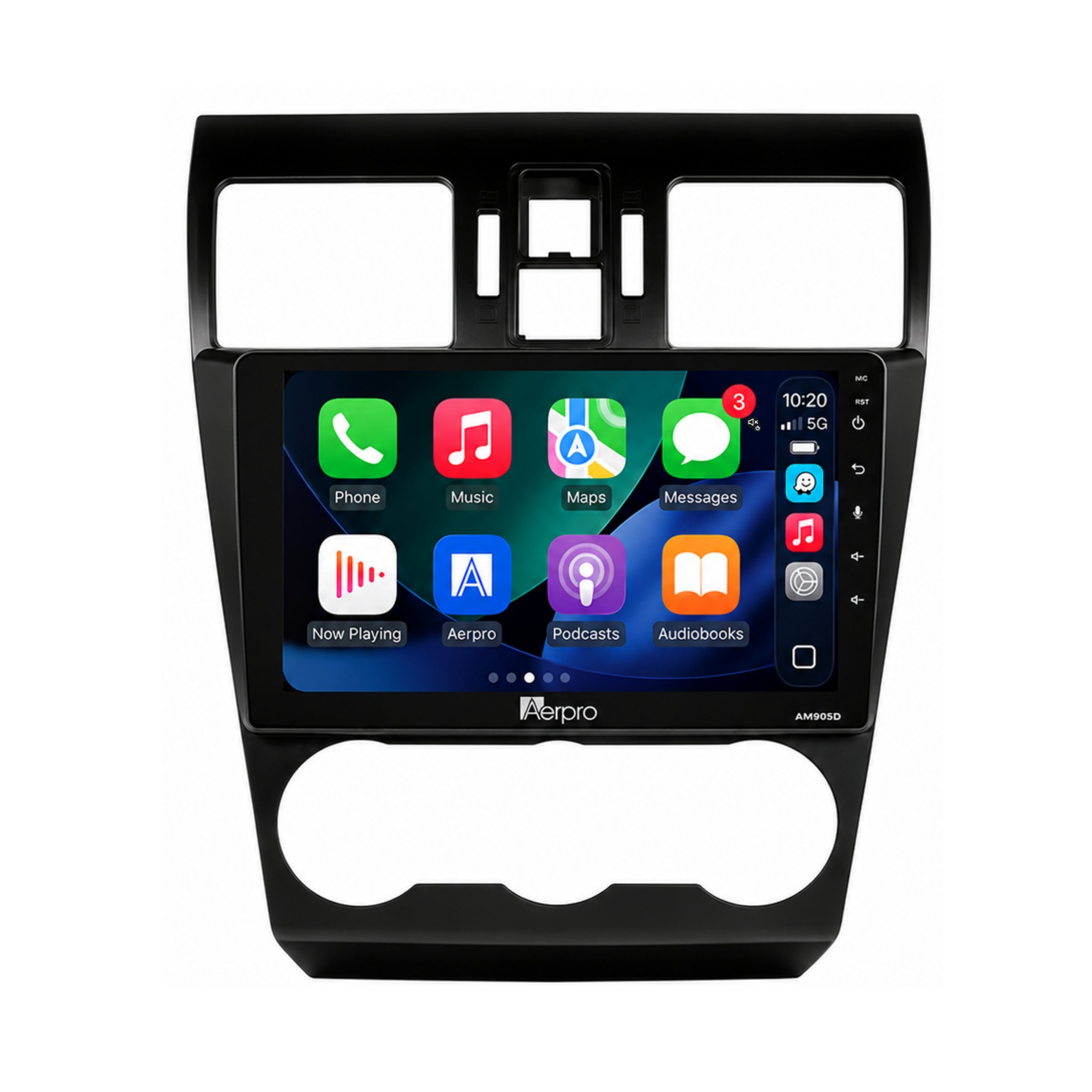

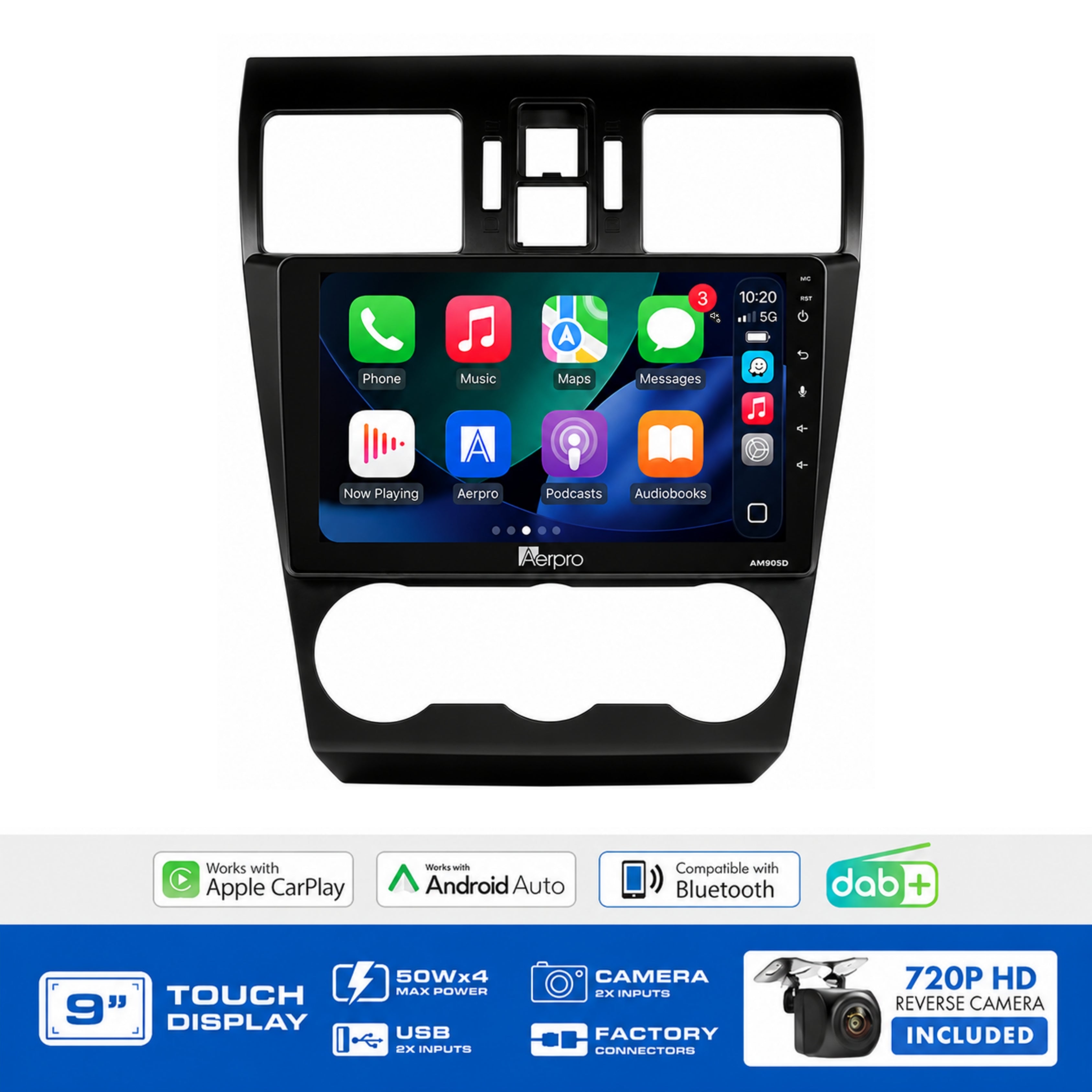

Aerpro AMDSU13 9" Subaru WRX Multimedia Receiver with Navigation

SKU: AMDSU13
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Upgrade Your Subaru WRX with a Premium 9" Multimedia System Built for Modern Driving.

Product Overview

The Aerpro AMDSU13 Head Unit Upgrade Kit is a complete multimedia solution designed specifically for Subaru WRX MY15 (2014–2015) vehicles equipped with factory navigation. Supplied with the AM905D 9-inch multimedia receiver and all required installation components, it delivers a factory-style upgrade while retaining key OEM features.

Enjoy wireless or wired Apple CarPlay and Android Auto, Bluetooth® V5 hands-free calling, DAB+ digital radio, AM/FM tuning, dual USB inputs and premium audio tuning features. The kit retains steering wheel controls, factory USB input, factory reverse camera (displayed in the top MFD), and factory amplifier compatibility where equipped. A universal 720P AHD rear camera is also included to improve reversing visibility and safety.

Key Specifications

  • Designed for Subaru WRX MY15 (2014–2015) with factory navigation
  • Complete plug-and-play multimedia upgrade kit
  • 9-inch capacitive touchscreen display
  • 1024 × 600 HD screen resolution
  • Wireless & wired Apple CarPlay
  • Wireless & wired Android Auto
  • Bluetooth® Version 5 with HD Voice
  • Built-in DAB+ digital radio
  • AM/FM tuner with RDS
  • Maximum output: 4 × 50W
  • 13-band graphic EQ with time alignment
  • 4V 5-channel RCA pre-outs
  • Dual rear USB ports with charging
  • Supports MP3, MP4, MKV, FLAC and Xvid
  • Includes 720P AHD universal reverse camera
  • Retains steering wheel controls
  • Retains factory reverse camera
  • Retains factory USB input
  • Compatible with factory amplified and non-amplified vehicles

Features & Benefits

  • Vehicle-Specific Engineering – Designed specifically for Subaru WRX MY15 (2014–2015) models with factory navigation for seamless integration and OEM-style fitment.
  • Wireless Smartphone Connectivity – Enjoy wireless or wired Apple CarPlay and Android Auto for navigation, calls, music and messaging.
  • Large 9-Inch HD Touchscreen – Responsive capacitive touchscreen with crisp 1024 × 600 resolution for an intuitive user experience.
  • Retains Factory Features – Maintains steering wheel controls, factory USB input, reverse camera display and factory amplifier compatibility where fitted.
  • Built-in DAB+ Radio – Experience crystal-clear digital radio with more station choices alongside AM/FM tuning.
  • Premium Audio Control – Fine-tune your sound with a 13-band graphic equaliser, time alignment and dedicated subwoofer controls.
  • Expandable Audio System – 4V 5-channel RCA outputs make adding amplifiers and subwoofers simple.
  • 720P AHD Reverse Camera Included – Improves rear visibility and parking confidence straight out of the box.
  • Dual Rear USB Inputs – Supports smartphone connectivity, media playback and charging.
  • Customisable Illumination – Six selectable button colours help match your vehicle's interior lighting.

Technical Specs

Specification Details
Vehicle Compatibility Subaru WRX MY15 (2014–2015)
Factory Navigation Required Yes
Screen Size 9"
Screen Resolution 1024 × 600
Touchscreen Capacitive
Operating System Linux
DIN Configuration Fixed Screen Style (Trapezoid)
Maximum Output Power 4 × 50W
Bluetooth Version V5
Bluetooth Profiles A2DP, AVRCP, HFP, PBAP
HD Voice Support HFP 1.6
DAB+ Digital Radio Yes
AM Presets 12
FM Presets 18
FM Frequency 87.5–108.0 MHz
AM Frequency 522–1710 kHz
RDS Yes
USB Ports Dual Rear USB
USB Charging Output 5V / 1.5A
USB File System FAT32 (Up to 32GB)
Apple CarPlay Wireless & Wired
Android Auto Wireless & Wired
Reverse Camera Input 720P AHD Compatible
Second Camera Input 720P AHD Compatible
RCA Pre-Outs 4V, 5-Channel (Front / Rear / Subwoofer)
Equaliser 13-Band Graphic EQ
Preset EQ 6 Presets + 2 Custom
Time Alignment Yes
LED Button Colours Red, Yellow, Green, Blue, Purple, White
Included Rear Camera 720P AHD Universal Surface Mount
Camera Sensor Sony 225 1/3 CMOS AHD
Camera Viewing Angle 150°

Compatible With / Goes Well With

  • Subaru WRX MY15 (2014–2015) with factory navigation
  • Factory amplified vehicles
  • Factory non-amplified vehicles
  • Factory steering wheel controls
  • Factory USB input
  • Factory reverse camera (Top MFD)
  • Aftermarket amplifiers via 4V RCA outputs
  • Additional 720P AHD front or towing camera

Compatibility Note: This kit is only suitable for 2014–2015 Subaru WRX models equipped with factory navigation. Always confirm compatibility using the Aerpro What Fits Your Car Guide before purchasing.

Weight

Not specified.

Frequently Asked Questions

Does this fit my 2014–2015 Subaru WRX?

Yes. This kit is specifically designed for Subaru WRX MY15 (2014–2015) models equipped with factory navigation.

Will my steering wheel controls still work?

Yes. The included steering wheel control interface retains compatible factory steering wheel controls after installation.

Can I use Apple CarPlay and Android Auto wirelessly?

Yes. Both Apple CarPlay and Android Auto support wireless and wired operation on the included AM905D multimedia receiver.

Does the kit retain my factory reverse camera?

Yes. The factory reverse camera is retained and displayed through the vehicle's top MFD, and a 720P AHD rear camera is also included.

Do I need to connect the park brake wire?

Yes. The park brake wire must be connected correctly for Apple CarPlay and Android Auto to operate as specified by Aerpro.
