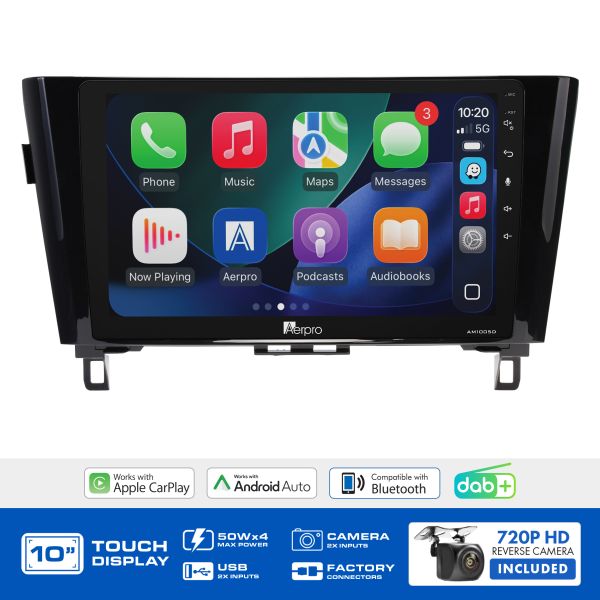

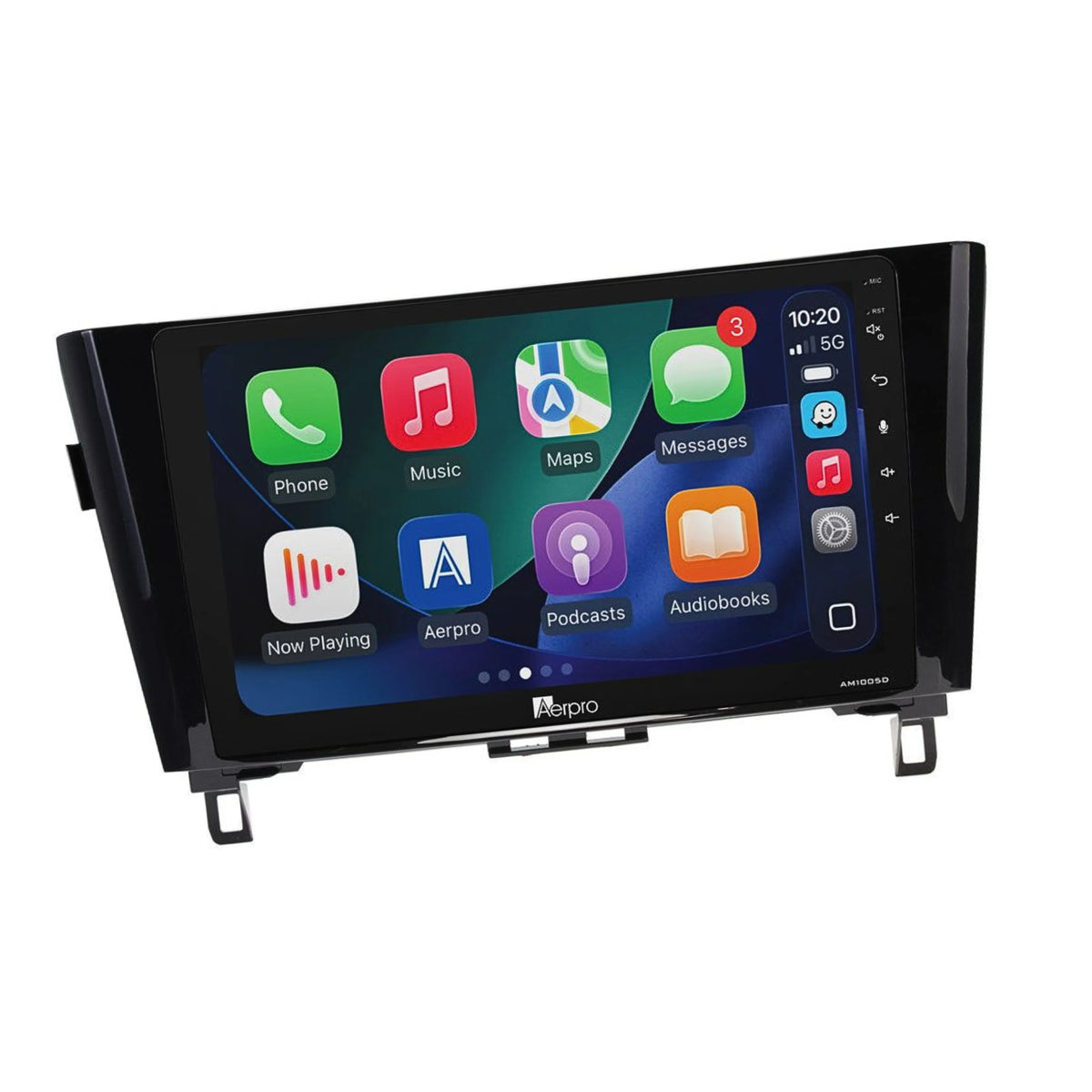

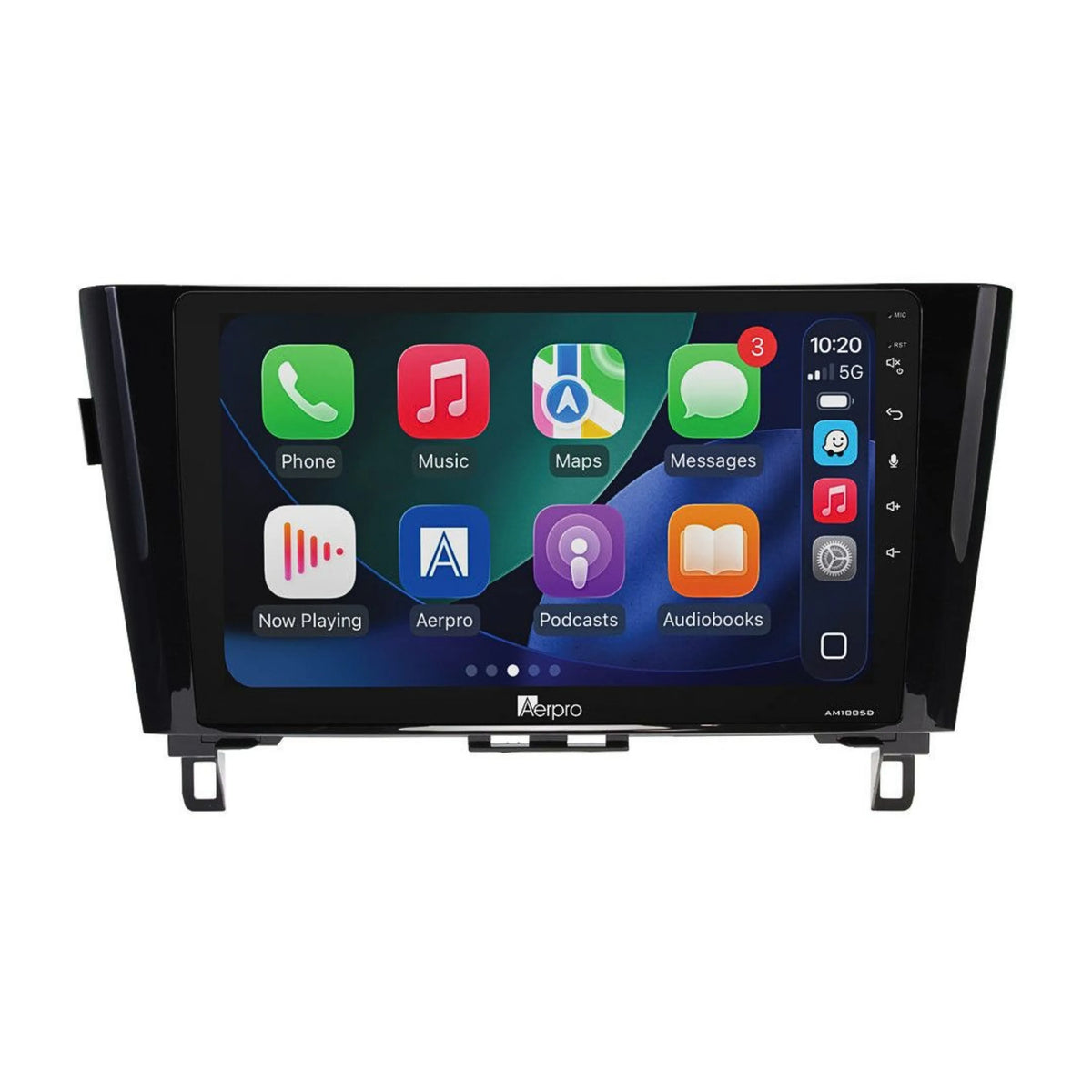

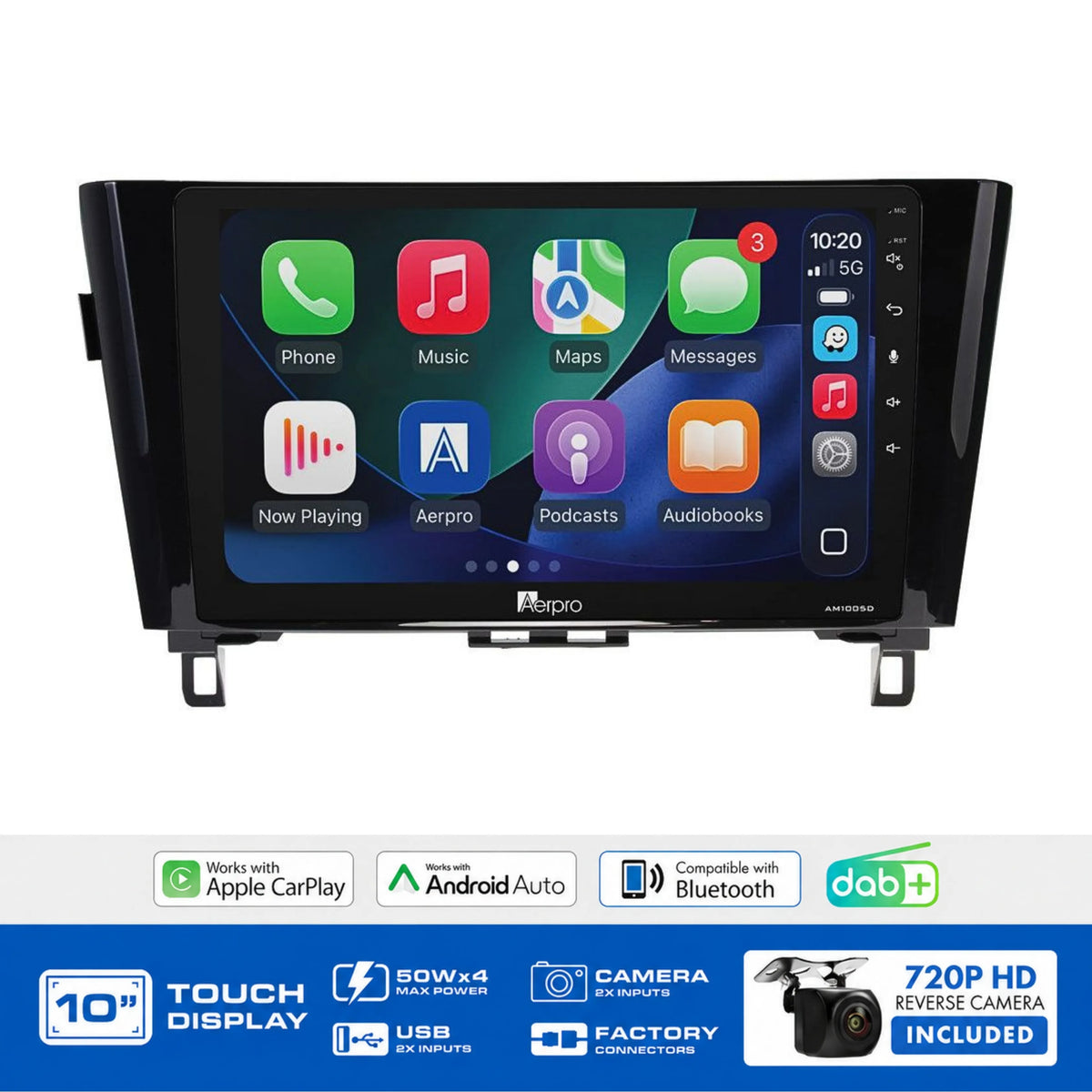

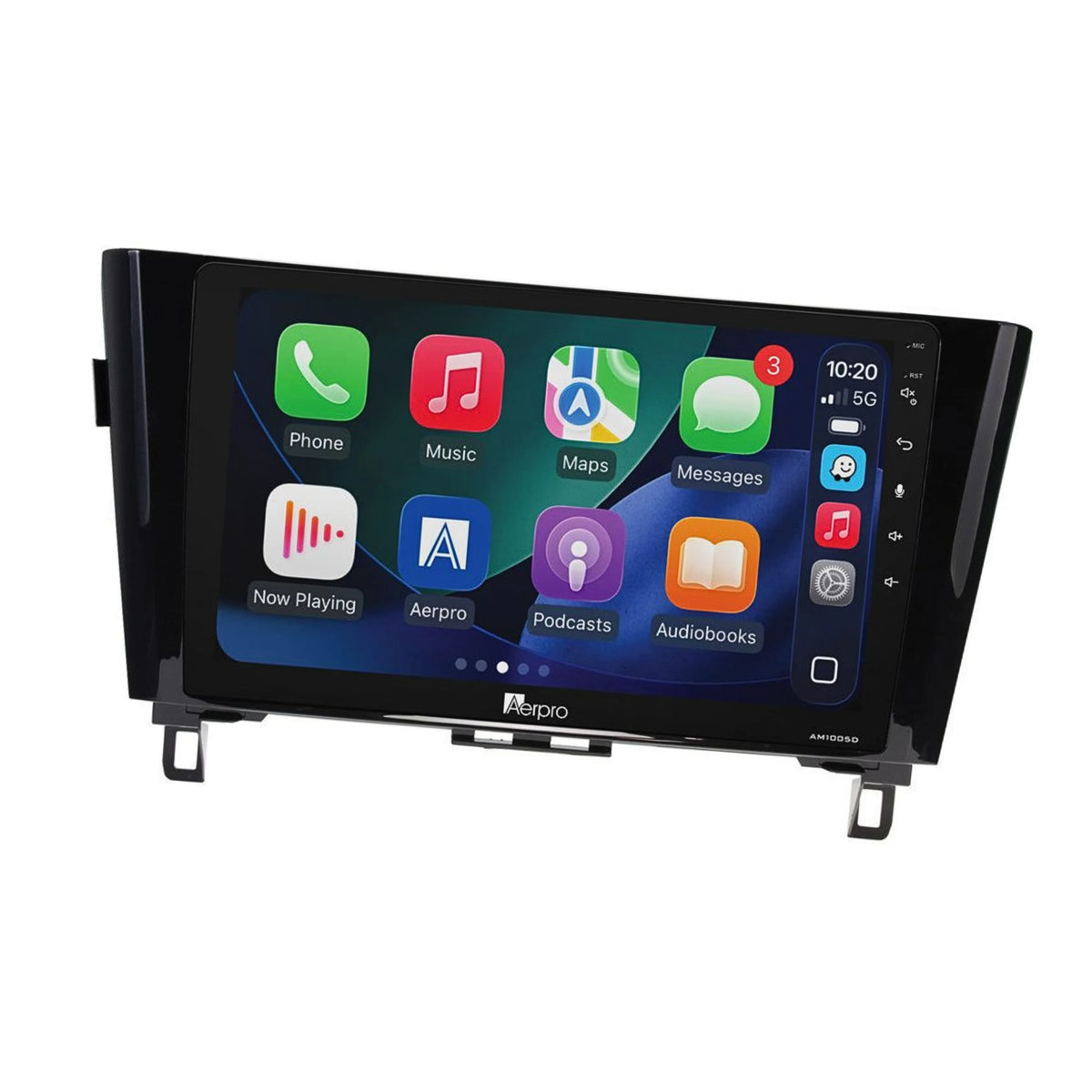

Aerpro AMDNI17 Nissan Qashqai X-Trail 2021 10" Head Unit CarPlay 360 Camera Nav

Complete 10" Head Unit Upgrade Kit for Nissan Qashqai 2021 & X-Trail T32 2021 to 2022 (Factory Navigation & 360° Camera, Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, SWC Phone Button, USB, AUX, 360° Camera & Clock Settings Retained, Rear Camera Included.

Product Overview

The Aerpro AMDNI17 is a complete head unit upgrade kit specifically designed for the Nissan Qashqai (2021 onwards) and X-Trail T32 (2021 onwards) non-amplified models with factory navigation and 360° camera system. This kit uses the AM1005D 10" multimedia receiver larger than the 9" AM905D used in other kits and retains SWC (including phone button), USB, AUX, the full factory 360° camera system with switchable viewing modes, and clock settings via the vehicle menu.

Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with camera, AUX & USB retention), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Important: Suits non-amplified vehicles only. Factory Bose amplified systems require the APP7220 Amp Retention Harness (sold separately). Intelligent Park Assist is not retained. 360° camera retention uses the reverse camera input of the head unit. USB retention uses the rear USB input. AUX retention uses the RCA AUX input on the rear of the head unit.

Kit Inclusions

• AM1005D 10" Multimedia Receiver
• Gloss Black Fascia Kit
• Steering Wheel Control Interface Harness (with camera, AUX & USB retention)
• SWC Patch Lead
• Antenna Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 10" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• 10" touchscreen: Larger AM1005D 10" display compared to the 9" AM905D used in other kits more screen real estate for maps, media, and menus
• Factory 360° camera system retained: Full factory 360° camera system retained with switchable camera viewing modes via a factory-style button
• Switchable camera viewing modes: Factory-style button allows switching between camera views rear, front, left, right
• Steering wheel controls retained including phone button: Full SWC retained via the included harness and patch lead
• USB and AUX inputs retained: Both retained USB uses rear USB input; AUX uses RCA AUX input on head unit
• Clock settings retained: Vehicle menu clock settings accessible via the aftermarket head unit
• Bose amplifier compatible: Bose amplified models supported with the APP7220 Amp Retention Harness (sold separately)
• Intelligent Park Assist not retained: Confirm this suits your requirements before purchasing
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• 720P AHD rear camera included: Additional rear camera additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Compatible Vehicles

• Nissan Qashqai 2021 onwards (factory navigation & 360° camera, non-amplified)
• Nissan X-Trail T32 2021 onwards (factory navigation & 360° camera, non-amplified)

FAQ

What vehicles does the Aerpro AMDNI17 suit?

The Aerpro AMDNI17 suits the Nissan Qashqai (2021 onwards) and X-Trail T32 (2021 onwards) non-amplified models with factory navigation and 360° camera system.

Does this kit work with the factory Bose amplified system?

Not without an additional harness. Factory Bose amplified systems require the APP7220 Amp Retention Harness, sold separately. This kit suits non-amplified models without the APP7220.

Does this retain the factory 360° camera system?

Yes, the factory 360° camera system is retained with switchable camera viewing modes via a factory-style button. 360° camera retention uses the reverse camera input of the head unit.

Is Intelligent Park Assist retained?

No, this product does not retain any features involving Intelligent Park Assist.

Does this retain clock settings?

Yes clock settings are accessible via the vehicle menu on the aftermarket head unit.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
