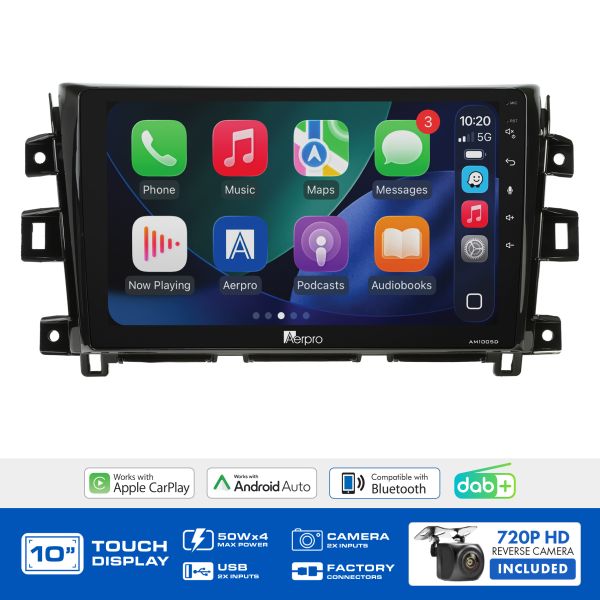

Aerpro AMDNI14 10" Multimedia Receiver Nissan Navara Nav 2019

10" Wireless CarPlay for the Factory Navigation Navara SWC, Camera, USB and AUX All Retained via Single All-in-One Harness

Product Overview

The Aerpro AMDNI14 is a complete head unit upgrade kit for the Nissan Navara D23 (2019–2023) fitted with a factory navigation system. It replaces the factory navigation head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls (including the phone button), factory reverse camera (if equipped), factory USB input, factory AUX input, and partial vehicle menu access (clock settings).

All factory feature retention camera, AUX, and USB is handled through a single specialised SWC Interface Harness with Camera, AUX & USB Retention built in, with no separate adaptors required. An antenna adaptor is also included for a complete installation.

Features & Benefits

• Factory navigation models only — specifically designed for the Navara D23 fitted with the factory navigation system; non-navigation variants require a different kit
• All-in-one SWC interface harness — camera, AUX, and USB retention are all integrated into a single harness; no separate camera retention adaptor or USB retention adaptor required
• SWC retained including phone button — all factory Navara steering wheel controls carry over via the specialised harness
• Factory reverse camera retained (if equipped) — connected via the head unit's reverse camera input through the all-in-one harness
• Factory USB input retained — connected via the rear USB input on the head unit through the all-in-one harness
• Factory AUX input retained — connected via the RCA AUX input on the rear of the head unit through the all-in-one harness
• Vehicle menu retained — clock settings only — partial vehicle menu access is preserved after installation, limited to clock settings; the factory navigation system itself does not carry over
• Intelligent Park Assist not retained — if your Navara is equipped with Intelligent Park Assist, this function will not be available after installation
• Gloss black vehicle-specific facia kit — matched to the 2019–2023 Navara D23 interior; antenna adaptor included for a complete installation
• 10" capacitive touchscreen at 1024x600 resolution — a large upgrade display for the navigation-equipped Navara cabin
• Wireless Apple CarPlay & Android Auto — replaces the factory navigation with real-time mapping via Google Maps, Apple Maps, or Waze; connect over Wi-Fi or via wired USB
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; supplements or replaces factory camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels

Technical Specs

Compatible With / Goes Well With

• Nissan Navara D23 (2019–2023) — factory navigation models only
• Not compatible with Navara D23 variants without factory navigation — use the Aerpro What Fits Your Car Guide to find the correct kit for non-navigation variants
• Supplier metadata references D23 coverage up to 2025 — confirm fitment for model years beyond 2023 using the Aerpro What Fits Your Car Guide
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDNI14 differ from the AMDNI12?

The AMDNI12 suits the earlier Navara DX and RX variants (2015–2020) and retains SWC and USB only. The AMDNI14 suits the later factory navigation models (2019–2023) and retains SWC, reverse camera, USB, AUX, and partial vehicle menu (clock settings) — all via a single all-in-one harness with no separate adaptors required.

What does "vehicle menu — clock settings only" mean in practice?

The factory navigation head unit in the D23 Navara has a vehicle settings menu that includes clock synchronisation and other functions. After installing the AMDNI14, only the clock settings portion of this menu remains accessible through the new head unit. Other vehicle menu functions are not retained.

What is Intelligent Park Assist and why isn't it retained?

Intelligent Park Assist (IPA) is Nissan's automatic parking assistance system, available on some D23 Navara variants. It uses sensors and the factory head unit interface to guide the vehicle into parking spaces. This function is tied to the factory navigation system in a way that cannot be mapped to the aftermarket head unit, so it will not operate after installation.

Does the factory navigation system itself carry over?

No — the factory navigation maps and system are part of the original head unit and are not transferred. The AMDNI14 replaces them with wireless Apple CarPlay and Android Auto, which give access to Google Maps, Apple Maps, and Waze with live traffic and real-time updates.

Is the factory reverse camera definitely retained?

Yes, where equipped — the reverse camera signal is fed through the all-in-one SWC harness and connects to the head unit's reverse camera input. Not all navigation-spec Navara D23 variants are factory-equipped with a reverse camera, so the "if equipped" qualifier applies.
