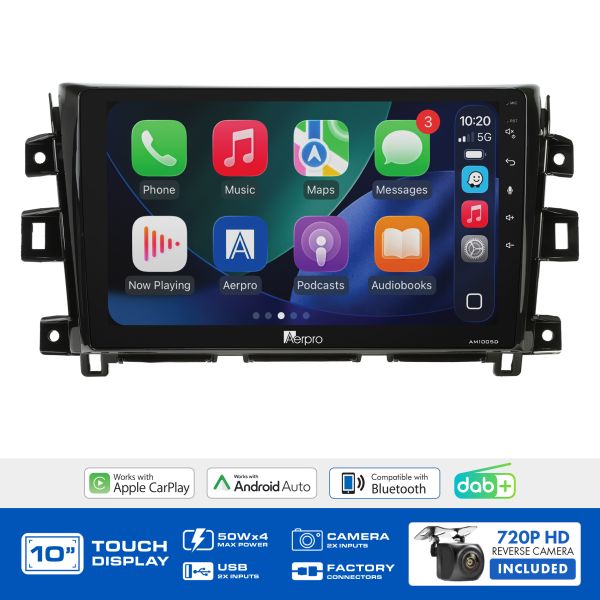

Aerpro AMDNI12 10" Multimedia Receiver Nissan Navara 2015-20

SKU: AMDNI12
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

10" Wireless CarPlay for the Nissan Navara DX and RX SWC and Factory USB Retained

Product Overview

The Aerpro AMDNI12 is a complete head unit upgrade kit for the Nissan Navara D23 DX and RX variants (2015–2020). It replaces the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls (including the phone button) and the factory USB input.

The kit includes the AM1005D multimedia receiver, gloss black facia kit, SWC interface harness (which also integrates camera and USB retention capability), SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera. The DX and RX Navara variants do not have factory reverse cameras, so camera retention is not applicable for this kit.

Features & Benefits

  • 10" capacitive touchscreen at 1024x600 resolution — significantly larger than the standard 9" display; the AM1005D gives the Navara DX/RX cabin a wide, responsive screen for navigation, media, and connectivity
  • SWC retained including phone button — the SWC interface harness and patch lead carry over all factory Navara steering wheel controls including the phone button
  • Factory USB input retained — the USB retention adaptor preserves the factory USB port via the head unit's rear USB input
  • Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
  • Gloss black vehicle-specific facia kit — matched to the Navara D23 DX/RX interior trim; antenna adaptor included for a complete installation
  • DX and RX variants only — this kit is specified for the Navara DX and RX trim levels; other variants may require different kits
  • Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the DX/RX Navara which does not have a factory reverse camera
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Specification Detail
Display size 10"
Head unit model AM1005D
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes (including phone button)
Factory USB input Yes — via USB retention adaptor
Factory reverse camera N/A — DX/RX not factory equipped
Factory AUX input N/A
Parking tones N/A
Vehicle menu N/A
Factory amplifier N/A
Park brake requirement Park brake wire must be connected for CarPlay/Android Auto

Compatible With / Goes Well With

  • Nissan Navara D23 DX (2015–2020)
  • Nissan Navara D23 RX (2015–2020)
  • Not confirmed for Navara ST, ST-X, and Pro-4X variants — use the Aerpro What Fits Your Car Guide to identify the correct kit for other trim levels
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Do the Navara DX and RX have a factory reverse camera?

No — the DX and RX are the base and mid-entry trim levels of the D23 Navara and are not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.

What factory USB input is retained and how?

The factory USB port in the Navara DX/RX is retained via the included USB retention adaptor, which connects to the rear USB input on the head unit. This preserves the factory USB connection point in the cabin after the head unit swap.

Is this a 9" or 10" screen?

10" — the AMDNI12 uses the AM1005D with a 10" capacitive touchscreen, which is larger than the standard 9" AM905D units used in most other Aerpro vehicle-specific kits.

Does this suit the Navara ST, ST-X, or Pro-4X?

This kit is specified for the DX and RX trim levels. Higher-specification Navara variants (ST, ST-X, Pro-4X) may have different factory equipment including reverse cameras and amplified audio that require different kits. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific variant.

Why is the park brake wire required?

The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate.
