Aerpro AMDMZ7 9" Multimedia Receiver Mazda 2 DE 2007-2014 SWC

SKU: AMDMZ7
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9" Wireless CarPlay for the Mazda 2 DE SWC Models Only, Clean Factory Fit, AUX Not Retained

Product Overview

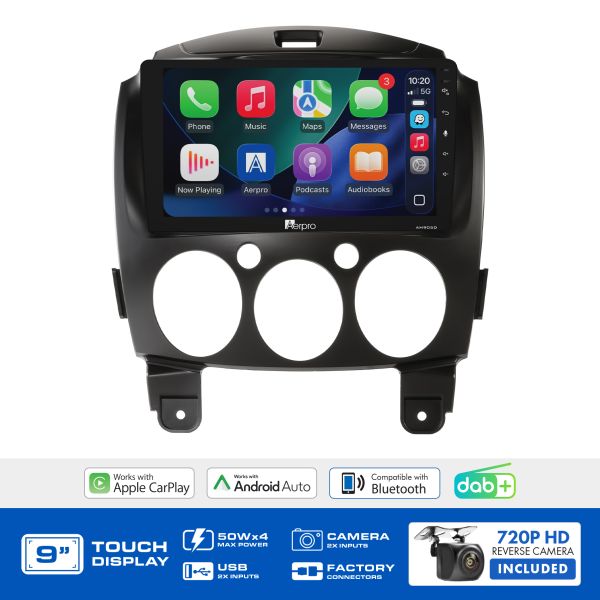

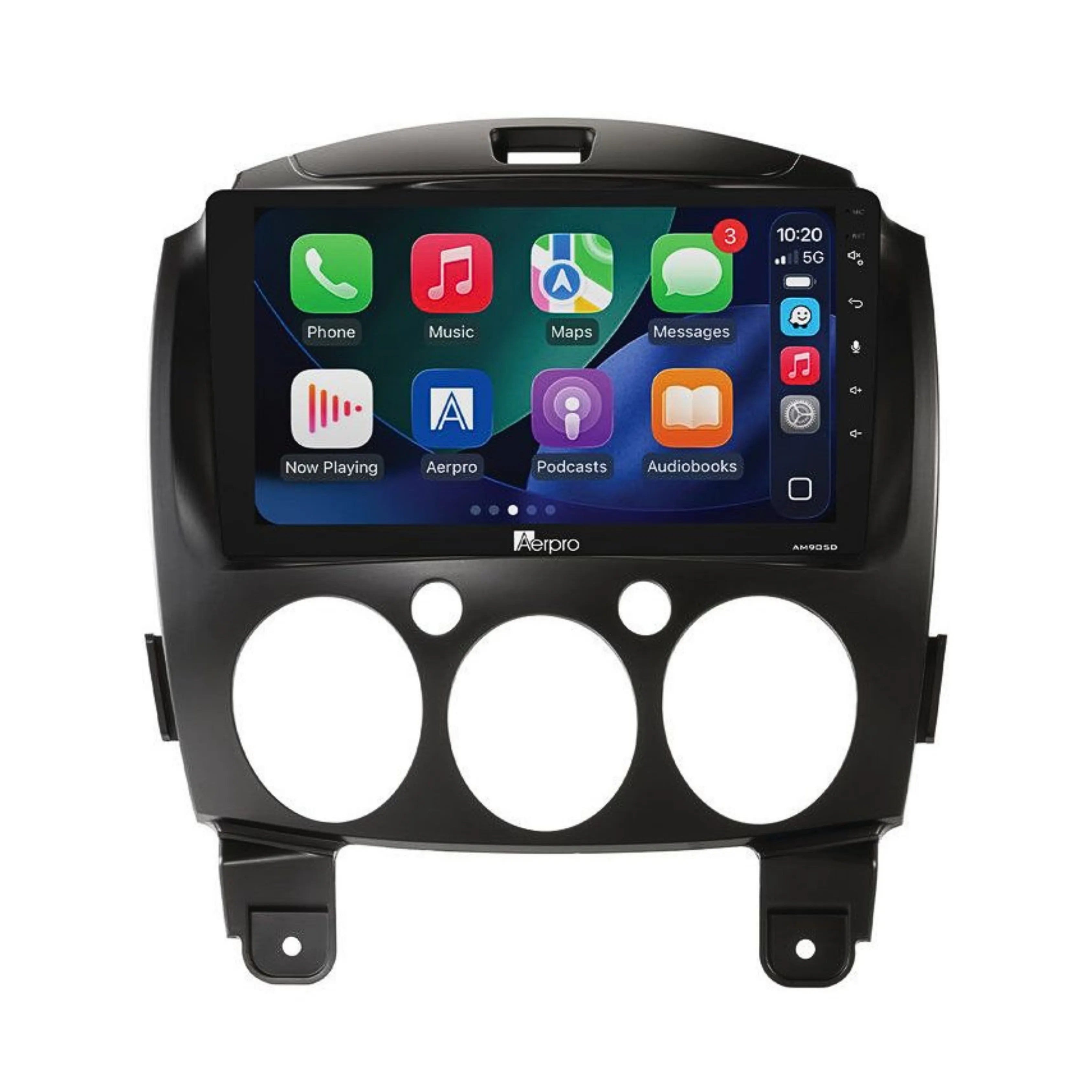

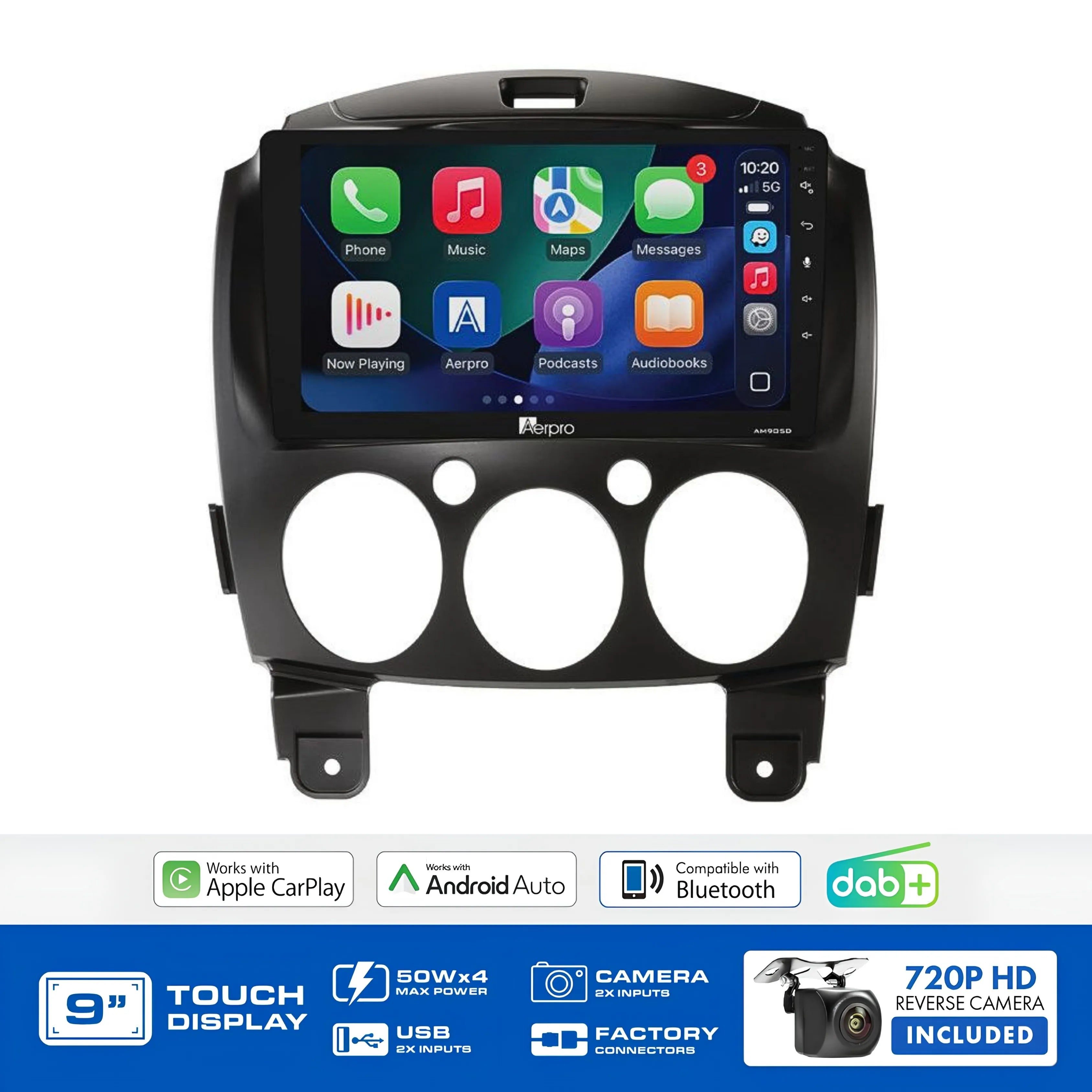

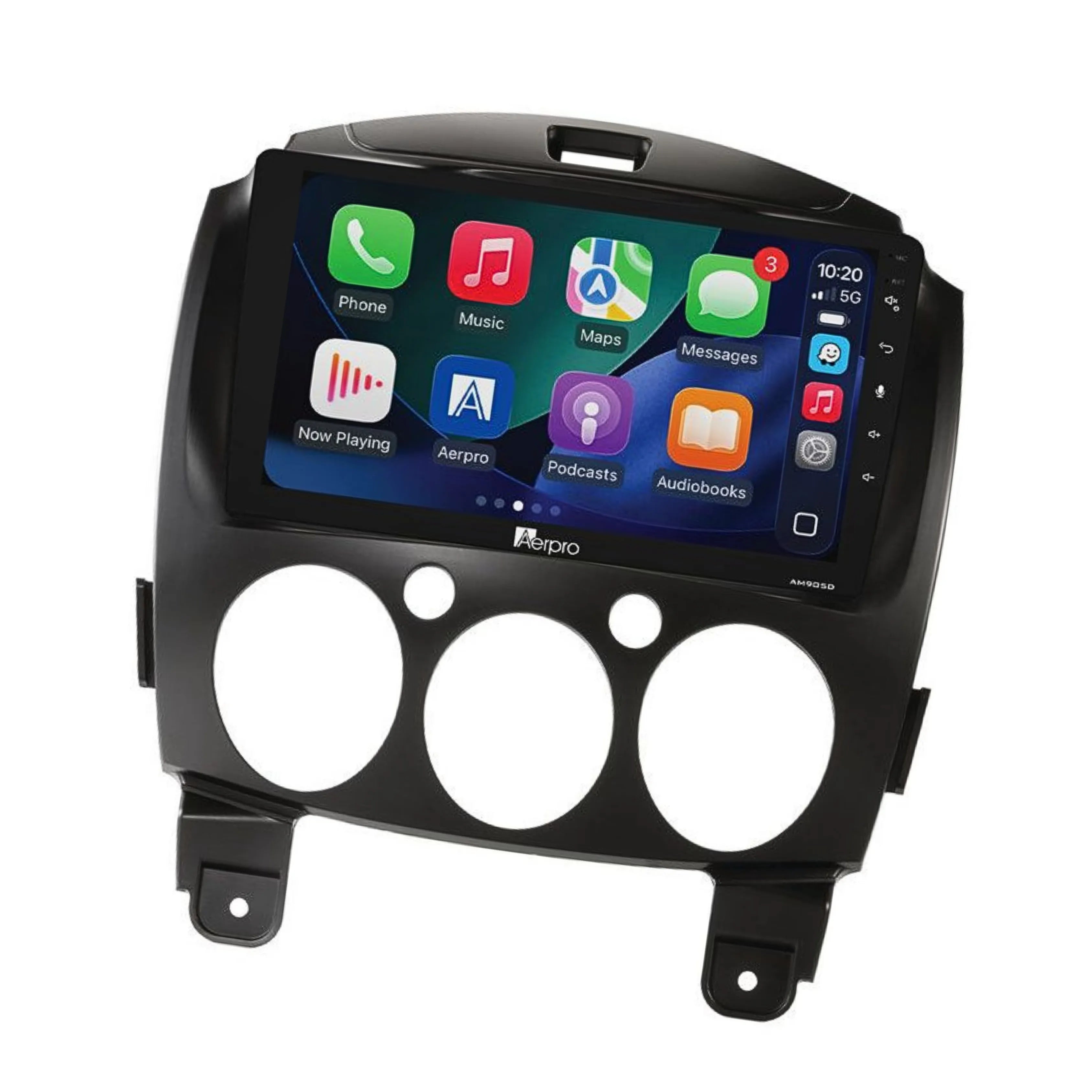

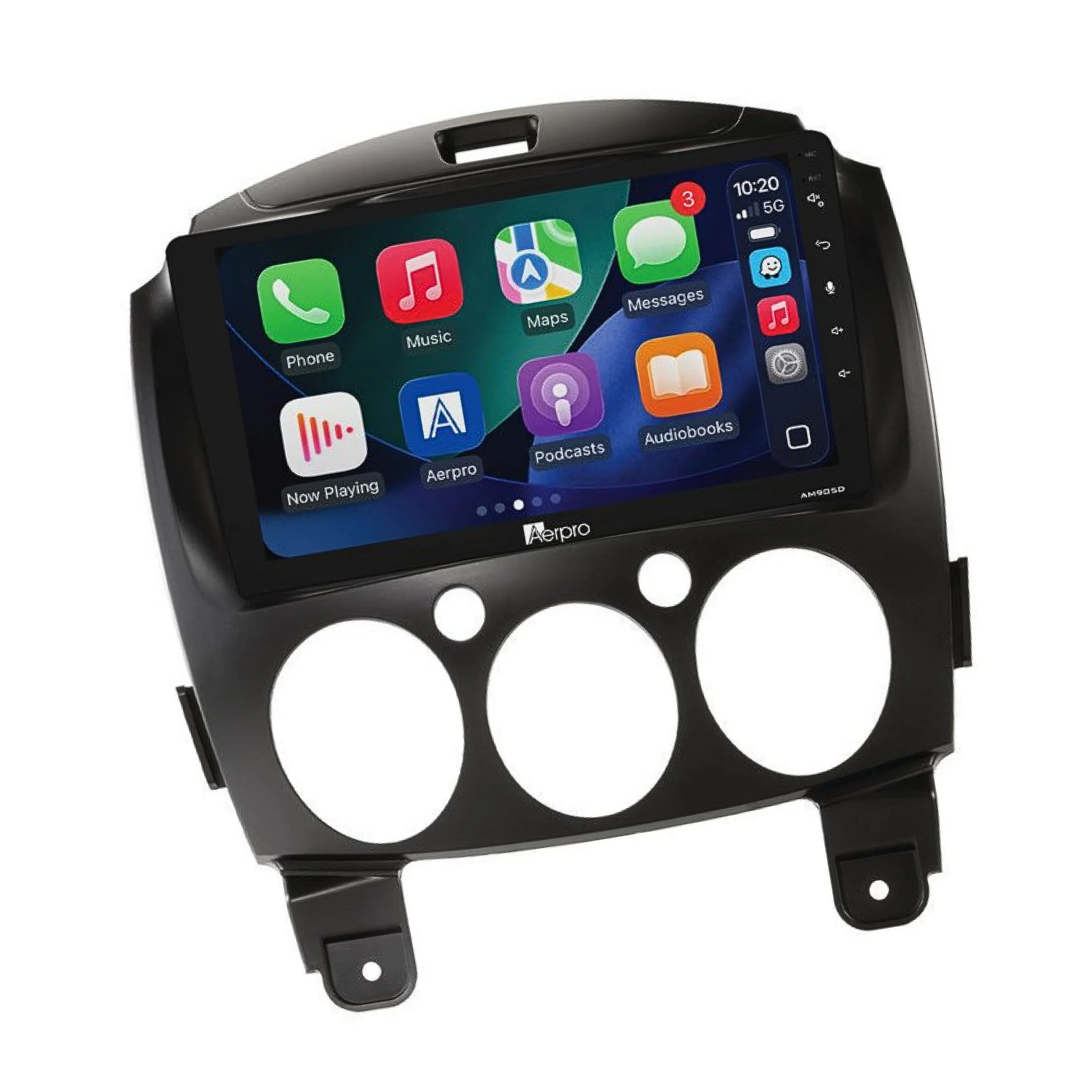

The Aerpro AMDMZ7 is a complete head unit upgrade kit for the Mazda 2 DE Series 1 and Series 2 (2007–2014) fitted with factory steering wheel controls. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining the factory SWC functionality.

The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that factory AUX input is not retained on this kit where the Mazda 2 DE is equipped with an AUX port, it will not carry over after installation.

Features & Benefits

  • SWC-equipped models only — the AMDMZ7 is designed for Mazda 2 DE variants with factory steering wheel controls; the SWC interface harness and patch lead carry over all factory SWC functions after installation
  • Factory AUX input not retained — where the Mazda 2 DE is fitted with a factory AUX port, it will not be retained after installation; CarPlay, Android Auto, and Bluetooth Audio replace the AUX input function
  • Wireless Apple CarPlay & Android Auto — a significant upgrade for a compact city car that predates smartphone integration; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported
  • 9" capacitive touchscreen at 1024x600 resolution — a large, responsive touch display in a compact vehicle; maps, media, and settings all accessible through a single screen
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • Black vehicle-specific facia kit — matched to the Mazda 2 DE interior trim for a clean, factory-finish installation
  • Antenna adaptor included — ensures correct connection between the head unit and the Mazda 2 DE factory antenna
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle without factory reverse camera capability
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes
Factory AUX input No
Factory reverse camera N/A
Factory USB input N/A
Vehicle menu N/A
Factory amplifier N/A
Dash modification Not required
Park brake requirement Not required

Compatible With / Goes Well With

  • Mazda 2 DE Series 1 (2007–2010) with factory steering wheel controls
  • Mazda 2 DE Series 2 (2010–2014) with factory steering wheel controls
  • Not compatible with Mazda 2 DE variants without factory steering wheel controls — a different kit is required
  • Not compatible with Mazda 2 DJ (2014–2022) — a different platform requiring a different kit
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How do I know if my Mazda 2 DE has steering wheel controls?

Mazda 2 DE models with SWC have buttons mounted on the steering wheel for controlling audio volume, track selection, and phone calls. If your steering wheel has no such buttons, your vehicle does not have SWC and this kit is not suitable.

Is the factory AUX input retained after installation?

No — the factory AUX input is not retained on the AMDMZ7, even on DE variants that have one fitted. CarPlay, Android Auto, and Bluetooth Audio via the head unit replace the AUX function.

Does this suit Mazda 2 DE variants without steering wheel controls?

No — the AMDMZ7 is designed for SWC-equipped DE variants only. DE models without SWC require a different kit. Use the Aerpro What Fits Your Car Guide to find the correct option.

Does this suit the Mazda 2 DJ (2014-2022)?

No — the AMDMZ7 covers the DE generation (2007–2014) only. The DJ is a different platform and requires a different kit.

Is there a difference in fitment between DE Series 1 and Series 2?

Both Series 1 (2007–2010) and Series 2 (2010–2014) are covered by the AMDMZ7 where SWC is fitted. There are no known fitment differences between the two series for this kit, but confirming with the Aerpro What Fits Your Car Guide for your specific build is always recommended.
