Aerpro AMDMZ6 9" Multimedia Receiver Mazda 3 BK 2004-2009 Kit

9" Wireless CarPlay Upgrade for the Original Mazda 3 BK Silver Facia, SWC Retained, Non-Amplified

Product Overview

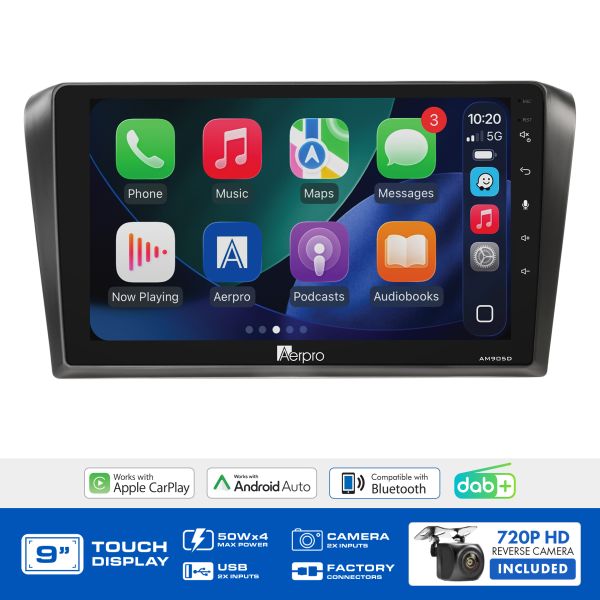

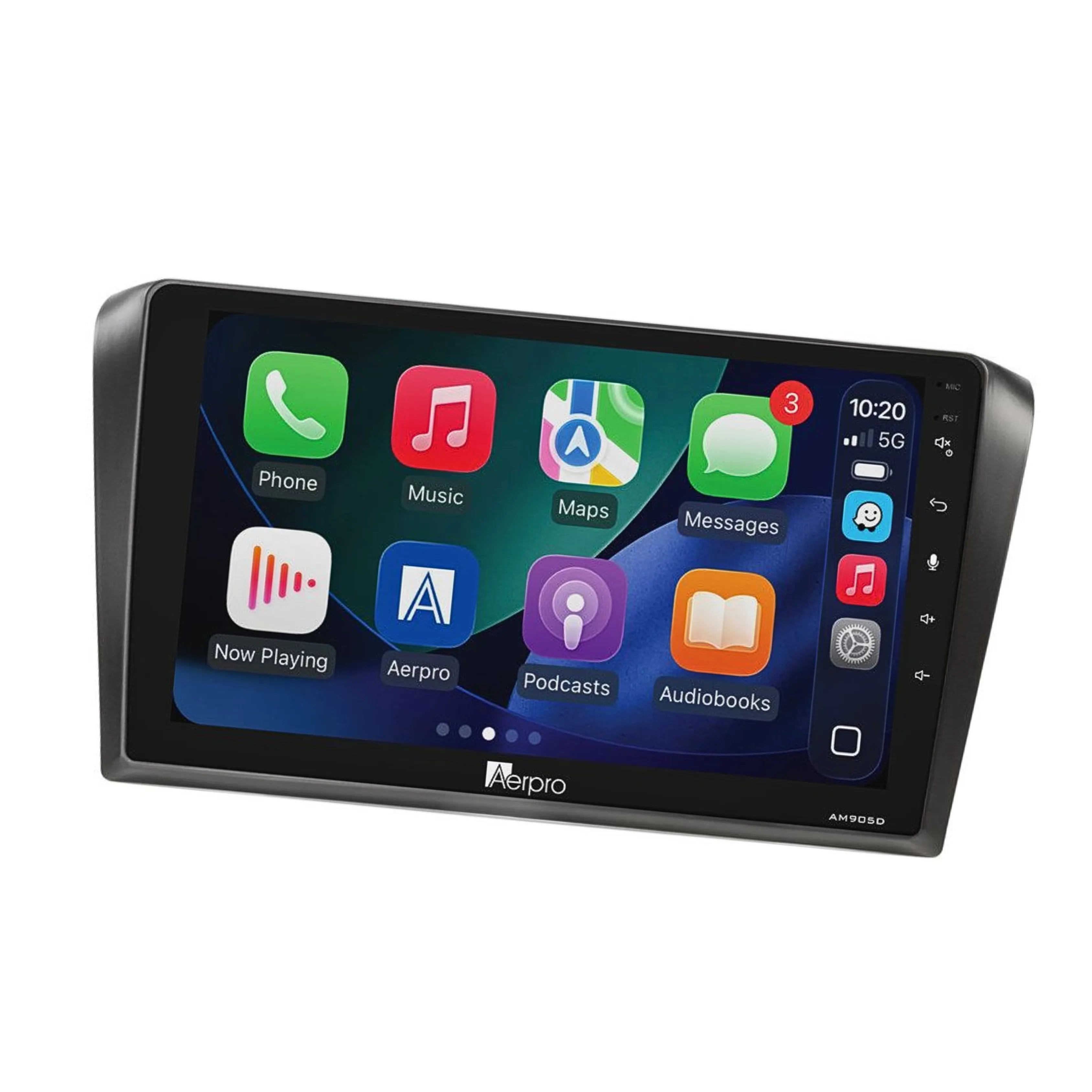

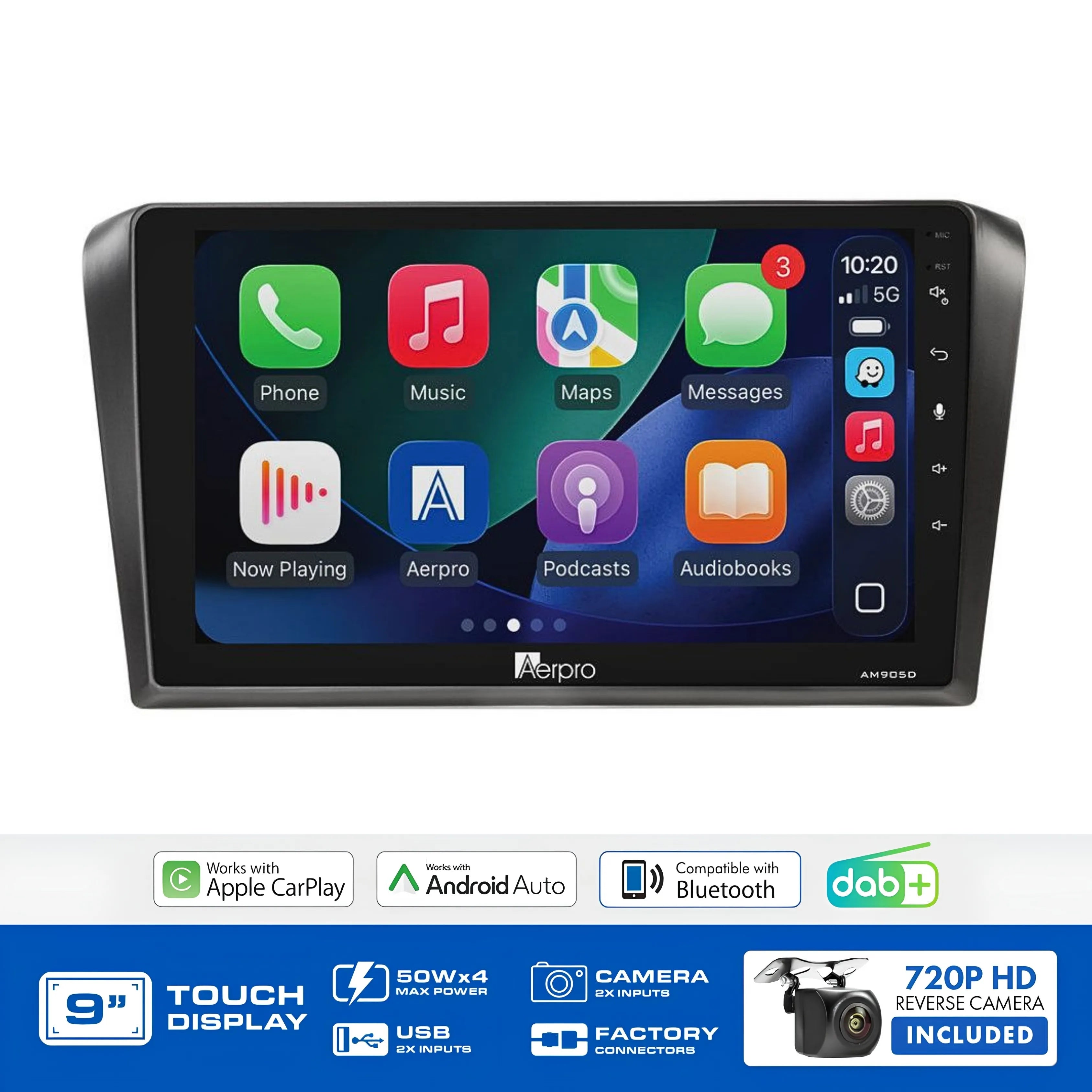

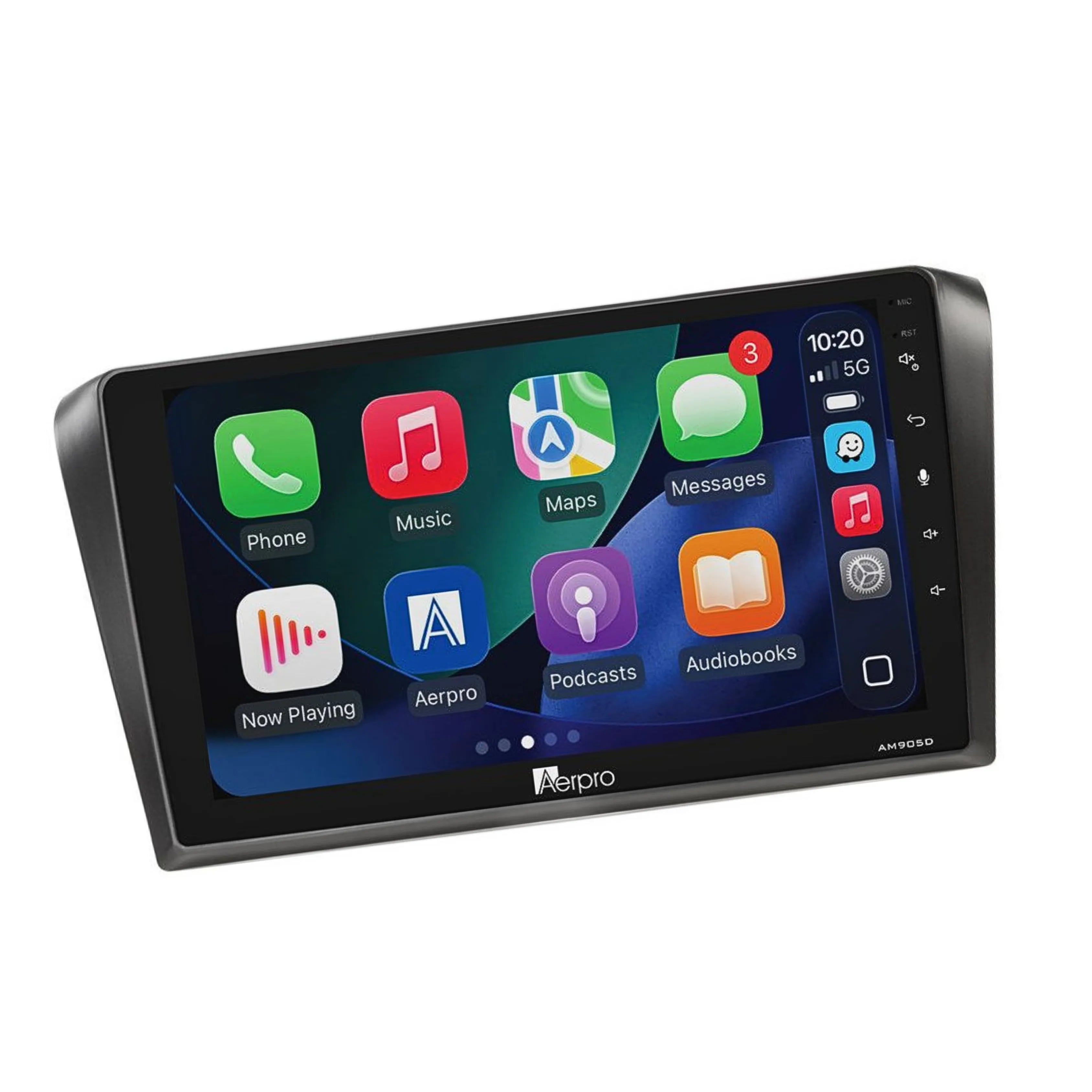

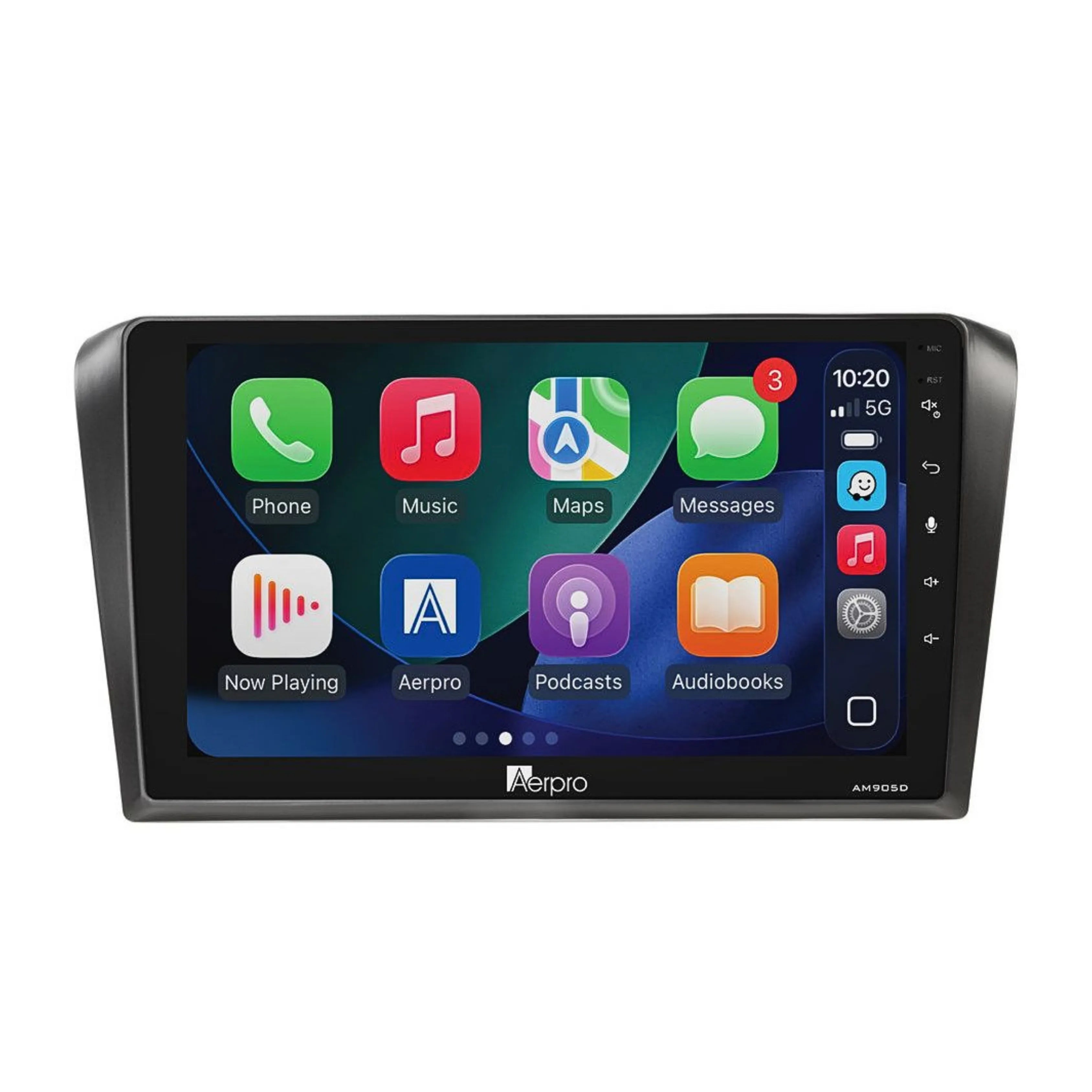

The Aerpro AMDMZ6 is a complete head unit upgrade kit for the Mazda 3 BK (2004–2009) in non-amplified specification. The first-generation Mazda 3 platform gets a significant jump in connectivity with this kit replacing the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5, while retaining factory steering wheel controls.

The kit is distinguished by its silver facia matching the BK's interior trim rather than the black facia used on the later BL kits along with the SWC interface harness, SWC patch lead, and a 720P AHD universal rear camera. Note that no antenna adaptor is included in this kit, as the Mazda 3 BK uses a factory antenna connection that does not require one. Factory reverse camera, USB input, AUX input, and vehicle menu access are not applicable or retained on this kit.

Features & Benefits

• Silver vehicle-specific facia kit — matched to the first-generation Mazda 3 BK interior trim; the silver finish distinguishes this kit from the black facia used on the later BL (AMDMZ4/AMDMZ5) kits
• SWC retained — the SWC interface harness and patch lead carry over all factory steering wheel control functions; phone button support is not explicitly excluded by the supplier data for this variant
• Non-amplified models only — factory-amplified Mazda 3 BK variants are not compatible with this kit
• No antenna adaptor required — the Mazda 3 BK factory antenna connection does not require an adaptor; this kit does not include one and none is needed
• Wireless Apple CarPlay & Android Auto — a major connectivity upgrade for a vehicle that predates smartphone integration; connect over Wi-Fi for maps, music, calls, and messages without cables; wired USB also supported
• 9" capacitive touchscreen at 1024x600 resolution — a substantial display upgrade over the original factory BK head unit with full touch control across navigation, media, and settings
• Built-in DAB+ digital radio — digital audio quality and expanded station access that the factory BK radio cannot offer; AM/FM with RDS, 18 FM and 12 AM presets also included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a reverse camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for BK cabin-specific tuning

Technical Specs

Compatible With / Goes Well With

• Mazda 3 BK (2004–2009) — non-amplified variants only
• Not compatible with factory-amplified Mazda 3 BK variants
• Not compatible with Mazda 3 BL (2009–2013) — use AMDMZ4 (non-amplified) or AMDMZ5 (Bose amplified) for those models
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDMZ6 differ from the AMDMZ4 for the Mazda 3 BL?

The AMDMZ6 suits the older BK generation (2004–2009) while the AMDMZ4 suits the BL (2009–2013). Key differences: the AMDMZ6 uses a silver facia (the AMDMZ4 uses black), does not include an antenna adaptor, and does not retain the vehicle menu. The BL-specific kits are not interchangeable with the BK platform.

Is the phone button on the steering wheel retained?

The supplier specification for this kit states SWC is retained without explicitly excluding the phone button — unlike the AMDMZ4 and AMDMZ5 kits which specifically note the phone button is not supported. Whether the BK's phone button is functional after installation should be confirmed using the Aerpro What Fits Your Car Guide or by checking with Aerpro directly.

How do I know if my Mazda 3 BK is non-amplified?

A non-amplified BK runs all speaker wiring directly from the factory head unit with no separate amplifier unit mounted elsewhere in the vehicle. If your BK has a separate amplifier (typically under a seat or in the boot) with its own speaker wiring, it is an amplified variant and requires a different kit.

Why is no antenna adaptor included in this kit?

The Mazda 3 BK uses a factory antenna connection type that is compatible with the AM905D head unit directly, without requiring an adaptor. This differs from later Mazda 3 BL kits (AMDMZ4/AMDMZ5) which include an antenna adaptor for that platform's connection type.

Does the Mazda 3 BK have a factory reverse camera?

No — the Mazda 3 BK is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
