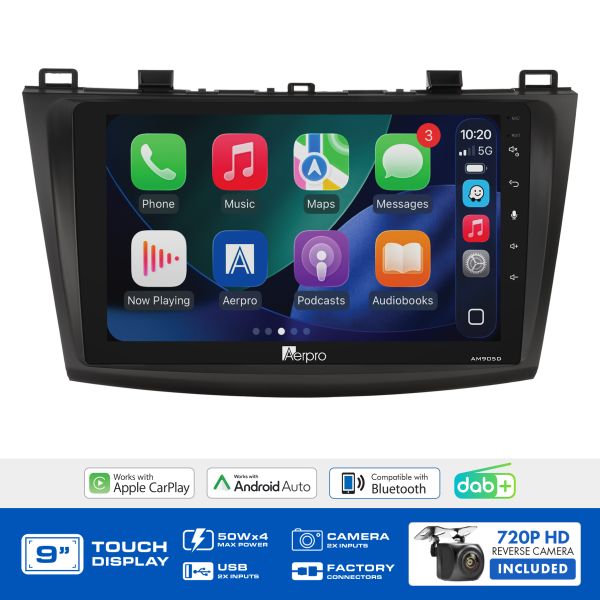

Aerpro AMDMZ5 9" Multimedia Receiver Mazda 3 BL Bose 2009-13

9" Wireless CarPlay for the Bose-Equipped Mazda 3 BL Factory Bose Amplifier Retained, SWC Carried Over

Product Overview

The Aerpro AMDMZ5 is the Bose-amplified counterpart to the AMDMZ4, designed specifically for the Mazda 3 BL (2009–2013) fitted with the factory Bose amplified audio system. Where the AMDMZ4 suits non-amplified variants, the AMDMZ5 is the correct kit for BL owners with Bose retaining the factory Bose amplifier and its speaker outputs after the head unit swap. Using the non-amplified AMDMZ4 on a Bose-equipped BL would result in loss of sound through the Bose speakers; the AMDMZ5 resolves this.

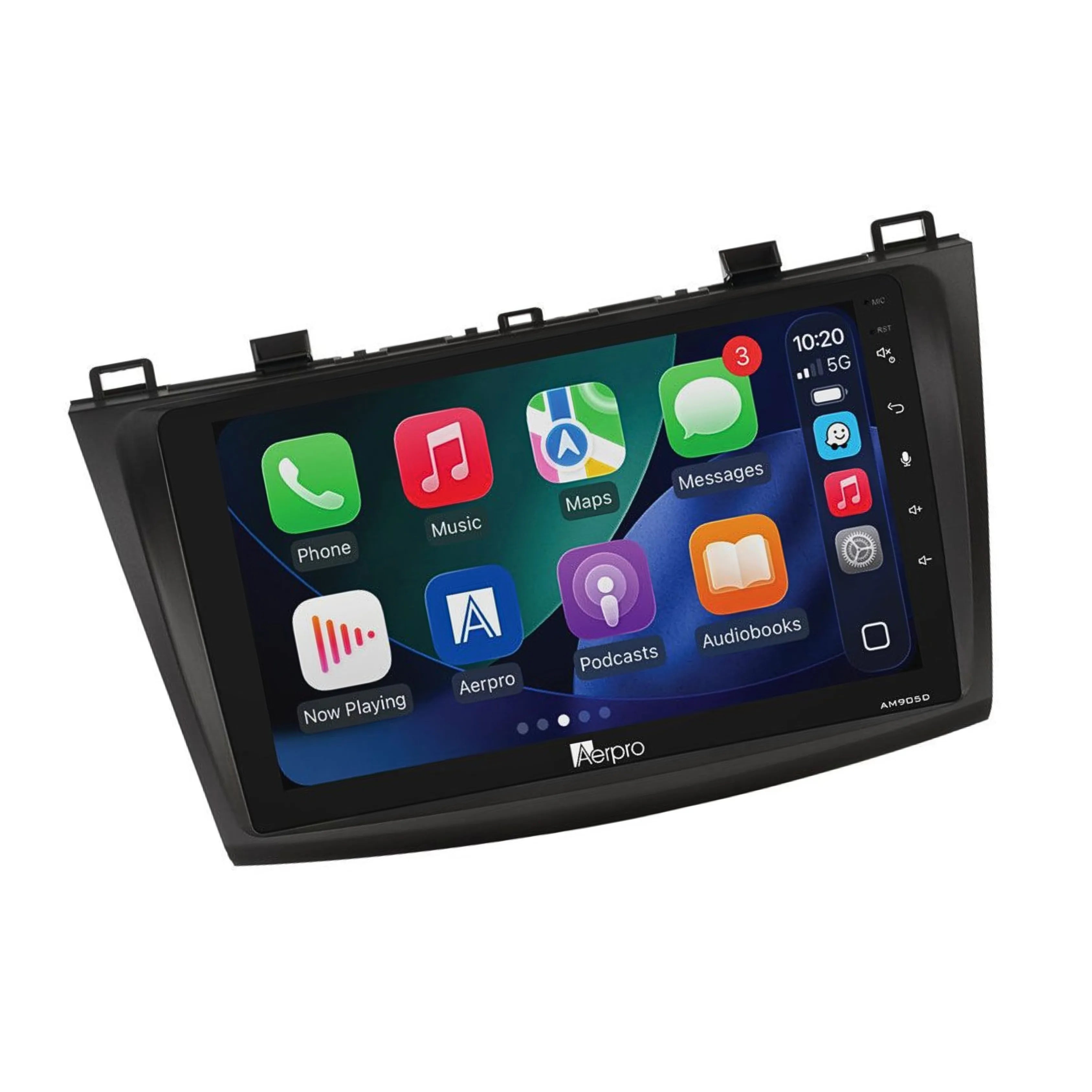

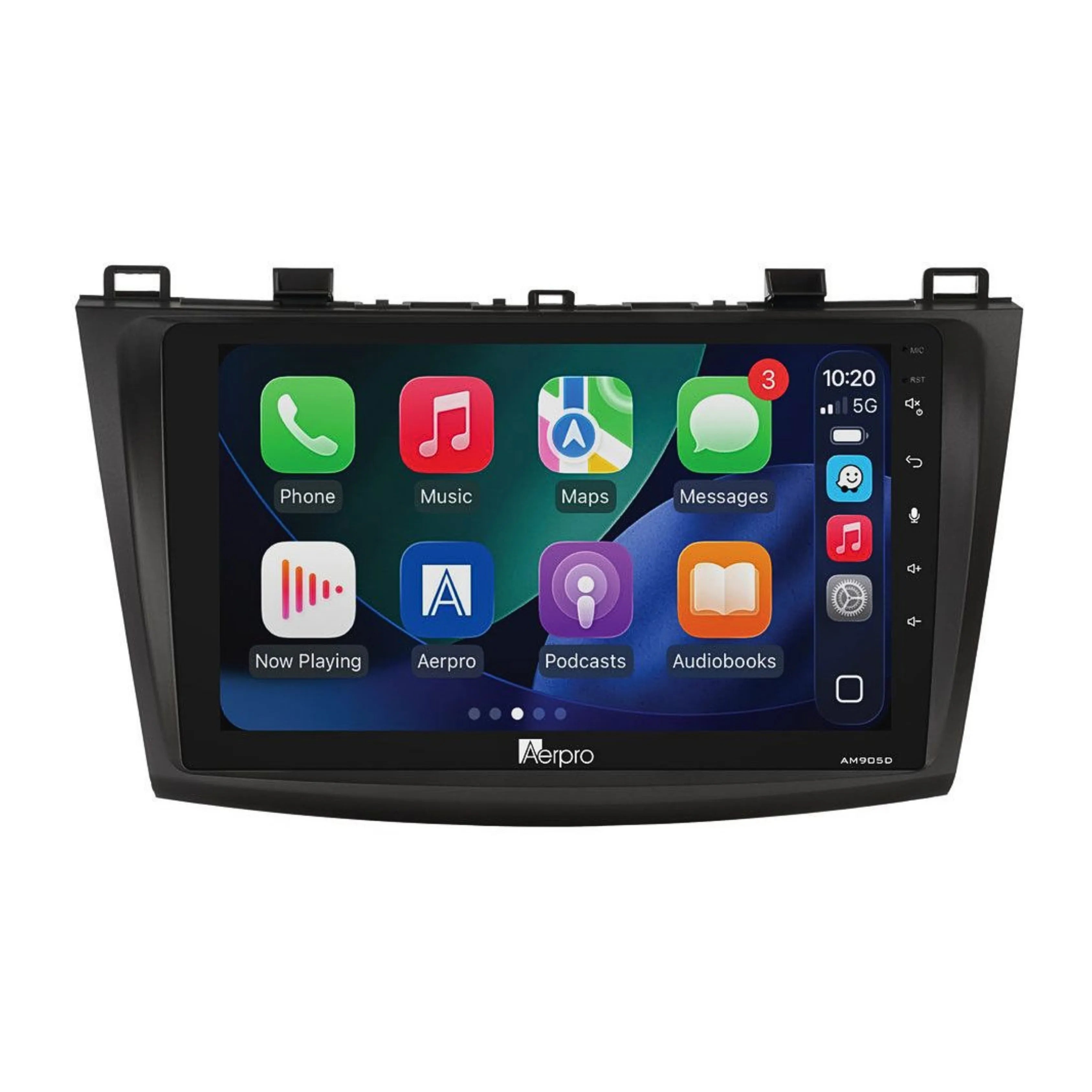

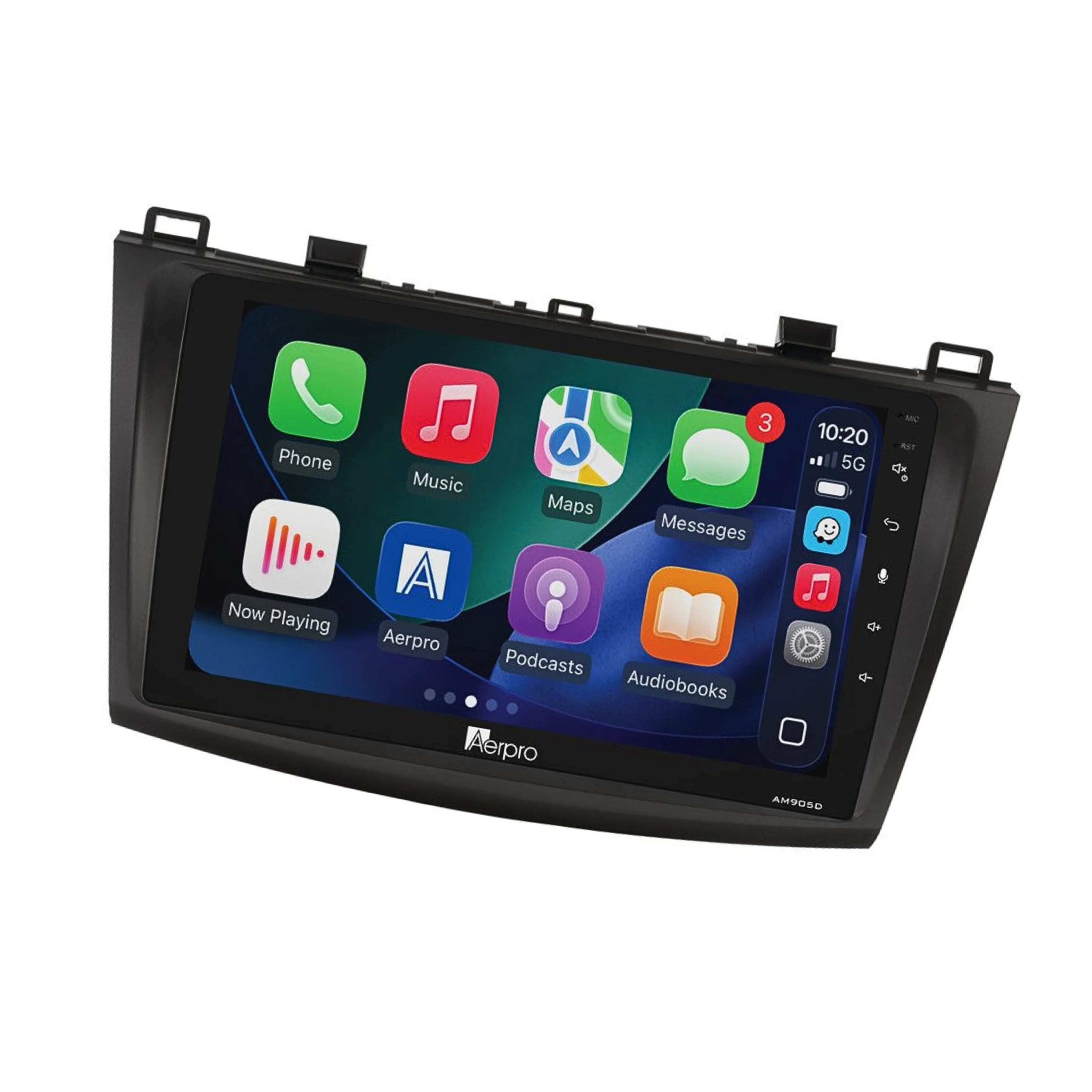

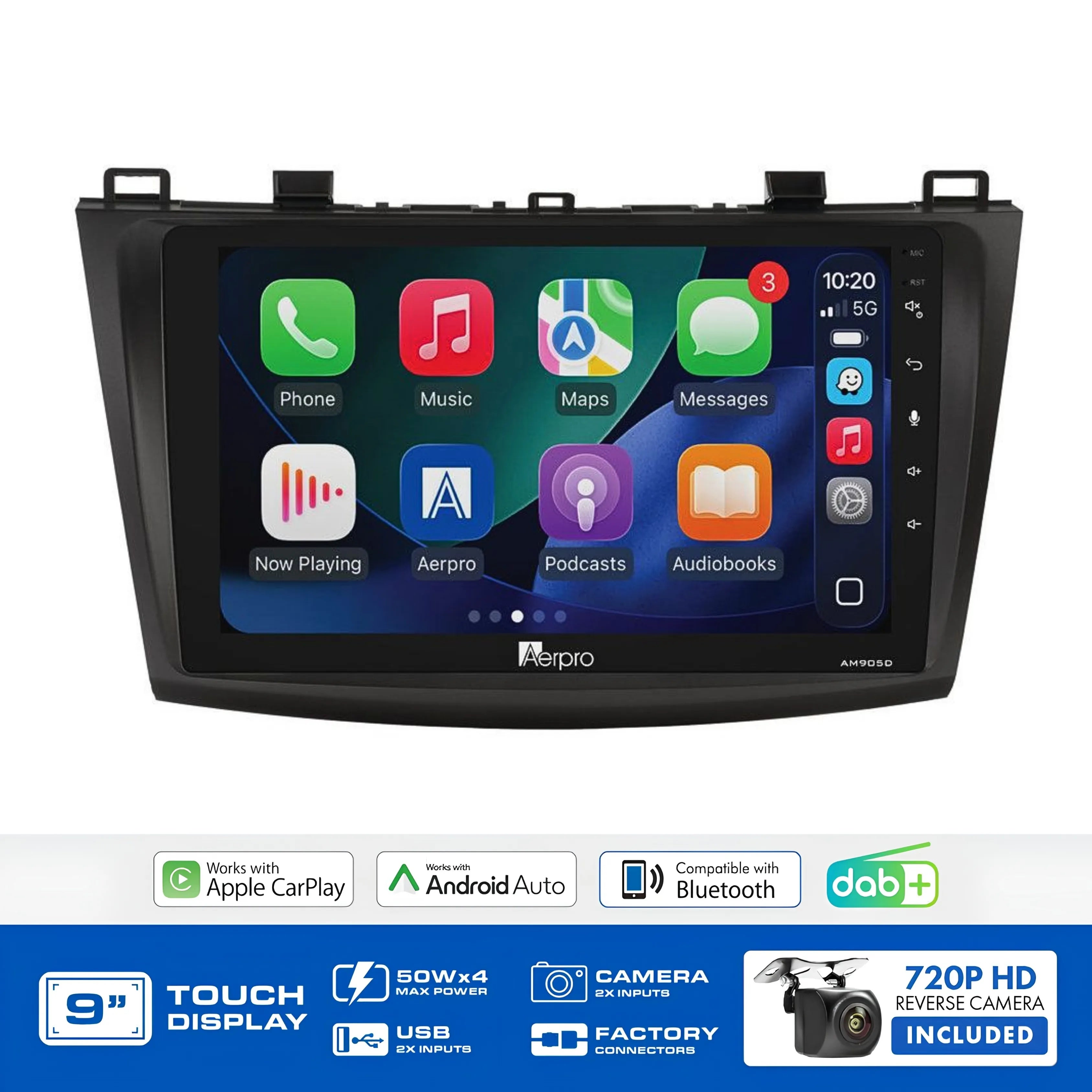

The kit adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to the 9" capacitive touchscreen, and retains factory steering wheel controls. The phone button is not supported, and vehicle menu access is not retained on this kit. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Features & Benefits

• Retains factory Bose amplified system — the defining advantage of this kit over the AMDMZ4; the factory Bose amplifier and speaker outputs are preserved, maintaining the Bose audio system's performance and character after the head unit upgrade
• SWC retained — phone button not supported — all factory steering wheel controls are retained via the SWC interface harness and patch lead, with the exception of the phone button which is not supported
• Bose-specific kit — not interchangeable with AMDMZ4 — using the AMDMZ4 (non-amplified) on a Bose BL would result in loss of audio through the Bose speakers; the AMDMZ5 is the correct kit for amplified variants
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory Mazda 3 BL Bose head unit with full touch control across navigation, media, and settings
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles without a factory reverse camera
• Black vehicle-specific facia kit — trim-matched for a clean factory-finish installation in the Mazda 3 BL
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier additions alongside the retained Bose system via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Compatible With / Goes Well With

• Mazda 3 BL (2009–2013) with factory Bose amplified audio system
• Not compatible with non-amplified Mazda 3 BL variants — use AMDMZ4 for those
• Not compatible with Mazda 3 BM (2013–2019) or BN (2016–2019) — different platforms requiring different kits
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDMZ5 differ from the AMDMZ4?

The AMDMZ5 is for Mazda 3 BL variants with the factory Bose amplified audio system; the AMDMZ4 is for non-amplified variants. The AMDMZ5 retains the factory Bose amplifier while the AMDMZ4 does not — the two kits are not interchangeable across amplified and non-amplified builds.

Will my factory Bose speakers still work after installation?

Yes — the AMDMZ5 retains the factory Bose amplifier, preserving audio output through the Bose speaker system. Using the non-amplified AMDMZ4 on a Bose-equipped BL would result in no sound through those speakers, which is why the correct kit selection matters.

Does the phone button on the steering wheel work after installation?

No — the phone button is specifically not supported by the AMDMZ5. All other factory steering wheel control functions are retained. If phone button support is a requirement, this kit is not suitable.

How do I know if my Mazda 3 BL has the factory Bose system?

Bose-equipped Mazda 3 BL models have "Bose" logos on the speaker grilles and typically came with the higher trim variants. The factory head unit may also display Bose branding. The Aerpro What Fits Your Car Guide can confirm which kit suits your specific build.

Is the vehicle menu accessible after installation?

No — vehicle menu access is not retained on the AMDMZ5. This differs from the AMDMZ4, which does retain vehicle menu access. If vehicle menu retention is important, confirm whether your BL is amplified or non-amplified, as only the non-amplified AMDMZ4 retains this function.
