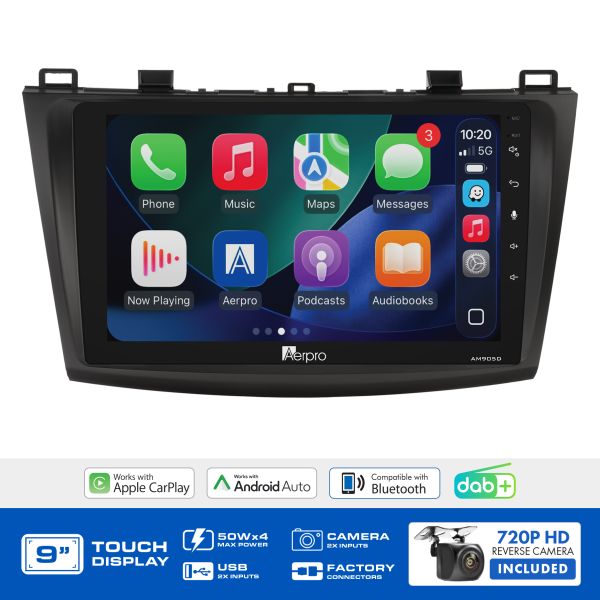

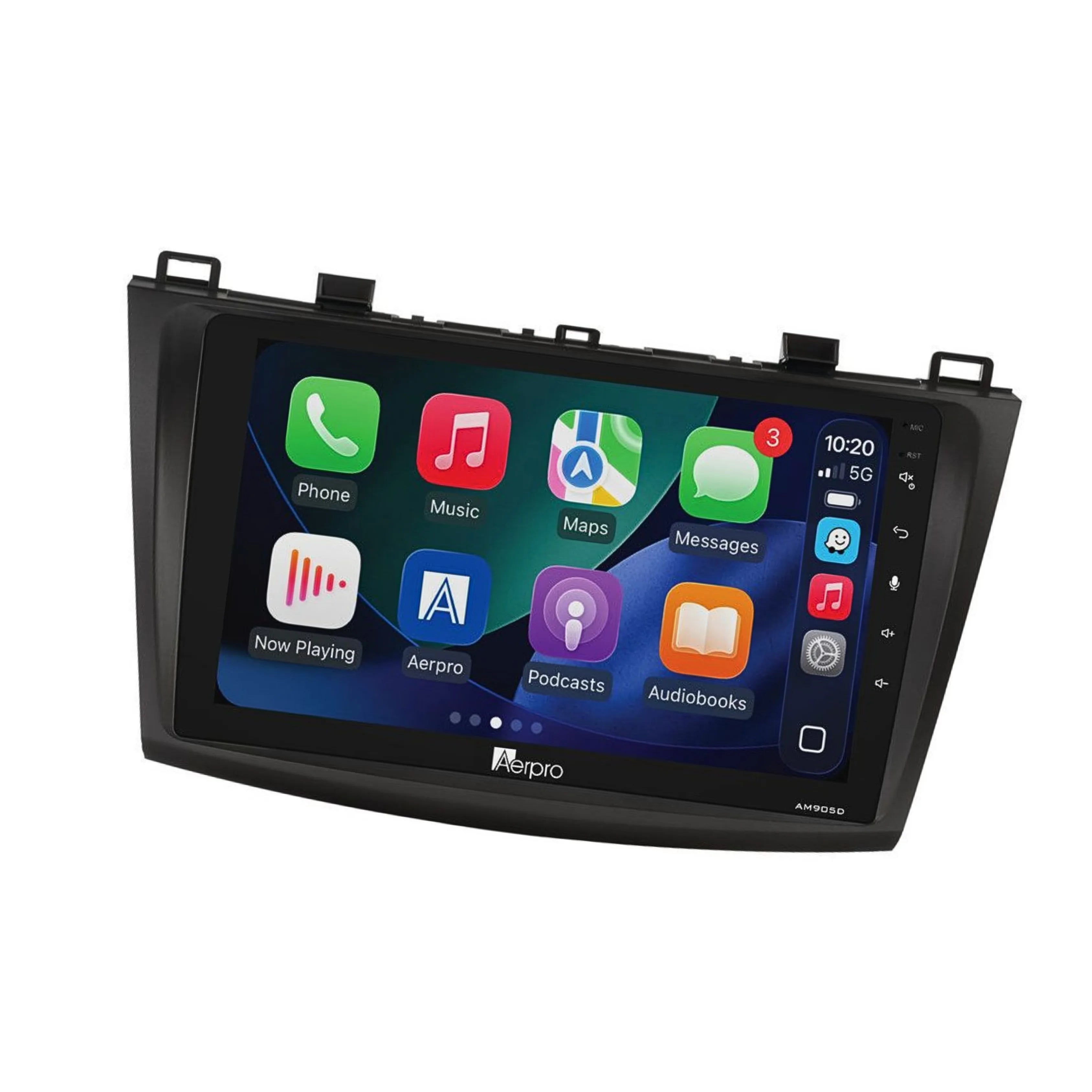

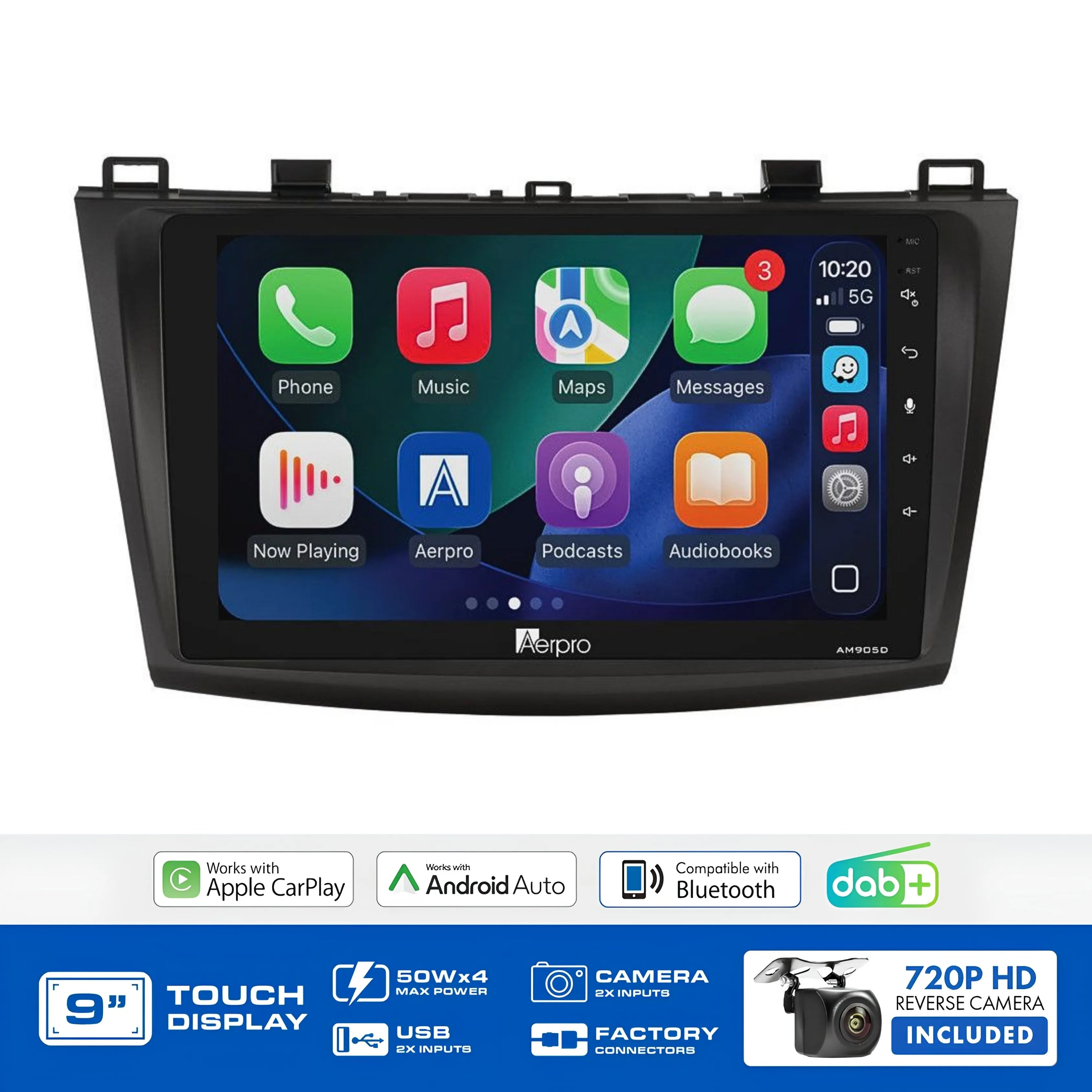

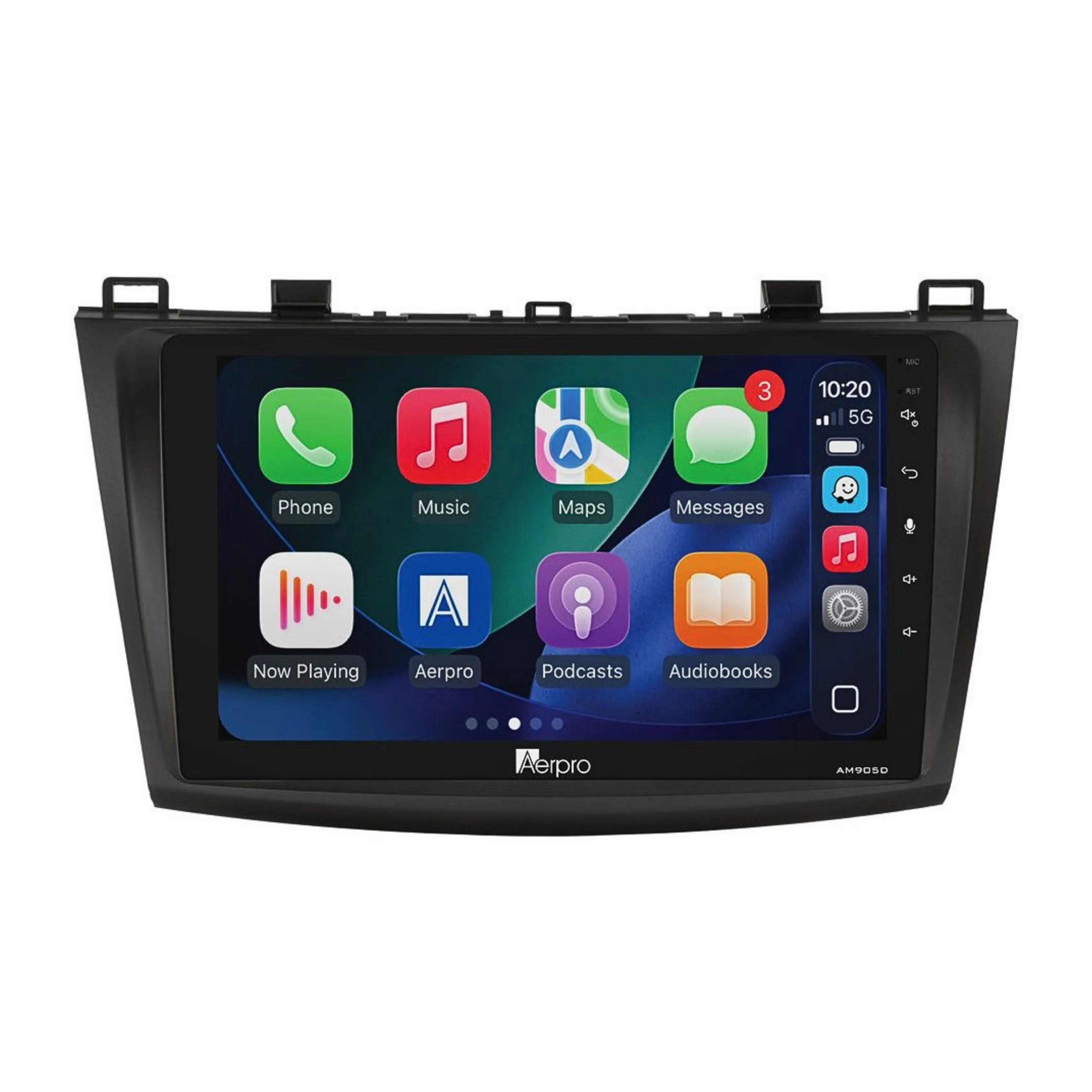

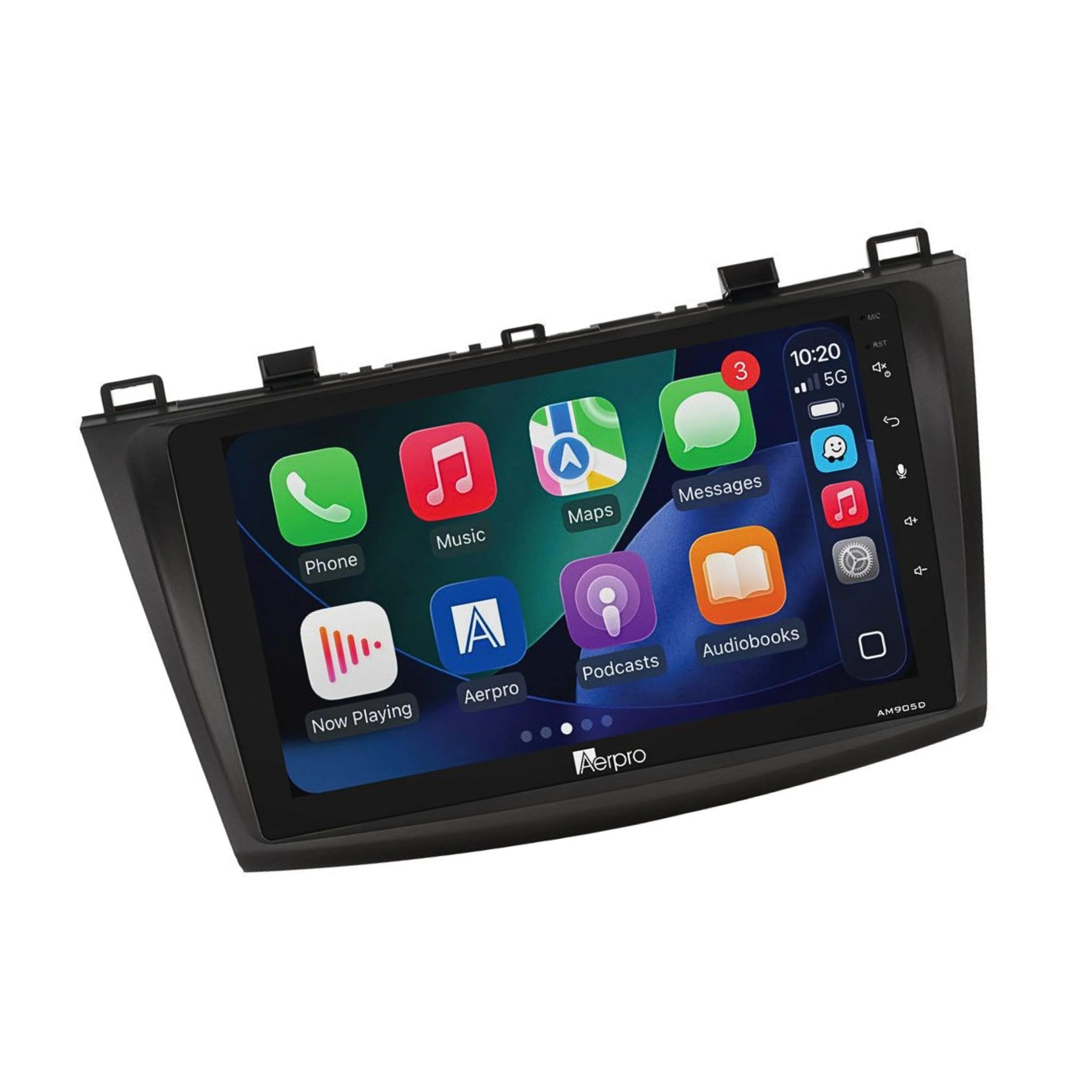

Aerpro AMDMZ4 9" Multimedia Receiver Mazda 3 BL 2009-2013 DAB+

SKU: AMDMZ4
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Clean 9" Wireless CarPlay Upgrade for the Mazda 3 BL SWC and Vehicle Menu Retained, No Dash Modification Required

Product Overview

The Aerpro AMDMZ4 is a complete head unit upgrade kit for the Mazda 3 BL (2009–2013) in non-amplified specification. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls and full vehicle menu access.

Compared to some Aerpro Mazda kits, the AMDMZ4 is a more straightforward installation: no dash modification is required, and vehicle menu access is fully retained without the top display complications seen on other platforms. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Note that the phone button on the steering wheel is not supported by this kit, all other SWC functions are retained. Factory reverse camera, USB input, and AUX input are not applicable or retained on this kit.

Features & Benefits

  • SWC retained — phone button not supported — all factory steering wheel controls carry over via the SWC interface harness and patch lead, with the exception of the phone button which is not supported by this kit
  • Vehicle menu fully retained — the Mazda 3 BL vehicle menu is accessible after installation without any additional relocation panels or displays required; a clean, complete retention
  • No dash modification required — unlike the Mazda BT-50 AMDMZ1, the AMDMZ4 installation does not require cutting or trimming the factory dash sub frame; a more straightforward fit for the BL platform
  • Non-amplified models only — factory-amplified Mazda 3 BL variants are not compatible with this kit
  • Black vehicle-specific facia kit — trim-matched to the Mazda 3 BL interior for a clean factory-finish installation
  • Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging
  • 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory Mazda 3 BL head unit with full touch control across navigation, media, and settings
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles without a factory reverse camera
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for Mazda 3 BL cabin-specific tuning

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes (phone button not supported)
Vehicle menu Yes
Factory reverse camera N/A
Factory USB input N/A
Factory AUX input N/A
Factory amplifier Not retained — non-amplified models only
Dash modification Not required
Park brake requirement Not required

Compatible With / Goes Well With

  • Mazda 3 BL (2009–2013) — non-amplified variants only
  • Not compatible with factory-amplified Mazda 3 BL variants
  • Not compatible with Mazda 3 BM (2013–2019) or BN (2016–2019) — different platforms requiring different kits
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Does the phone button on the Mazda 3 BL steering wheel work after installation?

No — the phone button is specifically not supported by the AMDMZ4. All other factory steering wheel control functions are retained. If phone button support is essential, this kit is not suitable for your build.

How do I know if my Mazda 3 BL is non-amplified?

A non-amplified Mazda 3 BL runs all speaker wiring directly from the factory head unit. A factory-amplified variant has a separate amplifier unit mounted elsewhere in the vehicle with its own speaker wiring. The Aerpro What Fits Your Car Guide can help confirm your specific build.

Is the vehicle menu fully accessible after installation?

Yes — the vehicle menu is fully retained on the AMDMZ4 without any display relocation or additional components. This is a clean, complete retention compared to some other Mazda kits where top display complications affect menu accessibility.

Does this suit later Mazda 3 models (BM or BN)?

No — the AMDMZ4 is designed for the Mazda 3 BL platform (2009–2013). The BM (2013–2019) and BN (2016–2019) generations are different platforms and require different kits.

Is there a factory reverse camera on the Mazda 3 BL to retain?

No — the Mazda 3 BL is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in the kit adds reversing visibility from scratch.
