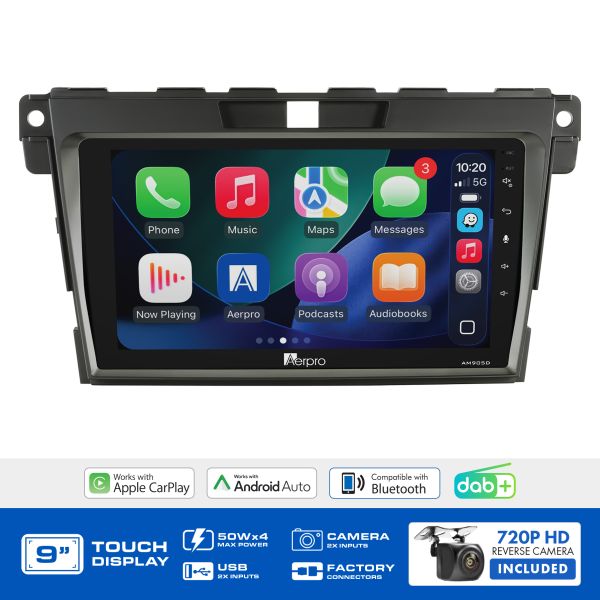

Aerpro AMDMZ21 9" Multimedia Receiver Mazda CX7 2009-2012 Amp

9" Wireless CarPlay for the Amplified Mazda CX7 ER Series 2 Factory Amp Retained, Line Level Converter Must Be Used

Product Overview

The Aerpro AMDMZ21 is the amplified counterpart to the AMDMZ20, designed specifically for the Mazda CX7 ER Series 2 (2009–2012) fitted with a factory amplified audio system. It retains the factory amplifier, steering wheel controls, and vehicle menu access while adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 via a 9" capacitive touchscreen at 1024x600 resolution.

Critical installation requirement: The SWC Interface Harness in this kit includes a line level converter. This converter MUST be connected during installation. Bypassing it or failing to use it correctly risks damage to the factory amplifier. Using the non-amplified AMDMZ20 on an amplified CX7 will also risk amplifier damage. Ensure the correct kit is ordered for your vehicle's specification.

The kit includes the AM905D multimedia receiver, matte black facia kit, SWC interface harness (with line level converter), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. The phone button on the steering wheel is not supported on this kit.

Features & Benefits

• Factory amplifier retained — the amplified CX7's audio system is preserved after installation; the line level converter in the SWC harness is what enables safe integration without damage to the amplifier
• Line level converter included and mandatory — the SWC Interface Harness contains a line level converter that must be used during installation; it converts the head unit output to a safe signal level for the factory amplifier input; bypassing it risks amplifier damage
• Amplified models only — using this kit on a non-amplified CX7 is not appropriate; non-amplified variants use the AMDMZ20 instead
• SWC retained — phone button not supported — all factory steering wheel controls carry over via the SWC harness, with the exception of the phone button which is not supported
• Vehicle menu retained — full vehicle menu access is preserved after installation
• Matte black vehicle-specific facia kit — consistent finish with the AMDMZ20 for the CX7 ER Series 2 platform
• Antenna adaptor included — ensures correct antenna connection for the CX7 platform
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory CX7 unit with full touch control across navigation, media, and settings
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the CX7
• 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained factory system

Technical Specs

Compatible With / Goes Well With

• Mazda CX7 ER Series 2 (2009–2012) — factory amplified variants only
• Not compatible with non-amplified CX7 ER Series 2 — use AMDMZ20 for those variants
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Why must the line level converter be used — what happens if it isn't?

The factory amplifier in the CX7 ER Series 2 is designed to receive a specific signal level at its input. The AM905D head unit outputs at a higher level than the factory amplifier expects. Without the line level converter (which steps the signal down to a safe level), the excess signal can overdrive and damage the factory amplifier. Using the AMDMZ20 (non-amplified kit) on an amplified CX7 has the same risk.

How does the AMDMZ21 differ from the AMDMZ20?

The AMDMZ21 is for factory-amplified CX7 variants; the AMDMZ20 is for non-amplified variants. The AMDMZ21 retains the factory amplifier using the line level converter integrated into the SWC harness. Both kits retain SWC (excluding phone button) and vehicle menu. Neither retains the factory reverse camera, USB, or AUX.

Does the phone button on the steering wheel work after installation?

No — the phone button is specifically not supported by the AMDMZ21. All other factory steering wheel control functions are retained. This applies to both the amplified AMDMZ21 and the non-amplified AMDMZ20.

How do I know if my CX7 ER Series 2 is amplified?

An amplified CX7 has a separate amplifier unit mounted in the vehicle (typically under a seat or in the boot) with dedicated speaker wiring running from it. If all speaker wiring runs directly from the factory head unit with no separate amplifier, the vehicle is non-amplified and the AMDMZ20 is the correct kit.

Is the factory amplifier fully retained and functional?

Yes — the factory amplifier and its speaker outputs are retained using the line level converter in the SWC harness. All factory speaker zones driven by the amplifier continue to operate normally after installation, provided the line level converter is correctly connected.
